Bently Nevada 330904-00-140-05-02-00 Maintenance-Ready Spare 3300 NSv

Bently Nevada 330904-00-140-05-02-00 Maintenance-Ready Spare 3300 NSv: Spare Replacement and Industrial Downtime Risk Control

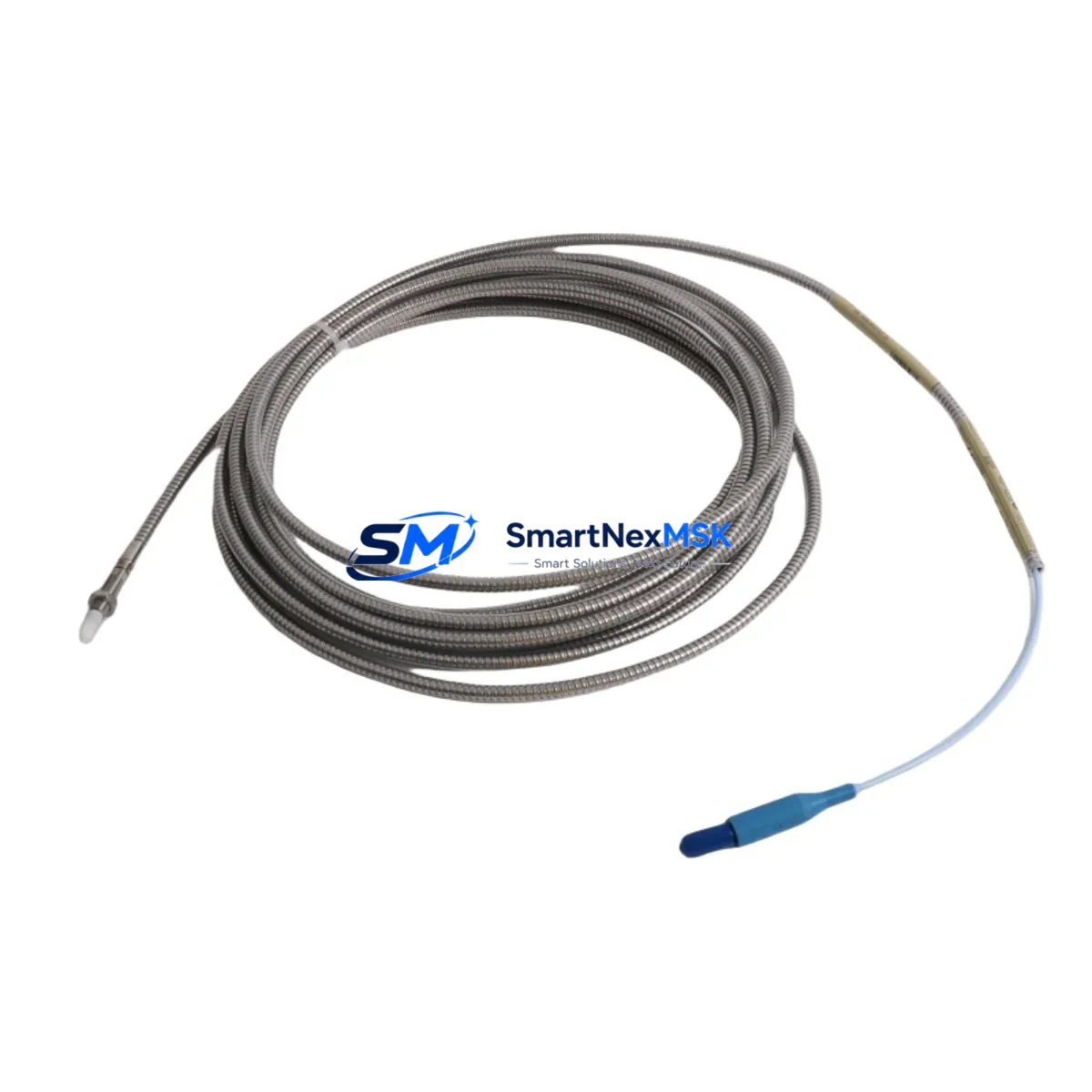

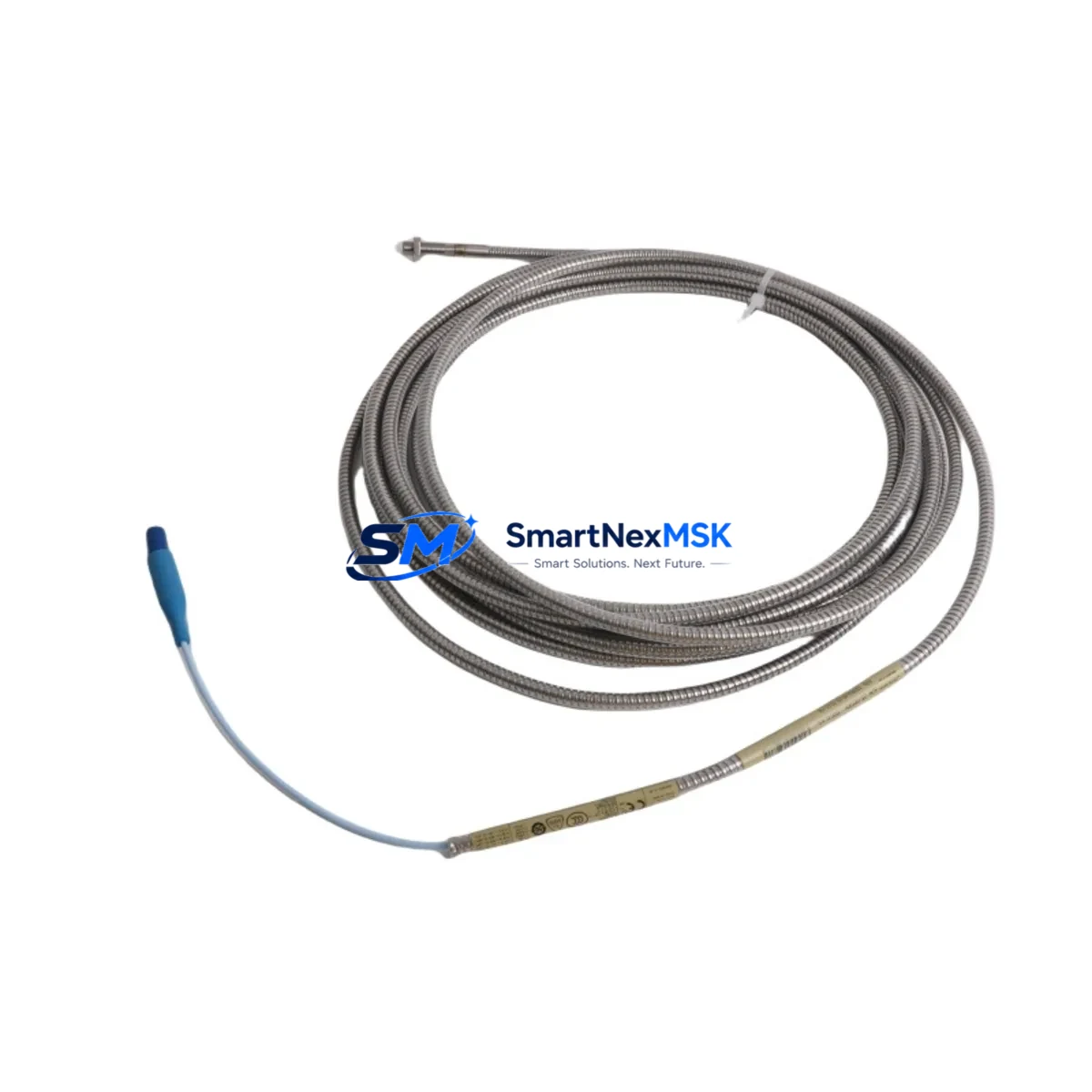

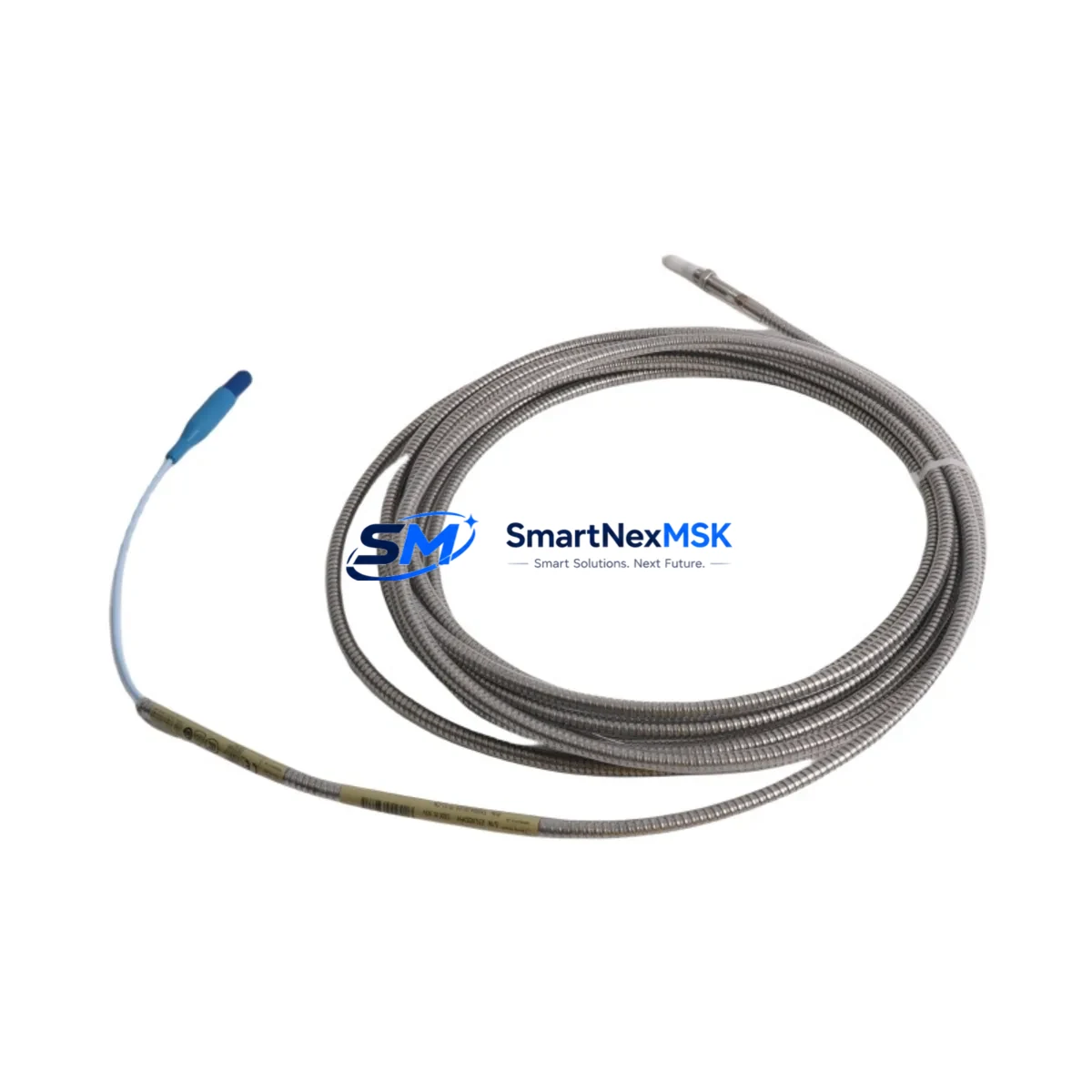

The Bently Nevada 330904-00-140-05-02-00 is an original eddy-current proximity probe engineered for the 3300 NSv vibration monitoring system. With a 140 mm armored extension cable, 5 mm probe tip, and a calibrated sensing range optimized for shaft displacement and radial vibration measurement, this probe is a critical component in rotating machinery protection systems across power generation, petrochemical, compressor, and turbine applications. Maintaining a verified spare of this probe in your parts inventory is a fundamental requirement for any maintenance program that prioritizes uptime and rapid fault recovery.

For maintenance engineers managing continuous-duty rotating equipment, the 330904-00-140-05-02-00 is not simply a sensor — it is the front-line detection element for shaft orbit analysis, gap voltage monitoring, and vibration alarm triggering. When this probe degrades or fails, the entire protection loop is compromised. Procurement engineers sourcing this part should confirm full compatibility with the 3300 NSv signal conditioner and the associated Bently Nevada 3300 XL proximitor before committing to a replacement order. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330904-00-140-05-02-00 during a planned or emergency maintenance window, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure the protection system is fully restored. Maintenance engineers should begin by verifying the 3300 XL NSv proximitor module (330180-51-05) — the signal conditioner paired with this probe. A degraded proximitor can produce erratic gap voltage readings even with a new probe installed, leading to false alarms or missed vibration events.

Next, inspect the interconnect extension cable (330130-080-00-00) that links the probe to the proximitor. Cable jacket damage, connector corrosion, or shield continuity loss are common failure modes in high-vibration environments and should be checked with a continuity tester before the new probe is commissioned. The 3300 rack power supply module supplying -24 VDC to the proximitor should also be load-tested; a sagging supply rail will shift the probe’s operating point and invalidate calibration.

Within the same control cabinet, procurement engineers should maintain spares for the 3300 series I/O terminal block assemblies and Bently Nevada 3500/22M transient data interface if the system is integrated into a 3500 rack for machinery management. For plants running legacy 3300 racks alongside newer 3500 systems, the 3500/42M proximitor I/O module is a common companion spare. Relay output modules — particularly the 3300/16 relay module — should be tested for contact integrity, as vibration alarm relay contacts are subject to wear in high-cycle trip scenarios.

Communication integrity between the 3300 rack and the plant DCS or historian should be verified via the 3300 system monitor module or the associated Modbus/RS-485 gateway. If the plant uses a Bently Nevada System 1 Evolution software platform for online machinery diagnostics, confirm that the probe replacement does not require a channel reconfiguration in the software database. Finally, review the junction box terminal strips and field wiring for signs of moisture ingress, loose terminations, or insulation breakdown — conditions that frequently accompany probe failures in outdoor or high-humidity installations.

Site Replacement Workflow

Replacing the 330904-00-140-05-02-00 on-site follows a structured sequence to minimize downtime and maintain system integrity. Begin with a gap voltage baseline check on the existing probe using a digital voltmeter at the proximitor output terminals — a reading outside the -10 to -18 VDC window (at nominal gap) confirms probe or cable degradation. Power down the proximitor channel before disconnecting the probe connector to avoid transient voltage spikes on the signal line.

Install the replacement probe and set the mechanical gap to the manufacturer-specified nominal value (typically 1.0 – 1.5 mm for most steel shaft applications) using a non-ferrous feeler gauge. Reconnect the extension cable and restore power to the proximitor. Verify the output gap voltage falls within the linear range and matches the pre-failure baseline recorded in the maintenance log. If the system uses a Bently Nevada 3300 rack monitor with configurable alert and danger setpoints, confirm that the setpoints have not been inadvertently reset during the channel power cycle.

For older installations where the 330904-00-140-05-02-00 is replacing an end-of-life or discontinued probe variant, confirm that the replacement probe’s sensitivity coefficient (7.87 V/mm) matches the proximitor’s configured scale factor. Mismatched sensitivity will cause systematic measurement error across the full vibration range. Document the replacement in the equipment maintenance record, including the new probe serial number, installation gap, and post-installation gap voltage, to support future predictive maintenance trending.

Spare Parts Support FAQ

Q1: Is the 330904-00-140-05-02-00 compatible with both 3300 NSv and 3300 XL NSv proximitor modules?
Yes. The 330904-00-140-05-02-00 is designed for the 3300 NSv system and is fully compatible with the 3300 XL NSv proximitor (330180-51-05). Always confirm the proximitor model number on the rack label before ordering to ensure the sensitivity and linear range specifications align with your installed system configuration.

Q2: What is the recommended spare parts inventory strategy for this probe?
For critical rotating machinery (compressors, turbines, pumps), industry best practice recommends holding a minimum of one spare probe per monitored shaft, plus one spare proximitor module per rack. For plants with extended lead times or remote locations, a two-unit buffer per measurement plane is advisable. SMARTNEXMSK supports blanket order arrangements for customers requiring scheduled replenishment.

Q3: How does SMARTNEXMSK verify the probe before shipment?
Each 330904-00-140-05-02-00 unit undergoes a pre-shipment inspection that includes gap voltage output verification at nominal gap, sensitivity measurement against the 7.87 V/mm specification, insulation resistance testing on the cable assembly, and visual inspection of the connector and probe tip. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: Can this probe replace older Bently Nevada 3300 series proximity probe variants?
In most cases, yes — provided the replacement probe shares the same tip diameter (5 mm), cable length (140 mm extension), and sensitivity specification. However, always cross-reference the full part number and consult the 3300 NSv system documentation before substituting. SMARTNEXMSK technical support can assist with compatibility verification prior to order confirmation.
