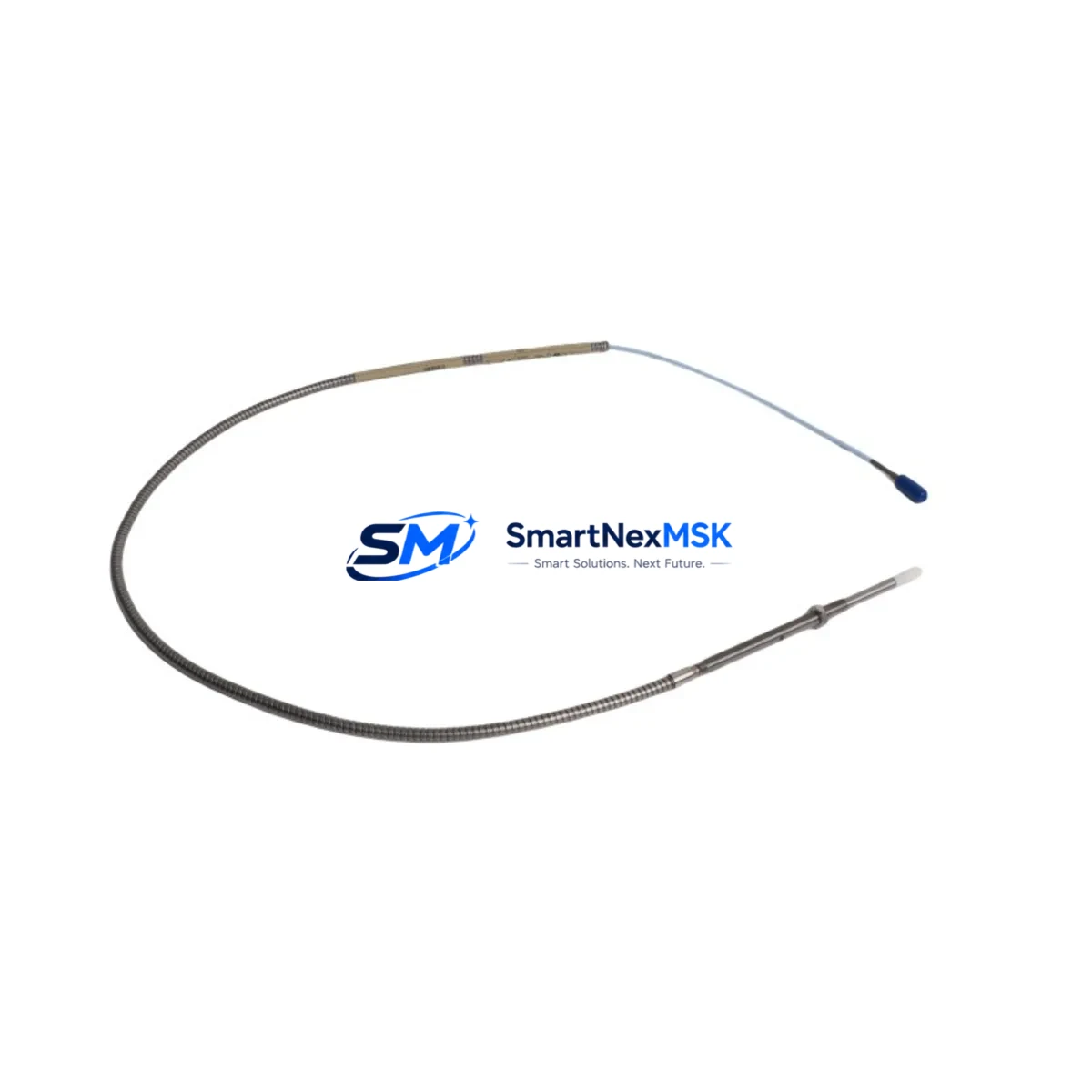

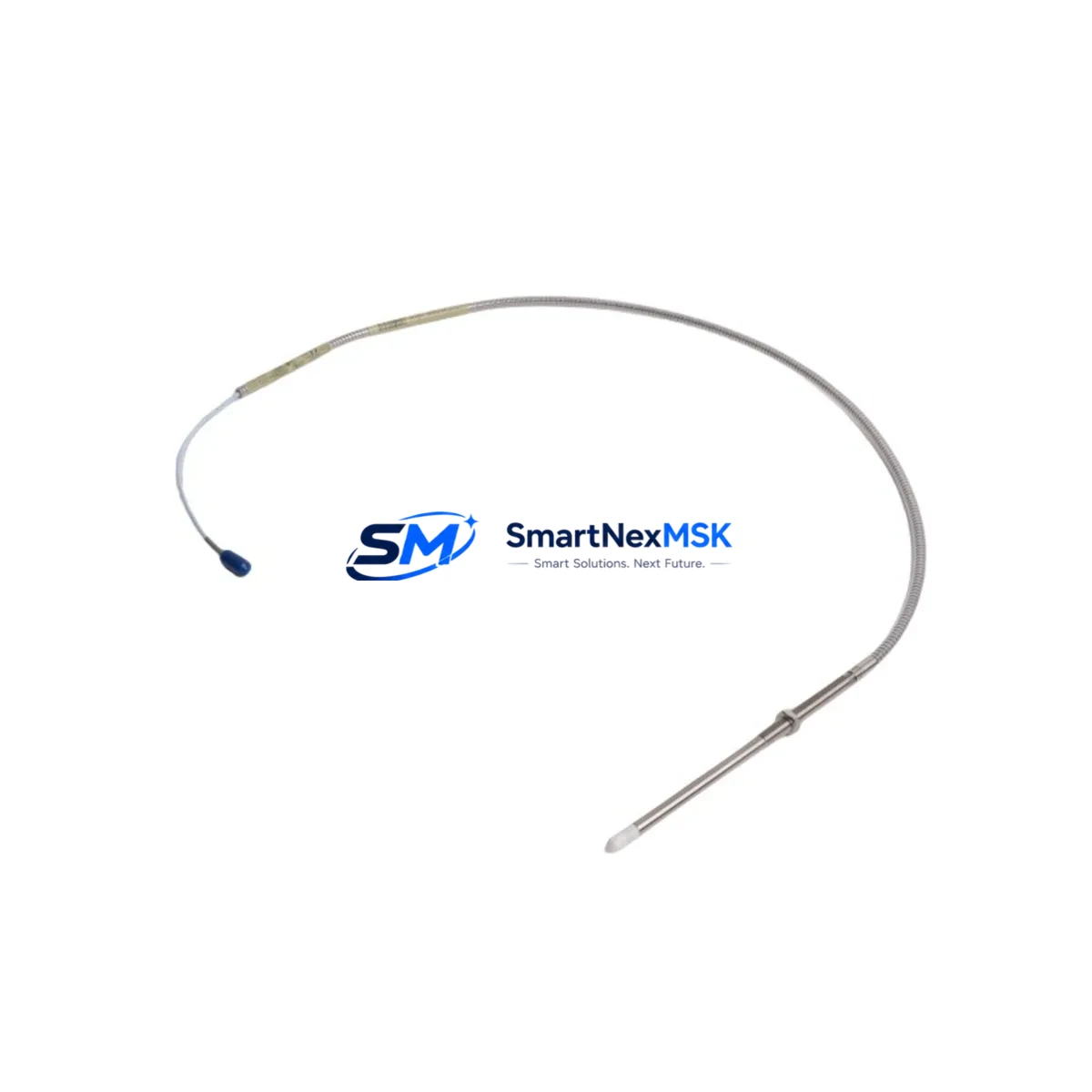

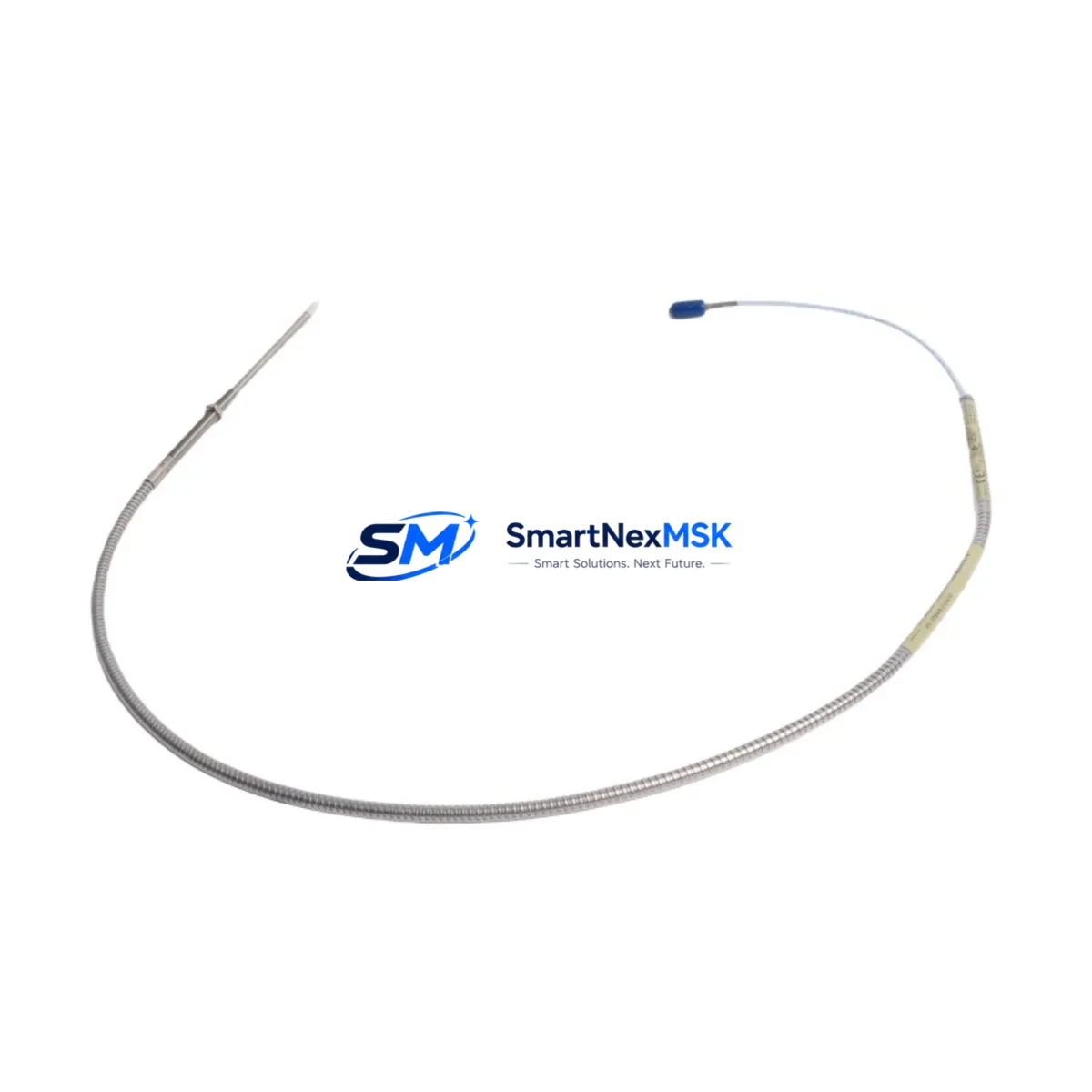

Bently Nevada 330904-00-16-05-02-00 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems
The Bently Nevada 330904-00-16-05-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 NSv Series vibration monitoring platform. As legacy machinery protection systems age and OEM support windows close, this probe serves as a verified drop-in replacement for facilities managing rotating equipment — turbines, compressors, pumps, and gearboxes — where continuous vibration monitoring is non-negotiable. Whether you are executing a planned control system upgrade or responding to an unplanned failure of a discontinued sensor, the 330904-00-16-05-02-00 delivers the signal fidelity and dimensional compatibility required to restore full monitoring capability with minimal downtime.
Upgrade Compatibility Table
| Parameter | 330904-00-16-05-02-00 (This Unit) | Notes |
|---|---|---|
| Probe Diameter | 8mm | Standard NSv series form factor |
| Cable Length | 5m (extension + probe) | Verify total system cable length with driver |
| Driver Compatibility | 3300 XL 8mm Driver (330180-91-00) | Confirm driver firmware revision |
| Mounting Thread | M10 x 1.0 | Check bracket thread condition before installation |
| Output Signal | -18 VDC nominal at 1.0 mm gap | Calibrate gap voltage after installation |
| Communication | Analog (4–20 mA / voltage) | Compatible with 3500 rack via signal conditioner |
| Replacement Path | Direct drop-in for 330904 series | No firmware change required |
| Warranty | 12 Months | Covers manufacturing defects; includes test report |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330904-00-16-05-02-00 into an existing machinery protection architecture requires a structured pre-installation review. Begin by auditing the 3300 NSv rack configuration: confirm the installed driver module — typically a 330180-91-00 8mm driver — is seated correctly in the 3300 rack and that the rack’s power supply module is delivering stable ±24 VDC. A failing power supply module is a common root cause of false probe alarms and should be inspected or replaced concurrently.
Next, verify the extension cable assembly. The 330904 probe ships with a matched extension cable; however, field installations often use a 330130-080-00-00 or 330130-045-00-00 extension cable to reach the driver. Confirm total system cable length does not exceed the driver’s rated range, as excess cable capacitance degrades the eddy-current signal. Inspect all BNC connectors and armored cable jackets for corrosion or mechanical damage — particularly in high-vibration or high-temperature environments.
At the terminal block level, document the existing wiring before disconnection. The probe’s coaxial cable connects to the driver’s input terminals; polarity and shield grounding must be maintained exactly as specified in the 3300 NSv System Installation Manual. If the control cabinet also houses a 3500/42M Proximitor I/O Module or a 3500/25 Enhanced Keyphasor Module, confirm that the channel assignments and OK relay logic are preserved after the probe swap.
For facilities running a Bently Nevada System 1 condition monitoring software platform, update the probe configuration in the database after replacement. The transducer scale factor (mV/mil or mV/mm) must match the new probe’s calibration certificate. If the HMI displays — whether a dedicated operator workstation or a DCS faceplate integrated via Modbus or OPC-DA — show gap voltage or vibration amplitude, recalibrate the display scaling to reflect the new probe’s output curve. This prevents nuisance trips during the first hours of operation.
Where the existing system uses a 3300/16 or 3300/20 monitor module, verify that the OK setpoint thresholds are compatible with the replacement probe’s gap voltage range. Some older monitor revisions require a firmware update or jumper reconfiguration when switching between probe generations. Consult the monitor’s revision history before proceeding.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging. Before taking the machine offline, bench-test the 330904-00-16-05-02-00 against a calibrated driver to confirm the probe’s gap voltage curve matches the calibration certificate supplied with the unit. This eliminates the risk of installing a defective component and discovering the fault only after the machine is back online.
During the swap, place the affected monitor channel in bypass mode — using the 3300 rack’s front-panel bypass switch or via System 1 software — to prevent a spurious machine trip while the probe is disconnected. Document the original gap measurement (typically 1.0 mm ± 0.1 mm for 8mm probes) and replicate it precisely on the new probe using a non-ferrous feeler gauge. Restore the channel from bypass only after confirming a stable OK voltage and a clean vibration waveform on the monitor’s front-panel display or the System 1 trend screen.
For critical machines where even a brief bypass is unacceptable, consider a hot-standby approach: install a second probe in an adjacent available port on the same journal bearing, verify its signal, then remove the failed probe. This technique is particularly effective on large steam turbines or centrifugal compressors where the 3500 rack supports redundant channel configurations. Throughout the process, maintain a written log of all gap voltages, OK relay states, and alarm setpoints — this record supports post-maintenance verification and satisfies most plant reliability audit requirements.
Retrofit Support FAQ
Q1: Is the 330904-00-16-05-02-00 a direct replacement for all 330904 suffix variants?
The 330904-00-16-05-02-00 is dimensionally and electrically compatible with most 330904 series probes sharing the same cable length and connector configuration. However, suffix codes encode cable length and connector type, so always cross-reference the full part number before ordering. Our technical team can confirm compatibility for your specific suffix combination.
Q2: What pre-shipment testing is performed on this unit?
Each 330904-00-16-05-02-00 is bench-tested against a calibrated 330180-series driver prior to shipment. A test report confirming gap voltage linearity, OK relay function, and insulation resistance is included with every unit. The 12-month warranty covers manufacturing defects identified during installation or operation.
Q3: Can this probe be used with a Bently Nevada 3500 rack instead of the 3300 NSv?
Yes, with the appropriate signal conditioner or I/O module. The 3500/42M Proximitor I/O Module accepts the probe’s analog output when configured for the correct transducer scale factor. Confirm the 3500 rack’s channel configuration and OK setpoint thresholds before installation.
Q4: What is the lead time and warranty coverage?
In-stock units ship within 1–3 business days. The 330904-00-16-05-02-00 carries a 12-month warranty from the date of shipment, covering manufacturing defects. Expedited shipping is available for emergency breakdown situations.
