Bently Nevada 330904-00-17-05-02-00 Spare 3300 NSv Automation

Bently Nevada 330904-00-17-05-02-00 Maintenance-Ready Spare for 3300 NSv Automation

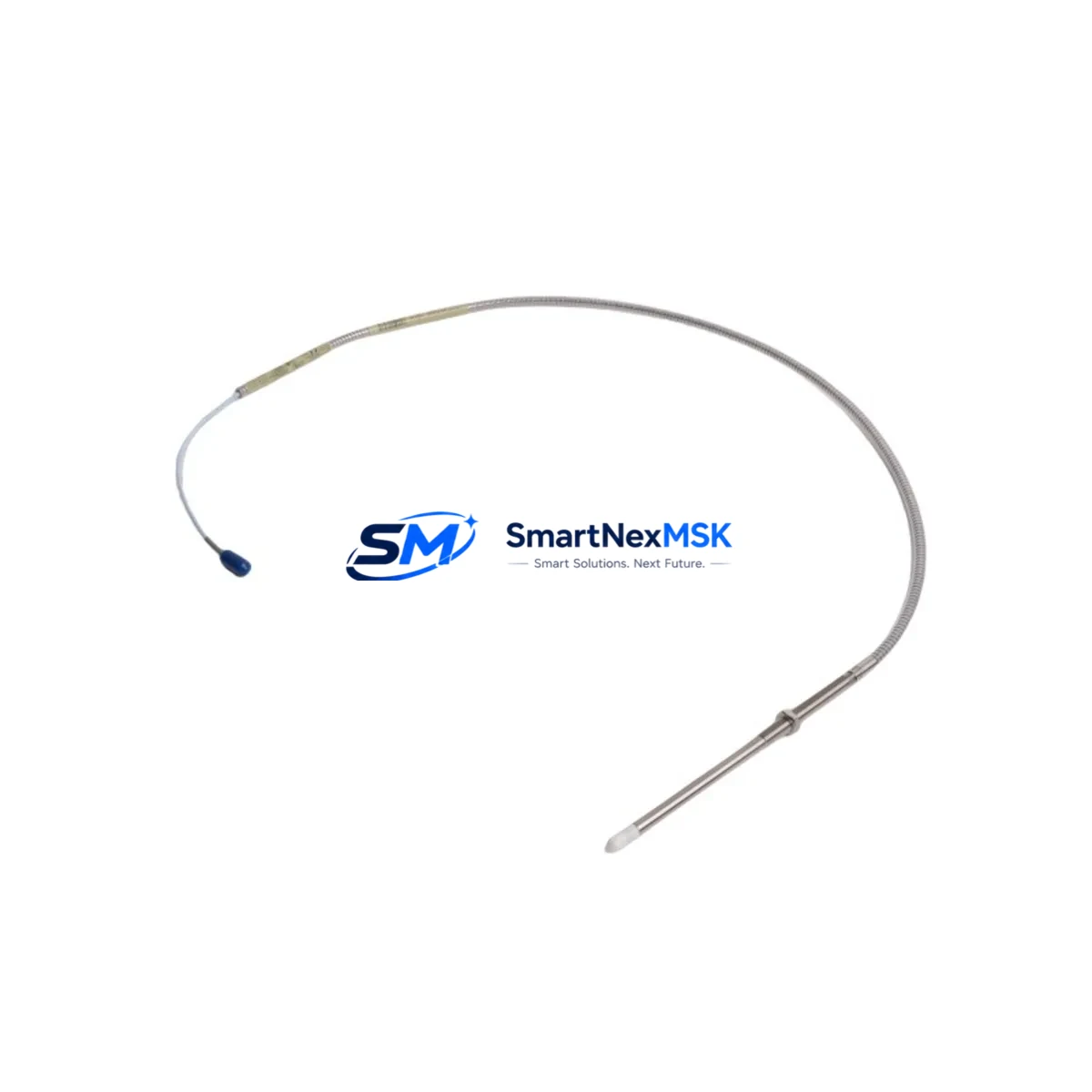

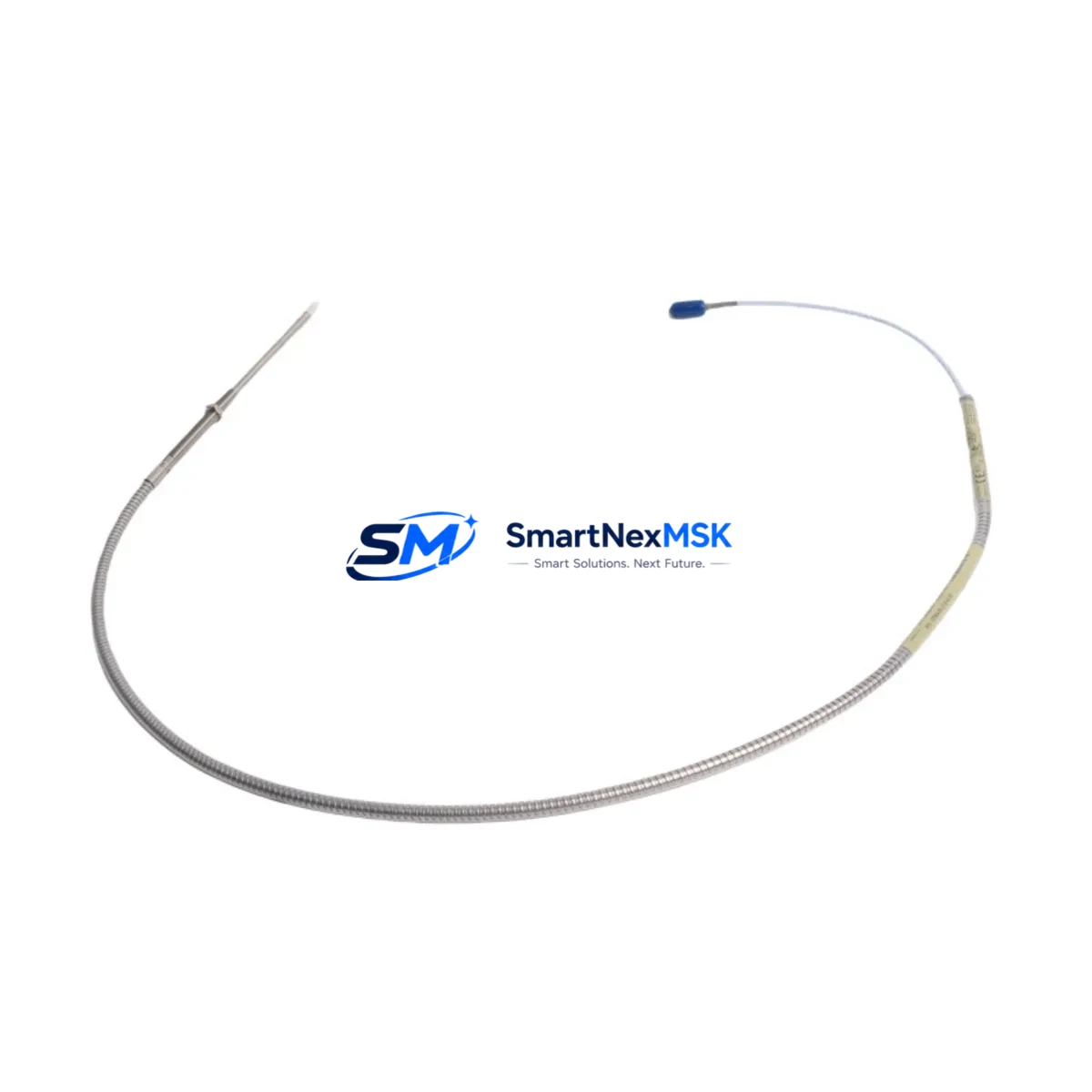

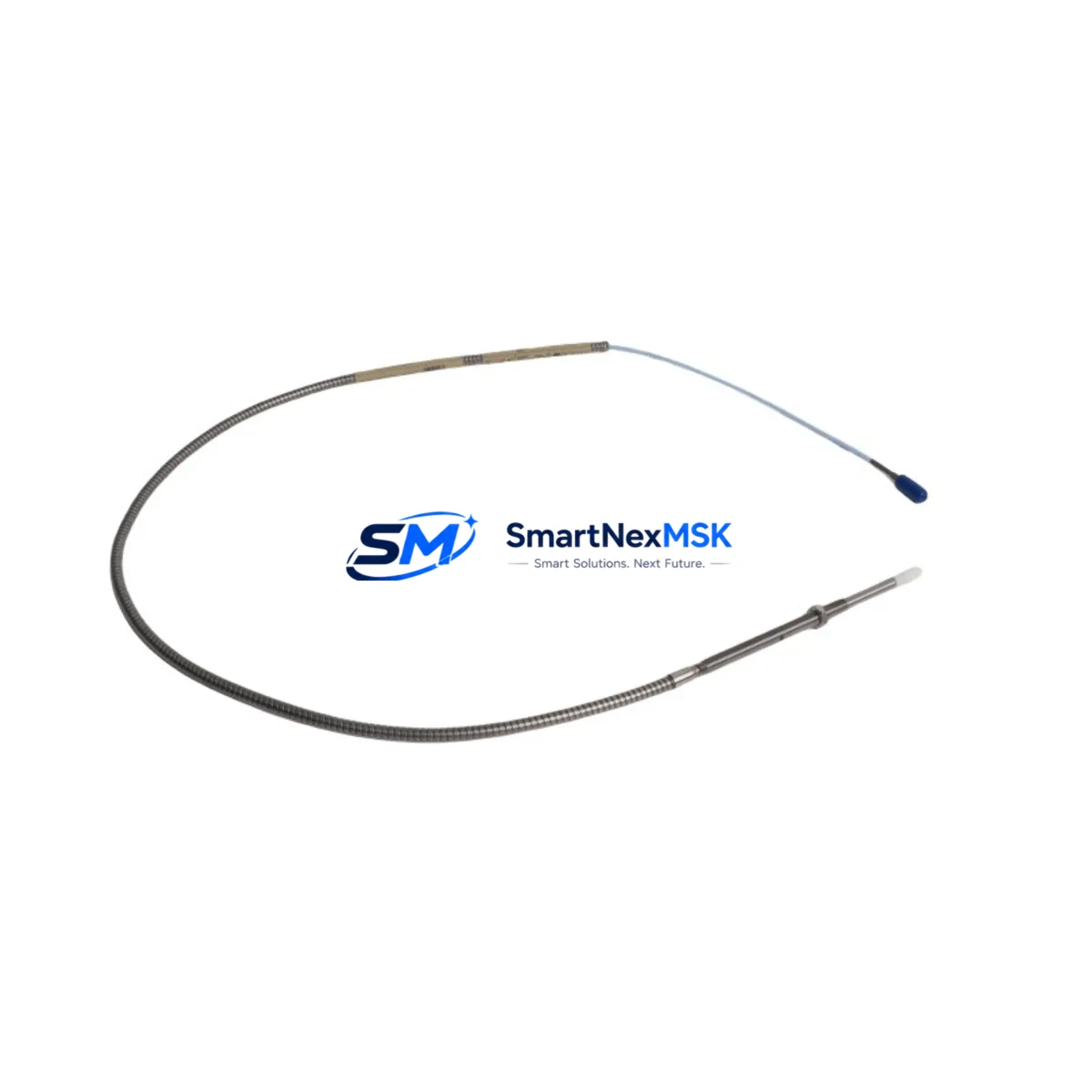

The Bently Nevada 330904-00-17-05-02-00 is an original eddy-current proximity probe engineered for the 3300 NSv Series vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a critical front-line sensor responsible for shaft displacement and vibration measurement. When this component fails or degrades, the entire machinery protection loop is compromised, triggering unplanned shutdowns and costly downtime. Stocking a verified replacement spare is the most effective strategy for rapid recovery and continuous operation.

This unit ships tested and verified, backed by a 12-month warranty, and is sourced to meet the original Bently Nevada specification. Whether you are executing a planned turnaround, responding to an emergency trip, or building out your critical spare inventory, the 330904-00-17-05-02-00 is a direct, drop-in replacement that restores system integrity without reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 330904-00-17-05-02-00 proximity probe, the inspection scope should extend beyond the probe itself. The 3300 NSv system is a tightly integrated measurement chain, and degradation in any adjacent component can mask or amplify the fault signal.

Begin with the 330130 extension cable — the interconnect between the probe and the driver. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown, particularly in high-vibration or high-temperature zones. A worn extension cable will introduce signal noise that mimics probe failure. Inspect and replace as a matched set where possible.

The 3300 XL 8mm driver module (or equivalent NSv driver) should be bench-tested for output voltage and sensitivity factor. A driver that has drifted from its -18 VDC nominal output will produce inaccurate displacement readings even with a new probe installed. Keep at least one spare driver in your critical spare kit alongside the probe.

At the monitor level, verify the 3300 NSv monitor card input channel for correct OK/Not OK threshold settings and that the channel has not latched a fault state. In multi-channel cabinets, inspect adjacent I/O cards and the backplane connector for oxidation or loose seating — a common cause of intermittent channel faults in older installations.

Power supply integrity is equally important. The 3300 NSv power supply module should be checked for output ripple and voltage stability under load. An unstable supply rail will corrupt the eddy-current signal across all connected probes simultaneously. If your system uses a redundant power supply pair, confirm both units are healthy and the changeover relay is functional.

For systems with Keyphasor probes (such as the 330980 series) sharing the same control cabinet, verify that the Keyphasor signal is clean and phase-referenced correctly — a degraded Keyphasor will affect all dynamic measurements derived from shaft speed. Similarly, if the machine train includes thrust position probes (e.g., 330106 or 330175 series), inspect those channels during the same maintenance window to avoid a return visit.

In facilities running legacy Bently Nevada systems alongside newer DCS or safety instrumented systems, confirm that signal isolators or barriers between the 3300 NSv output and the DCS analog input card are functioning within specification. A failed isolator can introduce ground loops that corrupt vibration data at the historian level without triggering a monitor alarm.

Finally, document the as-found and as-left gap measurements for the 330904-00-17-05-02-00 installation. This data supports trend analysis, helps identify bearing wear patterns, and provides evidence for insurance and compliance audits. Pair this with a review of your terminal block and field wiring condition inside the junction box — loose terminations are a leading cause of intermittent probe faults in outdoor or high-vibration installations.

Site Replacement Workflow

Step 1 — Verify compatibility. Confirm the replacement 330904-00-17-05-02-00 matches the installed probe’s length, cable length, and connector type. Cross-reference the SKU segments: “-17-” = 17-inch probe body, “-05-” = 5-meter cable, “-02-” = 2-pin connector. Mismatched cable length will prevent correct gap setting.

Step 2 — Isolate the channel. Place the 3300 NSv monitor channel in bypass or inhibit mode before disconnecting the probe. This prevents a spurious trip signal from propagating to the safety system or DCS during the swap.

Step 3 — Remove and inspect. Disconnect the extension cable at the probe end. Inspect the probe tip for mechanical damage, contamination, or corrosion. Inspect the extension cable connector for pin damage or moisture ingress. Record the as-found gap measurement.

Step 4 — Install the replacement. Thread the new 330904-00-17-05-02-00 into the probe holder. Set the gap to the OEM-specified value (typically 1.0 mm ± 0.05 mm for 8mm probes — confirm against your machine-specific documentation). Reconnect the extension cable and verify the driver output voltage is within the OK range.

Step 5 — Restore and verify. Remove the channel inhibit. Confirm the monitor displays an OK status and that the vibration reading is within the expected baseline range. Log the as-left gap and output voltage. Update your CMMS spare parts record.

Step 6 — Replenish your spare. Immediately reorder a replacement 330904-00-17-05-02-00 to restore your critical spare inventory. Lead times for original Bently Nevada components can vary — maintaining at least one spare on the shelf eliminates the risk of extended downtime on the next event.

Spare Parts Support FAQ

Q: Is the 330904-00-17-05-02-00 compatible with both the 3300 NSv and older 3300 XL monitors?
A: The 330904 series probes are designed for the 3300 NSv system. Compatibility with 3300 XL monitors depends on the driver module version and sensitivity factor configuration. We recommend confirming the driver part number before installation. Contact our technical team for cross-reference support.

Q: How is the unit tested before shipment?
A: Each 330904-00-17-05-02-00 unit undergoes electrical continuity verification, output voltage check at nominal gap, and visual inspection for mechanical integrity. A test report is available upon request. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q: What is your lead time and inventory policy for this part?
A: We maintain stock of high-demand Bently Nevada 3300 NSv components to support emergency and planned maintenance requirements. Standard orders ship within 1–3 business days. For critical shutdown situations, contact us directly for expedited processing.

Q: Can this probe replace an older discontinued Bently Nevada part number?
A: The 330904-00-17-05-02-00 may serve as a direct or functional replacement for certain legacy probe part numbers with matching physical dimensions and connector type. Provide your existing part number and we will confirm compatibility before shipment to avoid installation issues.
