Bently Nevada 330904-00-21-50-02-00 Spare 3300 XL Automation: Precision Spare Parts Replacement for Industrial Downtime Control

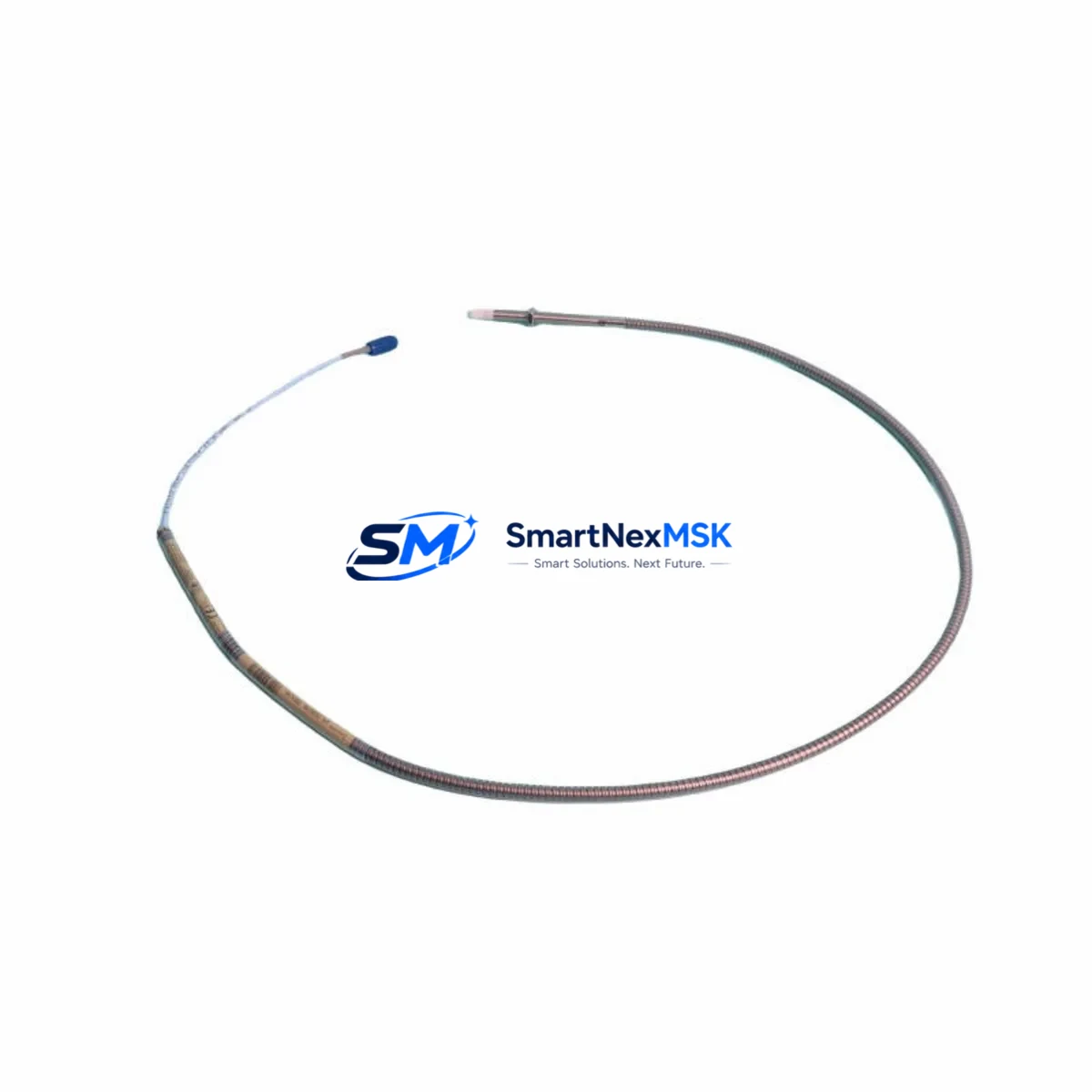

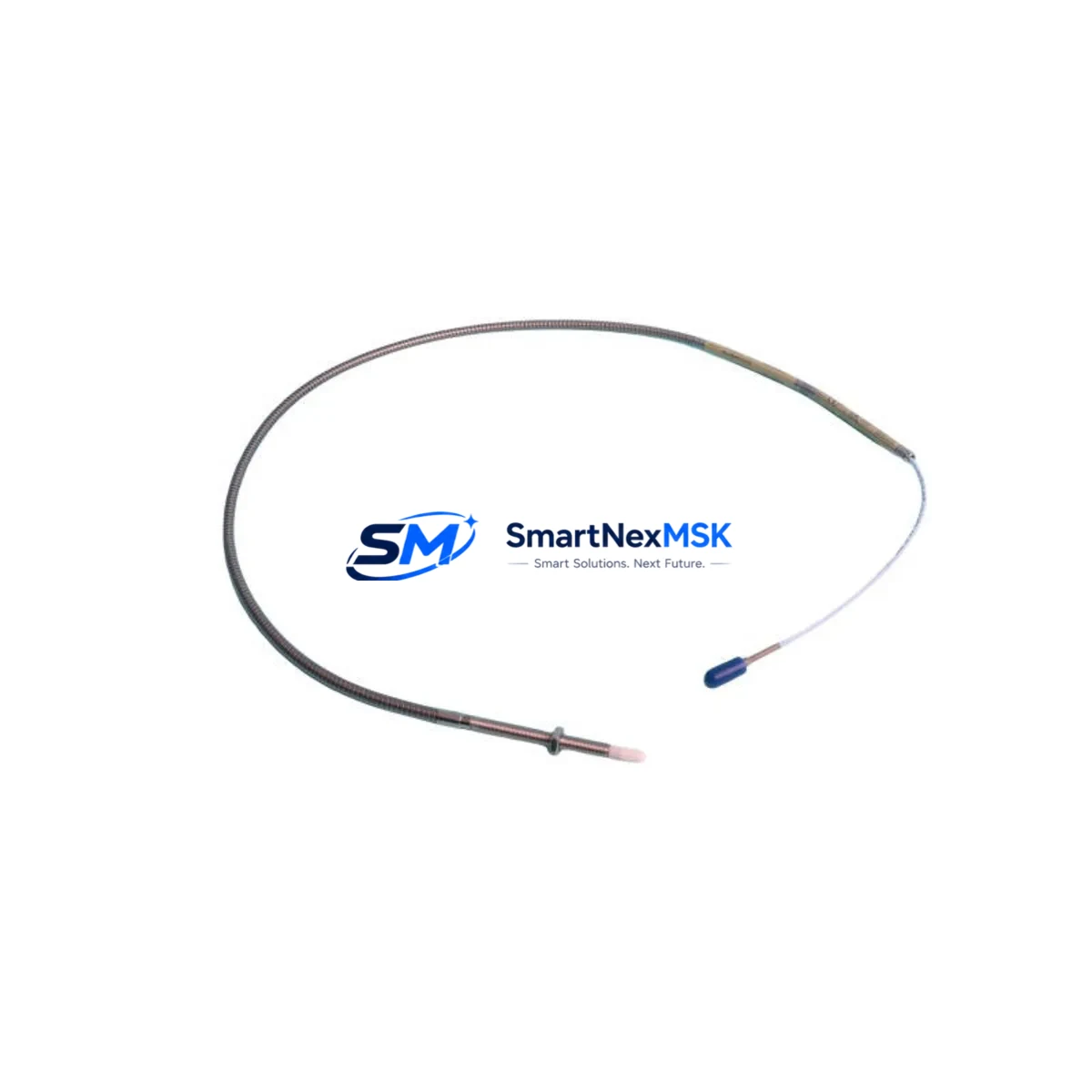

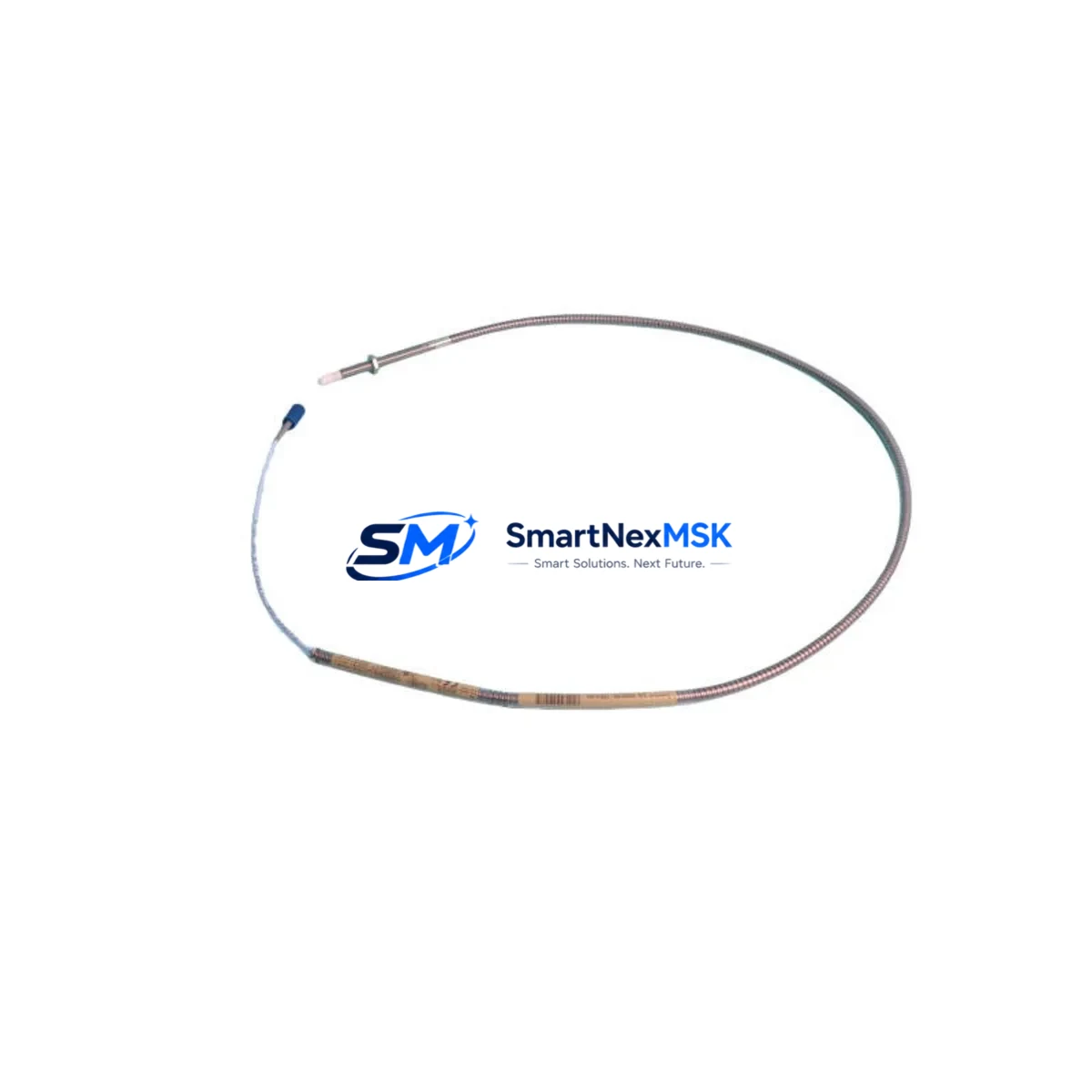

The Bently Nevada 330904-00-21-50-02-00 is an original eddy current proximity transducer engineered for the 3300 XL NSv series vibration monitoring system. Designed for continuous shaft displacement and vibration measurement in rotating machinery, this transducer is a critical component in turbine protection, compressor monitoring, and pump condition assessment across oil & gas, power generation, petrochemical, and heavy industrial facilities.

When a proximity transducer fails or degrades, the consequences extend far beyond a single sensor replacement. Unplanned downtime on a critical rotating asset can cost tens of thousands of dollars per hour. Maintaining a verified, tested spare of the 330904-00-21-50-02-00 in your site inventory is a fundamental element of any proactive maintenance strategy. This unit ships fully tested, with original specifications confirmed, and is backed by a 12-month warranty covering manufacturing defects and performance conformance.

For maintenance engineers and procurement teams managing 3300 XL NSv-based monitoring systems, this transducer is a direct OEM-compatible replacement. It integrates without reconfiguration into existing Bently Nevada monitor racks, preserving your calibration baselines and alarm setpoints. Fast dispatch and reliable supply chain availability make it suitable for both planned outage kitting and emergency breakdown response.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330904-00-21-50-02-00 in the field is rarely an isolated task. Experienced maintenance engineers know that a degraded proximity transducer is often a symptom of broader system stress. During any planned or corrective replacement of this transducer, the following associated components should be inspected or replaced as part of a complete maintenance cycle:

The 330130 Series Extension Cable connects the transducer to the Proximitor sensor and is subject to insulation fatigue, connector corrosion, and mechanical damage from vibration and heat cycling. A compromised extension cable will introduce signal noise that mimics transducer failure — always verify cable continuity and insulation resistance before concluding the transducer is at fault.

The 330180 or 330185 Proximitor Sensor (driver/oscillator) conditions the transducer signal and provides the –24 VDC bias supply. If the Proximitor output is outside the –10 to –18 VDC gap voltage window, the transducer reading will be unreliable regardless of transducer condition. Inspect the Proximitor housing for moisture ingress and verify its output with a calibrated multimeter.

The 3300 XL Monitor Card (such as the 3300/16 or 3300/20 series) receives the conditioned signal and applies alarm and danger setpoints. During a transducer swap, confirm that the monitor channel is not in bypass mode and that the OK relay is functioning correctly. A faulty monitor card can mask a genuine machinery fault even after a successful transducer replacement.

The DC Power Supply Module feeding the monitor rack — typically a –24 VDC regulated supply — should be load-tested during any rack-level maintenance. Power supply ripple or voltage sag under load is a common root cause of intermittent proximity system faults that are incorrectly attributed to the transducer.

Terminal blocks and field wiring within the junction box or marshalling cabinet should be inspected for loose terminations, corrosion, and correct shielding grounding. Improper shield grounding on the 330130 extension cable is a frequent source of electrical noise that corrupts the gap voltage signal.

If the monitored machine is part of a turbine or compressor train, the Keyphasor transducer (typically a 330980 or 330900 series) should also be verified, as phase reference accuracy affects all vector-based vibration analysis derived from the proximity channels.

For facilities running integrated condition monitoring, the System 1 Evolution software historian should be reviewed for trend data prior to replacement — a gradual gap voltage drift over weeks or months indicates mechanical wear or mounting bracket loosening rather than transducer failure, and replacing the transducer alone will not resolve the root cause.

Finally, if the control cabinet houses additional I/O modules, relay output cards, or communication gateways (such as Modbus or FOUNDATION Fieldbus interface modules), confirm that the replacement activity does not inadvertently interrupt any interlock or trip circuit connected to the vibration monitor outputs.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing transducer, record the current gap voltage (target: –10 to –18 VDC for most 3300 XL applications), note the physical mounting depth, and photograph the cable routing and connector orientation. This baseline data is essential for validating the replacement installation.

Step 2 — Safe Isolation: Coordinate with operations to place the affected monitor channel in bypass or inhibit mode per your site MOC procedure. Do not remove the transducer while the machine is running unless your site procedure explicitly permits hot-swap maintenance on non-trip channels.

Step 3 — Physical Replacement: Remove the 330904-00-21-50-02-00 by unscrewing from the mounting bracket. Install the replacement unit to the same thread depth, verify the gap with a feeler gauge or by monitoring the gap voltage output during slow-roll, and secure the locknut. Reconnect the 330130 extension cable and verify connector seating.

Step 4 — Functional Verification: With the machine at rest or on slow-roll, confirm the gap voltage is within the linear range. Check the monitor channel OK status and verify that no spurious alarms are generated. Compare the new baseline gap voltage against the historical value recorded in Step 1.

Step 5 — Return to Service: Remove the channel bypass, confirm the monitor is in normal operating mode, and document the replacement in your CMMS with the new part serial number, installation date, and gap voltage reading. Update your spare parts inventory to trigger reorder of a replacement spare.

This workflow is compatible with legacy 3300 series installations and current 3300 XL NSv deployments, making the 330904-00-21-50-02-00 a reliable choice for facilities managing mixed-generation Bently Nevada infrastructure.

Spare Parts Support FAQ

Q1: Is the 330904-00-21-50-02-00 a direct replacement for older 3300 series transducers?
The 330904-00-21-50-02-00 is part of the 3300 XL NSv series, which is designed for backward compatibility with standard 3300 series monitor racks. In most installations, it can replace earlier 330900 or 330903 series transducers of the same thread size and cable length without requiring monitor reconfiguration. However, always verify the gap voltage range and sensitivity specification against your monitor channel setup sheet before installation.

Q2: How should I manage spare inventory for proximity transducer systems?
Best practice for critical rotating machinery is to maintain a minimum of one matched spare set per monitored machine — comprising the transducer (330904-00-21-50-02-00), the corresponding 330130 extension cable, and a spare Proximitor sensor. For facilities with multiple identical machines, a pooled inventory of 2–3 sets is recommended to cover simultaneous failures during a major outage. Spares should be stored in original packaging in a climate-controlled environment and rotated on a 3–5 year cycle.

Q3: What testing is performed before shipment?
Each 330904-00-21-50-02-00 unit is bench-tested prior to dispatch to verify gap voltage output linearity, cable insulation integrity, and connector continuity. Units that do not meet OEM specification are rejected. A 12-month warranty covers manufacturing defects and performance non-conformance from the date of delivery. Warranty claims are supported with replacement dispatch and technical documentation.

Q4: Can this transducer be used in hazardous area (Ex) installations?
The 330904-00-21-50-02-00 in standard configuration is not intrinsically safe rated. For Zone 1 or Zone 2 hazardous area installations, a Zener barrier or galvanic isolator must be installed in the signal circuit, and the complete installation must comply with your site’s area classification documentation. Consult your Bently Nevada system documentation or contact our technical team to confirm the appropriate barrier specification for your application.

—
