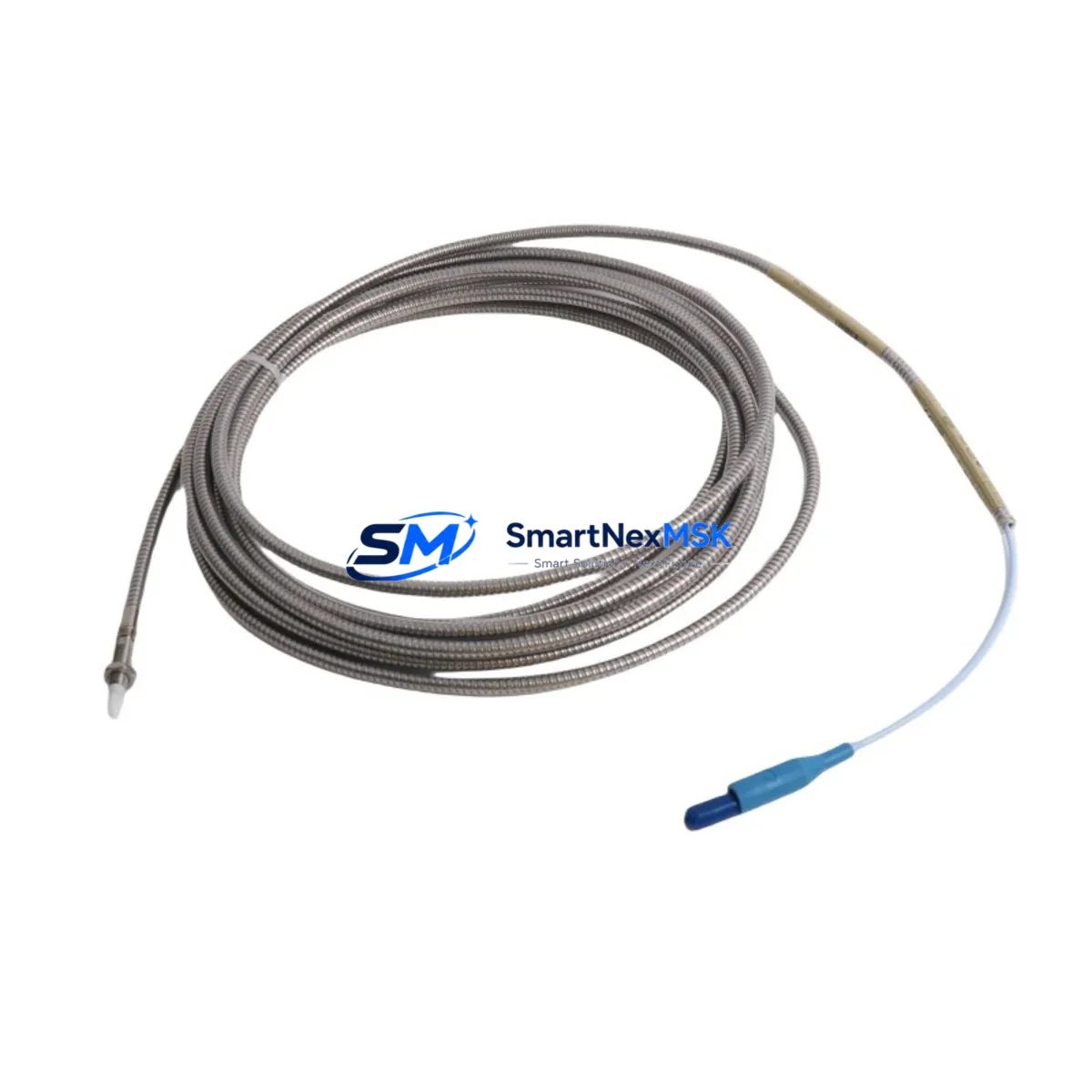

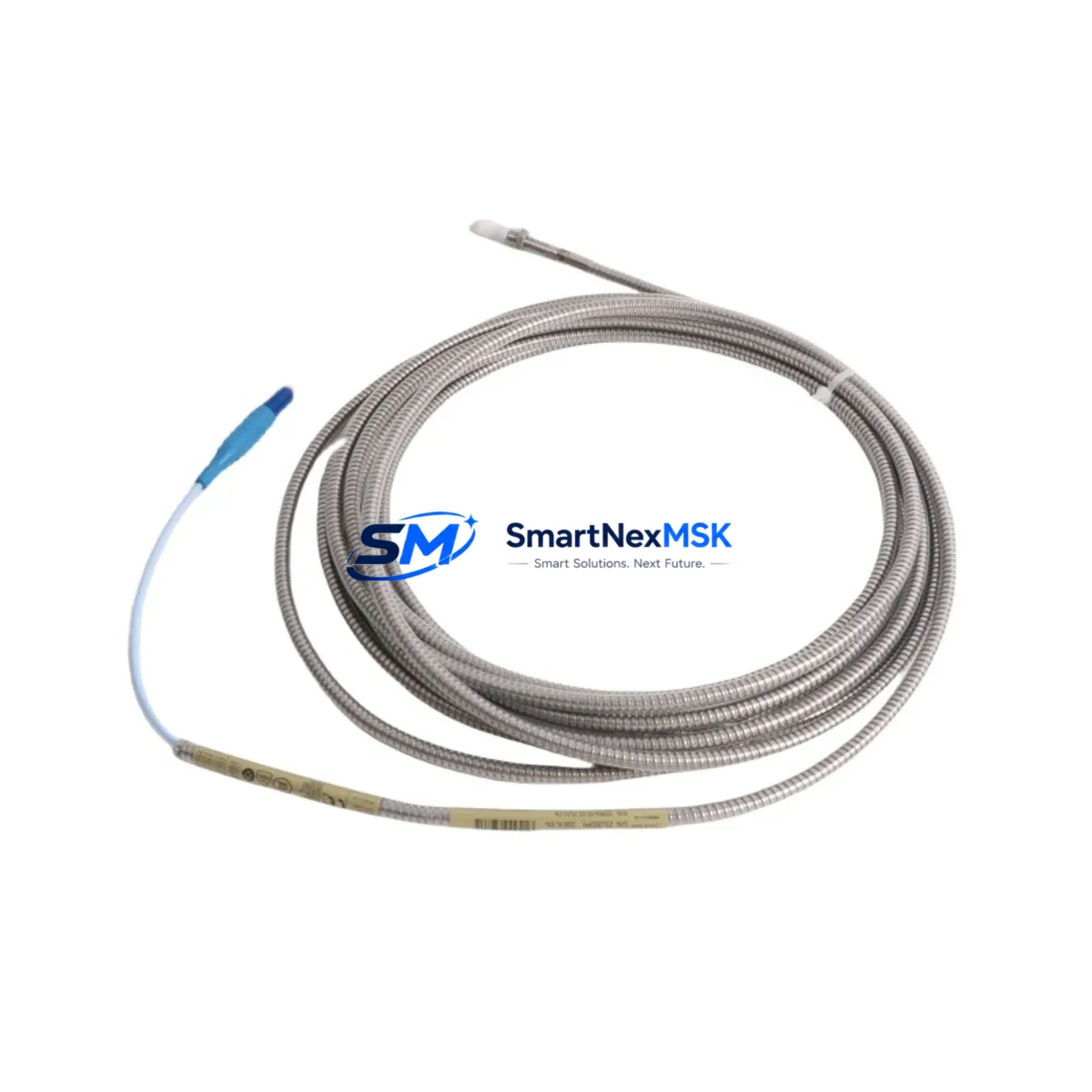

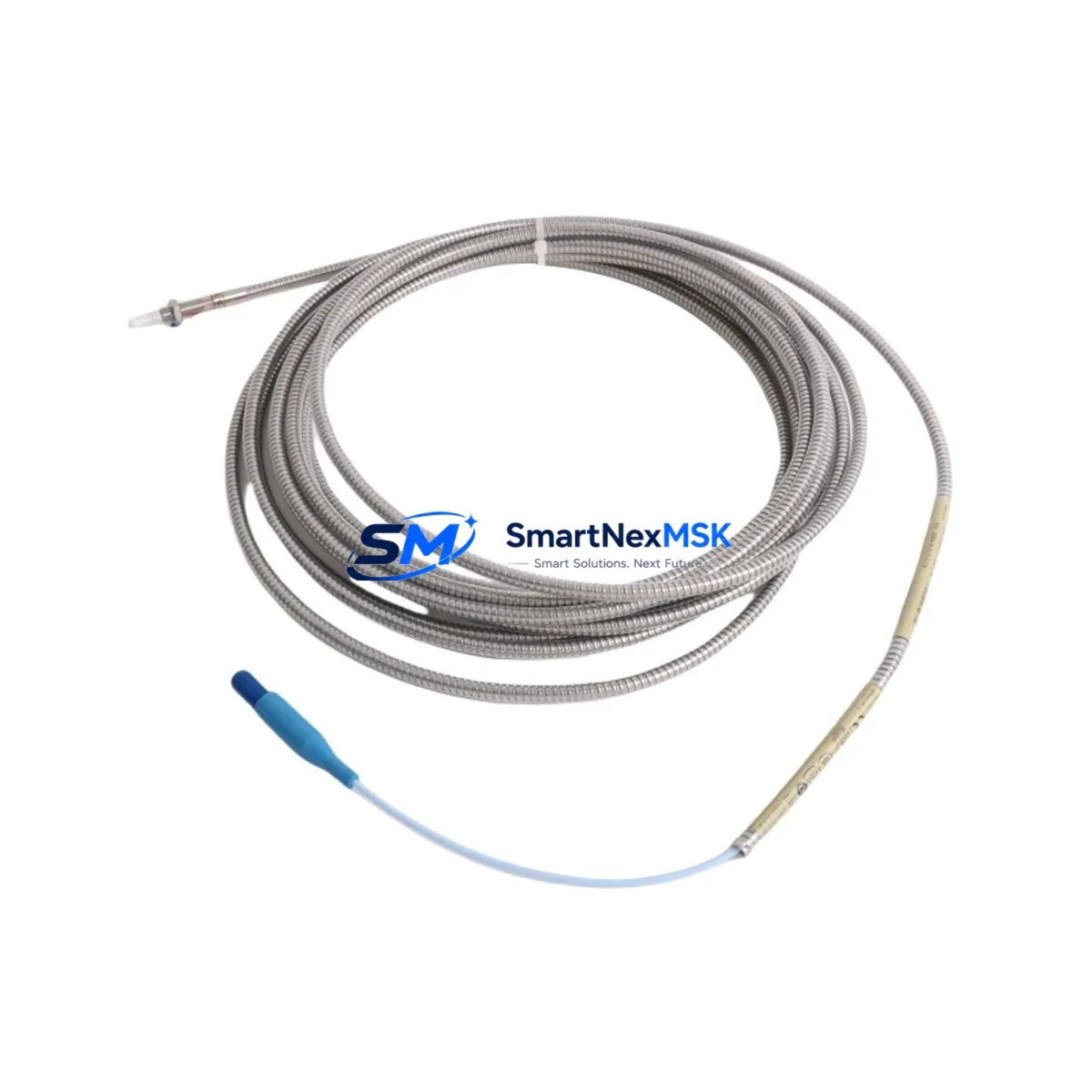

The Bently Nevada 330904-00-22-10-02-00 is an original 8mm eddy-current proximity probe engineered for the 3300 NSv vibration monitoring platform. In rotating machinery environments — turbines, compressors, pumps, and gearboxes — this probe is a front-line component in continuous shaft displacement and vibration measurement. When this probe degrades or fails, the entire vibration monitoring loop is compromised, creating unplanned downtime risk and potential machinery damage. Stocking a verified replacement unit is the most effective way to protect uptime and maintain compliance with API 670 machinery protection standards.

This unit ships tested and verified, with full dimensional and electrical conformance to Bently Nevada OEM specifications. Each unit carries a 12-month warranty covering manufacturing defects and electrical performance. For maintenance engineers managing aging 3300 NSv installations, this spare provides a direct, drop-in replacement path with no reconfiguration of the monitoring rack required.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 330904-00-22-10-02-00 probe, the scope of inspection should extend beyond the probe itself. The 3300 NSv system is a tightly integrated measurement chain, and degradation in any adjacent component can mask or mimic probe failure.

Begin with the 3300 NSv Proximitor Sensor (typically the 330180 series), which conditions the probe signal and outputs a DC voltage proportional to gap distance. A worn or contaminated proximitor can produce erratic output even with a new probe installed. Inspect the extension cable (such as the 330130-045-00-00) for jacket cracking, connector corrosion, or continuity loss — cable faults are among the most common causes of false vibration alarms in field installations.

Check the power supply module feeding the proximitor, typically a -24 VDC rail within the 3500 or 3300 monitoring rack. Voltage ripple or supply sag will directly affect probe linearity. If the installation uses a 3500/42M Proximitor I/O Module, verify that the channel configuration and gap voltage setpoints are still within calibrated range after probe swap.

For installations with multiple measurement planes, inspect adjacent probes — radial X/Y pairs and the axial probe — to confirm they are within their linear operating range. A single out-of-range probe can trigger system-wide alerts. Also verify the condition of terminal blocks and field wiring in the junction box; loose or oxidized terminations introduce noise that is indistinguishable from real vibration signal at the rack level.

In control cabinets housing 3300 NSv systems alongside other automation hardware, take the opportunity to inspect relay output modules used for alarm and trip functions, signal isolators on shared analog loops, and any communication gateway modules (such as Modbus or PROFIBUS interfaces) that relay vibration data to the DCS or SCADA layer. Fuse holders and terminal fuse blocks protecting the -24 VDC supply should also be checked for continuity and rated capacity.

For sites running legacy 3300 Series installations alongside newer 3500 racks, this is also an appropriate time to audit HMI display panels and operator interface terminals for firmware currency and alarm setpoint accuracy. Outdated HMI configurations are a common source of missed alarms during machinery excursions.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the installed probe part number against the maintenance record. Verify that the replacement 330904-00-22-10-02-00 matches the cable length, thread size, and connector type of the installed unit. Do not substitute a different cable length without recalibrating the proximitor gap voltage.

Step 2 — Safe isolation: Follow site LOTO procedures. De-energize the proximitor channel at the rack. Do not remove the probe under live -24 VDC supply — connector arcing can damage the proximitor input circuit.

Step 3 — Mechanical removal: Use the correct probe wrench on the M10 thread. Note the installed gap (typically 1.0–1.5 mm for radial probes). Record the locknut position before removal to preserve the approximate gap setting for the new probe.

Step 4 — Installation and gap setting: Install the new probe, set the gap to the recorded value, and re-energize the proximitor. Measure the DC gap voltage at the proximitor output — it should fall within the linear range (typically -10 to -18 VDC for a 1.0–1.5 mm gap). Adjust gap as needed to achieve the target voltage specified in the machinery datasheet.

Step 5 — Functional verification: Restore the monitoring channel and confirm that vibration readings are within baseline. Check that no alarms are active. Log the replacement in the maintenance management system with the new probe serial number and gap voltage.

This workflow minimizes downtime to under two hours for a single-channel replacement and ensures system compatibility is maintained without rack reconfiguration.

Spare Parts Support FAQ

Q: Is the 330904-00-22-10-02-00 compatible with both 3300 NSv and 3300 XL 8mm systems?
A: Yes. The 330904-00-22-10-02-00 is designed for the 3300 NSv platform and is also electrically compatible with the 3300 XL 8mm proximity system, provided the proximitor model and cable are matched correctly. Always verify the gap voltage range against your specific proximitor datasheet before commissioning.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects, electrical performance out-of-specification, and physical damage present at time of delivery. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact after receipt. Warranty claims are processed with return shipping and replacement dispatch within 5 business days.

Q: How is each unit tested before shipment?
A: Each 330904-00-22-10-02-00 unit undergoes electrical continuity verification, coil impedance measurement, and gap-voltage linearity check against a reference proximitor before packaging. Units that do not meet OEM specification tolerances are quarantined and not shipped.

Q: What is the recommended spare parts strategy for 3300 NSv installations?
A: For critical rotating machinery, maintain a minimum of one spare probe per measurement plane, one spare extension cable per probe, and one spare proximitor per rack. For facilities with 10 or more monitored machines, a pooled spare strategy with centralized storage and quarterly rotation is recommended to prevent shelf degradation of probe coil assemblies.
