Bently Nevada 330904-00-25-10-02-00 Retrofit-Ready Proximity Probe for 3300 NSv

Bently Nevada 330904-00-25-10-02-00 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

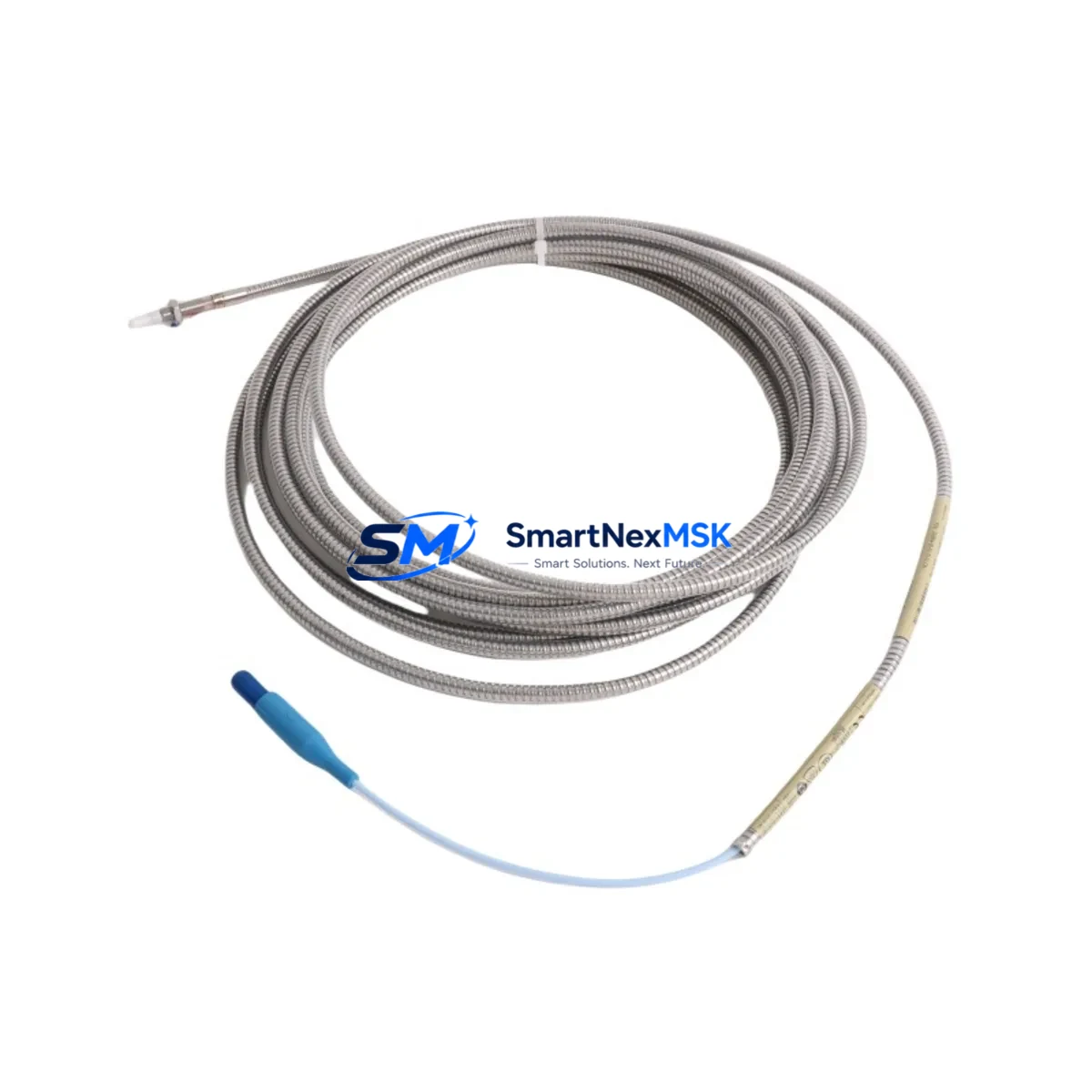

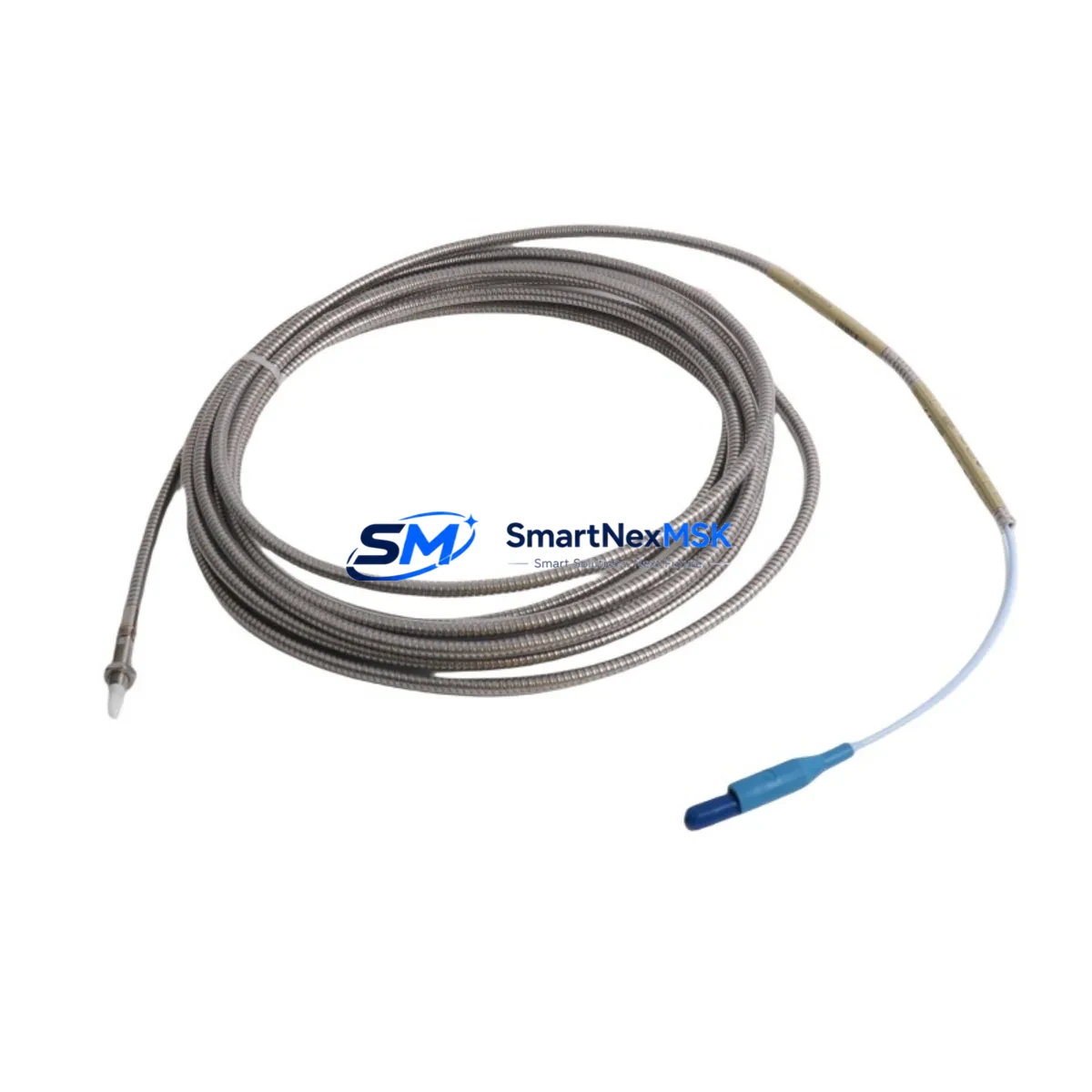

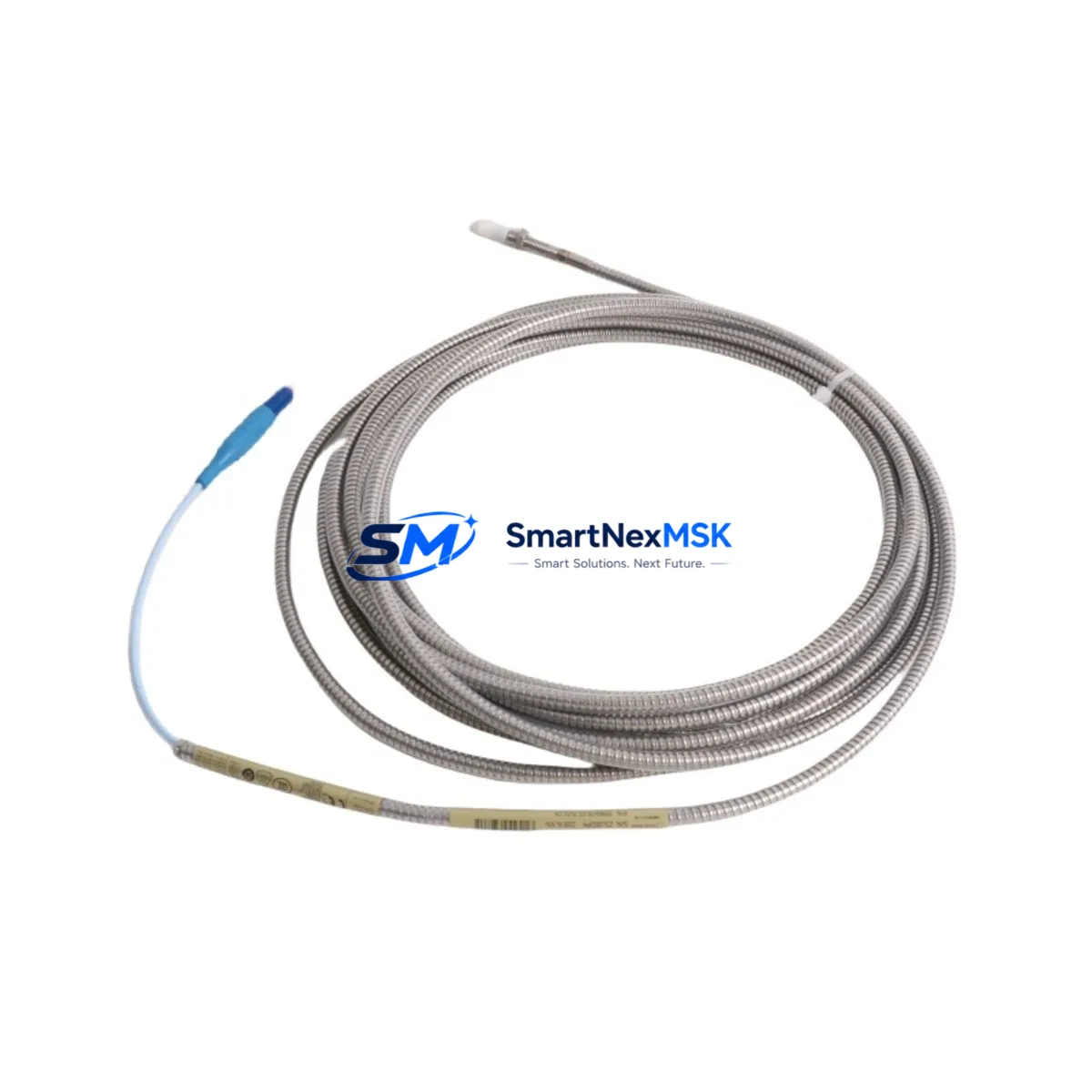

The Bently Nevada 330904-00-25-10-02-00 is a 25 mm eddy-current proximity probe engineered for the 3300 NSv Proximitor® system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. As original equipment reaches end-of-life or becomes increasingly difficult to source through OEM channels, this retrofit-ready replacement provides a verified drop-in solution for plants operating steam turbines, gas compressors, centrifugal pumps, and large electric motors that depend on continuous shaft-vibration and axial-position monitoring.

Whether your maintenance team is responding to an unplanned probe failure, executing a planned outage upgrade, or migrating an aging 3300 Series rack to a modernized monitoring architecture, the 330904-00-25-10-02-00 is stocked and ready for immediate dispatch with full dimensional, electrical, and signal-output compatibility confirmed against the original Bently Nevada specification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330904-00-25-10-02-00 begins well before the maintenance window opens. Field engineers should first audit the existing 3300 NSv Proximitor® monitor card — typically housed in a 3300/16 or 3300/20 rack — to confirm that the monitor channel is configured for a 25 mm probe with the correct gap, scale factor, and alert/danger setpoints. If the rack also carries a 3300/55 Keyphasor® module for phase-reference triggering, verify that the Keyphasor probe gap and target wheel geometry remain unchanged, as any drift here will corrupt vibration phase readings across all channels sharing that reference.

Power supply integrity is the next checkpoint. The 3300 NSv system draws its −24 VDC probe supply from the rack’s internal power module — often a 3300/15 or equivalent redundant supply pair. Before pulling the failed probe, measure the supply rail voltage at the Proximitor terminal block to confirm it sits within the −22 VDC to −26 VDC tolerance band. A degraded power module can cause a new probe to read out-of-range immediately after installation, leading to a misdiagnosed probe fault.

Terminal wiring on the 3300 NSv Proximitor follows a three-conductor scheme: shield drain, signal (center conductor), and −24 VDC return. When routing the replacement 330904-00-25-10-02-00 cable through the conduit, inspect the armored extension cable for jacket damage, particularly at conduit entry points where vibration-induced chafing is common. If the existing 3300 TK Armored Extension Cable shows insulation breakdown, replace it concurrently — running a new probe on a compromised extension cable will produce intermittent gap-voltage noise that is difficult to distinguish from genuine shaft vibration.

For plants integrating the 3300 NSv output into a DCS — such as a system using 3500/22M Transient Data Interface cards or a third-party historian — confirm that the analog output scaling (7.87 V/mm) matches the DCS input card’s engineering-unit configuration. If the DCS historian has hardcoded the old probe’s sensitivity factor, a mismatch will produce incorrect vibration amplitude trends without triggering any alarm, a silent error that can persist through multiple shift handovers.

Plants that have already migrated part of their monitoring infrastructure to the Bently Nevada 3500 Series should note that the 330904-00-25-10-02-00 probe is also compatible with 3500/42M Proximitor® monitor modules, provided the channel is configured for a 25 mm probe. This cross-series compatibility makes the probe a practical stocking item for sites running mixed 3300 and 3500 racks during a phased modernization program. Similarly, sites using the System 1 Evolution software platform for condition monitoring can continue to trend gap voltage and vibration amplitude from this probe without any software reconfiguration, since the signal chain remains electrically identical to the OEM part.

I/O expansion considerations arise when the retrofit is part of a broader control-cabinet upgrade. If the cabinet also houses a Bently Nevada 3300/25 Dual Voting Logic module for overspeed or high-vibration trip voting, verify that the new probe’s OK relay output is wired to the correct voting input. A miswired OK relay can cause a spurious trip or, worse, mask a genuine probe fault from the voting logic. For cabinets that include a 3300/46M Machinery Protection System interface, review the relay output mapping in the MPS configuration before closing the cabinet.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured hot-swap protocol. Where the process permits, place the affected monitor channel in bypass mode through the 3300 NSv front-panel or through System 1 software before physically disconnecting the probe. Bypassing the channel suppresses the OK relay dropout and prevents a spurious machinery trip while the probe is disconnected — a critical step on units where a single-channel trip is sufficient to initiate an emergency shutdown sequence.

With the channel bypassed, document the existing gap voltage reading from the Proximitor front-panel meter or the System 1 trend display. This baseline value — typically between −10 VDC and −18 VDC for a correctly gapped 25 mm probe — serves as the acceptance criterion for the replacement unit. After installing the 330904-00-25-10-02-00 and adjusting the probe gap to achieve the same gap voltage (±0.5 VDC of the documented baseline), confirm that the OK LED on the Proximitor monitor is illuminated before removing the bypass. This sequence preserves the original program logic, alarm setpoints, and HMI display values without requiring any controller or DCS reconfiguration.

For sites where the 3300 NSv output feeds a safety instrumented system (SIS) — such as a Triconex or Yokogawa ProSafe-RS safety controller — coordinate the bypass with the SIS engineer to ensure the safety function is maintained through an alternative voting channel or a formal proof-test bypass procedure documented in the site’s safety management system. Do not rely solely on the monitor’s internal bypass; the SIS may require an independent inhibit command.

Every unit shipped undergoes bench testing against the original Bently Nevada sensitivity and linearity specification before dispatch. Test records are available on request and accompany each shipment, reducing the on-site acceptance-testing burden and supporting the documentation requirements of ISO 13373 and API 670 machinery protection standards.

Retrofit Support FAQ

Q1: Is the 330904-00-25-10-02-00 a direct replacement for the original Bently Nevada part, or are there wiring modifications required?
This unit is a direct drop-in replacement. The connector type, cable geometry, sensitivity (7.87 V/mm), and supply voltage (−24 VDC) are identical to the original OEM specification. No wiring modifications, adapter cables, or Proximitor reconfiguration are required for standard 3300 NSv installations.

Q2: Can this probe be used with a Bently Nevada 3500/42M monitor in addition to the 3300 NSv?
Yes. The 330904-00-25-10-02-00 is electrically compatible with the 3500/42M Proximitor® monitor when the channel is configured for a 25 mm probe. Confirm the gap voltage and scale factor settings in the 3500 Rack Configuration Software (RCS) before commissioning.

Q3: What commissioning checks are required after installation?
After mechanical installation, verify: (1) gap voltage within the Proximitor’s OK range (typically −10 to −18 VDC), (2) OK LED illuminated on the monitor front panel, (3) vibration amplitude reading at or near zero with the machine at rest (confirming no electrical noise), and (4) Keyphasor® phase reference alignment if the probe is on a shaft that also carries a phase-reference target. Document all readings against the pre-removal baseline.

Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects, signal-output deviation from the published sensitivity specification, and connector or cable integrity failures under normal operating conditions. To initiate a claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. Replacement units are dispatched within 3 business days of claim approval.
