Bently Nevada 330904-08-15-10-02-05 Spare 3300 XL Automation

Bently Nevada 330904-08-15-10-02-05 Maintenance-Ready Spare for 3300 XL Automation

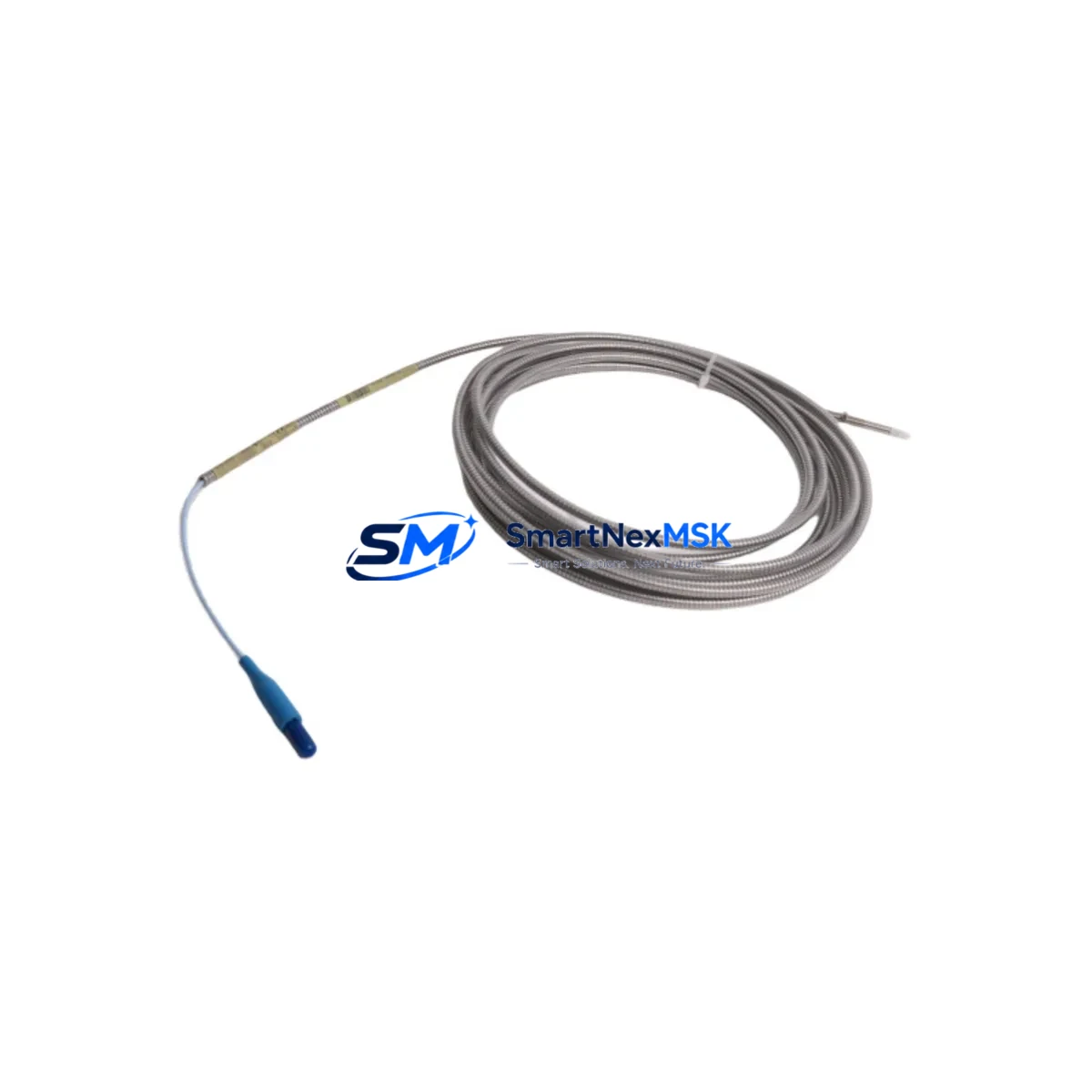

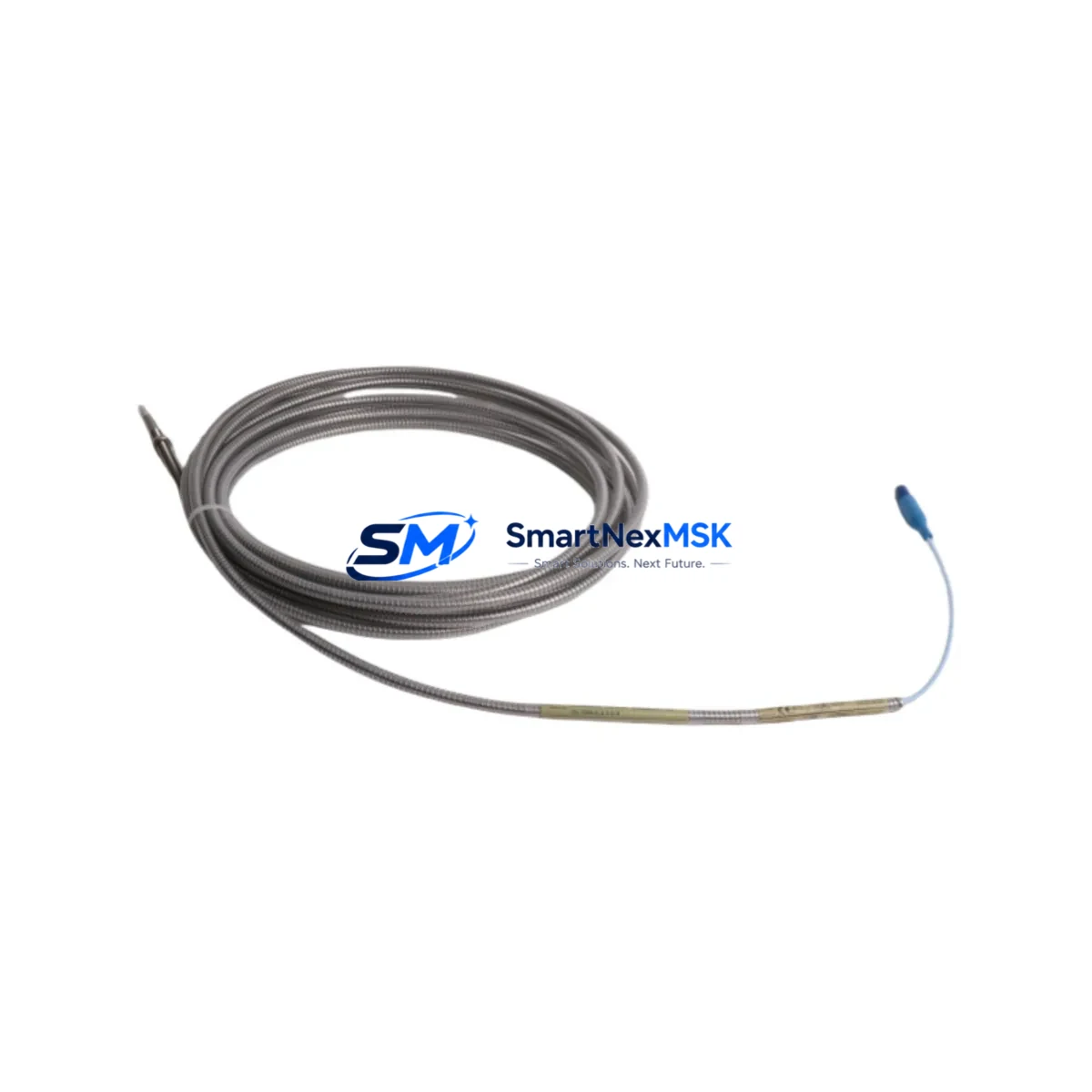

The Bently Nevada 330904-08-15-10-02-05 is an 8mm eddy current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. As a maintenance-ready spare, this unit is sourced, inspected, and tested to support rapid field replacement in rotating machinery protection applications — including turbines, compressors, pumps, and gearboxes operating under 24/7 industrial conditions.

For maintenance engineers managing critical rotating assets, unplanned vibration sensor failure is a direct path to unscheduled downtime. Holding a verified spare of the 330904-08-15-10-02-05 in your on-site parts inventory eliminates the lead-time risk associated with OEM procurement channels and ensures your 3300 XL monitoring loop can be restored within a single maintenance window. Each unit ships with a 12-month warranty and passes functional verification prior to dispatch.

Procurement engineers sourcing replacement transducers for Bently Nevada 3300 XL systems will find this SKU directly compatible with the standard 3300 XL 8mm transducer system, which includes the extension cable (330130 series) and proximitor sensor (330180 series). Confirming cable length, gap voltage, and proximitor model before installation is essential to maintaining calibrated output within the –24 VDC measurement range.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330904-08-15-10-02-05 in the field, a structured inspection of the surrounding monitoring loop is critical to restoring full system integrity. Maintenance engineers should treat transducer replacement as an opportunity to audit the complete signal chain rather than a single-component swap.

Begin with the 330130 series extension cable — inspect the connector pins and cable jacket for corrosion, mechanical damage, or intermittent continuity caused by vibration fatigue. A degraded extension cable will introduce noise into the gap voltage signal even after a new transducer is installed. Next, verify the 330180 series proximitor sensor output voltage at the recommended gap distance; if the proximitor has drifted from its calibration baseline, the new transducer will not produce accurate readings regardless of its condition.

Check the 3300 XL monitor rack input card for alarm setpoint integrity and channel configuration. In systems where the 330904-08-15-10-02-05 feeds into a 3300/16 or 3300/20 series monitor, confirm that the channel is not latched in alarm state before returning the loop to service. Review the terminal block and field wiring at the junction box — loose terminations at the Bently Nevada standard connector are a common source of false trips after maintenance.

For installations in high-temperature zones near bearing housings, inspect the armored conduit and cable glands for heat-related degradation. If the control cabinet houses a 3500 series rack alongside the 3300 XL system, cross-check that the shared –24 VDC power supply rail is within tolerance, as voltage sag will affect both systems simultaneously. A DC power supply module with adequate current headroom should be part of the spare parts plan for any facility running multiple Bently Nevada monitoring channels.

Where the transducer feeds into a DCS historian or safety instrumented system (SIS), coordinate with the control room team to suppress the channel alarm during replacement and re-enable it only after gap voltage is confirmed within the linear range. Document the as-found and as-left gap measurements in the maintenance record to support trend analysis and future predictive maintenance scheduling.

Site Replacement Workflow

Step 1 — Isolate and document. Record the as-found gap voltage from the proximitor output before removing the old transducer. This baseline confirms whether the previous unit had drifted and provides a reference for the new installation.

Step 2 — Remove the legacy unit. The 330904-08-15-10-02-05 uses a standard threaded body with locknut. Loosen the locknut and back the probe out carefully to avoid contact with the rotating shaft. For older installations where the probe body has seized due to corrosion, apply penetrating fluid and allow adequate soak time before applying torque.

Step 3 — Inspect the mounting boss. Check the probe mounting threads in the bearing housing for damage or contamination. Clean and re-tap if necessary before installing the replacement unit.

Step 4 — Install and set gap. Thread the new 330904-08-15-10-02-05 into the mounting boss and adjust to achieve the target gap voltage specified in the system configuration record — typically –10.0 VDC ±0.5 VDC at the nominal gap of 1.27 mm (50 mil) for standard steel targets. Tighten the locknut to the specified torque.

Step 5 — Reconnect and verify. Reconnect the extension cable and confirm the proximitor output voltage is within the linear range. Check for noise on the signal using a portable oscilloscope or the monitor’s built-in diagnostic display. Clear any latched alarms and return the channel to normal monitoring mode.

Step 6 — Update maintenance records. Log the replacement date, as-left gap voltage, and part serial number. Schedule the next inspection interval based on the facility’s predictive maintenance program.

This workflow applies equally to direct replacements of legacy 330900 series probes where the 330904-08-15-10-02-05 is used as a compatible upgrade, reducing the need for mounting modifications while maintaining full 3300 XL system compatibility.

Spare Parts Support FAQ

Q: Is the 330904-08-15-10-02-05 a direct replacement for other 330900 series probes?
A: Yes. The 330904-08-15-10-02-05 is part of the 3300 XL 8mm transducer system and is dimensionally and electrically compatible with other 330904 suffix variants, provided the cable length and connector type match the existing installation. Always verify the extension cable part number and proximitor model before substitution.

Q: How should this spare be stored to maintain its service life?
A: Store in the original packaging or an ESD-safe container in a dry environment between –40°C and +85°C. Avoid exposure to strong magnetic fields, solvents, or mechanical shock. Inspect the connector pins and cable jacket annually if the unit is held in long-term inventory.

Q: What pre-shipment testing is performed on each unit?
A: Every 330904-08-15-10-02-05 unit undergoes functional verification prior to dispatch, including gap voltage output confirmation and cable continuity check. A test report is available upon request. Units are shipped in protective packaging to prevent transit damage.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions consistent with the Bently Nevada 3300 XL system specifications. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the specified temperature and target material parameters. Warranty claims are supported with replacement or refund at the supplier’s discretion.
