Bently Nevada 330905-00-04-10-02-CN Spare 3300 NSv

Bently Nevada 330905-00-04-10-02-CN Maintenance-Ready Spare for 3300 NSv Automation

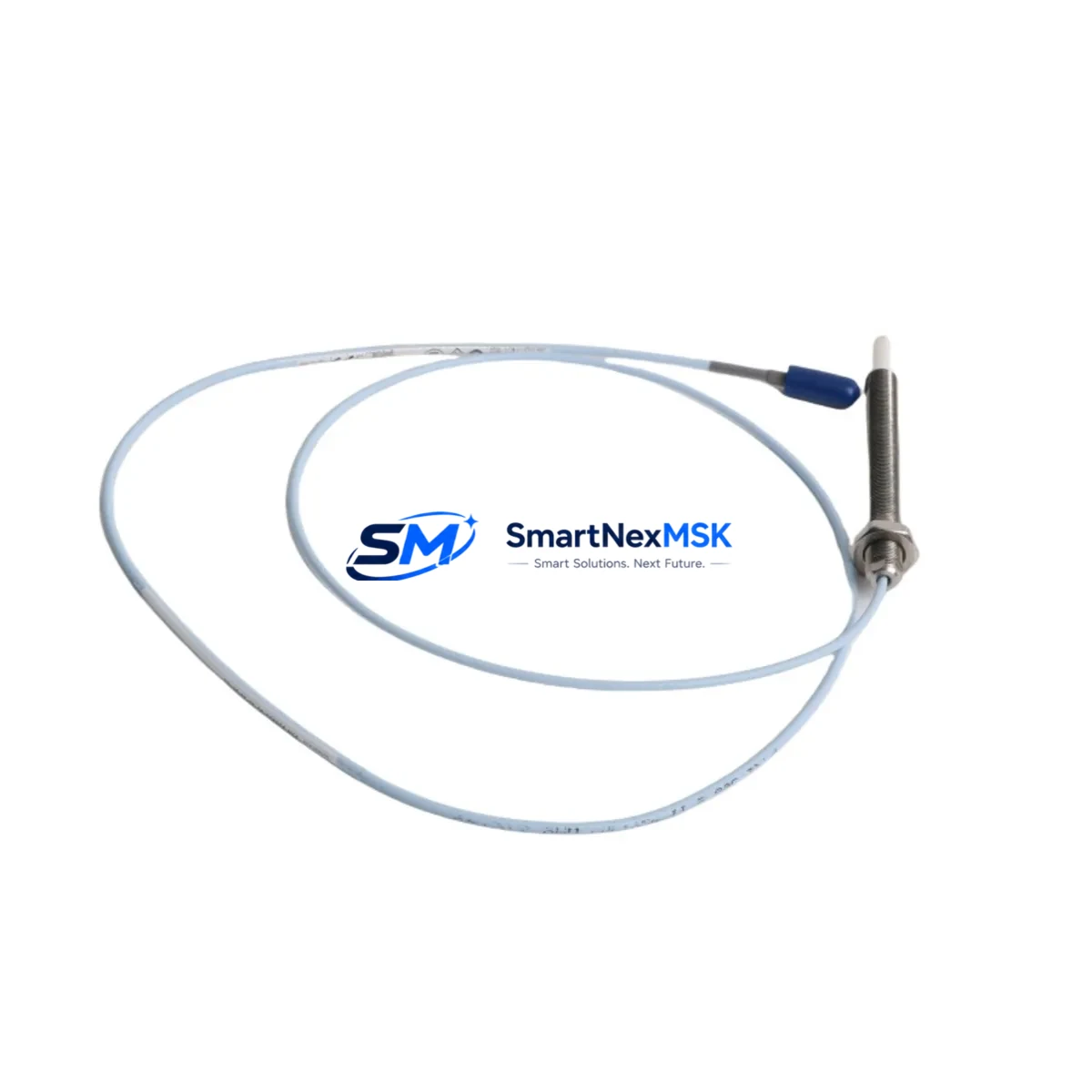

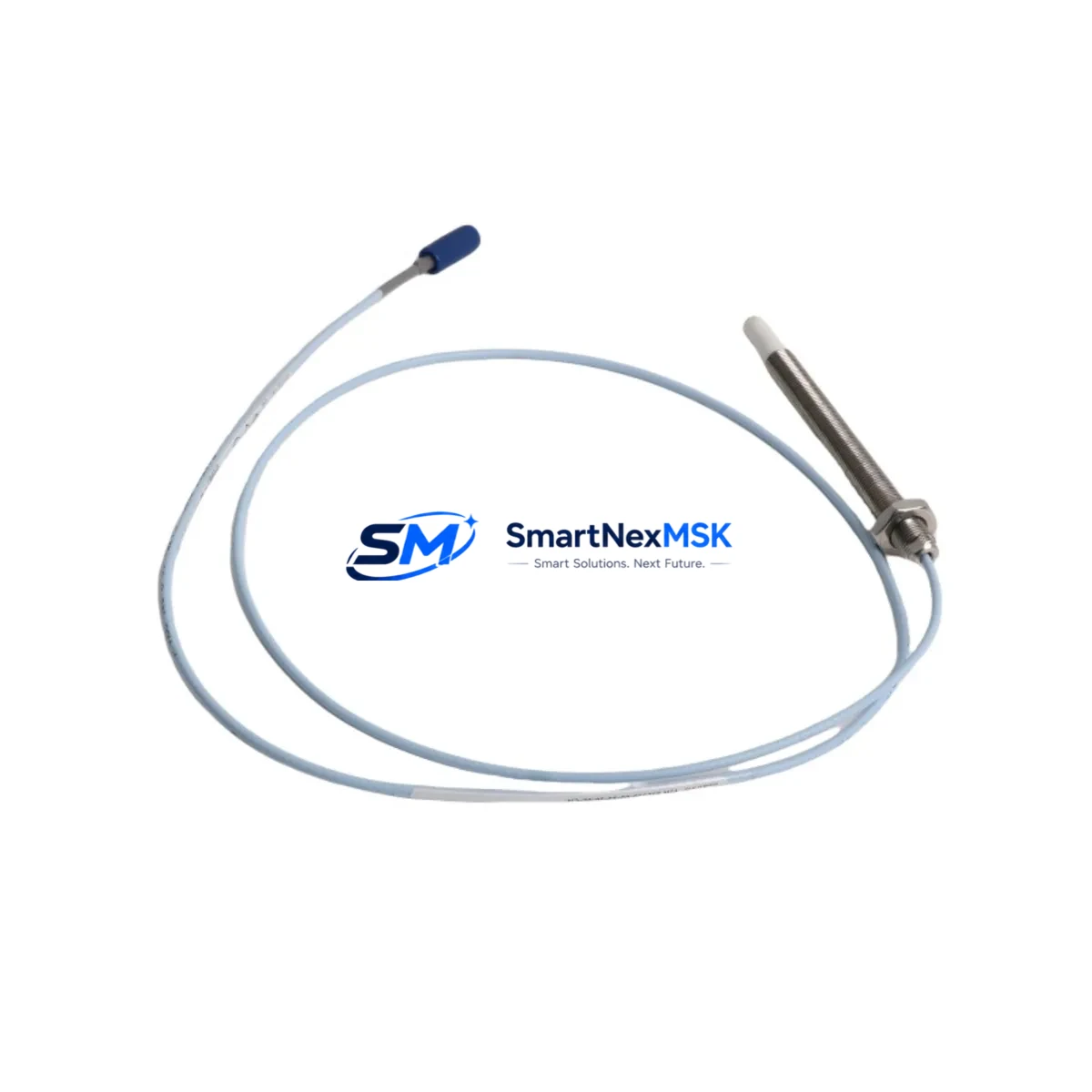

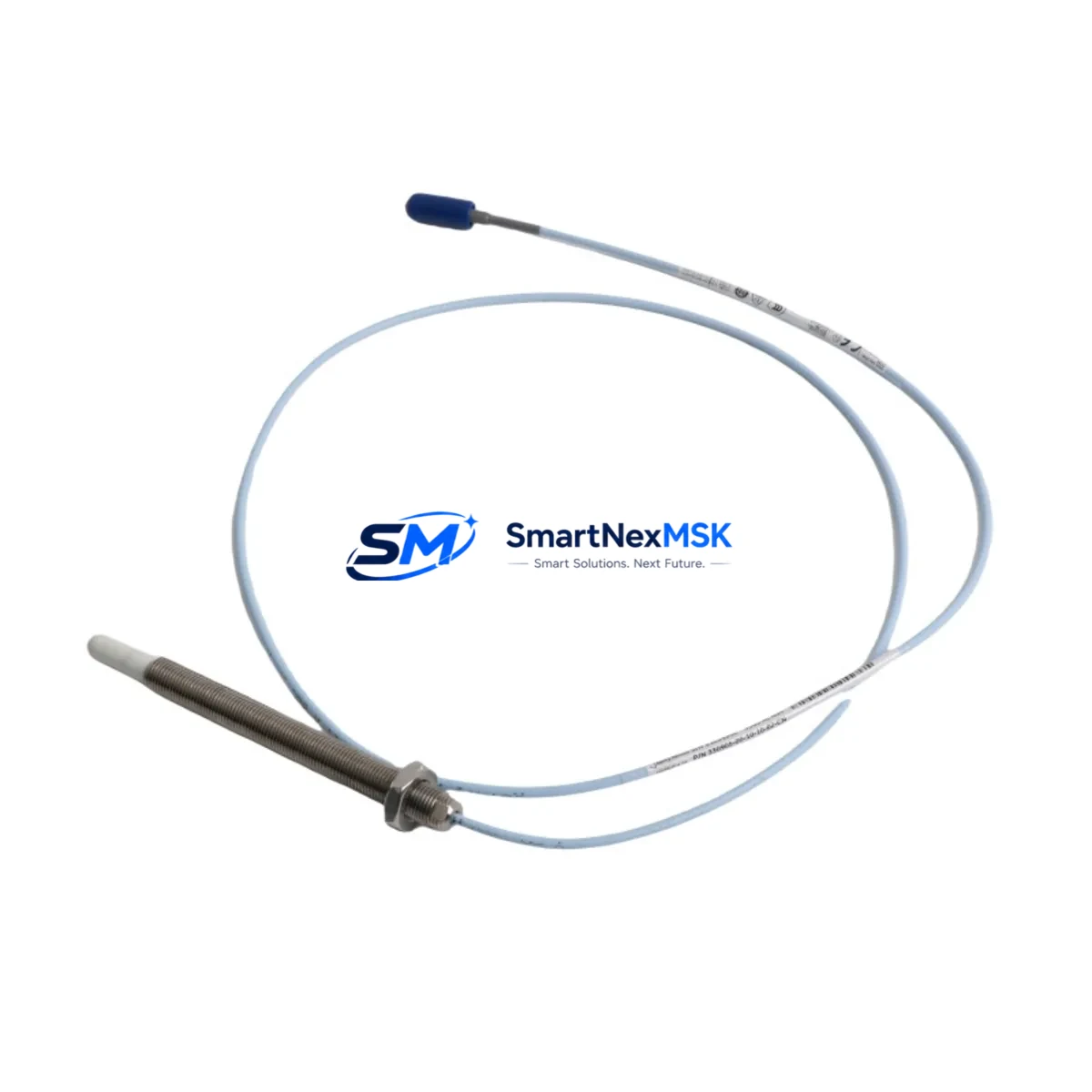

The Bently Nevada 330905-00-04-10-02-CN is an original eddy-current proximity probe engineered for the 3300 NSv series vibration monitoring system. Designed for continuous-duty industrial environments, this probe delivers reliable shaft displacement and vibration measurements critical to rotating machinery protection in power generation, oil & gas, petrochemical, and heavy manufacturing facilities. Maintaining an on-hand spare of the 330905-00-04-10-02-CN directly reduces unplanned downtime risk and supports rapid restoration of machine protection coverage during corrective maintenance windows.

For maintenance engineers managing turbine trains, compressor strings, or pump sets monitored by Bently Nevada 3300 systems, the proximity probe is often the first component to be inspected during a vibration alarm event. A failed or degraded probe can mask real machinery faults or generate nuisance trips — both outcomes carry significant operational and safety consequences. Stocking a verified original spare ensures that probe replacement can be completed within a single shift, restoring full monitoring capability without waiting on extended lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330905-00-04-10-02-CN in the field, a disciplined maintenance engineer will treat the probe swap as an opportunity to inspect the entire measurement chain. The 3300 NSv Proximitor sensor (e.g., 330180-X1-05) should be checked for output voltage drift and connector integrity before reconnecting the new probe. The extension cable — typically a 330130-series armored cable — must be inspected for jacket damage, kinking near conduit entries, and connector corrosion, as cable degradation is a common source of intermittent gap voltage errors that are often misattributed to probe failure.

At the panel level, the 3300 XL 8mm driver module should be verified for correct bias voltage output (nominally -18 VDC) and confirmed against the system’s calibration record. If the driver is a 3300/16 or 3300/20 series card, check the backplane connector pins for fretting corrosion, particularly in high-vibration environments. The Bently Nevada 3500/42M or 3500/45 monitor cards that receive the probe signal should be reviewed for active alarm setpoints and OK relay status after probe replacement.

For facilities running older 3300 RAM or 3300/55 monitor systems, the 330905-00-04-10-02-CN remains a compatible replacement probe, but engineers should verify the Proximitor gap voltage is re-zeroed after installation using the system’s calibration utility. Alongside the probe, it is prudent to inspect the terminal strip connections on the I/O side of the monitor rack, check the 24 VDC power supply module feeding the Proximitor, and confirm that any signal isolators or barriers in the loop — such as MTL or P+F Zener barriers — are within specification.

For planned outage kitting, a complete probe channel spare kit for a 3300 NSv system typically includes: the 330905-00-04-10-02-CN probe, a matched 330130-series extension cable, a 330180-series Proximitor, and a set of connector O-rings and thread sealant. Having these components staged together eliminates multi-trip delays during a tight outage window.

Site Replacement Workflow

Step 1 — Isolation & Documentation: Before removing the existing probe, record the current gap voltage from the monitor display or the Bently Nevada System 1 software. This baseline confirms the probe’s pre-failure operating point and provides a reference for post-installation verification.

Step 2 — Mechanical Removal: Loosen the probe locknut and carefully back the probe out of the bracket. Inspect the probe tip for impact damage or contamination. Clean the probe hole and bracket threads before installing the replacement 330905-00-04-10-02-CN.

Step 3 — Gap Setting: Thread the new probe in until tip contact, then back out to achieve the target gap voltage per the system datasheet (typically -10.0 VDC ± 0.5 VDC for a 1.0 mm gap on a 5 mm probe). Tighten the locknut to the specified torque.

Step 4 — Cable Reconnection: Reconnect the extension cable to the probe and Proximitor. Verify connector seating and apply thread lock or weatherproofing as required by the installation environment.

Step 5 — System Verification: Confirm OK relay status on the monitor card, verify gap voltage is within the linear range, and check that vibration and position readings are consistent with machine operating state. Clear any latched alarms only after confirming signal validity.

This workflow supports a target replacement time of under two hours for a trained technician, minimizing the impact on production schedules and reducing the risk of extended unplanned outages.

Spare Parts Support FAQ

Q: Is the 330905-00-04-10-02-CN compatible with both 3300 NSv and older 3300 RAM monitor systems?
A: Yes. The 330905-00-04-10-02-CN is designed for the 3300 NSv series but is also backward-compatible with earlier 3300 RAM and 3300/55 monitor systems, provided the Proximitor model and gap voltage calibration are verified after installation. Always confirm system documentation before substitution.

Q: What pre-shipment testing is performed on this spare?
A: Each unit undergoes electrical continuity verification, tip resistance check, and gap voltage output test against a calibrated driver before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with connector caps installed.

Q: How should this probe be stored as a long-term spare?
A: Store in original packaging in a dry, temperature-controlled environment (10°C – 40°C), away from strong magnetic fields and mechanical shock. Inspect connector pins and cable jacket annually. Shelf life under proper storage conditions exceeds five years.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, electrical performance outside published specifications, and connector integrity. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed within 5 business days of receipt of the returned unit.
