Bently Nevada 330905-00-06-05-02-00 Retrofit-Ready Proximity Probe for 3300 NSv

Bently Nevada 330905-00-06-05-02-00 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

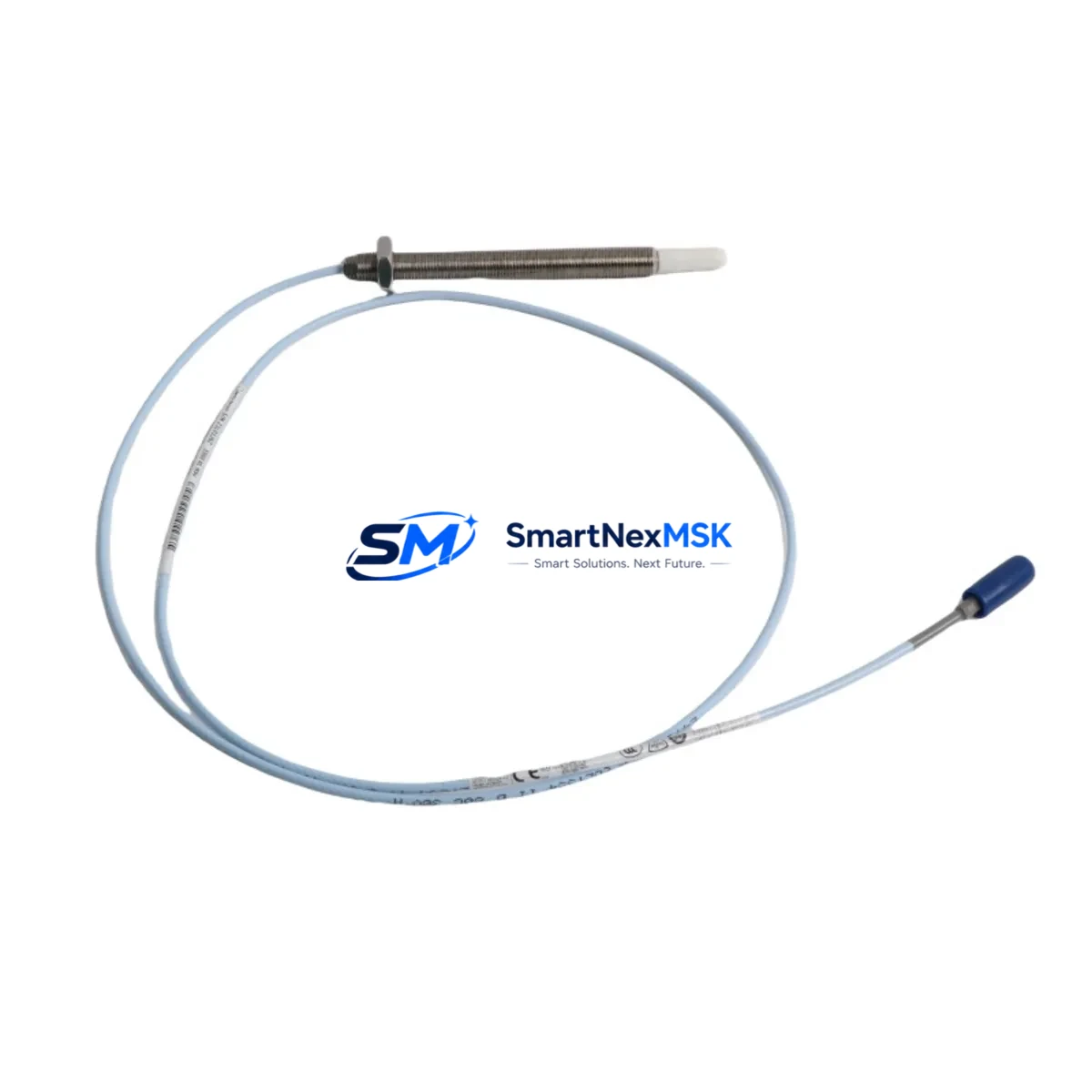

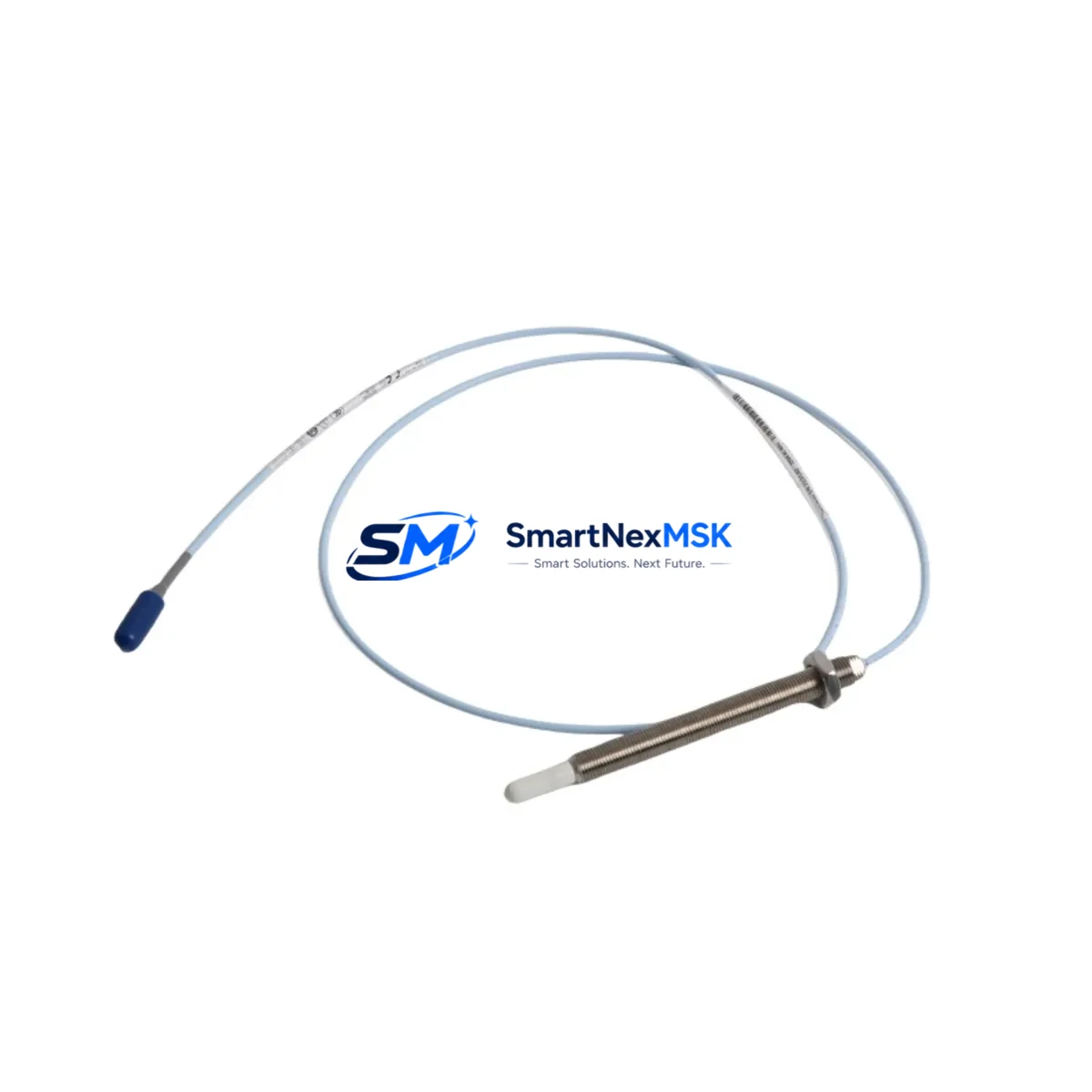

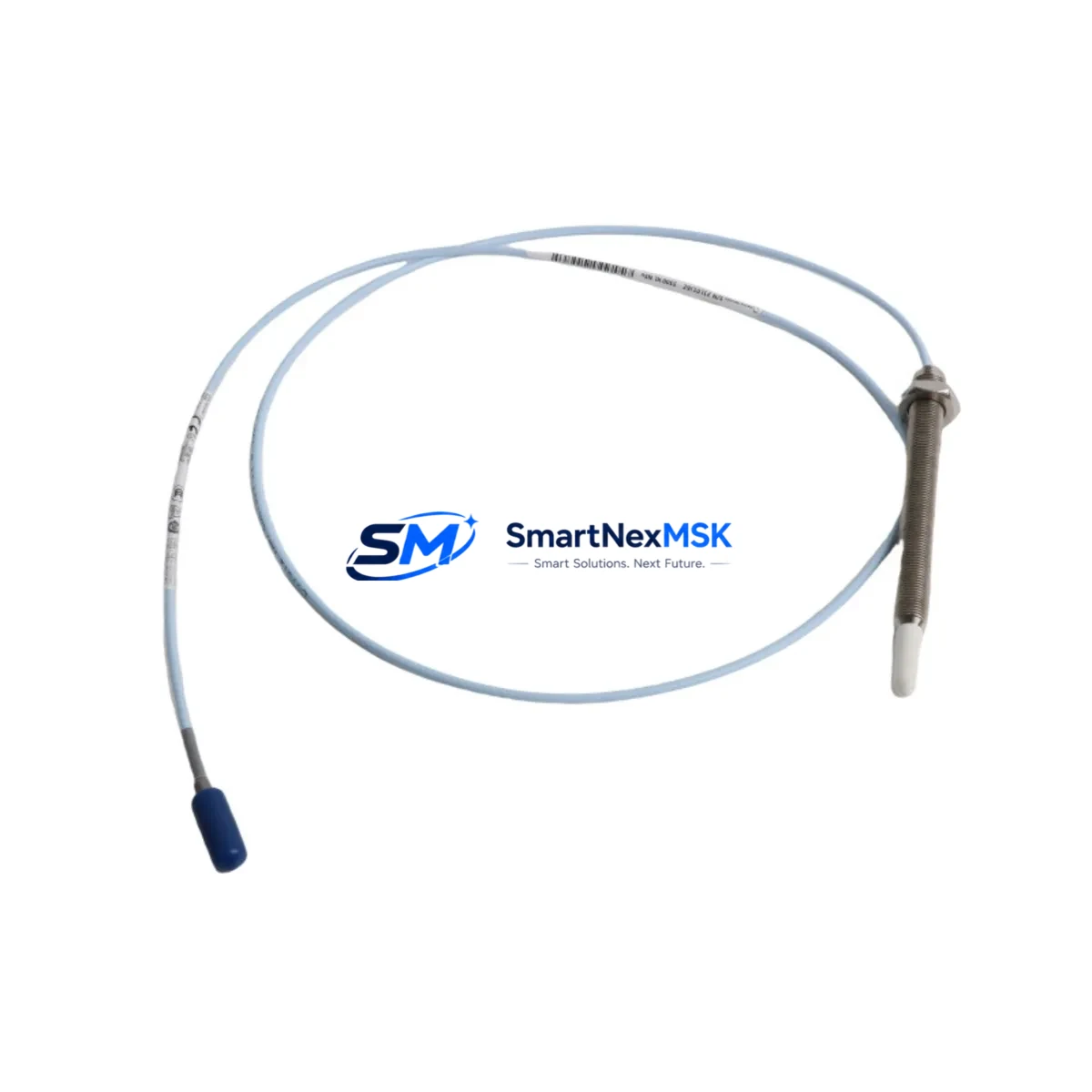

The Bently Nevada 330905-00-06-05-02-00 is an eddy current proximity probe engineered for the 3300 NSv series vibration monitoring platform. Designed as a direct retrofit replacement for aging or discontinued probe assemblies, this unit delivers full electrical and mechanical compatibility with existing 3300 NSv monitor racks, extension cables, and proximitor/driver modules — enabling smooth system upgrades without reprogramming or rewiring the entire control cabinet.

Industrial facilities operating legacy rotating machinery protection systems frequently encounter obsolescence challenges: original probes wear out, OEM lead times extend, and spare parts inventories deplete. The 330905-00-06-05-02-00 addresses these challenges directly. It is a 5 mm diameter, 6-inch (152.4 mm) armored cable probe with a standard 5/16-28 UNF thread mount, calibrated for use with the Bently Nevada 3300 XL 8mm proximitor driver. Its output sensitivity of 200 mV/mil (7.87 V/mm) matches the original factory specification, ensuring that existing vibration trip setpoints, alarm thresholds, and Keyphasor reference signals remain valid without recalibration.

When planning a retrofit around this probe, engineers must verify several critical parameters before installation. Power supply requirements for the 3300 NSv proximitor module — typically –24 VDC from the rack power supply — must be confirmed against the existing cabinet wiring. Terminal block assignments on the 3300 NSv monitor card (Probe, Common, and OK relay terminals) should be cross-referenced with the original loop drawing before disconnecting the old probe. The extension cable — commonly the Bently Nevada 330130-series armored extension cable — must be inspected for continuity and shield integrity, as a degraded cable will introduce noise into the vibration signal even with a new probe installed.

Backplane and rack compatibility is equally important. The 3300 NSv monitor cards seat into a standard 3300 series rack backplane. If the retrofit is part of a broader control system upgrade, engineers should confirm that the rack backplane connector pins are undamaged and that the monitor card firmware version supports the probe sensitivity range. In multi-channel installations, module address DIP switch settings on each 3300 NSv card must be verified to prevent address conflicts on the Modbus or Bently Nevada proprietary communication bus connecting to the System 1 condition monitoring software or a DCS historian.

For facilities migrating from older 3300 RAM or 3300/20 series monitors to the current 3300 NSv platform, the 330905-00-06-05-02-00 probe is fully compatible with the new monitor hardware while maintaining the same physical installation footprint. This eliminates the need to re-machine bearing housing probe ports or replace conduit runs — a significant cost saving in brownfield retrofit projects. The Keyphasor signal, typically sourced from a separate Bently Nevada 330180-series Keyphasor probe, remains unaffected by the swap and continues to provide phase reference data to the 3300 NSv Tachometer Input Module.

HMI screen updates are minimal when replacing like-for-like probes. Operators using System 1 Evolution or a third-party SCADA connected via OPC-DA or OPC-UA should verify that the probe tag name, engineering unit scaling (mils pk-pk or µm pk-pk), and alarm setpoint configuration remain consistent after the replacement. If the facility is simultaneously upgrading from a legacy DCS to a modern platform — such as migrating I/O from a PROVOX or RS3 system to a DeltaV or Honeywell Experion controller — the vibration signal wiring from the 3300 NSv OK relay and analog output terminals must be mapped to the new I/O termination assembly.

All units are pre-tested prior to shipment. Each 330905-00-06-05-02-00 probe undergoes gap voltage verification at the standard 50-mil (1.27 mm) nominal gap, confirming output linearity across the full measurement range. Units are shipped with a calibration data sheet and are covered by a 12-month warranty against manufacturing defects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete bill-of-materials audit of the existing vibration monitoring loop. For a typical 3300 NSv installation, this includes the proximity probe (330905-00-06-05-02-00), the armored extension cable (Bently Nevada 330130-series, available in 1m, 3m, 5m, and 9m lengths), and the proximitor driver module mounted in the 3300 NSv rack. The rack itself — a standard 19-inch DIN-rail or panel-mount enclosure — houses the 3300 NSv monitor cards, the rack power supply module (typically –24 VDC, 1.5A per card slot), and the Tachometer Input Module for Keyphasor signal conditioning.

In multi-channel machinery protection applications, the 3300 NSv rack may also contain radial vibration monitor cards, axial position monitor cards, and temperature input modules sharing the same backplane. Engineers planning a probe replacement must ensure that the replacement does not disturb the wiring or address configuration of adjacent modules. The Keyphasor probe — often a Bently Nevada 330180-series unit — provides the once-per-revolution phase reference used by all vibration channels in the rack and must remain operational throughout the probe swap.

For facilities also upgrading their control network, the 3300 NSv system communicates with upstream DCS or SCADA platforms via a dedicated communication gateway. If the site is migrating from a legacy serial Modbus link to an Ethernet-based OPC-UA connection, the gateway module configuration must be updated to reflect the new IP addressing scheme before the probe replacement is commissioned. This prevents a gap in vibration data logging during the cutover window.

Facilities performing a broader I/O migration — for example, moving analog vibration outputs from a legacy PROVOX I/O termination assembly to a DeltaV CHARM I/O card — should map the 4–20 mA analog output from the 3300 NSv monitor card to the new termination point before the outage begins. Having the new I/O loop verified and loop-checked in advance reduces the risk of extended downtime caused by wiring errors discovered during restart.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist. Before isolating the machine, the maintenance team should capture a baseline vibration trend from the 3300 NSv monitor — including overall vibration amplitude, 1X and 2X spectral components, and the current gap voltage reading — to establish a post-installation acceptance criterion. This baseline, stored in System 1 Evolution or exported to the site historian, provides the reference against which the new probe’s output is validated after installation.

During the physical swap, the extension cable connector at the proximitor driver module should be disconnected first, placing the monitor channel into a fault/OK-relay-open state. This prevents the monitor from generating a spurious trip signal during probe removal. The new 330905-00-06-05-02-00 probe is then threaded into the bearing housing port, set to the nominal 50-mil gap using a non-ferrous feeler gauge, and locked with the probe locknut. The extension cable is reconnected, and the gap voltage is measured at the proximitor output terminals — a reading of approximately –10 VDC at 50 mils confirms correct installation.

Before returning the machine to service, the OK relay output from the 3300 NSv monitor card should be verified to confirm the channel has returned to a healthy state. The vibration reading should be compared against the pre-outage baseline. If the facility uses a bypass key switch or software bypass in the safety instrumented system (SIS) to inhibit the vibration trip during maintenance, the bypass must be removed and the SIS logic verified as active before the machine is restarted. Maintaining a written bypass log and a signed return-to-service checklist protects both the equipment and the maintenance team.

Retrofit Support FAQ

Q: Is the 330905-00-06-05-02-00 a direct drop-in replacement for my existing 3300 NSv probe?
A: Yes. The 330905-00-06-05-02-00 is dimensionally and electrically identical to the original Bently Nevada probe specification for the 3300 NSv platform. No modification to the bearing housing, extension cable, or proximitor driver is required for a like-for-like replacement. Existing alarm setpoints and trip thresholds remain valid without recalibration.

Q: What commissioning checks are required after installation?
A: After threading the probe to the nominal 50-mil gap and reconnecting the extension cable, measure the DC gap voltage at the proximitor output terminals. A reading of –10 VDC ±1 VDC confirms correct probe gap and cable continuity. Verify the OK relay output has returned to the healthy (closed) state on the 3300 NSv monitor card before releasing the machine for restart.

Q: Can this probe be used with a 3300 XL 8mm proximitor if my original system used a different driver model?
A: The 330905-00-06-05-02-00 is calibrated for use with the Bently Nevada 3300 XL 8mm proximitor. If your existing installation uses a different proximitor model (e.g., a 3300/16 or 3300/20 series driver), sensitivity and linearity must be re-verified against the proximitor’s calibration curve before the probe is placed in service. Contact our technical team for cross-reference guidance.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit is pre-tested prior to dispatch, including gap voltage linearity verification and cable continuity checks. Warranty claims are processed with a return merchandise authorization (RMA); replacement units are shipped within 3 business days of RMA approval.
