Bently Nevada 330905-00-06-10-02-00 3300 XL Retrofit Probe

Bently Nevada 330905-00-06-10-02-00 3300 XL Retrofit Probe: Compatible Modernization for Legacy Vibration Monitoring Systems

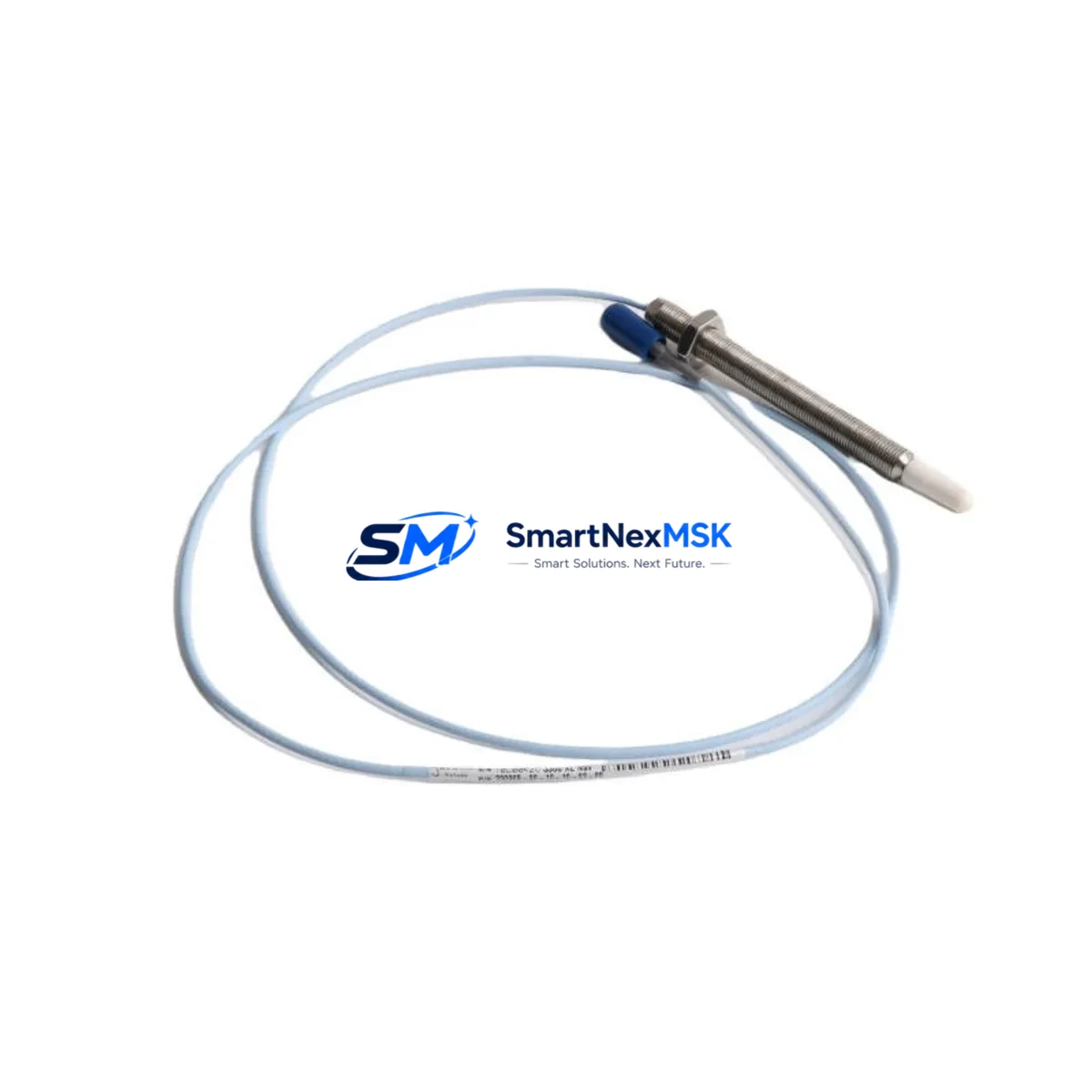

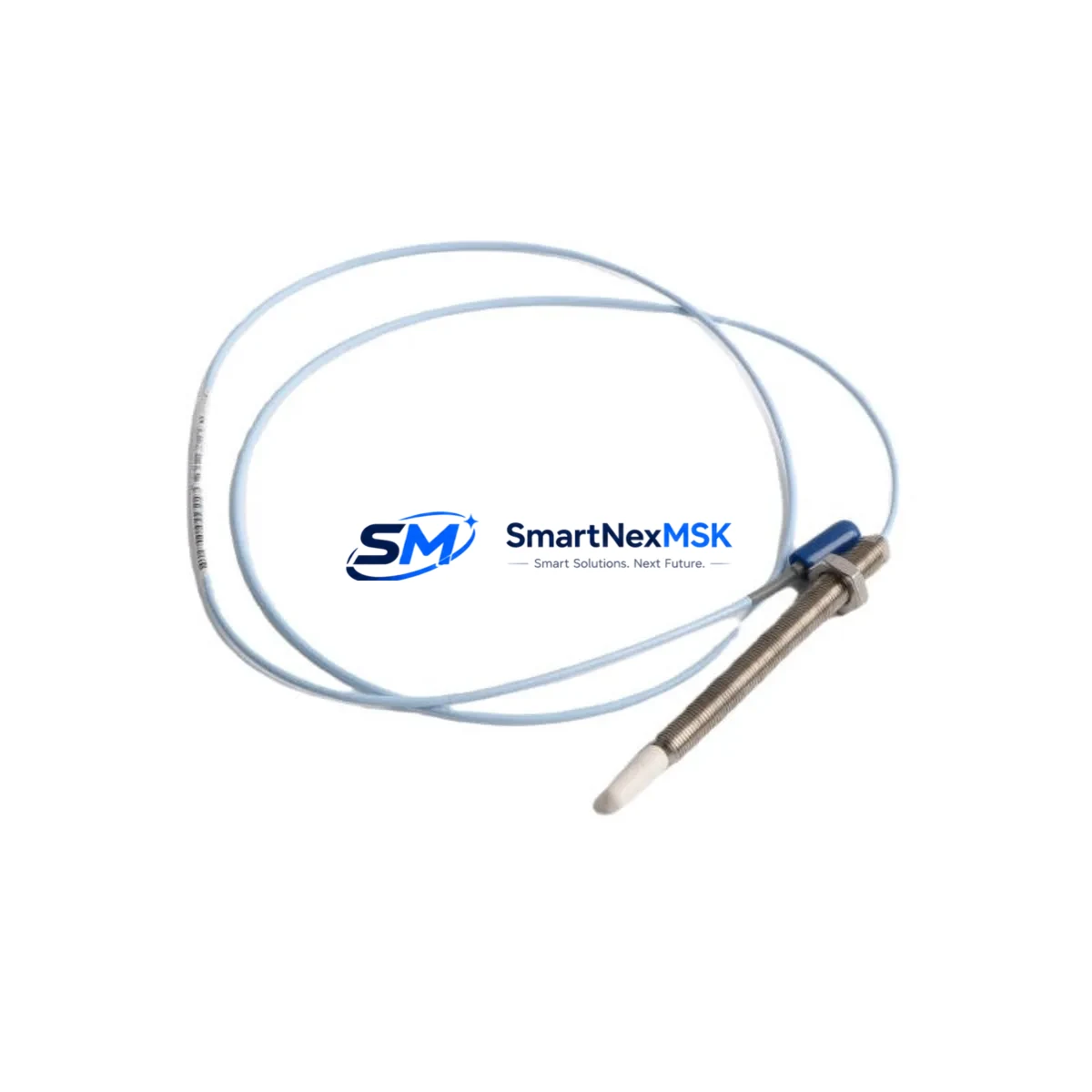

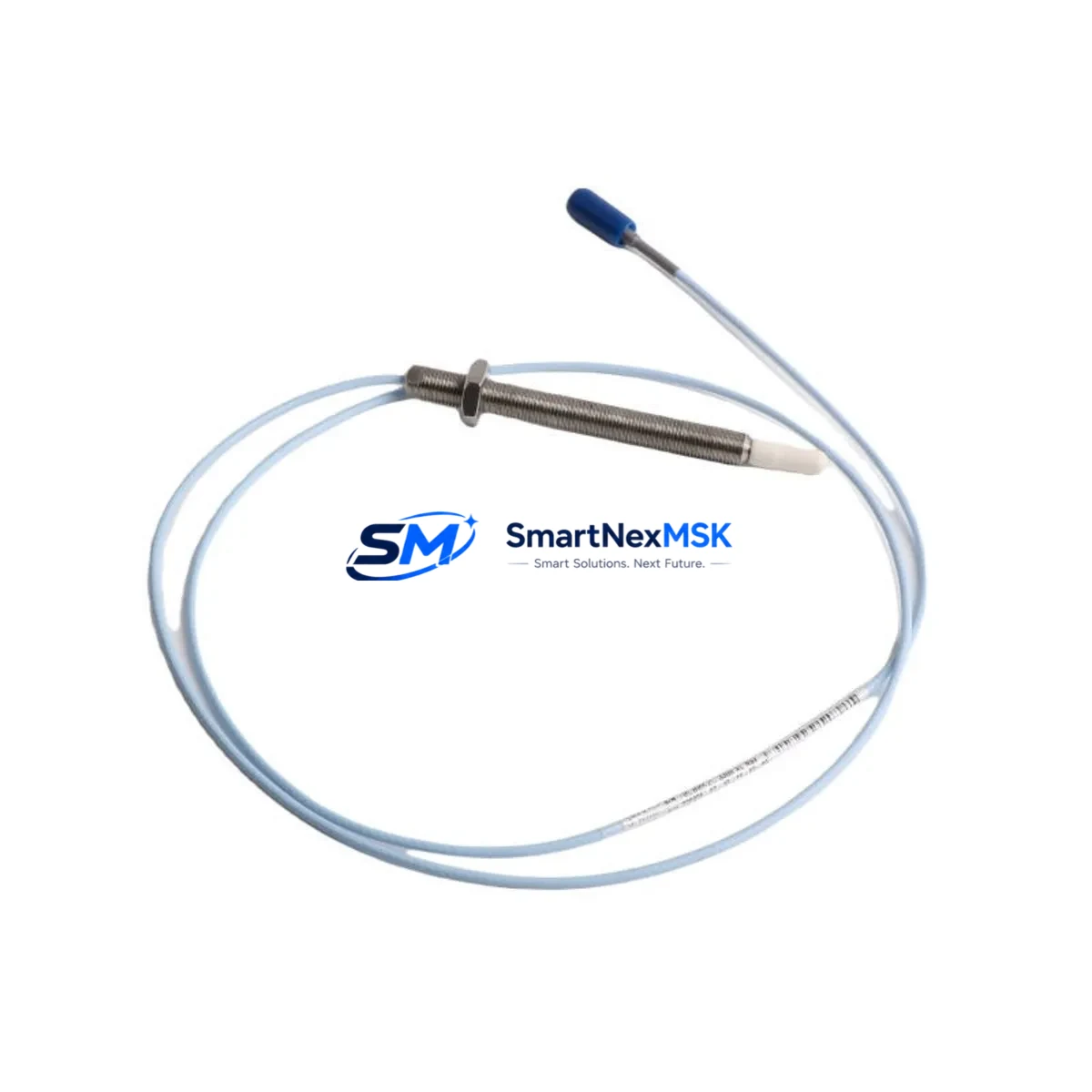

The Bently Nevada 330905-00-06-10-02-00 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform. As aging machinery protection systems approach end-of-life or face discontinued OEM support, this probe serves as a retrofit-ready, drop-in replacement that preserves existing wiring infrastructure, proximitor signal chains, and machinery protection logic without requiring a full system overhaul.

Industrial facilities operating rotating equipment — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — rely on continuous shaft displacement monitoring to prevent catastrophic mechanical failure. When original probes degrade, become physically damaged, or are no longer available through standard OEM channels, the 330905-00-06-10-02-00 provides a verified compatible alternative that maintains measurement accuracy and system integrity across the 3300 XL architecture.

This probe is designed to interface directly with the 330180 Series Proximitor® sensor, which converts the probe’s eddy-current signal into a DC voltage proportional to the gap between the probe tip and the observed shaft surface. Engineers replacing worn or failed probes should confirm that the existing 330180 proximitor is within calibration tolerance before installation, as probe-proximitor system matching is critical to achieving accurate gap voltage output and alarm setpoint integrity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe within an active machinery protection system requires careful pre-outage planning to avoid unplanned downtime and to protect the integrity of the existing control architecture. Before removing the failed or degraded 330905-00-06-10-02-00 probe, engineers should document the current gap voltage reading at the 330180 proximitor output terminal, typically targeting a nominal gap of 1.0 mm to 2.0 mm depending on the shaft material and surface finish. This baseline reading is essential for post-installation verification.

The 3300 XL monitor rack — which may house multiple I/O modules including radial vibration cards, axial position cards, and speed input modules — should be inspected for any existing alarm or danger setpoint configurations stored in the 3300 XL monitor’s non-volatile memory. These setpoints must not be altered during a probe swap unless a formal setpoint review has been completed. The 3500 Series rack, a common upgrade path from the 3300 XL platform, uses a different backplane architecture and requires a separate probe-to-proximitor recalibration procedure if the facility is migrating to the newer platform.

Wiring continuity between the probe, the extension cable (typically a 330130 or 330140 series armored extension cable), and the 330180 proximitor must be verified using a standard ohmmeter before energizing the system. Damaged extension cable shielding is a frequent cause of signal noise that can trigger false vibration alarms in the 3300 XL monitor. The proximitor’s power supply input — typically -24 VDC supplied from a dedicated instrument power rail — should be confirmed stable before reconnecting the probe circuit.

For facilities also managing DCS integration, the 3300 XL monitor’s 4–20 mA output or relay contact outputs may be wired into a distributed control system such as a Honeywell Experion or Emerson DeltaV I/O card. These signal paths should be verified as live and correctly scaled after probe replacement to ensure the DCS historian and alarm management system reflect accurate vibration data. If the facility uses a Modbus RTU or FOUNDATION Fieldbus communication link between the machinery protection system and the DCS, the communication link should be tested post-commissioning to confirm data integrity.

In multi-machine installations, it is common to find the 330905-series probe used alongside other Bently Nevada components including the 3300 XL 25mm proximity probe, the 3300 RAM module, the 3300/16 I/O module, and the 3300 XL keyphasor module. Facilities planning a phased upgrade should map all probe-proximitor pairs across the rack before beginning any replacement work to avoid cross-channel wiring errors.

Downtime Control During System Migration

Minimizing machinery downtime during a proximity probe replacement requires a structured pre-outage checklist and a clearly defined commissioning sequence. The replacement of the 330905-00-06-10-02-00 probe can typically be completed within a planned maintenance window of two to four hours, provided that the replacement probe, extension cable, and any required mounting hardware are staged and verified before the machine is taken offline.

To protect the original program logic stored in the 3300 XL monitor, no configuration changes should be made to the monitor’s internal setpoints, channel assignments, or relay logic during the probe swap. If the facility uses a Bently Nevada System 1 software platform for online machinery diagnostics, the System 1 configuration database should be backed up before any hardware changes are made. This ensures that historical trend data and alarm configuration are preserved even if a monitor module requires replacement during the outage.

For facilities migrating from the 3300 XL platform to the 3500 Series, a parallel monitoring strategy is recommended: the new 3500 rack is commissioned and verified against the existing 3300 XL readings before the old system is decommissioned. This approach allows operations to confirm that the new probe-proximitor pairs are producing consistent gap voltage and vibration amplitude readings before transferring alarm responsibility to the new system. The 3500/42M four-channel proximitor I/O module and the 3500/22M transient data interface are commonly used in this migration path.

All field commissioning activities should be documented in a commissioning report that records the as-found and as-left gap voltage, the proximitor output voltage at nominal gap, the alarm and danger setpoint values, and the results of any relay output functional tests. This documentation supports both internal maintenance records and any third-party machinery protection audits required by the facility’s insurance or regulatory framework.

Retrofit Support FAQ

Q1: Is the 330905-00-06-10-02-00 a direct drop-in replacement for the original Bently Nevada probe?
Yes. The 330905-00-06-10-02-00 is dimensionally and electrically compatible with the original 3300 XL Series probe specification. It interfaces with the 330180 proximitor without modification to the existing conduit, terminal block wiring, or monitor channel configuration. A gap voltage verification is required after installation to confirm correct probe-to-shaft clearance.

Q2: What commissioning steps are required after installing the replacement probe?
After mechanical installation, the technician should measure the gap voltage at the 330180 proximitor output terminal and adjust the probe mounting depth until the voltage falls within the specified linear range (typically -10 VDC at 2.0 mm gap for standard steel targets). The 3300 XL monitor channel should then be checked for correct vibration amplitude and DC gap readings before the machine is returned to service. Alarm and danger setpoints should be confirmed against the approved setpoint register.

Q3: Can this probe be used in a 3500 Series rack during a platform migration?
The 330905-00-06-10-02-00 probe is designed for the 3300 XL platform and its associated 330180 proximitor. For 3500 Series installations, Bently Nevada specifies the use of 3300 XL-compatible probe-proximitor systems with the 3500/42M I/O module, provided the system is configured for external proximitor input. Compatibility should be confirmed against the 3500 Series rack configuration documentation before installation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, signal output non-conformance, and physical integrity of the probe body and connector under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify gap voltage linearity and output signal quality. Warranty claims require the original purchase documentation and a description of the observed failure mode. Contact sales@smartnexmsk.com for warranty support.
