Bently Nevada 330905-00-08-10-02-05 Maintenance-Ready Spare 3300 NSv Automation

Bently Nevada 330905-00-08-10-02-05 Maintenance-Ready Spare for 3300 NSv Automation

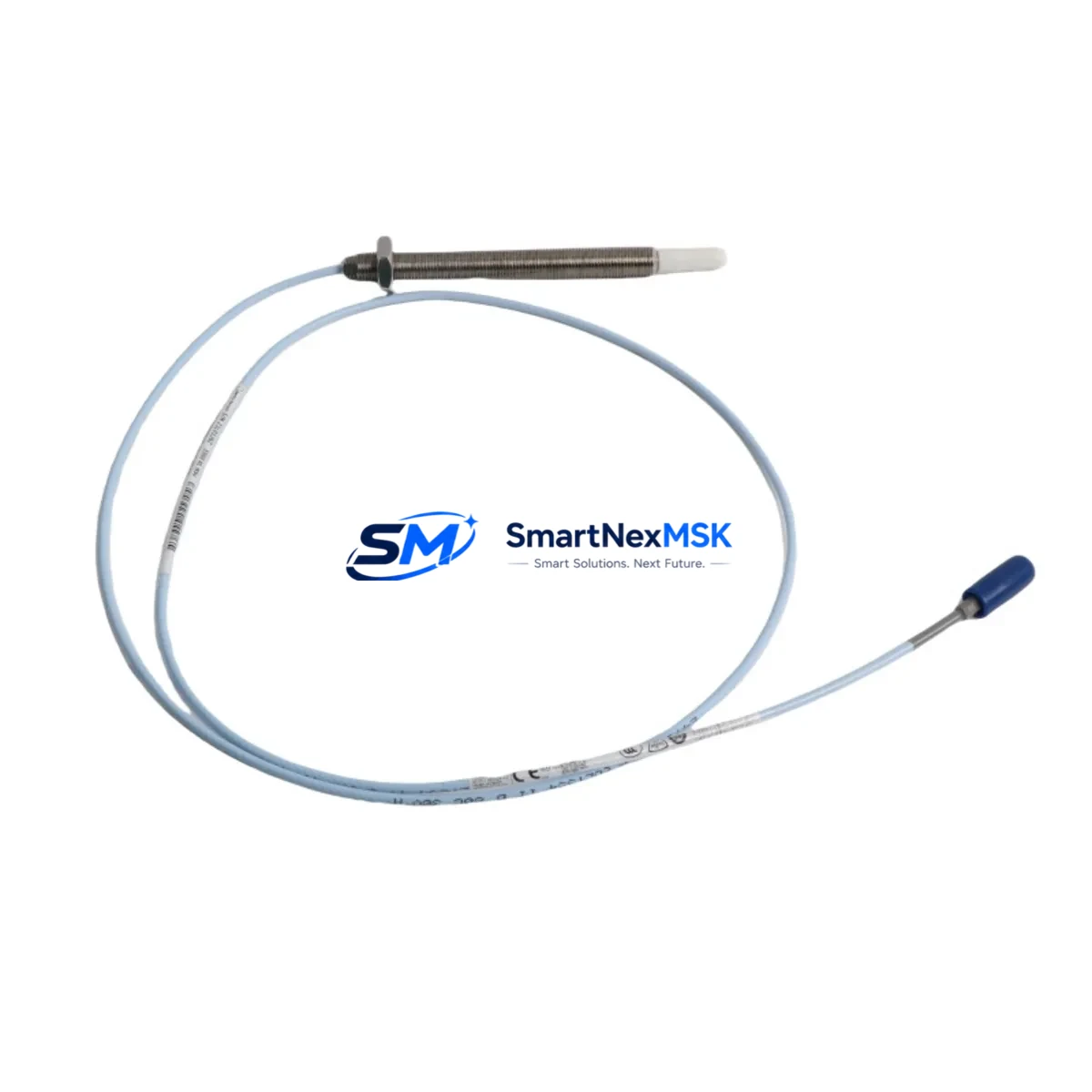

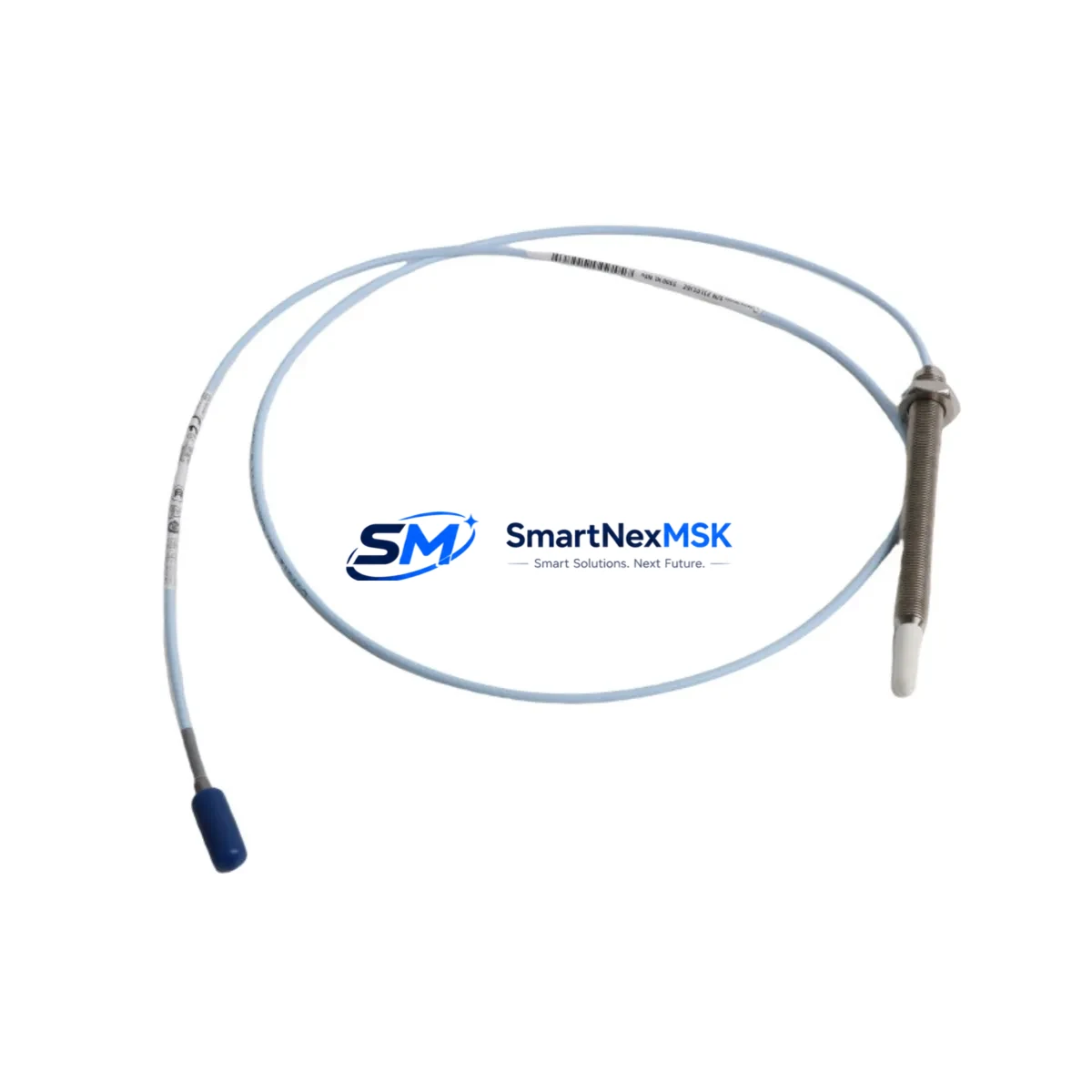

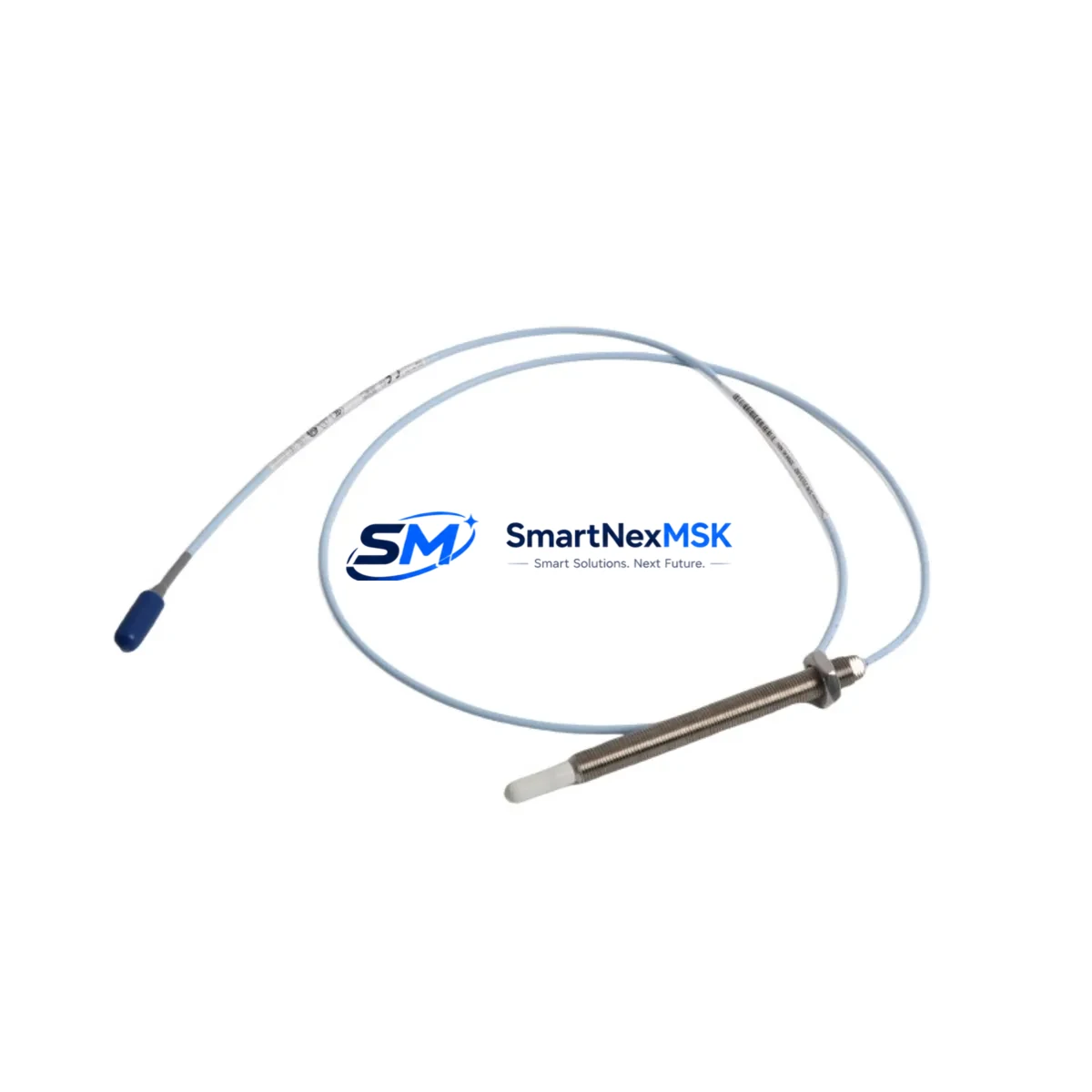

The Bently Nevada 330905-00-08-10-02-05 is an original eddy-current proximity probe engineered for the 3300 NSv (Non-Standard Voltage) Series vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor that feeds shaft displacement data to the 3300 rack-mounted monitors. When this component fails or degrades, the entire vibration protection loop is compromised, exposing critical rotating assets to undetected mechanical faults. Stocking a verified replacement is not optional; it is a fundamental element of any serious predictive maintenance program.

This spare is sourced as an original Bently Nevada component, pre-shipment tested, and backed by a 12-month warranty. It is suitable for direct replacement in existing 3300 NSv installations without recalibration of the full loop, provided the extension cable and proximitor module remain within specification. Long-term supply continuity is maintained for legacy 3300 NSv systems, supporting old-system life extension programs and planned maintenance schedules alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330905-00-08-10-02-05 probe is flagged for replacement during a scheduled outage or emergency shutdown, maintenance engineers should treat the event as a trigger for a broader loop inspection. The eddy-current measurement chain in a 3300 NSv installation involves several interdependent components, and replacing only the probe without verifying the rest of the loop is a common source of repeat failures and unplanned downtime.

Begin by inspecting the 330130-080-00-00 extension cable that connects the probe to the proximitor. Cable jacket cracking, connector corrosion, or impedance drift will cause the replacement probe to read incorrectly even if the probe itself is perfect. Next, verify the 3300 NSv Proximitor module — typically a 330180 or 330181 series unit — for output voltage stability and gap voltage linearity. A proximitor that has drifted out of calibration will invalidate the new probe’s readings immediately after installation.

At the rack level, inspect the 3300/16 or 3300/20 monitor card for alarm setpoint integrity and channel OK status. If the monitor has been in service for more than five years, consider stocking a spare monitor card alongside the probe. For installations using a 3500 Series rack with a 3500/42M Proximitor I/O module, confirm that the module’s input impedance matches the NSv probe specification before installation.

In the control cabinet, check the 24 VDC power supply module feeding the proximitor — voltage sag or ripple above 50 mV will introduce noise into the vibration signal. Inspect terminal blocks and cable shields for continuity; a broken shield on the extension cable is a frequent source of spurious high-vibration trips. If the installation includes a signal isolator or intrinsic safety barrier (common in hazardous-area installations), verify that the barrier’s input impedance is compatible with the 3300 NSv probe output range of -2 VDC to -18 VDC.

For facilities running older DCS platforms that accept the 3300 rack’s 4–20 mA retransmission output, confirm that the 4–20 mA output card in the 3300 monitor is functioning correctly and that the DCS input card scaling matches. A misconfigured scaling factor will cause the DCS historian to log incorrect vibration trends even after a successful probe replacement. Where the system interfaces with an HMI or SCADA display, verify that the vibration channel tag is correctly mapped and that the engineering unit scaling reflects the new probe’s sensitivity factor.

Procurement engineers building a spare parts list for a 3300 NSv-based protection system should consider holding at minimum: one spare probe (330905-00-08-10-02-05), one spare extension cable (330130 series, matched length), one spare proximitor module (330180/330181), and one spare monitor card per critical machine train. For large turbine-generator sets, a complete spare channel kit — probe, cable, proximitor, and monitor — is standard practice in ISO 55001-aligned maintenance programs and supports rapid downtime recovery without waiting on procurement lead times.

Site Replacement Workflow

Replacing the 330905-00-08-10-02-05 in the field follows a structured sequence to minimize downtime and avoid introducing new faults. Before removing the old probe, record the existing gap voltage (typically -10.0 VDC ± 0.5 VDC at the nominal 1.0 mm gap) using a calibrated voltmeter at the proximitor OK terminal. This baseline confirms whether the fault is in the probe or elsewhere in the loop.

Remove the probe by unscrewing it from the bracket — do not pull by the cable. Inspect the probe tip for physical damage, contamination, or shaft contact marks. Install the replacement 330905-00-08-10-02-05, set the gap to the machine-specific setpoint (typically 1.0 mm for 8 mm probes on steel shafts), and torque the locknut to specification. Reconnect the extension cable and verify the gap voltage at the proximitor. If the gap voltage is within the -10.0 VDC ± 0.2 VDC acceptance band, the loop is ready for return to service.

For machines that cannot be barred over during the replacement (hot-standby systems), the 3300 NSv monitor’s channel bypass function allows the channel to be placed in a non-tripping state during probe swap without disabling the full protection rack. Confirm with the control room before activating bypass mode. After replacement, restore the channel to normal monitoring mode and verify that the OK LED is illuminated and the vibration reading is stable before releasing the machine to operations.

This replacement procedure is compatible with legacy installations previously using the 330900 series probes, provided the extension cable and proximitor are also updated to NSv-compatible versions. Mixed NSv and standard-voltage components in the same loop will produce calibration errors and should be avoided. Compatibility confirmation and pre-shipment functional testing are included with every unit supplied.

Spare Parts Support FAQ

Q1: Is the 330905-00-08-10-02-05 a direct replacement for the 330900-00-08-10-02-05?
The 330905 (NSv) and 330900 (standard voltage) probes are not interchangeable without also replacing the proximitor module. The NSv system operates at a different bias voltage range. Always confirm the proximitor model before ordering a replacement probe to ensure full loop compatibility.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage from shaft contact, incorrect installation gap, or use outside the rated temperature and target material specifications. All units are tested for output linearity and OK threshold before shipment.

Q3: How should this spare be stored if not immediately installed?
Store the probe in its original packaging in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Avoid storing near strong magnetic fields or solvents. The coaxial connector should be capped to prevent contamination. Shelf life under proper storage conditions exceeds five years without functional degradation.

Q4: Can you supply matched probe-and-cable sets for a full channel replacement?
Yes. Matched sets consisting of the 330905-00-08-10-02-05 probe and a 330130 series extension cable of the required length can be supplied as a kit. Matched sets are recommended for new installations or when the existing cable has been in service for more than eight years, as cable impedance drift over time can affect probe calibration accuracy.
