Bently Nevada 330905-00-09-10-02-05 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

Bently Nevada 330905-00-09-10-02-05 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems: Compatible Modernization and Smooth Legacy Upgrade

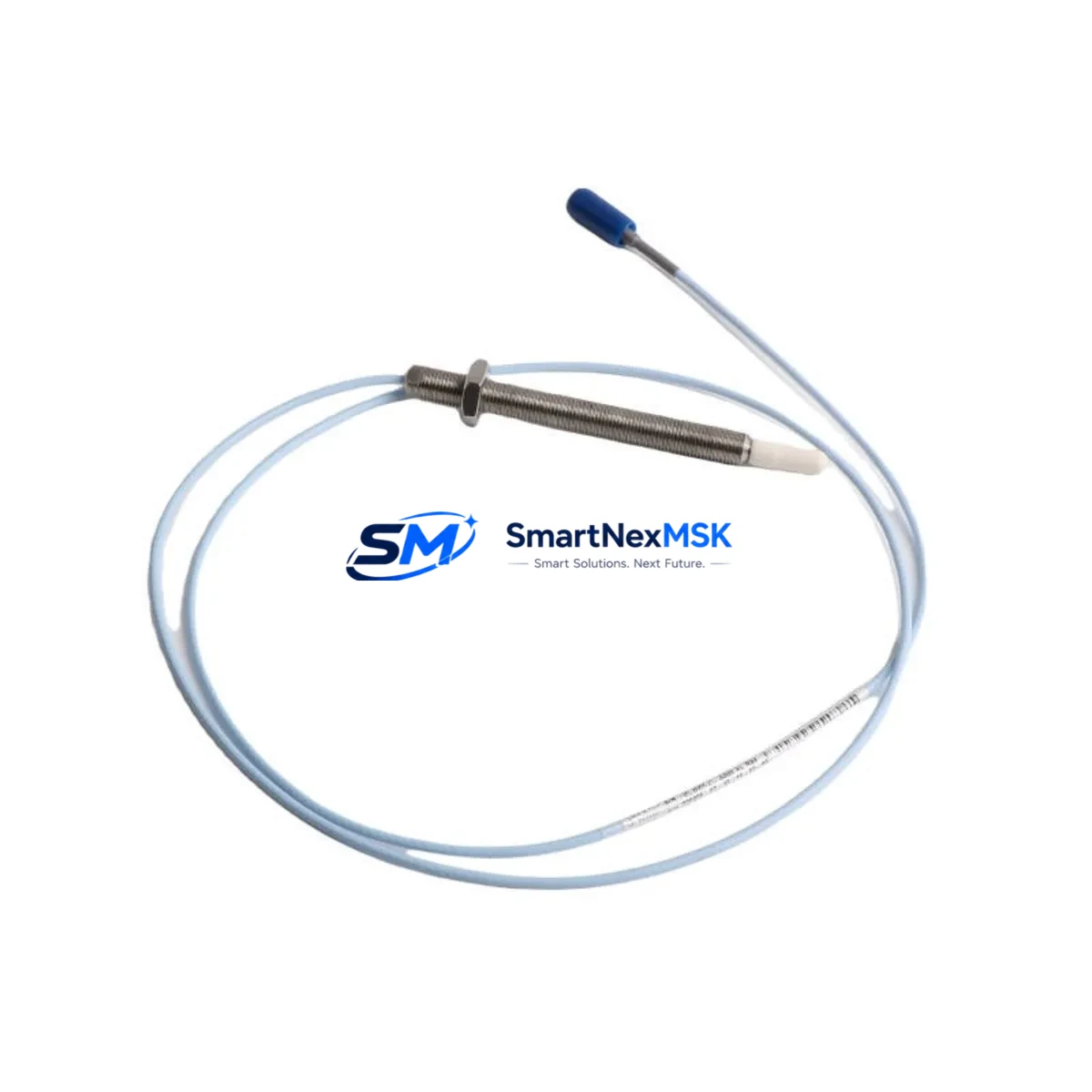

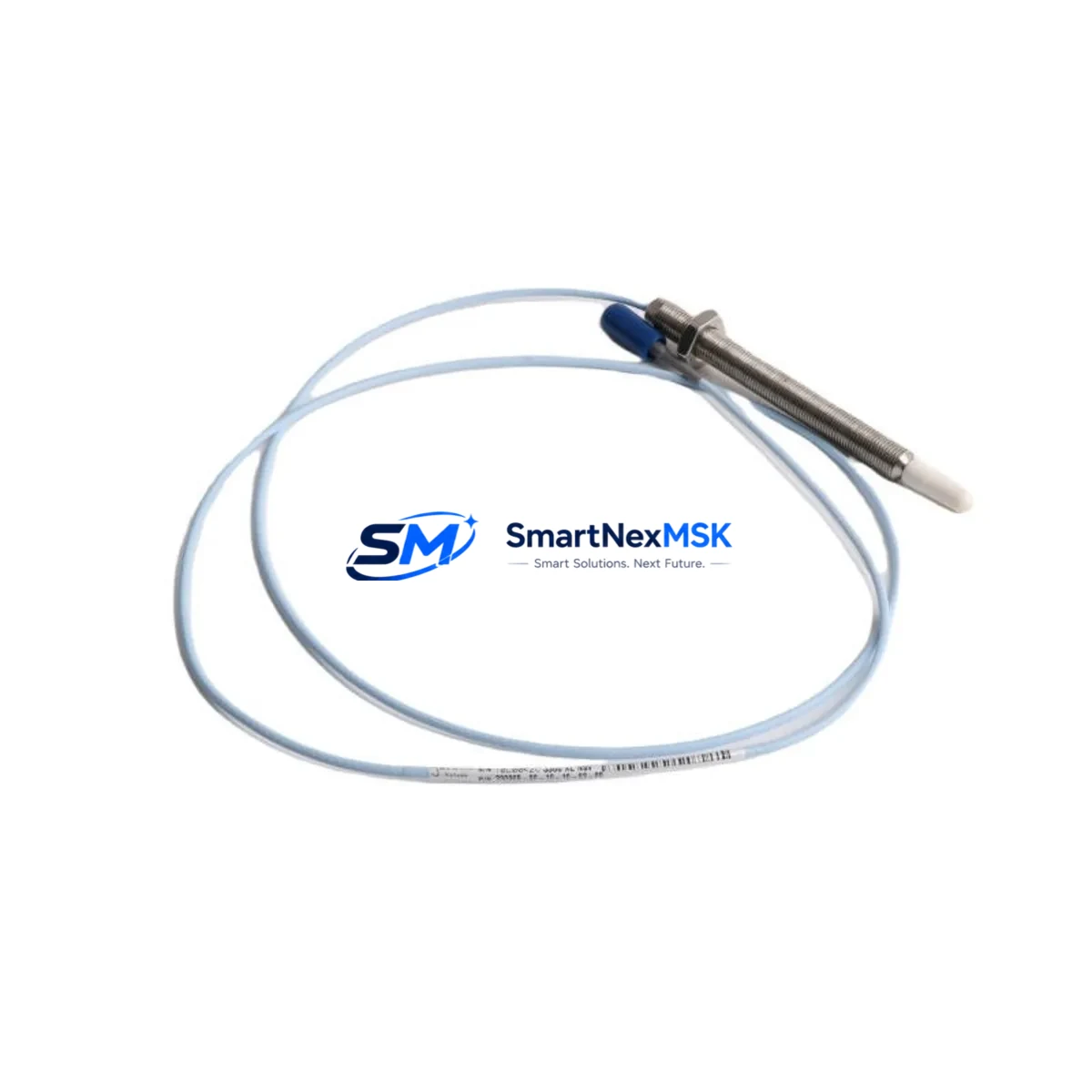

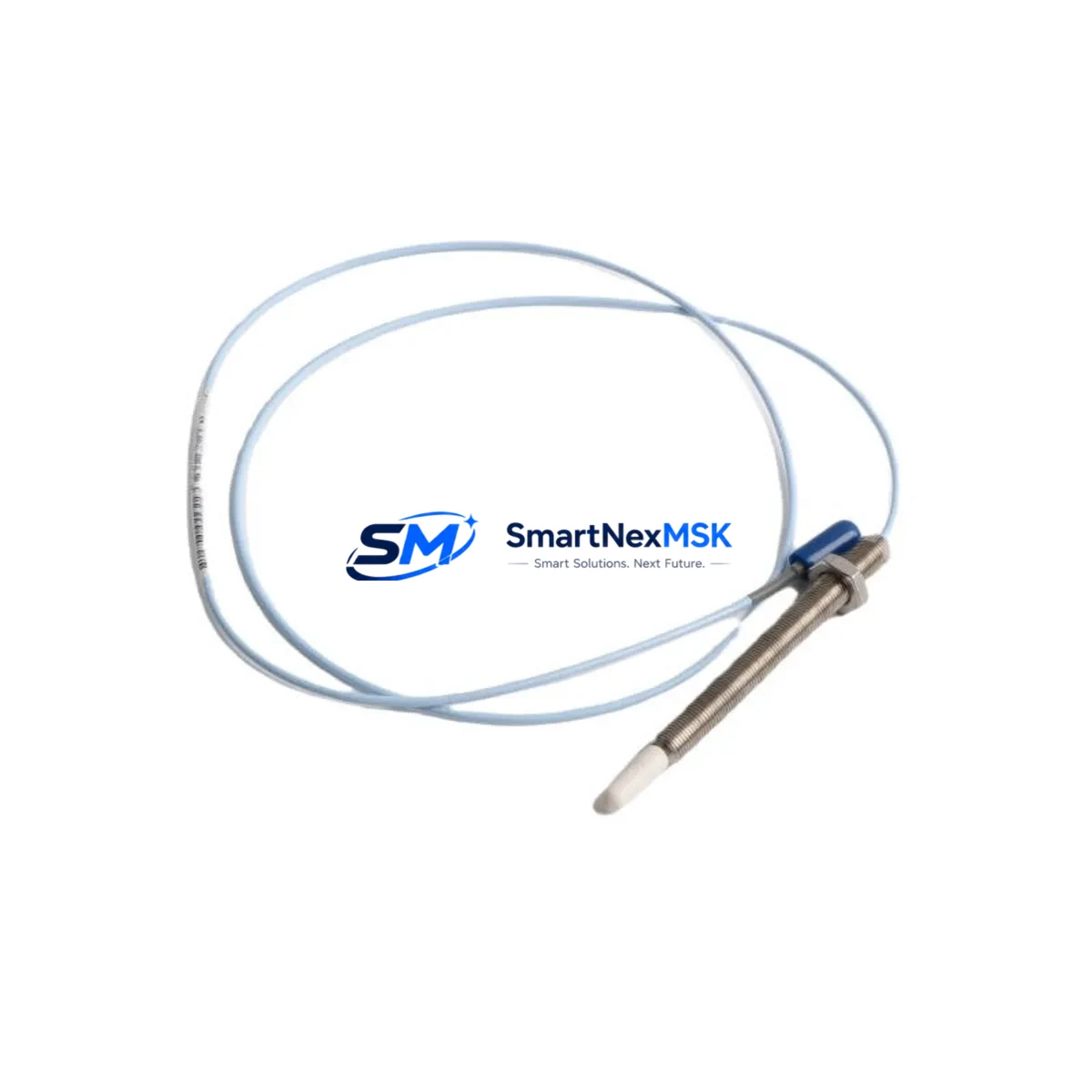

The Bently Nevada 330905-00-09-10-02-05 is a precision proximity transducer system engineered for the Bently Nevada 3300 XL series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-life or face discontinued spare part availability, this module serves as a verified retrofit-ready replacement for facilities operating turbines, compressors, pumps, and other critical rotating assets. Whether you are executing a planned control system upgrade or responding to an emergency spare parts shortage, the 330905-00-09-10-02-05 provides a reliable, specification-matched solution that minimizes engineering rework and field commissioning time.

This proximity transducer system is designed to interface directly with the Bently Nevada 3300 XL monitor rack, maintaining signal chain integrity across the full measurement loop — from the probe tip through the extension cable to the proximitor/driver. When replacing an aging or failed unit, engineers must verify the existing 3300 XL proximitor extension cable length and type, as the overall system sensitivity (mV/mil or mV/mm) is determined by the matched probe-cable-driver combination. The 330905-00-09-10-02-05 is rated for standard 5-meter or 9-meter cable configurations depending on the suffix variant, and field teams should confirm the cable suffix codes before installation to avoid sensitivity calibration errors.

During retrofit planning, it is equally important to audit the Bently Nevada 3300/16 monitor card or 3300/20 dual-channel monitor installed in the rack to confirm that the input channel configuration — gap voltage range, OK relay logic, and alarm setpoints — is compatible with the replacement transducer’s output characteristics. In many aging installations, the monitor cards themselves may require firmware review or replacement alongside the transducer system. Facilities running the Bently Nevada 3500 series as a migration target should note that the 3500 platform uses a different rack backplane and I/O module architecture, requiring a separate engineering assessment before cross-platform substitution.

Power supply integrity is a critical pre-installation checkpoint. The 3300 XL system typically draws from a Bently Nevada 3300/05 power supply module housed within the same rack. Before swapping the transducer system, verify that the rack power supply output voltage is within specification (typically -24 VDC) and that the supply has sufficient current headroom for all installed monitor channels. A degraded or undersized power supply is a common root cause of intermittent OK relay trips after transducer replacement, and this should be ruled out before field commissioning begins.

For facilities integrating the 3300 XL system with a DCS or PLC platform — such as a Rockwell Automation ControlLogix rack, Siemens S7-400, or Honeywell Experion PKS — the 4–20 mA analog output or relay contact outputs from the monitor card must be re-verified after transducer replacement. Any change in transducer sensitivity or gap voltage will shift the analog output scaling, which may require reconfiguration of the corresponding AI channel in the DCS and adjustment of the HMI faceplate alarm limits. Operators should coordinate with the control room team to temporarily suppress alarms during the commissioning window to avoid spurious shutdowns.

Communication link continuity is another key concern during migration. If the 3300 XL rack communicates with a plant historian or condition monitoring software via a Bently Nevada TDXnet or System 1 interface, the transducer channel mapping must be re-validated after replacement to ensure that vibration trend data is correctly attributed to the right measurement point. Incorrect channel mapping can corrupt historical baseline data and invalidate alarm threshold calculations.

All units supplied by SMARTNEXMSK undergo pre-shipment functional verification, including gap voltage output check, OK relay continuity test, and cable assembly inspection. Each 330905-00-09-10-02-05 unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Inventory is maintained in-stock for rapid dispatch, supporting both planned maintenance outages and emergency breakdown scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330905-00-09-10-02-05 into an existing rotating machinery protection system requires a structured pre-outage engineering review. Begin by pulling the as-built rack layout drawing to confirm the slot position of the affected monitor channel and the routing of the 3300 XL extension cable through the junction box to the machine bearing housing. Verify that the existing conduit and cable tray have sufficient space for the replacement cable assembly without sharp bends that could affect signal quality.

Next, review the 3300/16 or 3300/20 monitor card configuration printout to document the current alarm and danger setpoints, OK relay logic polarity, and any custom time-delay settings. These parameters must be re-entered manually after the transducer swap, as the monitor card does not retain configuration through a power cycle in all firmware versions. If the facility uses a Bently Nevada Rack Configuration Software (RCS) or System 1 configuration file, retrieve the latest saved version before beginning work.

During the physical swap, ensure that the 3300/05 power supply module is de-energized and that the rack is properly isolated per the site’s lockout/tagout procedure. After installing the 330905-00-09-10-02-05, reconnect the extension cable and verify the gap voltage reading at the proximitor output terminals using a calibrated digital multimeter. The target gap voltage for a standard 7.87 mm (0.31 in) installation gap is typically -10.0 VDC ± 0.5 VDC; consult the probe datasheet for the exact target based on the target material and surface finish.

For facilities also upgrading adjacent channels or planning a phased migration to the Bently Nevada 3500 platform, consider simultaneously auditing the 3500/42M position monitor or 3500/40M proximitor I/O module requirements to understand the full scope of rack changes needed. This avoids repeated outages and allows the engineering team to batch commissioning activities efficiently.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement requires pre-staging all replacement components — including the 330905-00-09-10-02-05 transducer system, spare extension cable, and any required monitor card — at the work site before the maintenance window begins. A pre-outage checklist should confirm that the replacement unit has been bench-tested, that the configuration file is ready for re-entry, and that the DCS operator has been briefed on the expected alarm suppression window.

During the outage, assign a dedicated technician to monitor the DCS console and confirm that the affected machine is safely isolated from the process before any rack work begins. After the transducer swap and gap voltage verification, perform a bump test or slow-roll check to confirm that the vibration signal is live and tracking correctly before returning the machine to service. Document the as-left gap voltage, OK relay status, and first-scan vibration reading in the maintenance management system to establish a new baseline for future trend analysis.

For emergency breakdown scenarios where a spare 330905-00-09-10-02-05 is not on-site, SMARTNEXMSK maintains in-stock inventory with same-day or next-day dispatch capability, supporting rapid response to unplanned outages and helping facilities restore protection system coverage with minimal production impact.

Retrofit Support FAQ

Q: Is the 330905-00-09-10-02-05 a direct drop-in replacement for my existing 3300 XL proximity transducer?
A: Yes, provided the suffix codes match (cable length, target material, and connector type). Always verify the full part number suffix against your as-built documentation before ordering to ensure sensitivity and mechanical compatibility.

Q: Do I need to recalibrate the monitor card after replacing the transducer?
A: Gap voltage re-verification is required after every transducer replacement. Alarm and danger setpoints should be re-confirmed against the current machinery protection philosophy document. If the replacement unit has the same sensitivity specification as the original, full recalibration of the monitor card is typically not required, but a functional check of the OK relay and analog output is always recommended.

Q: What wiring checks should I perform before energizing the replacement unit?
A: Verify shield continuity on the extension cable, confirm correct polarity at the proximitor power input terminals, and check for any ground loops between the junction box and the rack. A megohm test on the cable shield to ground is advisable if the cable has been exposed to moisture or mechanical damage.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. Units that show evidence of physical damage, improper installation, or operation outside the specified voltage and temperature range are not covered. Contact sales@smartnexmsk.com to initiate a warranty claim.
