Bently Nevada 330905-00-10-05-01-00 Spare 3300 XL Automation: Precision Spare Parts for Industrial Downtime Control

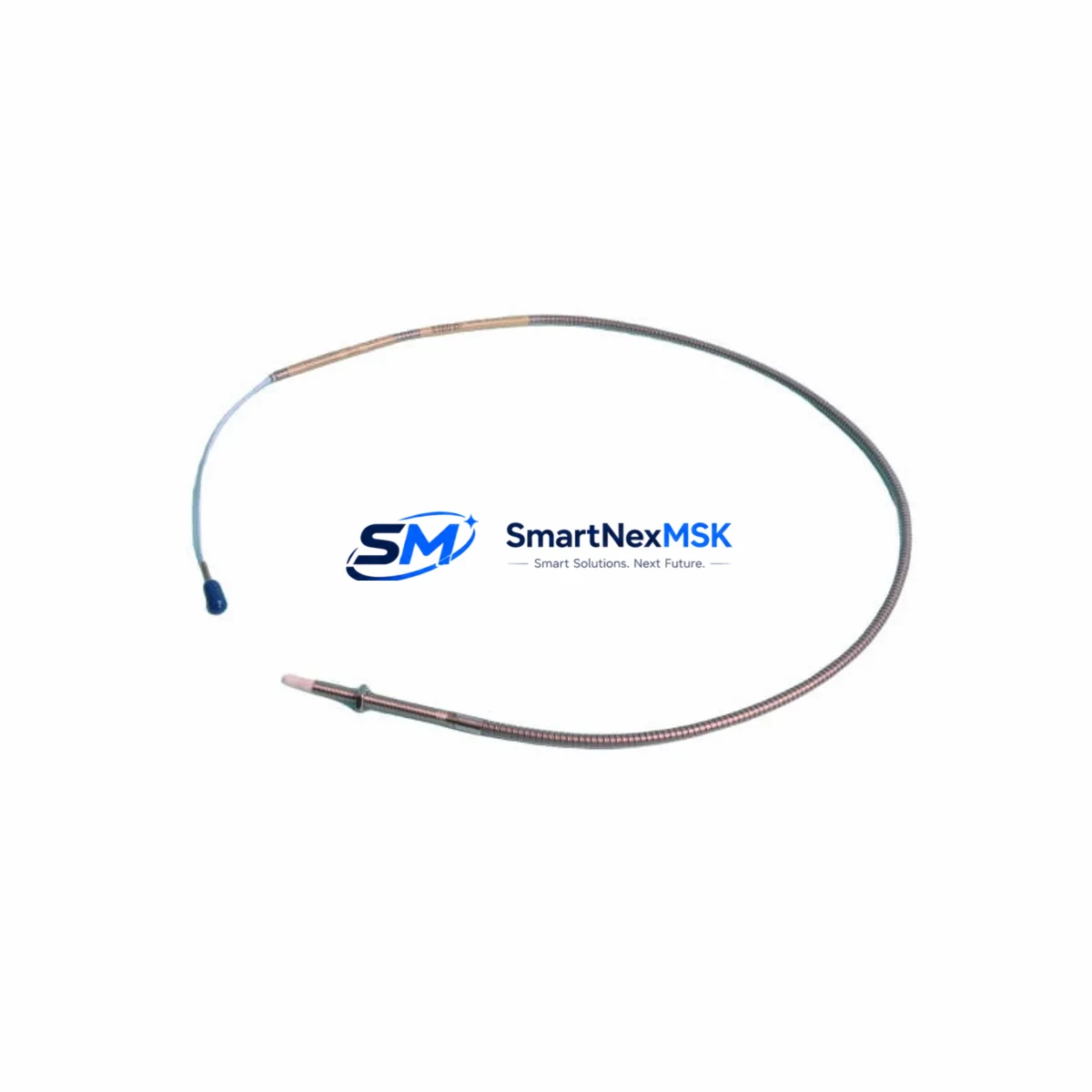

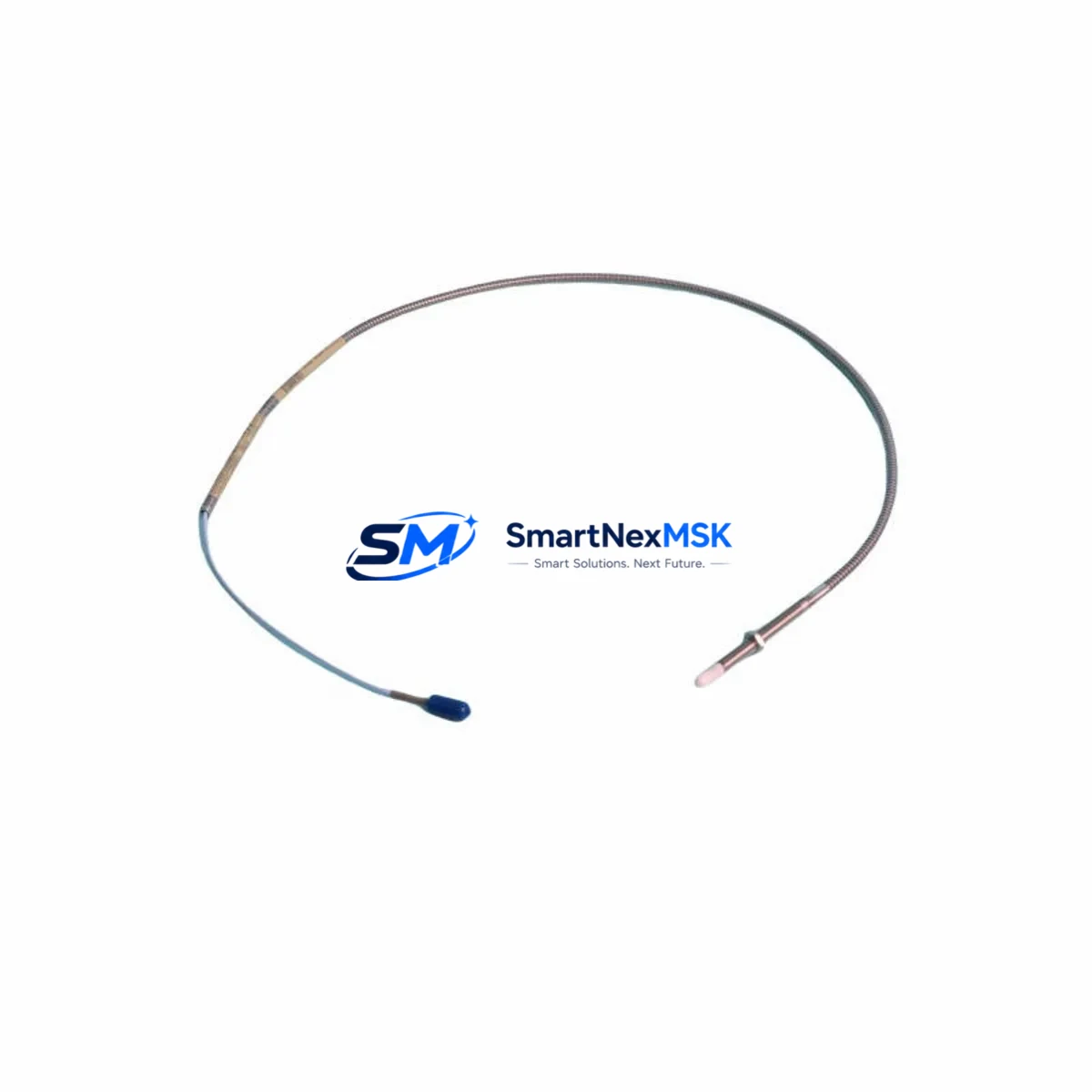

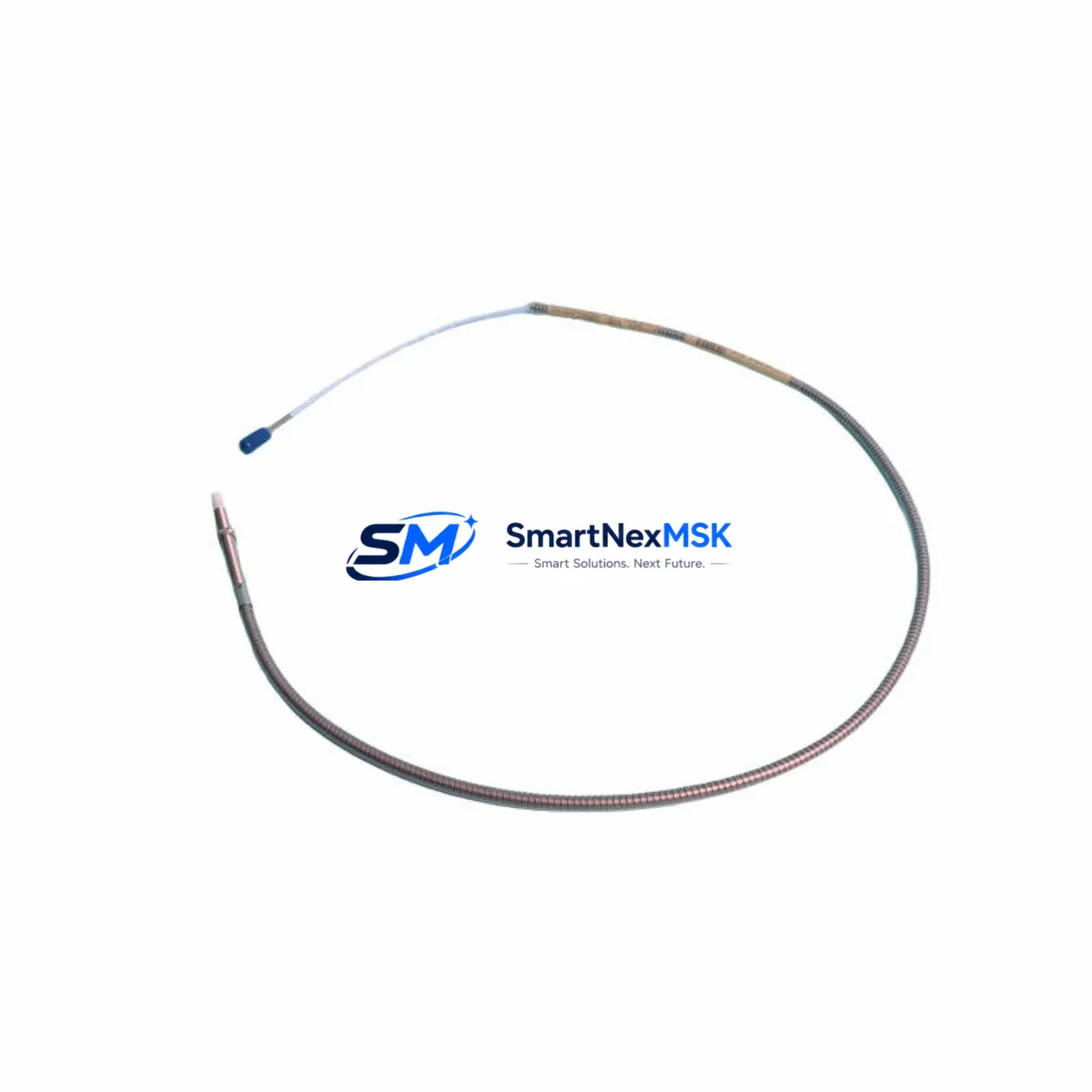

The Bently Nevada 330905-00-10-05-01-00 is an original proximity transducer system engineered for the 3300 XL Series continuous vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, this transducer represents a direct, verified replacement that restores system integrity without configuration compromise.

Maintenance engineers and reliability teams operating gas turbines, steam turbines, compressors, pumps, and gearboxes depend on the 3300 XL system for real-time radial vibration, axial position, and speed measurement. When a transducer in this chain fails or degrades, the entire protection loop is at risk. Stocking the 330905-00-10-05-01-00 as a certified spare eliminates the lead-time risk that turns a minor fault into an extended outage.

Each unit shipped from SMARTNEXMSK is individually tested, serialized, and verified against OEM electrical specifications before dispatch. A 12-month warranty covers all units, with documentation available for incoming inspection and maintenance records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330905-00-10-05-01-00 in the field, a disciplined maintenance engineer will not stop at the transducer alone. The 3300 XL proximity measurement chain is a system — and each element must be verified to ensure the replacement restores full protection loop integrity.

Begin with the Proximitor® driver module (typically a 330180-51-00 or equivalent 3300 XL 8mm driver). Confirm the driver output voltage is within the -10 VDC ± 1 VDC nominal gap range after the new transducer is installed. A driver that has drifted or suffered input impedance degradation will produce erroneous readings even with a new probe.

Inspect the extension cable (commonly 330130 series, matched to the probe cable length) for jacket cracking, connector corrosion, or continuity faults. Extension cables are a frequent source of intermittent faults that are misdiagnosed as transducer failures. Replace the cable if resistance or capacitance is out of specification.

At the monitor rack, verify the 3500/40M or 3500/42M monitor card is reading the correct gap voltage and that alarm setpoints have not drifted. Check the 3500 Rack Interface Module (RIM) and backplane connections for loose seating — vibration in turbomachinery environments can work connectors loose over time.

Review the -24 VDC power supply feeding the Proximitor® drivers. A sagging or noisy supply rail will introduce measurement error across all channels simultaneously, which can be mistaken for a process anomaly. The 3500 system’s dedicated power supply module should be load-tested if the rack is aging.

For installations near high-EMI environments, confirm that signal isolation barriers or Zener barriers in the intrinsically safe loop are within calibration. Degraded barriers can clamp the output signal and cause false low-vibration readings.

If the machine also uses keyphasor® transducers (e.g., 330980 series) for phase reference, verify the keyphasor gap and signal quality at the same time — a degraded keyphasor will affect all vector measurements across the protection system.

Finally, document the as-found and as-left gap voltages, update the maintenance management system (CMMS) record, and retain the replaced transducer for failure analysis. This practice supports root-cause investigation and informs future spare parts stocking decisions.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and confirm the machinery protection system bypass procedure with the control room. Do not defeat the protection system without authorization.

Step 2 — As-found documentation: Record the existing gap voltage, vibration reading, and any active alarms before disconnecting the transducer. Photograph the installation orientation and cable routing.

Step 3 — Transducer removal: Disconnect the extension cable at the field junction. Remove the transducer from the bracket, noting the thread engagement depth (typically 2–3 mm gap to target). Retain the locknut and bracket hardware.

Step 4 — New transducer installation: Install the 330905-00-10-05-01-00 to the same thread depth. Reconnect the extension cable. Apply anti-vibration thread compound if specified by the site procedure.

Step 5 — Gap verification: Power the Proximitor® and measure the output voltage. Adjust the transducer depth until the gap voltage is within the -10 VDC ± 0.5 VDC target. Tighten the locknut.

Step 6 — System verification: Confirm the monitor is reading correctly, alarms are clear, and the protection system is reinstated. Update the CMMS with the new serial number and installation date.

This workflow minimizes downtime and ensures the replacement is traceable — critical for facilities operating under IEC 61511, API 670, or ISO 13709 compliance frameworks.

Spare Parts Support FAQ

Q1: Is the 330905-00-10-05-01-00 compatible with both the 3500 and 3300 monitor series?
The 330905-00-10-05-01-00 is a 3300 XL series transducer designed to work with the 3300 XL Proximitor® driver. It is compatible with 3500 series monitors (3500/40M, 3500/42M) when paired with the correct 3300 XL driver module. Always verify the driver part number before installation to confirm the complete measurement chain is matched.

Q2: What testing is performed before shipment?
Every unit undergoes electrical continuity verification, gap voltage output testing against a reference target, and visual inspection for connector and cable integrity. A test report is available upon request. Units are serialized and traceable to the shipment record for the full 12-month warranty period.

Q3: How should I manage spare inventory for a fleet of rotating machines?
Industry best practice for critical rotating equipment is to maintain a minimum of one spare transducer per monitored shaft, plus one additional unit per four machines as a buffer. For aging 3300 XL installations where OEM supply is constrained, increasing the buffer to two units per four machines reduces the risk of extended lead times during simultaneous failures.

Q4: Can this transducer replace older 3300 series (non-XL) probes?
The 3300 XL series uses a different Proximitor® driver than the legacy 3300 (non-XL) series. Direct substitution without changing the driver is not recommended. If you are upgrading from a legacy 3300 system, contact our technical team to confirm the correct driver and cable pairing for your specific installation before ordering.
