Bently Nevada 330905-00-11-05-02-00 3300 NSv Spare: Precision Proximity Probe for Industrial Downtime Recovery

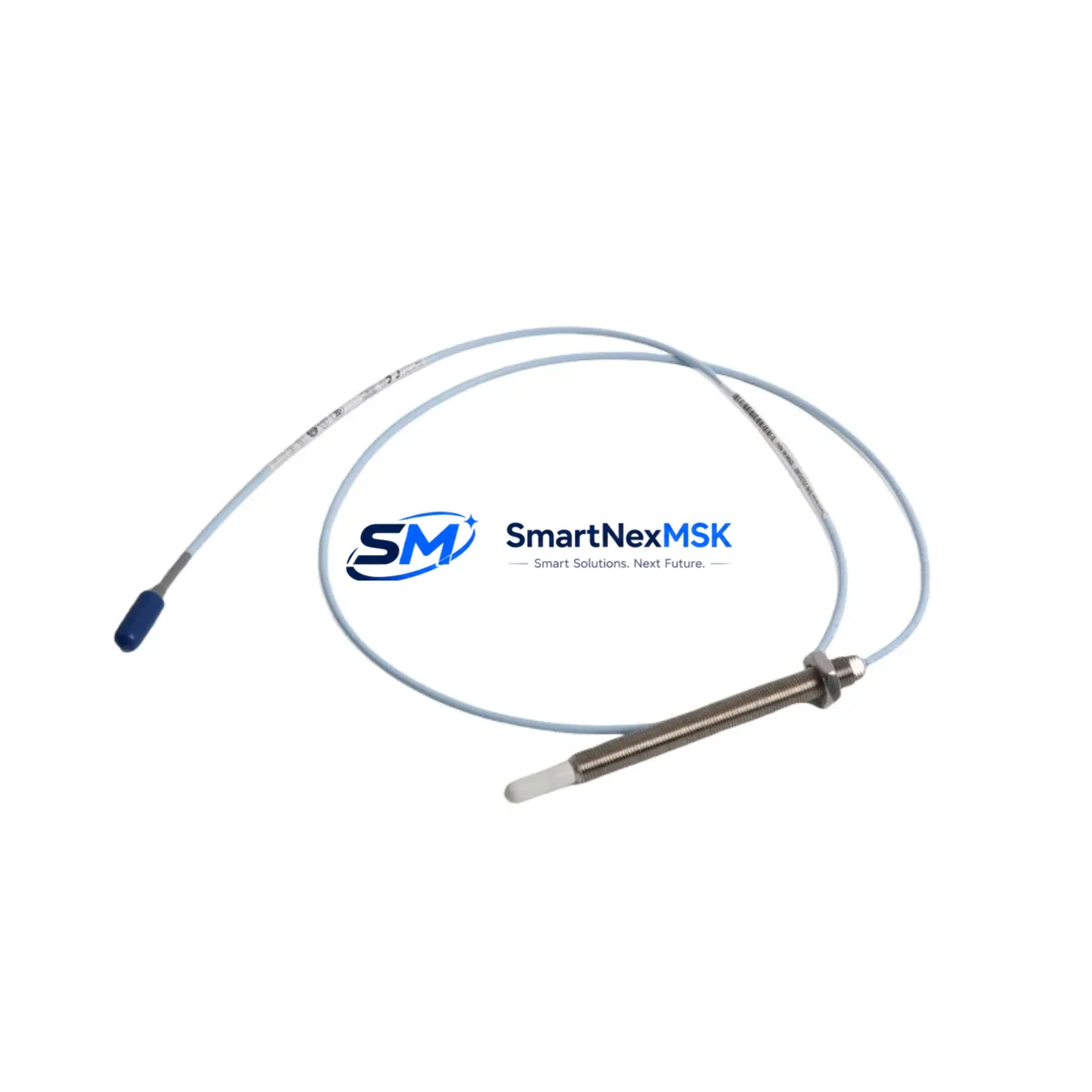

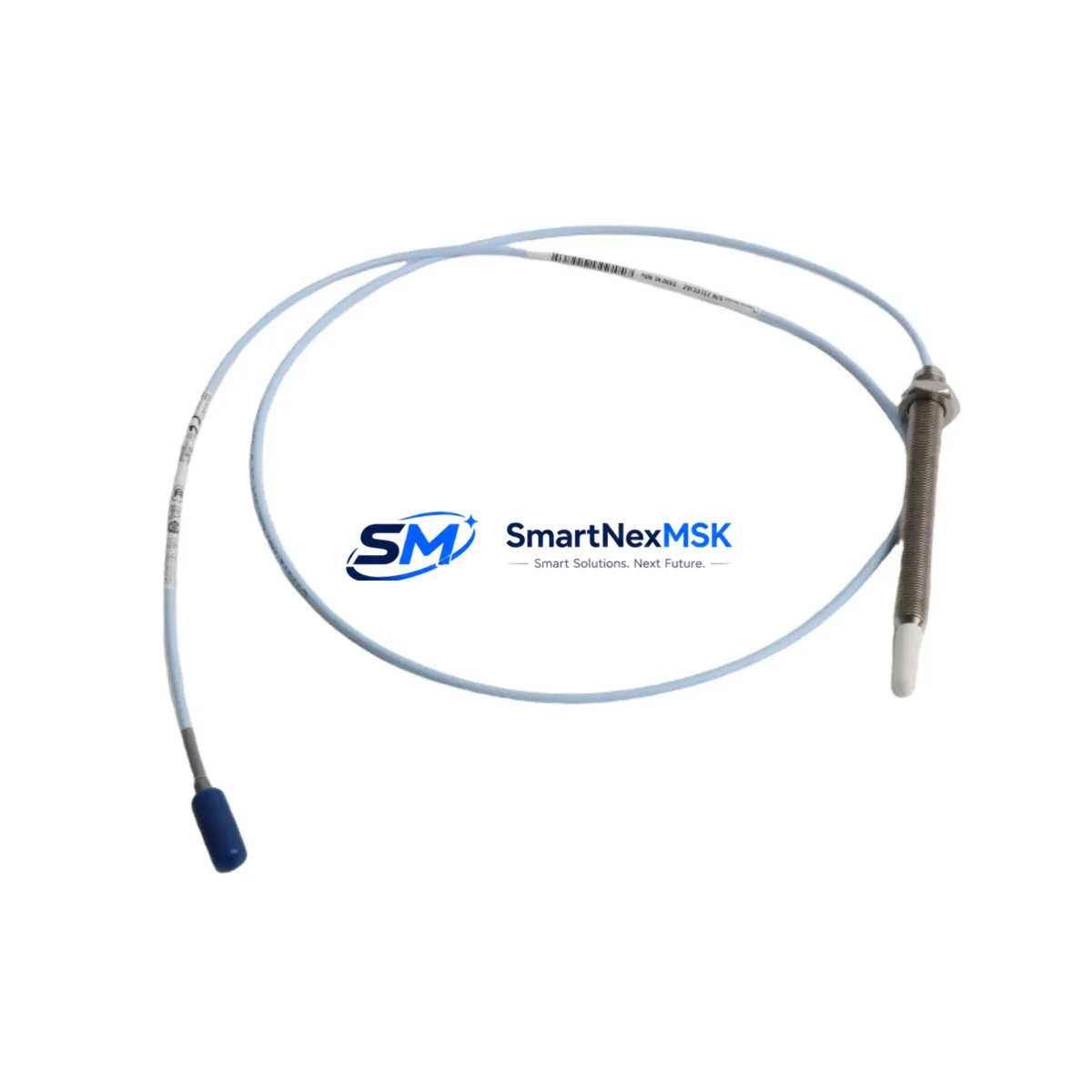

The Bently Nevada 330905-00-11-05-02-00 is an original eddy current proximity probe engineered for the 3300 NSv Proximitor® System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process facilities, this probe is a critical spare that directly determines whether a machine protection loop remains operational or triggers an unplanned shutdown.

When a proximity probe fails or drifts out of calibration, the entire vibration channel becomes unreliable. Replacing the 330905-00-11-05-02-00 with a verified original spare restores signal integrity, eliminates false trips, and allows the machine to return to service with full API 670 compliance. Every unit shipped by SMARTNEXMSK undergoes pre-shipment electrical verification — including gap voltage, sensitivity, and frequency response checks — to confirm it meets Bently Nevada factory specifications before leaving our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330905-00-11-05-02-00 probe is rarely an isolated task. In a properly structured planned maintenance or emergency recovery workflow, the maintenance engineer should simultaneously inspect the full vibration monitoring loop to prevent repeat failures and ensure the machine protection system is fully restored.

Start with the 3300 NSv Proximitor module (such as the 330180-51-05 or 330180-91-05) — the signal conditioner that powers the probe and converts gap voltage to a 4–20 mA or voltage output. A degraded Proximitor can cause erratic readings even with a new probe installed. Inspect the extension cable (typically a 330130 or 330140 series armored coaxial cable) for jacket damage, connector corrosion, or impedance mismatch, as cable integrity is critical to maintaining the system’s calibrated sensitivity.

Within the control cabinet, verify the −24 VDC power supply rail feeding the Proximitor rack — a sagging supply voltage is a common root cause of proximity system faults. Check the 3500 or 3300 rack I/O module (such as the 3500/42M or 3300/16) for alarm setpoint configuration and channel health. If the machine protection system uses a 3500/20 rack power supply or a 3500/15 power supply module, confirm output voltage stability under load.

For facilities running older Bently Nevada 7200 series or 3000 series systems alongside the 3300 NSv, cross-check that the replacement probe’s sensitivity and gap range are compatible with the existing Proximitor before installation. In mixed-generation control rooms, a signal isolator or barrier (such as a Pepperl+Fuchs KFD2 series or equivalent) may be in the signal path — inspect these for drift or failure as well.

During cabinet inspection, also check terminal blocks and field wiring for loose connections, oxidation, or insulation breakdown, particularly in high-vibration or high-temperature environments. If the machine uses a keyphasor probe (e.g., 330980 series) for phase reference, verify its gap and output simultaneously, as keyphasor faults can corrupt vibration vector data across all channels. Finally, review the rack communication module (such as the 3500/92 or 3500/93 Ethernet/Modbus card) to confirm that alarm and trip data is being correctly transmitted to the DCS or historian after the probe replacement.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. Confirm the machine is in a safe state before accessing the probe mounting location. Note the existing probe gap measurement (typically 50 mil / 1.27 mm for most shaft diameters) using a digital multimeter on the Proximitor output.

Step 2 — Probe removal: Disconnect the coaxial connector at the Proximitor or junction box. Unthread the probe from its mounting bracket. Inspect the bracket, lock nut, and target area on the shaft for wear, scoring, or contamination.

Step 3 — New probe installation: Thread the 330905-00-11-05-02-00 into the bracket. Set the gap to the specified value (typically 50 mil) by adjusting probe depth while monitoring Proximitor output voltage (target: approximately −10 VDC at 50 mil gap for 200 mV/mil sensitivity). Secure the lock nut.

Step 4 — System verification: Reconnect the coaxial cable. Power up the Proximitor and confirm output voltage is within the linear range. Check the 3500/3300 rack display or DCS faceplate for channel OK status. Perform a slow-roll vibration check if the machine can be safely jogged.

Step 5 — Documentation: Record the replacement in the CMMS with the new probe serial number, gap setting, and post-installation output voltage. Update the spare parts inventory to trigger reorder of a replacement 330905-00-11-05-02-00 for the next planned maintenance cycle.

This workflow minimizes downtime, ensures the machine protection system is fully validated before restart, and maintains the audit trail required for API 670 compliance documentation.

Spare Parts Support FAQ

Q1: Is the 330905-00-11-05-02-00 compatible with both the 3300 NSv and older 3300 XL Proximitor systems?
The 330905-00-11-05-02-00 is specifically calibrated and matched for the 3300 NSv Proximitor system. While the physical connector and probe body may appear similar to probes used with the 3300 XL, the sensitivity calibration and system matching are NSv-specific. Using this probe with a 3300 XL Proximitor without recalibration may result in out-of-tolerance readings. Always confirm the Proximitor model before installation.

Q2: What pre-shipment testing does SMARTNEXMSK perform on this probe?
Every 330905-00-11-05-02-00 unit is tested for gap voltage linearity across the full operating range, sensitivity (mV/mil), and high-frequency response before shipment. Units that do not meet Bently Nevada factory specifications are rejected. A test report is available upon request for critical applications.

Q3: How should this probe be stored as a long-term spare?
Store the probe in its original packaging or an anti-static, moisture-resistant bag in a temperature-controlled environment (0°C to 40°C, <85% RH non-condensing). Avoid coiling the cable tightly or placing heavy objects on the probe tip. Inspect the coaxial connector for oxidation annually. Properly stored, the probe maintains its calibration for 3–5 years in inventory.

Q4: What is covered under the 12-month warranty?
SMARTNEXMSK provides a 12-month warranty from the date of shipment covering manufacturing defects, calibration drift beyond factory tolerance, and connector or cable integrity failures under normal operating conditions. The warranty does not cover damage from incorrect installation, overvoltage, mechanical impact, or use outside the specified environmental range. Warranty claims are processed within 5 business days with advance replacement available for critical applications.
