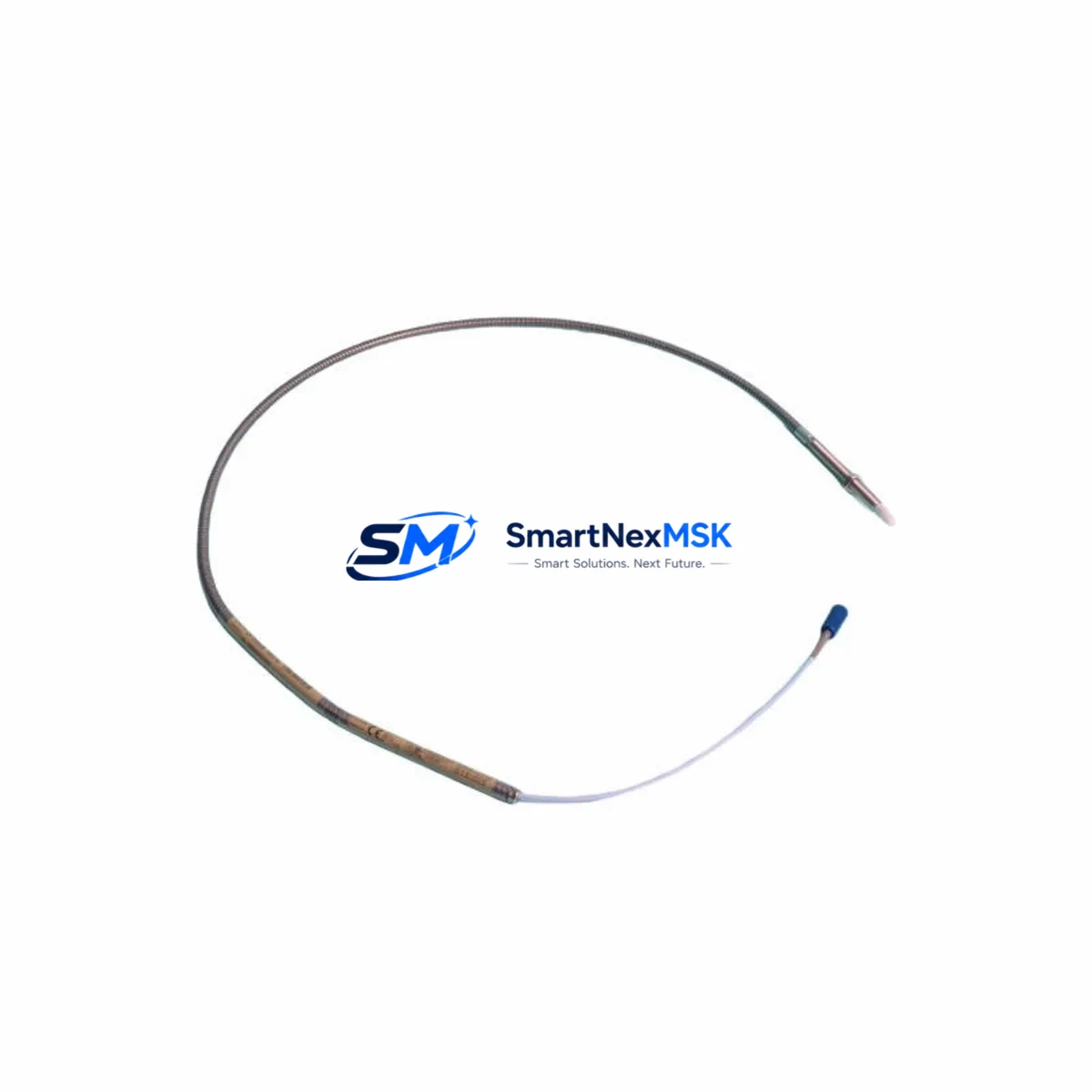

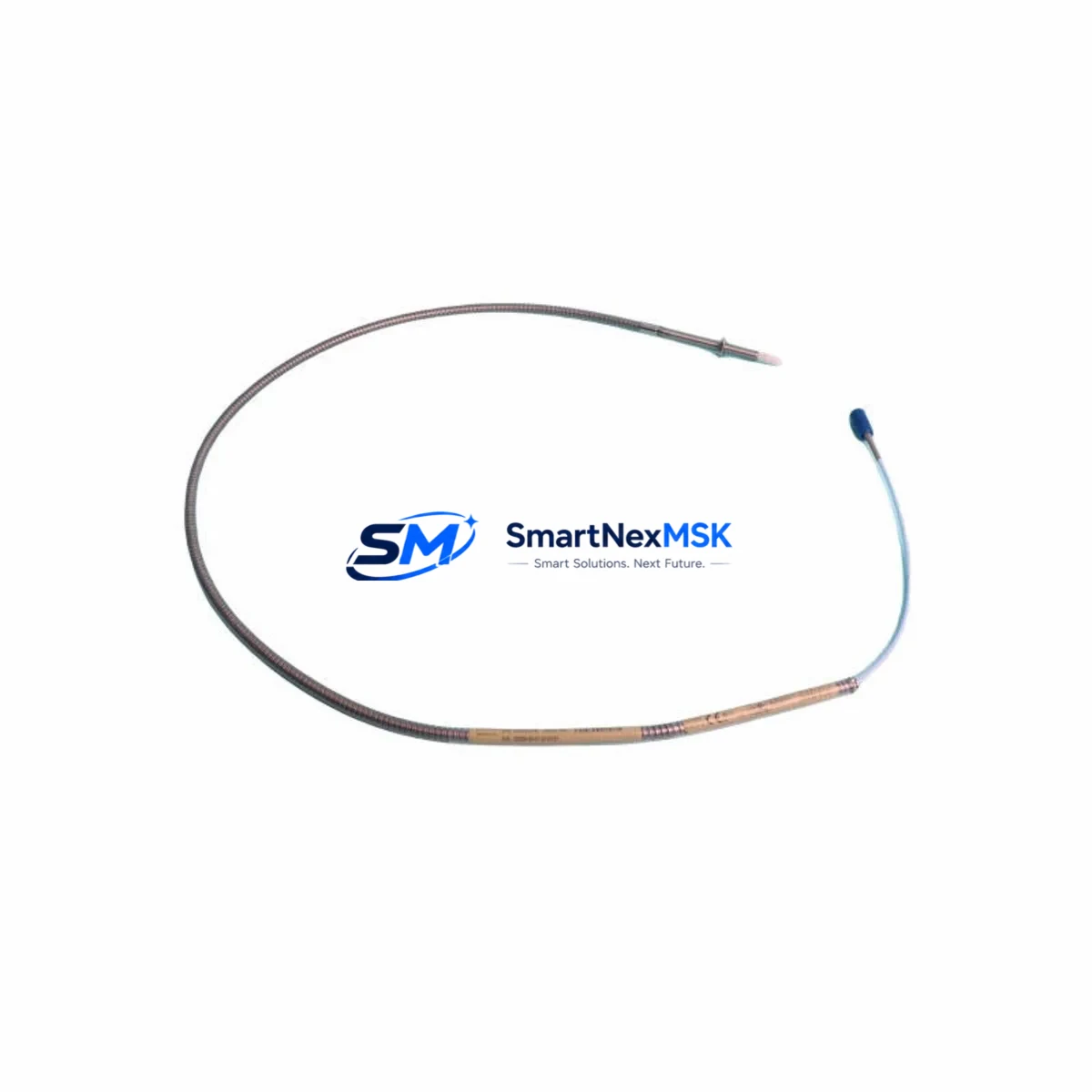

Bently Nevada 330905-00-11-10-01-00 Retrofit-Ready Proximity Transducer for 3300 XL NSv Control Systems
The Bently Nevada 330905-00-11-10-01-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSv monitoring platform. As legacy vibration monitoring systems reach end-of-life or become increasingly difficult to source, this unit serves as a direct retrofit replacement for discontinued or aging transducer assemblies within the 3300 Series ecosystem. Whether you are upgrading a turbine protection panel, replacing a failed shaft-sensing channel, or migrating from an older 3300/5 or 7200 Series installation, the 330905-00-11-10-01-00 delivers verified signal compatibility and dimensional interchangeability that minimizes engineering rework and commissioning time.
Designed for continuous-duty industrial environments, this proximity transducer operates within the standard Bently Nevada signal chain — pairing directly with the 3300 XL 8mm Extension Cable assemblies and the 3300 XL Proximitor Sensor (such as the 330180 series) to form a complete transducer system. The output signal is fully compatible with 3500 Series rack-mounted monitors, including the 3500/42M Proximitor Seismic Monitor and the 3500/40M Proximitor Monitor, allowing the transducer to be integrated into both legacy and modernized monitoring architectures without firmware changes or signal conditioning adapters.
Upgrade Compatibility Table
| Parameter | 330905-00-11-10-01-00 (This Unit) | Typical Legacy Equivalent |
|---|---|---|
| Transducer Type | Eddy-Current Proximity, 8mm | 3300/5 Series 8mm Proximity |
| Output Range | –24 VDC, 200 mV/mil standard | 200 mV/mil (compatible) |
| Gap Range | 0.25 – 2.25 mm (10 – 90 mil) | Same nominal range |
| Cable / Extension | 3300 XL 8mm Extension Cable | 3300/5 Extension (verify length) |
| Proximitor Compatibility | 330180 Series Proximitor Sensor | 3300/5 Proximitor (check supply voltage) |
| Monitor Interface | 3500/42M, 3500/40M rack monitors | 3300/5 Monitor (signal level match required) |
| Installation Footprint | Standard M8 thread, 1m integral cable | Direct dimensional replacement |
| Communication Protocol | Analog 4–20 mA / voltage output | Analog (no protocol migration needed) |
| Retrofit Recommendation | Drop-in replacement; verify gap calibration | Re-gap after installation |
| Commissioning Note | Confirm OK LED on Proximitor after power-up | Check bias voltage –10.5 to –12.5 VDC |
| Warranty | 12 Months | — |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330905-00-11-10-01-00 into an existing control architecture requires a structured pre-installation review. Begin by auditing the current rack configuration: confirm the 3500 Series rack has an available Proximitor monitor slot (3500/42M or 3500/40M) and that the I/O module assignments in the rack’s configuration software reflect the correct channel mapping for the new transducer. If the existing installation uses a 3300/5 Proximitor, verify that the replacement 330180 Proximitor Sensor is installed and powered before connecting the new transducer — the Proximitor supplies the –24 VDC bias voltage that the eddy-current probe requires to operate.
Terminal wiring should be carried out with reference to the original loop drawing. The 330905-00-11-10-01-00 uses a standard three-conductor shielded cable arrangement: power (–24 VDC), signal output, and common. When routing through the control cabinet, maintain separation from high-voltage AC conductors to prevent induced noise on the vibration signal. If the extension cable run exceeds the standard 5-metre length, confirm that the selected 3300 XL 8mm Extension Cable assembly matches the total system length specification — mismatched cable lengths will shift the linear operating range and introduce calibration error.
For plants running a DCS-integrated machinery protection strategy, the analog output of the 330905-00-11-10-01-00 feeds into the 3500 rack’s I/O terminal block, which in turn communicates with the DCS via a 3500 Gateway or a dedicated Modbus/TCP or OPC-DA server. No changes to the DCS tag database are required if the channel address and engineering unit scaling remain unchanged. However, if the retrofit involves relocating the transducer to a different shaft measurement plane, update the HMI faceplate and alarm setpoint configuration in the operator workstation to reflect the new measurement point label and vibration trip threshold.
Backplane and rack integrity should also be verified during the retrofit window. Inspect the 3500 rack backplane connectors for corrosion or bent pins, and confirm that the power supply module — typically a 3500/15 Power Supply — is delivering stable voltage within specification. If the site is also upgrading adjacent I/O, consider replacing the 3500/20 Rack Interface Module at the same time to avoid a second maintenance window. For plants with a Keyphasor signal requirement, ensure the 3500/25 Enhanced Keyphasor Module is correctly configured and that the Keyphasor probe (such as a 330130 Series) is properly gapped and aligned before completing the transducer swap.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer replacement requires advance preparation and a disciplined changeover sequence. Before the maintenance window opens, pre-configure the replacement 330905-00-11-10-01-00 on a bench test rig using a 330180 Proximitor Sensor and a calibrated target disk. Verify the bias voltage, OK relay state, and output linearity across the full gap range. Document the as-found gap measurement from the existing installation so the new transducer can be set to the identical operating gap without iterative adjustment on the machine.
During the changeover, place the affected monitor channel in bypass mode within the 3500 rack configuration software to prevent a spurious trip while the transducer is disconnected. Retain the original program logic in the safety system controller — no ladder logic or function block modifications are required for a like-for-like transducer replacement. After the new transducer is installed and the extension cable is reconnected, restore the channel from bypass, confirm the OK LED is illuminated on the Proximitor, and verify the live vibration reading on the HMI against the baseline spectrum stored in the historian. Only after the signal is confirmed stable and within normal operating band should the bypass be removed and the protection channel returned to active trip status.
For sites where continuous operation is mandatory, a hot-standby channel strategy using a dual-transducer bracket can allow the new 330905-00-11-10-01-00 to be installed and gapped while the legacy transducer remains in service. The monitor channel is then switched to the new transducer input with zero process interruption, and the old probe is removed after the new signal is validated.
Retrofit Support FAQ
Q1: Is the 330905-00-11-10-01-00 a direct replacement for the 330905-00-11-05-02-00 or other 330905 sub-variants?
A: The 330905 family shares the same 8mm eddy-current sensing element and M8 thread pattern, but sub-variant suffixes encode cable length, connector type, and temperature rating. Confirm that the replacement suffix matches the original in cable length and connector configuration before installation. If the original part is no longer available, our technical team can advise on the closest compatible substitute within the 3300 XL transducer range.
Q2: What bias voltage should I measure at the Proximitor output terminal after installation?
A: With the transducer gapped at the nominal operating point (typically 1.0–1.5 mm for most shaft applications), the Proximitor output should read between –10.5 VDC and –12.5 VDC. A reading outside this range indicates an incorrect gap, a cable length mismatch, or a fault in the 330180 Proximitor Sensor itself. Do not energize the monitor channel until the bias voltage is within specification.
Q3: Does replacing the transducer require re-downloading the 3500 rack configuration?
A: No. A like-for-like transducer replacement does not alter the rack configuration file. The channel parameters — including full-scale range, alarm setpoints, and trip multiplier — remain stored in the 3500 rack’s non-volatile memory. A configuration download is only required if the channel type, measurement mode, or transducer sensitivity factor is being changed as part of the upgrade.
Q4: What does the 12-month warranty cover, and how is it processed?
A: The 12-month warranty covers manufacturing defects, premature failure under normal operating conditions, and out-of-specification performance verified by return inspection. Units must be returned in original or equivalent protective packaging with a completed RMA form. Warranty claims are typically processed within 10 business days of receipt. Damage resulting from incorrect installation, overvoltage, or mechanical impact is excluded from warranty coverage.
