Bently Nevada 330905-00-11-10-02-05 Spare 3300 NSv

Bently Nevada 330905-00-11-10-02-05 Spare 3300 NSv: Proximity Probe Replacement for Industrial Downtime Control

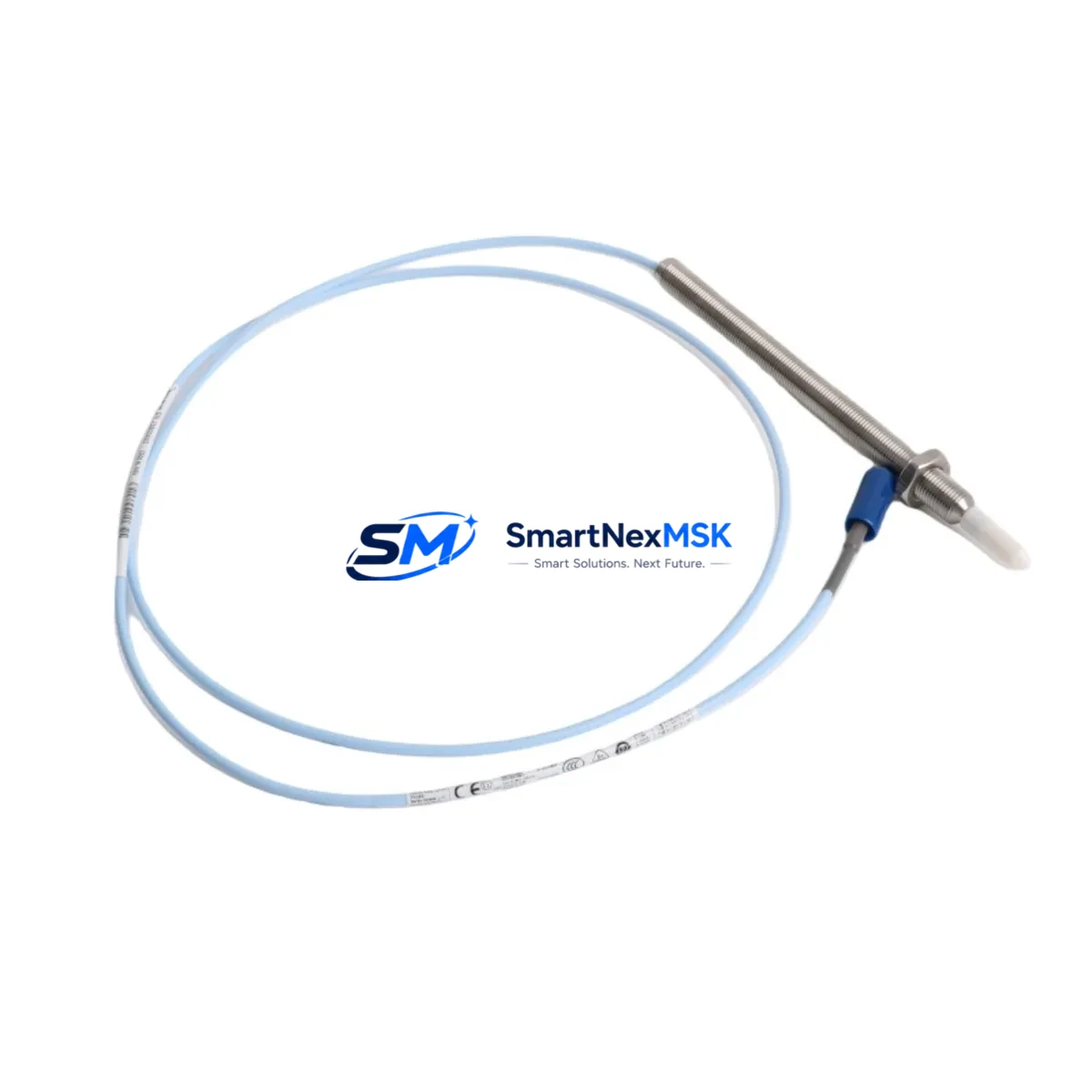

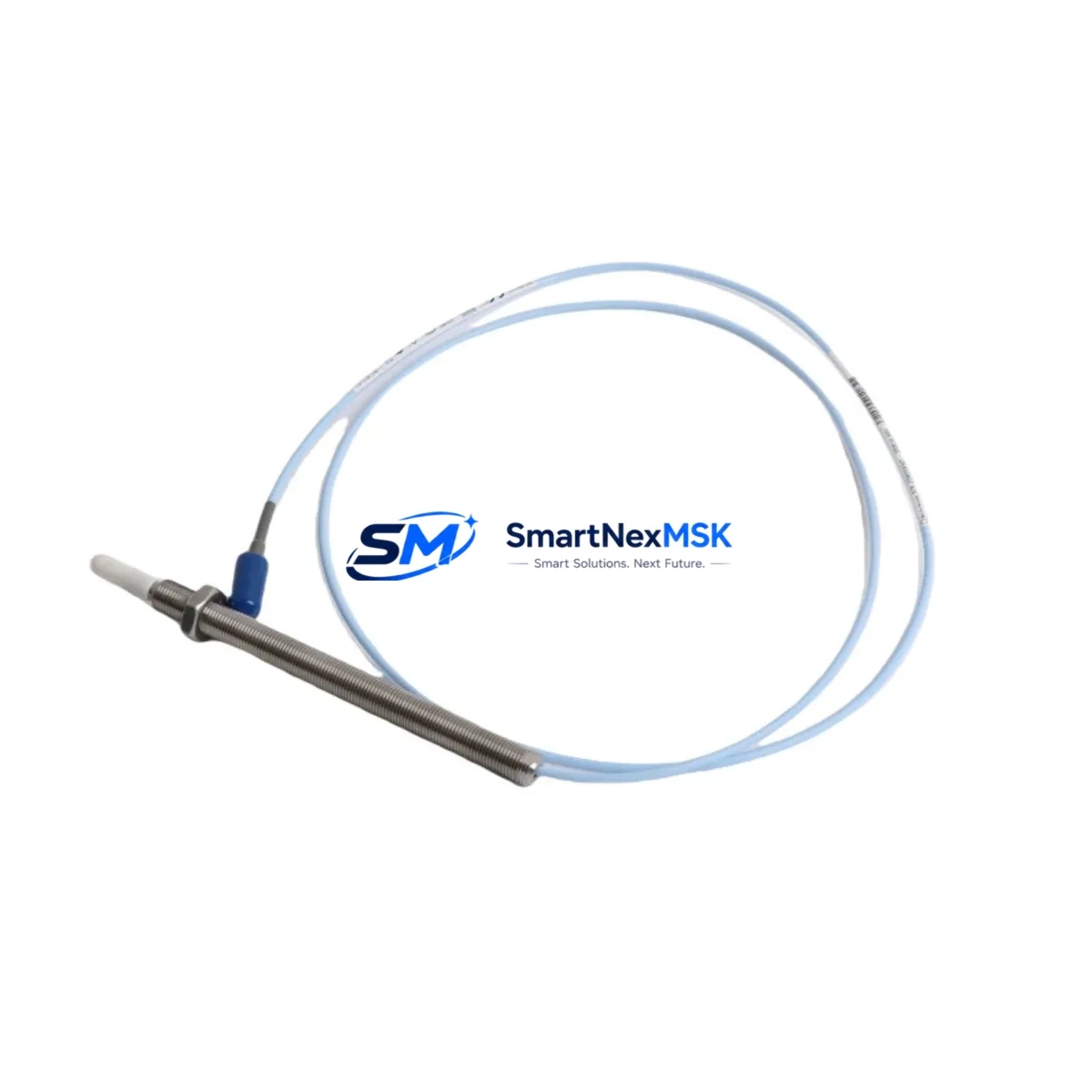

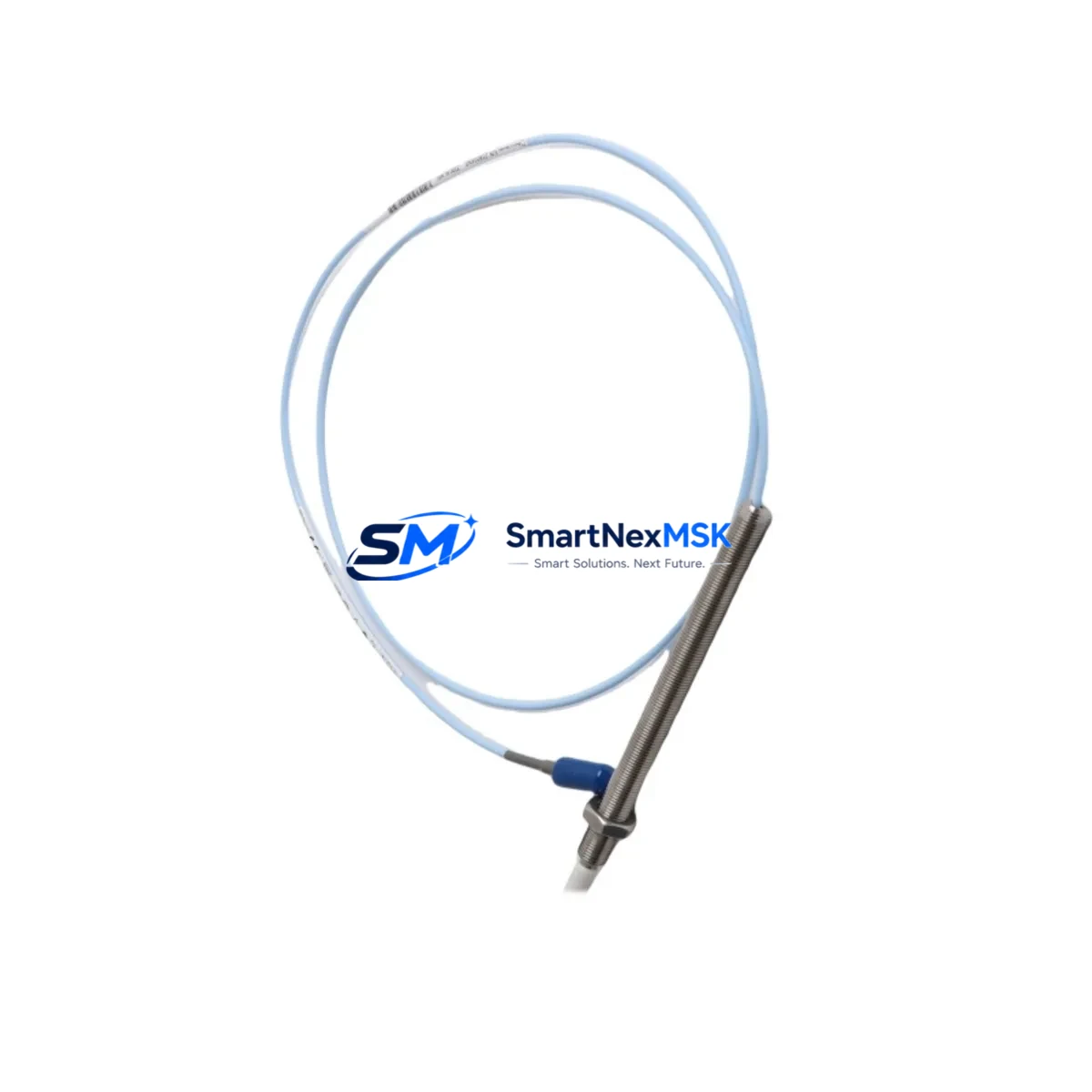

The Bently Nevada 330905-00-11-10-02-05 is an original eddy-current proximity probe engineered for the 3300 NSv vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a proactive spare parts inventory for your control cabinet, this probe delivers the dimensional accuracy, signal linearity, and environmental durability required for continuous operation in demanding industrial environments.

Maintenance engineers and reliability teams rely on the 330905-00-11-10-02-05 for shaft radial vibration measurement, axial position monitoring, and differential expansion sensing on steam turbines, gas compressors, centrifugal pumps, and large electric motors. Its 5-metre integral cable and standard 8 mm tip diameter make it a direct fit for existing probe holders without mechanical rework, significantly reducing replacement time during a forced outage.

Each unit shipped by SMARTNEXMSK is sourced from verified supply channels, inspected against original factory specifications, and covered by a 12-month warranty. Test reports are available upon request prior to shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330905-00-11-10-02-05 in the field, a disciplined maintenance engineer will treat the probe swap as an opportunity to audit the entire vibration monitoring loop — not just the sensing element. The probe works in a three-component system: the probe itself, the extension cable, and the proximitor/driver module. If the probe has failed due to cable fatigue or connector corrosion, the Bently Nevada 330130-00-05-10-02-00 extension cable and the 3300 XL 8 mm proximitor (330180-91-00) should be inspected and replaced as a matched set to maintain calibrated output.

At the monitor rack level, verify that the 3300 NSv monitor module input channel is reading within the –10.0 V to –18.0 V gap voltage window before installing the new probe. A channel that reads outside this range after probe replacement typically indicates a failed proximitor or a wiring fault in the junction box — not a defective probe. Check terminal block torque values and inspect the 3300 series I/O module for signs of moisture ingress or terminal oxidation.

For facilities running the Bently Nevada 3500 rack system alongside legacy 3300 NSv panels, confirm that the correct 3500/42M proximitor I/O module is installed if the probe is being cross-utilized. Mismatched driver sensitivity will produce erroneous vibration readings and may trigger nuisance trips on the turbine protection system.

Procurement engineers building a spare parts kit for a compressor train or steam turbine should also stock the Bently Nevada 330103-00-05-10-02-00 proximity probe (5 mm variant) for smaller shaft applications, and consider holding a 3300 NSv power supply module as a cold standby. Relay output modules and the 3300/20 Keyphasor module are frequently overlooked in spare parts planning but are critical for phase-referenced vibration analysis during startup diagnostics.

For control cabinets housing both vibration monitoring and process I/O, a complete inspection should include the 24 VDC power distribution fuses, DIN rail terminal blocks, and any signal isolators on the 4–20 mA outputs feeding the DCS historian. Degraded isolation on these signal paths can introduce ground loops that corrupt vibration trend data and complicate fault diagnosis.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before removing the 330905-00-11-10-02-05, record the current gap voltage on the monitor channel and photograph the probe orientation and cable routing. This baseline is essential for verifying correct installation of the replacement unit.

Step 2 — Mechanical removal: Use the correct probe spanner to back out the probe from the holder. Inspect the holder threads and the probe tip for impact damage. If the holder shows wear, replace it before installing the new probe to avoid misalignment errors.

Step 3 — Gap setting: Install the replacement 330905-00-11-10-02-05 and adjust the gap to achieve a DC gap voltage of –10.0 V to –12.0 V (approximately 1.0–1.5 mm air gap on steel target). Use a calibrated digital voltmeter at the proximitor output terminal — do not rely on the monitor display alone during initial setup.

Step 4 — System verification: With the machine at rest, confirm that the monitor channel clears the OK relay and that the vibration reading is below the alert setpoint. Perform a slow-roll check if the machine can be safely barred over to verify dynamic signal quality before returning to service.

Step 5 — Documentation and handover: Update the maintenance management system with the new probe serial number, installation date, and gap voltage reading. Retain the removed probe for failure analysis if the root cause of the original fault has not been confirmed.

This workflow is compatible with both planned outage windows and emergency forced-outage scenarios. SMARTNEXMSK ships the 330905-00-11-10-02-05 with a factory-style test report, enabling maintenance teams to proceed directly to installation without incoming inspection delays.

Spare Parts Support FAQ

Q1: Is the 330905-00-11-10-02-05 compatible with both the 3300 NSv and the 3300 XL monitor systems?
Yes. The 330905-00-11-10-02-05 is designed for the 3300 NSv platform but is electrically and mechanically compatible with the 3300 XL monitor when used with the correct 8 mm proximitor driver. Always verify the driver part number before installation to ensure matched sensitivity.

Q2: What is the recommended spare parts holding strategy for this probe?
For critical rotating machinery, we recommend holding a minimum of two probes per monitored shaft position as cold standby. For facilities with multiple compressor trains or turbine units, a pooled inventory of 6–10 units reduces per-unit holding cost while maintaining adequate coverage for simultaneous failures during a major turnaround.

Q3: How does SMARTNEXMSK verify the condition of each unit before shipment?
Each 330905-00-11-10-02-05 unit undergoes visual inspection, connector integrity check, and cable continuity verification prior to dispatch. A test report documenting these checks is included with every shipment. Units that do not pass inspection are not shipped. The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions.

Q4: Can this probe replace older discontinued Bently Nevada proximity probe models?
The 330905-00-11-10-02-05 can serve as a functional replacement for several earlier 3300-series probe variants provided the tip diameter, cable length, and connector type are compatible with the existing installation. Contact our technical team with your existing part number and we will confirm compatibility before you commit to a purchase order.
