Bently Nevada 330905-00-12-05-02-00 Retrofit-Ready Proximity Probe

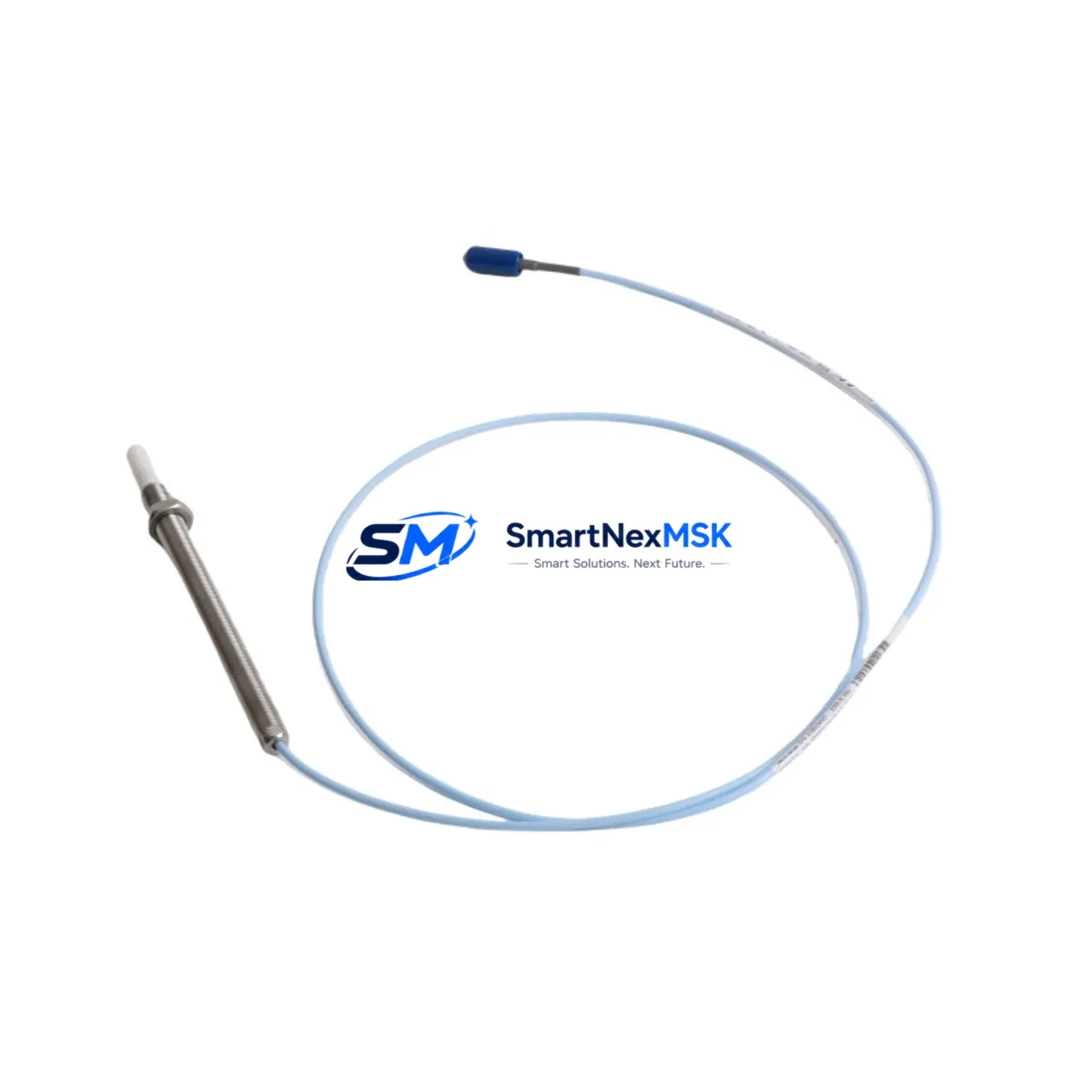

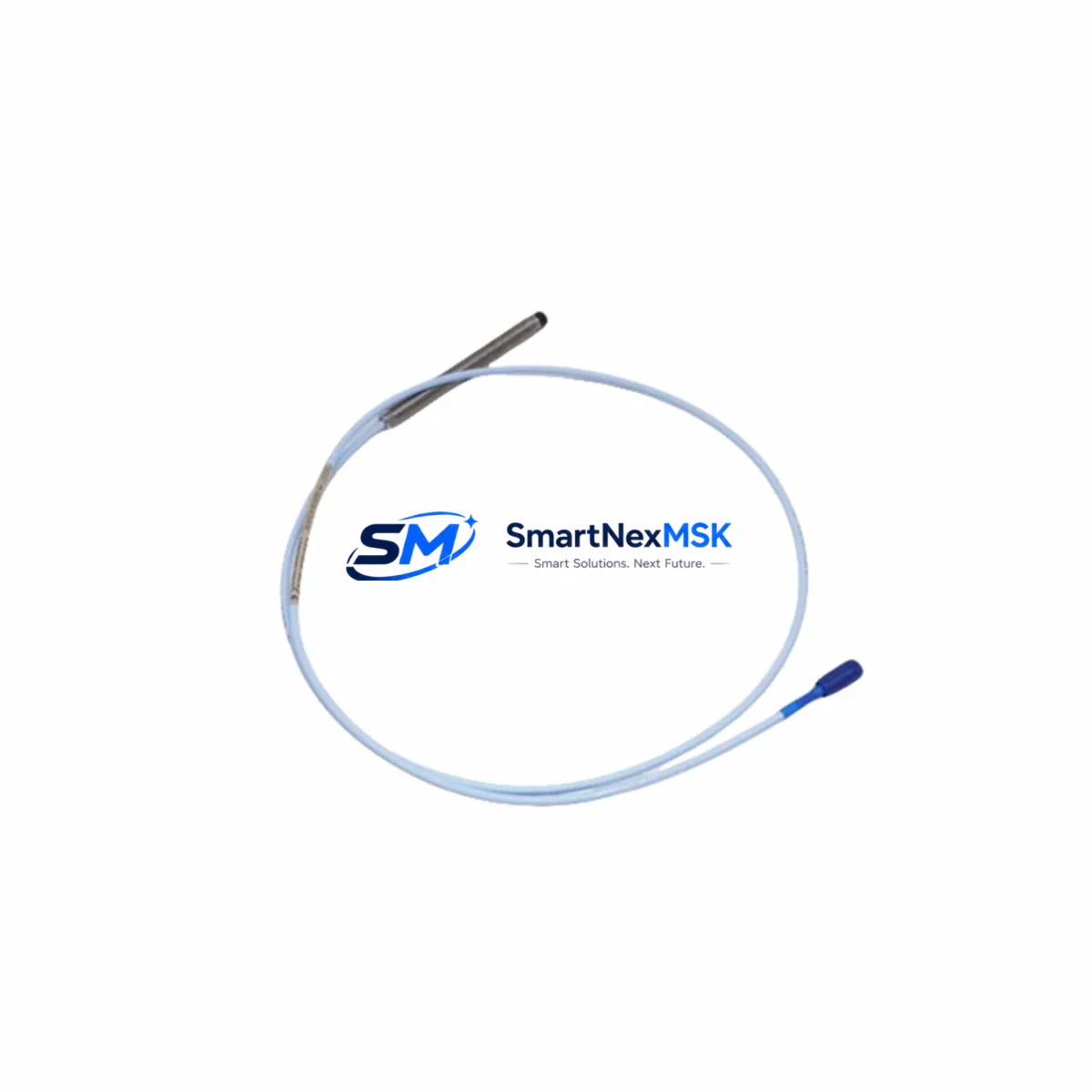

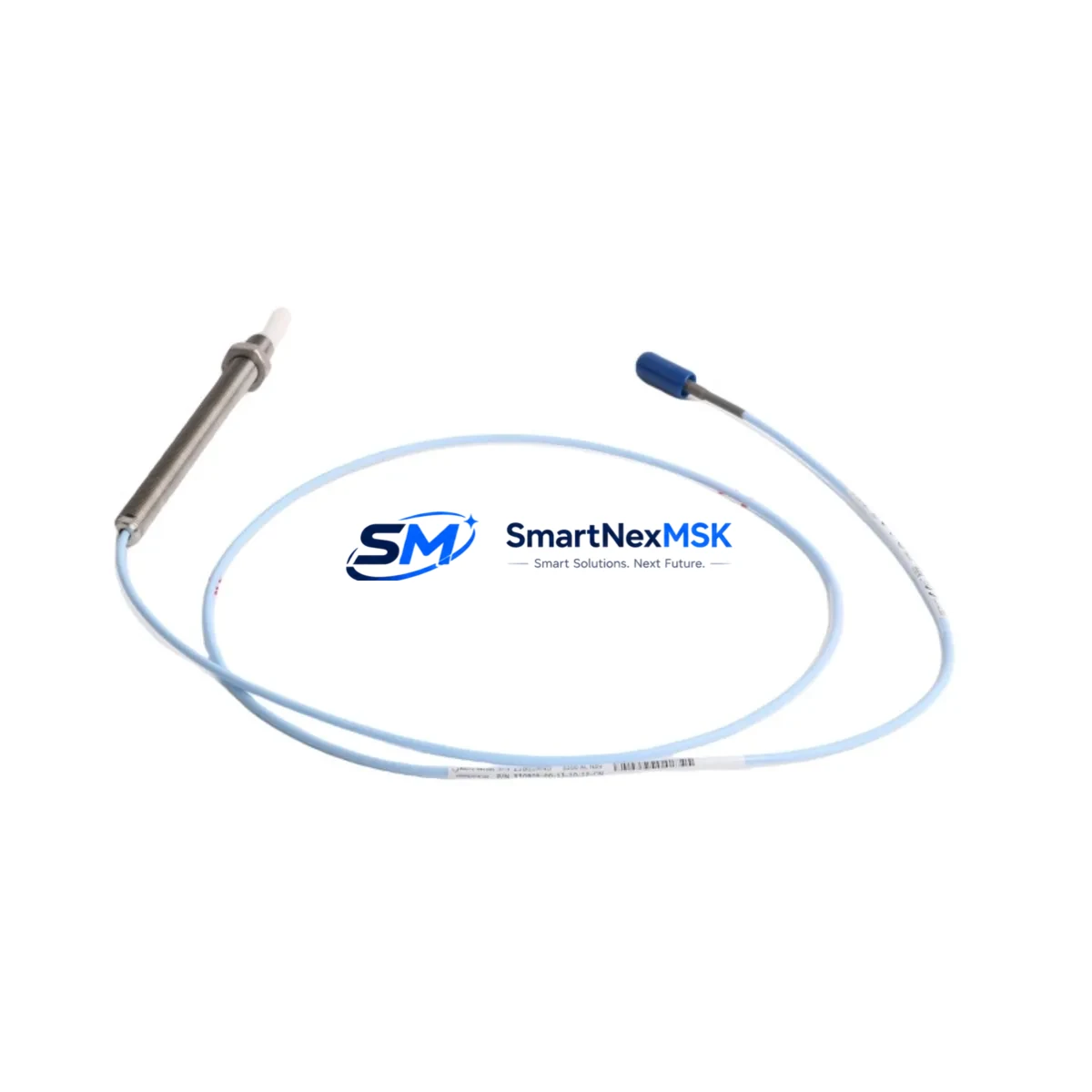

Bently Nevada 330905-00-12-05-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

The Bently Nevada 330905-00-12-05-02-00 is an 8mm proximity transducer engineered for seamless integration into legacy 3300 XL Series vibration monitoring systems. As industrial facilities face increasing pressure to extend the operational life of existing machinery protection infrastructure, this probe delivers a verified drop-in replacement path — eliminating the need for full system overhauls while restoring measurement accuracy and system reliability. Whether you are managing a planned outage, responding to an unplanned failure, or executing a phased modernization of your rotating equipment monitoring platform, the 330905-00-12-05-02-00 is stocked, tested, and ready to ship.

This proximity probe operates within the standard Bently Nevada eddy-current sensing framework, producing a linear output voltage proportional to the gap between the probe tip and the observed target surface. It is fully compatible with the 3300 XL proximitor/seismic monitor series, including the 3300/16 and 3300/20 monitor cards, and integrates directly with existing field wiring without requiring re-termination at the junction box or marshalling cabinet. Engineers replacing worn or failed probes on turbines, compressors, pumps, and gearboxes will find the 330905-00-12-05-02-00 to be a specification-matched substitute that preserves calibration baselines and alarm setpoints already configured in the monitoring system.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a vibration monitoring channel in a live plant environment requires careful coordination across multiple system layers. The 330905-00-12-05-02-00 probe is the field-mounted sensing element, but a complete and reliable retrofit also depends on the condition and compatibility of the surrounding components. Before committing to a probe swap, maintenance engineers should audit the full signal chain from the machine casing to the control room.

Starting at the field level, the probe connects via its integral cable to a 3300 XL extension cable — typically a 330130-series cable matched to the required total system length. The extension cable terminates at the 3300 XL 8mm Proximitor, such as the 330180-X1-05, which conditions the eddy-current signal and provides the buffered output voltage used by the monitor card. If the proximitor has been in service for an extended period or shows signs of drift, replacing it alongside the probe during the same outage window eliminates a second unplanned shutdown later.

The conditioned signal feeds into a 3300 XL monitor card — for example, the 3300/16 Dual Vibration Monitor or the 3300/20 Radial Vibration Monitor — housed in a 3300 XL rack. These monitor cards are responsible for comparing the live vibration signal against configured alarm and danger setpoints. When replacing the probe, engineers must confirm that the monitor card’s scale factor setting matches the replacement probe’s sensitivity specification. A mismatch here will cause the system to report incorrect vibration amplitudes, potentially masking real machinery faults or triggering nuisance trips.

At the rack level, the 3300 XL system relies on a dedicated power supply module — typically a 3300/05 Power Supply — to deliver regulated DC power to all installed monitor cards. Before any probe replacement work begins, verify that the power supply output is within specification and that the rack backplane connectors are clean and fully seated. A marginal power supply can introduce noise into the measurement chain that is difficult to distinguish from genuine machinery vibration.

For facilities running a distributed control system such as a Honeywell DeltaV, Emerson Ovation, or ABB System 800xA, the 3300 XL monitor outputs connect to DCS analog input cards via hardwired 4–20mA or voltage signals. Confirm that the DCS I/O card channel assignments and engineering unit scaling are correctly mapped before returning the machine to service. If the plant has migrated HMI graphics from an older Bently Nevada System 1 platform to a modern condition monitoring software environment, verify that the tag names and channel references in the HMI display match the physical wiring after the probe replacement.

In applications where the 3300 XL system communicates with a safety instrumented system (SIS) or emergency shutdown system (ESD), the probe replacement must be coordinated with the safety team to ensure that the SIS bypass procedure is followed correctly and that the bypass is lifted only after the replacement probe has been verified in service. Programming cables such as the Bently Nevada 3300 configuration cable may be required to access monitor card configuration menus during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a proximity probe on a running machine train. The 330905-00-12-05-02-00 is designed as a direct mechanical and electrical replacement for the original part, which means that — with proper preparation — the physical swap can be completed within a single planned maintenance window, often in under two hours for an experienced technician.

The key to downtime control is pre-staging. Before the machine is taken offline, the replacement probe, extension cable, and any required tools should be on-site and verified against the work order. The new probe should be inspected for tip damage and the integral cable checked for continuity. If the proximitor is also being replaced, the new unit should be bench-tested against a known-good probe before installation to confirm correct output voltage at a reference gap.

During the outage, the original probe should be removed carefully to avoid damaging the probe boss threads. The replacement probe is installed and the gap set to the value specified in the machine’s original alignment records — typically between 1.0mm and 1.5mm for an 8mm probe, but always defer to the OEM machinery documentation. Once the gap is set and locked, the signal chain is reconnected and the monitor card output is observed at the DCS or local display to confirm a valid, stable reading before the machine is restarted.

To protect the original program logic and alarm configuration, do not reset or reinitialize the monitor card during the probe replacement unless a firmware update is also being applied. The existing setpoints, time delays, and relay configurations should be preserved across the probe swap. After restart, allow the machine to reach normal operating speed and temperature before comparing the new vibration readings against the historical baseline. A brief period of elevated readings during run-up is normal as the probe gap stabilizes; persistent deviation from baseline warrants further investigation before returning the machine to full load.

Retrofit Support FAQ

Q: Is the 330905-00-12-05-02-00 a direct replacement for the original Bently Nevada part of the same number?
A: Yes. This unit is a specification-matched replacement for the original 330905-00-12-05-02-00. It uses the same 8mm probe diameter, integral cable length, thread specification, and output sensitivity as the original, making it a drop-in substitute without requiring mechanical or electrical modification to the existing installation.

Q: What commissioning steps are required after installing the replacement probe?
A: After installation, set the probe gap to the value specified in the machine alignment records (typically 1.0–1.5mm). Verify the output voltage at the proximitor buffered output matches the expected value for the set gap. Confirm that the monitor card is displaying a valid vibration reading and that OK/NOT OK relay status is correct. Compare the live reading against the historical baseline before returning the machine to service.

Q: Will the replacement probe work with my existing extension cable and proximitor?
A: Yes, provided the existing extension cable and proximitor are rated for the 8mm probe system and are in serviceable condition. The 330905-00-12-05-02-00 is compatible with standard 3300 XL 8mm extension cables and proximitors. If the extension cable or proximitor shows signs of damage or drift, we recommend replacing them during the same outage to avoid a repeat shutdown.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes output voltage verification and insulation testing prior to shipment. Warranty claims are supported by SMARTNEXMSK with direct technical assistance. Contact sales@smartnexmsk.com for warranty service or pre-shipment test documentation requests.
