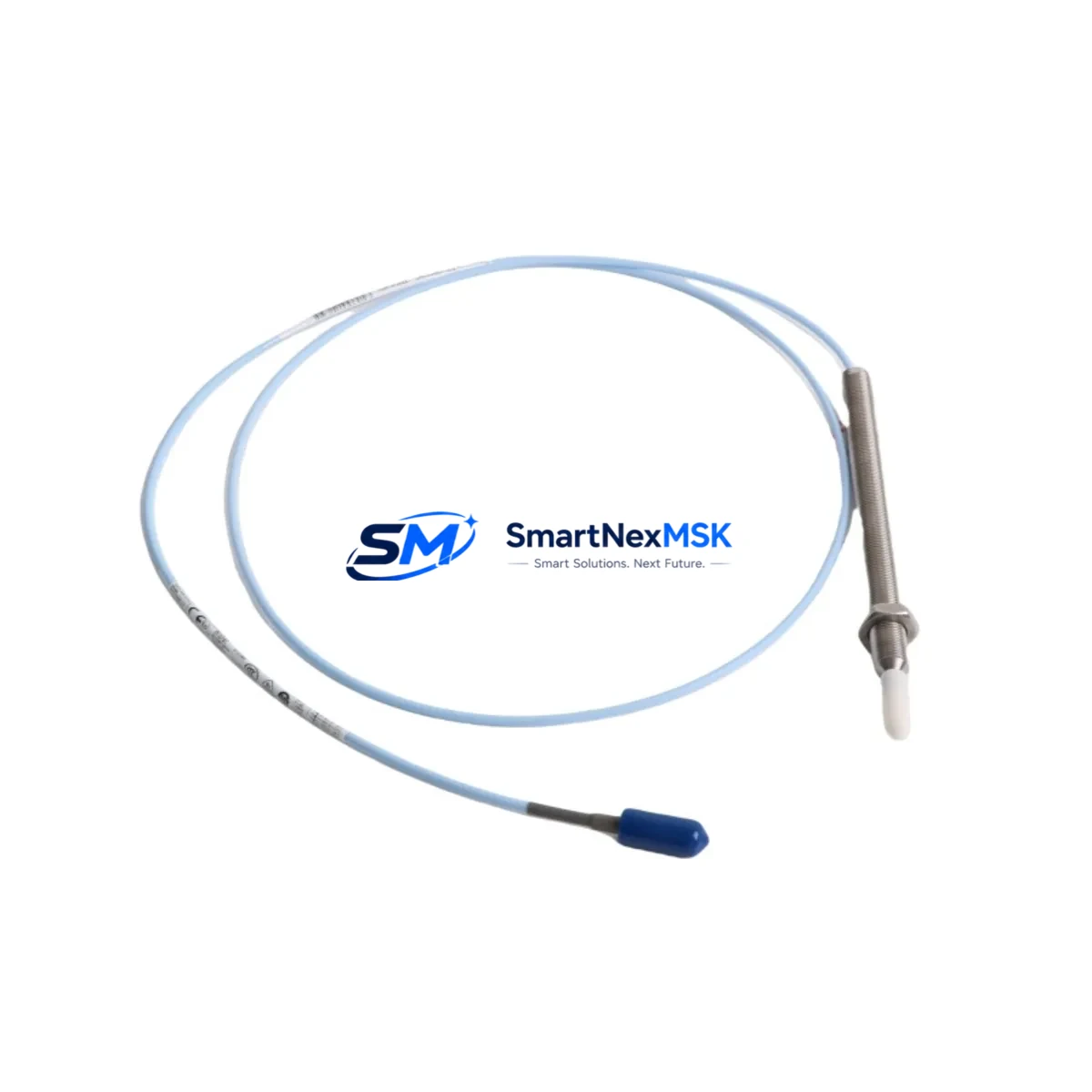

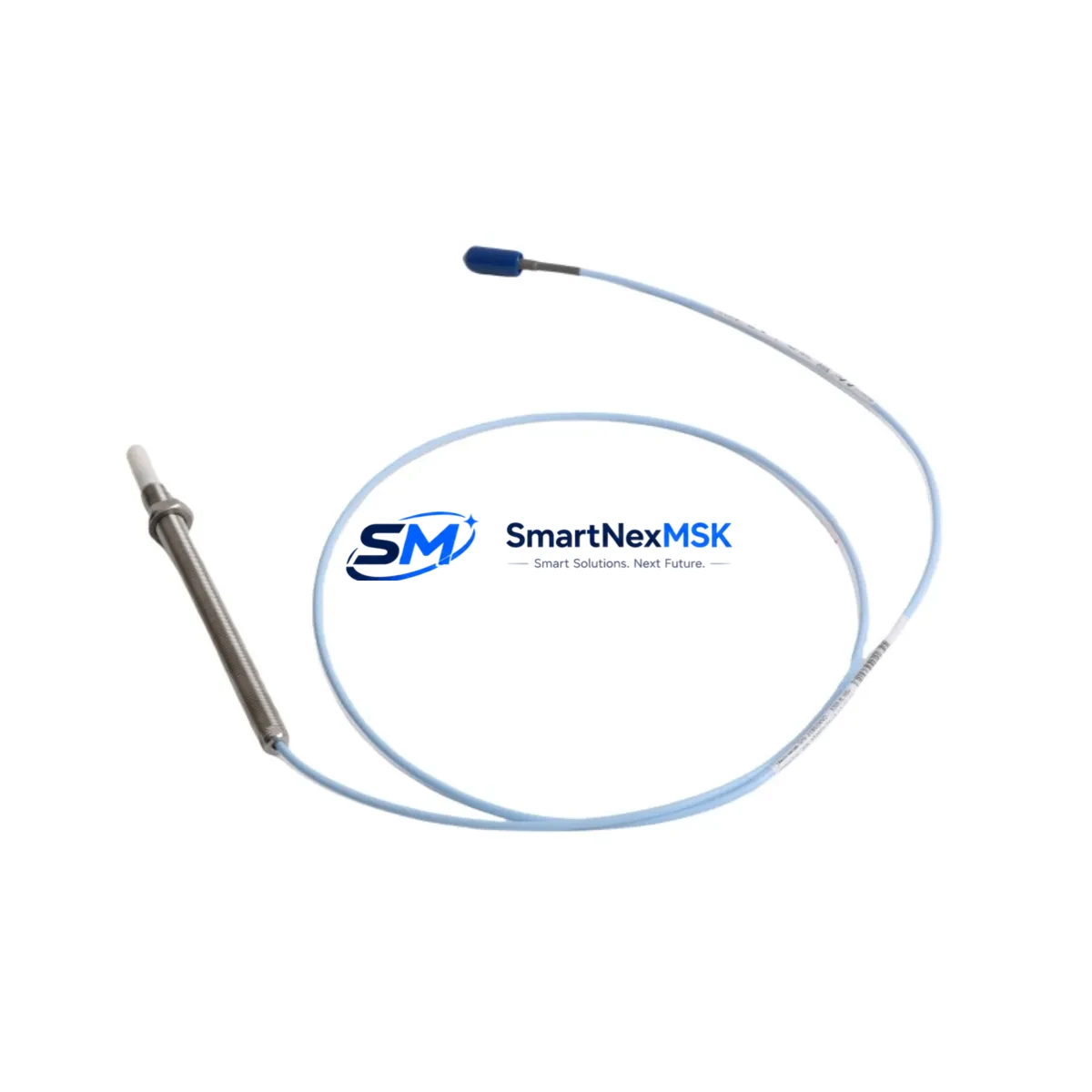

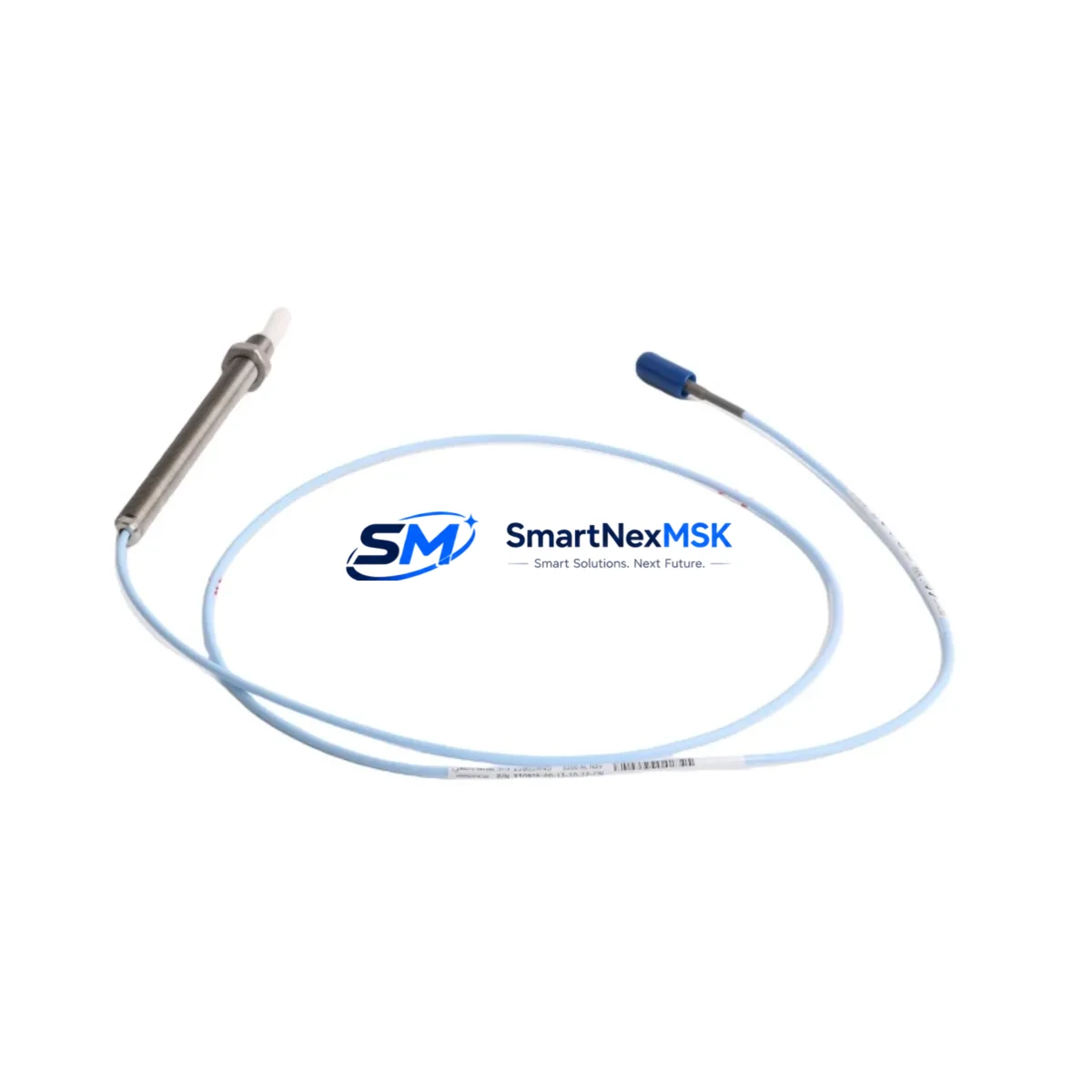

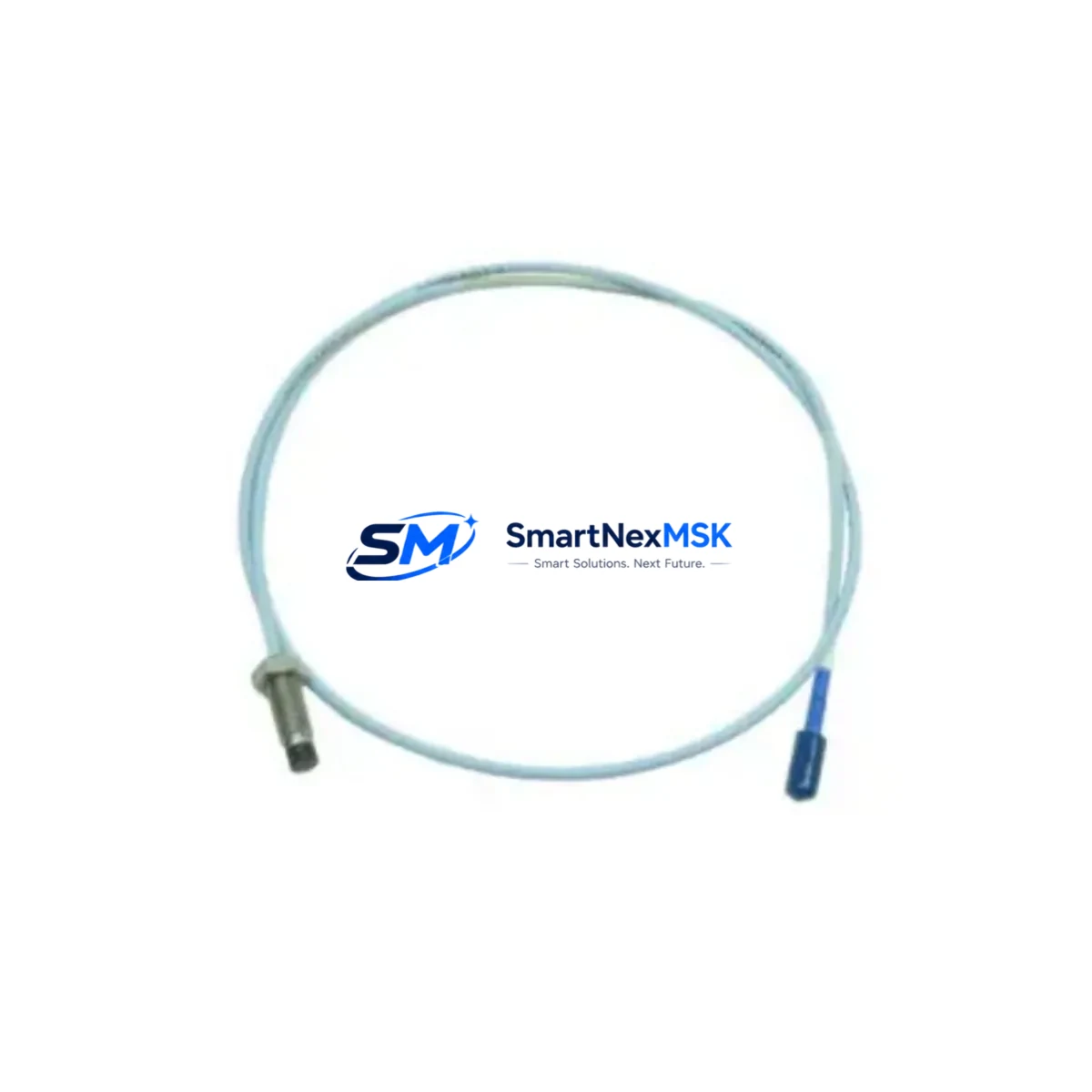

The Bently Nevada 330905-00-13-05-02-00 is an original 3300 XL NSv Series 5mm eddy-current proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery. As a maintenance-ready spare, this probe is a critical component in turbine protection systems, compressor trains, pump monitoring panels, and generator vibration control cabinets. Sourced directly from verified supply channels, each unit is inspected and tested prior to shipment, ensuring drop-in compatibility with existing 3300 XL system architectures.

For maintenance engineers managing aging rotating equipment, having a qualified spare of the 330905-00-13-05-02-00 on the shelf is not optional — it is a fundamental element of any predictive maintenance or emergency response plan. Unplanned vibration probe failures can trigger protective shutdowns, cascade into extended outages, and compromise the integrity of the entire condition monitoring loop. Stocking this probe eliminates the lead-time risk associated with OEM procurement and keeps your machinery protection system fully operational.

Procurement engineers sourcing for MRO inventories will find this unit fully traceable, with documentation available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional performance under specified operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330905-00-13-05-02-00 proximity probe in a 3300 XL monitoring system, a thorough site inspection of the surrounding measurement chain is essential to ensure the replacement restores full system accuracy and does not introduce new failure points.

Begin by inspecting the 3300 XL NSv Extension Cable (typically 5m or 9m) that connects the probe to the Proximitor module. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation — particularly in high-vibration or high-temperature environments. A probe replacement that is paired with a worn extension cable will produce erratic gap voltage readings and may trigger nuisance trips.

Next, verify the condition of the 3300 XL NSv Proximitor Module (e.g., 3300/16-13-01-01-00-00-00). The Proximitor converts the probe’s impedance change into a calibrated DC voltage signal. If the module has accumulated operating hours beyond its recommended service interval, or if its output voltage is drifting outside the ±0.5V tolerance band, it should be replaced concurrently with the probe to avoid misdiagnosis of machinery condition.

Inspect the 3300 XL I/O Module and associated terminal blocks within the monitoring rack. Loose or corroded terminal connections at the I/O interface can introduce signal noise that mimics real vibration events. Torque all terminals to specification and verify continuity with a calibrated multimeter before re-energizing the loop.

For systems integrated with a Bently Nevada 3500 Series Rack or a System 1 Condition Monitoring Platform, confirm that the channel configuration in the software matches the new probe’s sensitivity and gap voltage parameters. Misconfigured alert and danger setpoints following a probe swap are a common source of post-maintenance trips.

If the control cabinet houses signal isolators or barriers (such as Zener barriers for IS-rated zones), inspect these for thermal discoloration or resistance drift. A degraded barrier will attenuate the probe signal and produce a falsely low vibration reading, masking real machinery faults.

Check the 24 VDC power supply module feeding the Proximitor. Voltage ripple exceeding 50mV peak-to-peak will appear as a 50/60 Hz artifact in the vibration spectrum. If the power supply is shared with relay output modules or communication cards, verify that load-induced voltage sag is within acceptable limits.

For older installations, inspect the 3300 XL Relay Module for contact wear and verify that the OK relay output is functioning correctly. A failed OK relay can prevent the monitoring system from issuing a valid machine-healthy signal to the DCS or PLC interlock logic, causing unnecessary process holds.

Finally, if the machine is part of a DCS-integrated protection loop (e.g., Emerson DeltaV or Honeywell Experion), confirm that the 4–20 mA or digital output from the monitoring rack is being received correctly at the DCS I/O card. A probe replacement is an ideal opportunity to perform a full end-to-end loop check from the probe tip to the DCS historian.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Record the existing gap voltage (typically –10.0 VDC ±0.5V at the nominal air gap) and compare against the system baseline. Document the current vibration trend data from System 1 or the local display before de-energizing the loop.

Step 2 — Safe Isolation: Follow your site LOTO procedure. De-energize the Proximitor module at the rack power distribution terminal. Do not disconnect the probe cable under live power — this can damage the Proximitor input circuit.

Step 3 — Probe Removal: Unscrew the probe from the bracket using the appropriate spanner. Note the exact thread engagement depth (number of exposed threads) to replicate the air gap during installation of the replacement unit.

Step 4 — Replacement Installation: Install the 330905-00-13-05-02-00 replacement probe. Set the air gap to the OEM-specified nominal value (typically 1.0mm / 40 mil for 5mm probes on steel targets). Secure the locknut and verify the probe body is not in contact with any grounded surface other than the bracket.

Step 5 — Gap Voltage Verification: Re-energize the Proximitor and measure the DC gap voltage at the monitor input. Confirm it falls within the linear range (–10.0 VDC ±0.5V). Adjust the air gap if necessary.

Step 6 — Functional Test: Simulate a vibration event using a calibrated gap simulator or by manually displacing the probe to verify alert and danger setpoint response. Confirm the OK relay output is active and the DCS is receiving a valid signal.

Step 7 — Return to Service: Log the replacement in the maintenance management system (CMMS), update the spare parts inventory, and schedule the next inspection interval per the OEM maintenance manual.

Spare Parts Support FAQ

Q1: Is the 330905-00-13-05-02-00 a direct drop-in replacement for older 3300 XL NSv probes?
Yes. The 330905-00-13-05-02-00 is dimensionally and electrically compatible with all 3300 XL NSv Series installations using 5mm probe systems. It uses the same M8 x 1.0 thread, the same integral cable connector, and produces the same 200 mV/mil sensitivity output. No recalibration of the Proximitor module is required provided the air gap is set correctly during installation.

Q2: What is the recommended spare parts stocking strategy for this probe?
For critical rotating machinery (turbines, compressors, large pumps), industry best practice recommends maintaining a minimum of one spare probe per monitored shaft, plus one spare extension cable and one spare Proximitor module per rack. For facilities with multiple machines using the 3300 XL NSv system, a consolidated spare kit covering the full measurement chain — probe, extension cable, Proximitor, and terminal block connectors — significantly reduces mean time to repair (MTTR) during unplanned outages.

Q3: How is each unit tested before shipment?
Every 330905-00-13-05-02-00 unit undergoes functional verification prior to dispatch. Testing includes gap voltage linearity check across the full linear range, insulation resistance measurement on the integral cable, and connector continuity verification. Units that do not meet OEM performance specifications are quarantined and not shipped. A test report is available upon request for quality-critical applications.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional performance failures under specified operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, operation outside the specified temperature or gap range, or mechanical impact. Warranty claims are processed with return authorization; replacement units are dispatched within 5 business days of claim approval. For long-term supply agreements or blanket purchase orders, extended warranty terms are available upon request.
