Bently Nevada 330905-00-14-05-02-00 Spare 3300 NSv Probe

Bently Nevada 330905-00-14-05-02-00 Spare 3300 NSv Probe: Precision Spare for Vibration Monitoring Continuity

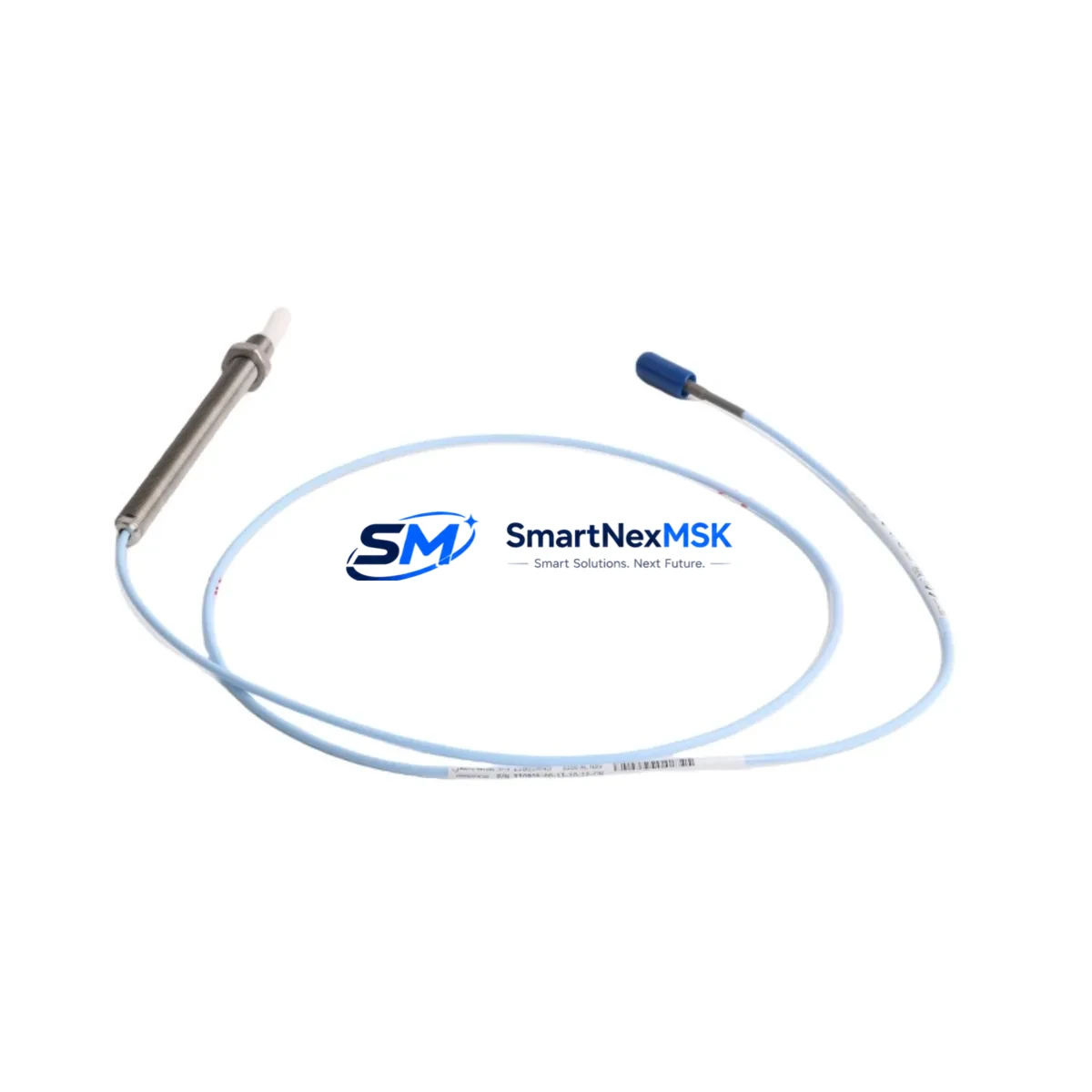

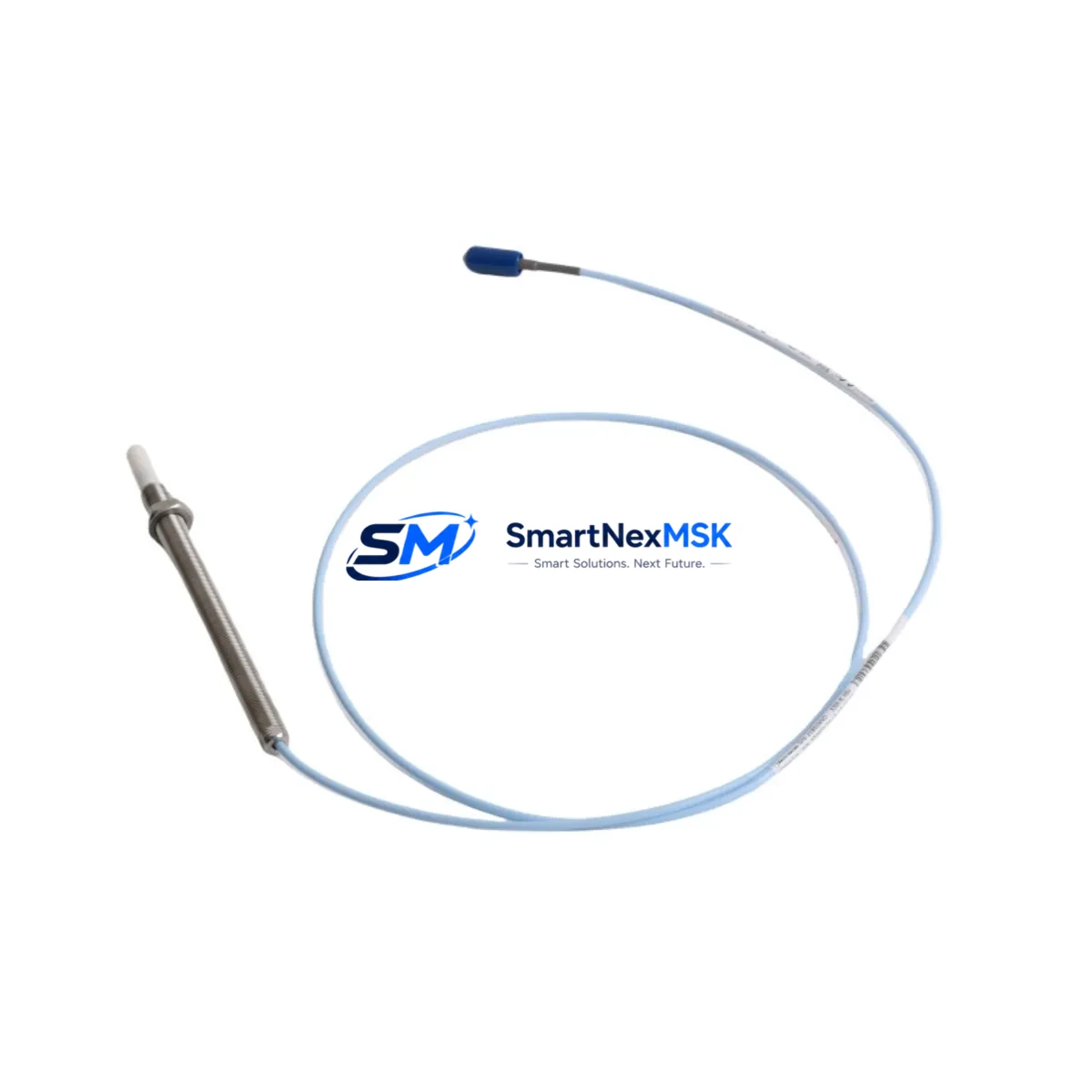

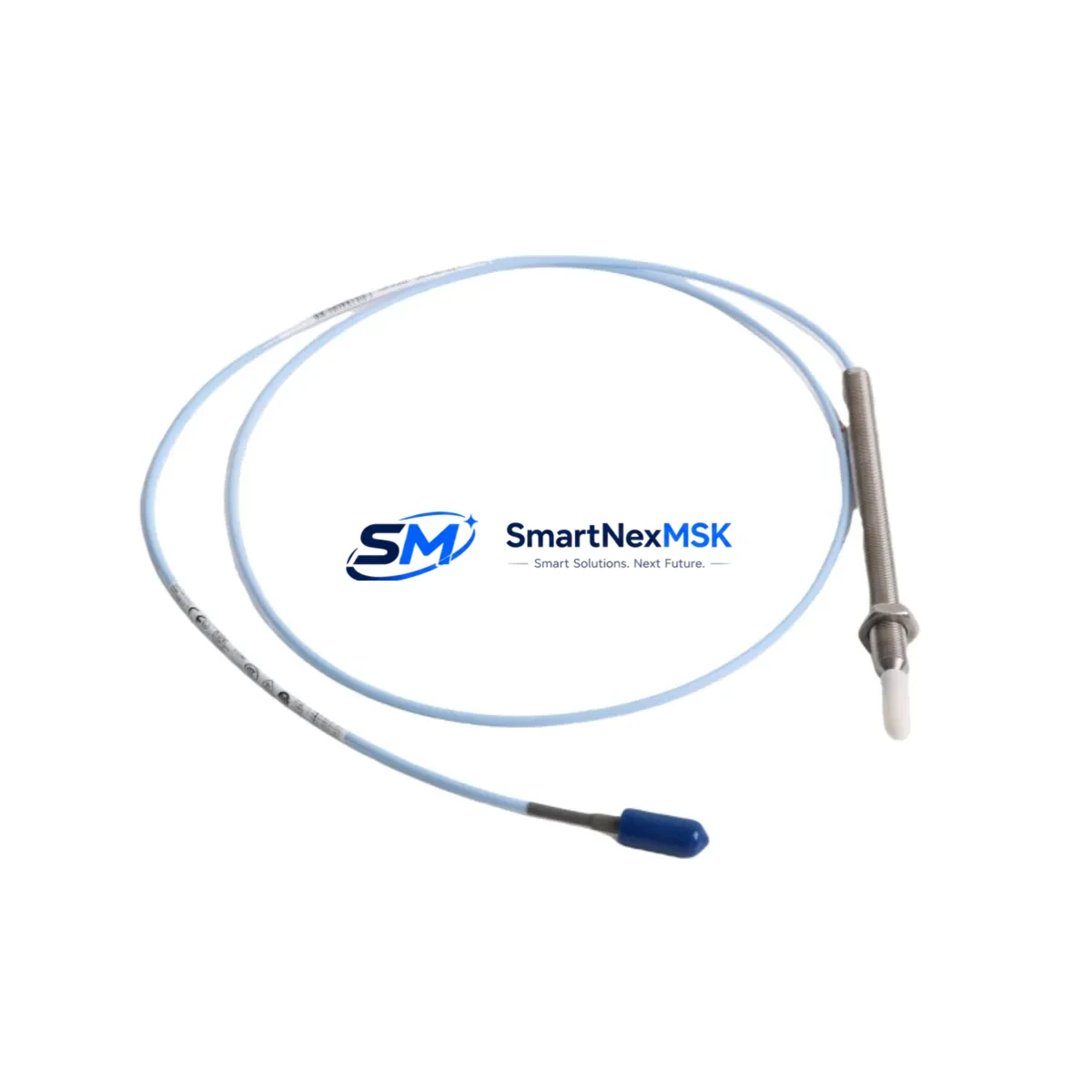

The Bently Nevada 330905-00-14-05-02-00 is an original eddy current proximity probe engineered for the 3300 NSv (Non-contact Shaft Vibration) monitoring system. With a 14mm probe tip and 5-metre integral cable, this unit delivers the sub-micron displacement resolution that rotating machinery protection demands. Unplanned vibration monitor failures carry severe consequences — turbine trips, compressor shutdowns, and extended outages that can cost tens of thousands of dollars per hour. Stocking a verified replacement of the 330905-00-14-05-02-00 is the single most effective hedge against that risk.

Every unit shipped by SMARTNEXMSK is sourced from authorised channels, bench-tested against Bently Nevada factory calibration specifications, and dispatched with full documentation. A 12-month warranty covers each shipment, giving maintenance and procurement teams the confidence to commit this part to their critical-spare inventory.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330905-00-14-05-02-00 proximity probe is flagged for replacement — whether during a scheduled outage, a predictive-maintenance alert, or an emergency trip investigation — experienced maintenance engineers treat the event as a trigger for a broader inspection of the entire measurement chain. The probe does not operate in isolation; its signal integrity depends on every component between the shaft surface and the monitor rack.

Begin with the Bently Nevada 330130 Extension Cable (or the matched 3300 NSv extension cable specified for this probe-driver combination). Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments. A probe that passes bench calibration but is paired with a degraded extension cable will produce erratic gap voltage and false vibration readings. Replace the extension cable whenever the probe is changed.

Next, inspect the 3300 NSv Proximitor Sensor (typically the 330180 or 330181 series). The Proximitor converts the probe’s RF signal into a DC voltage proportional to gap distance. Drift in the Proximitor’s internal oscillator or power supply rail will shift the entire measurement baseline. Verify the –24 VDC supply to the Proximitor using a calibrated multimeter; the Bently Nevada 3300/05 Power Supply module or the rack’s dedicated instrument power rail should be within ±0.5 V of nominal.

At the monitor rack level, confirm that the 3300/16 Dual Vibration Monitor or 3500/42 Proximitor / Seismic Monitor card is seated correctly and that its OK relay output is healthy. A latched NOT-OK condition after probe replacement is almost always caused by an incorrect gap voltage — the probe tip must be positioned within the linear range (typically 1.0–1.5 mm from the shaft surface) before the monitor will accept the signal.

While the control cabinet is open, this is the right moment to inspect terminal blocks and field wiring on the probe circuit. Loose or corroded terminals on DIN-rail mounted terminal strips introduce resistance that shifts the apparent gap voltage. Check the shielded twisted-pair cable routing for proximity to high-voltage conductors or variable-frequency drives, which are common sources of EMI-induced noise on vibration channels.

For plants running integrated machinery protection, the 330905-00-14-05-02-00 channel typically feeds into a Bently Nevada 3500 rack alongside keyphasor probes (such as the 330980 Keyphasor Probe), thrust position probes, and temperature monitors. A complete cabinet inspection should verify that all rack modules — including the 3500/20 Rack Interface Module and any 3500/92 Communication Gateway — are communicating correctly with the plant DCS or safety system. Loss of communication from a single rack module can mask vibration alarms at the operator station even when the probe itself is functioning correctly.

Finally, for older installations where the 3300 NSv system is approaching end-of-life, consider stocking a 3500/42M Proximitor / Seismic Monitor as a forward-compatible upgrade path. Maintaining a documented spare-parts list that covers the probe, extension cable, Proximitor, monitor card, and power supply ensures that any single-point failure can be resolved within one shift rather than waiting days for emergency procurement.

Site Replacement Workflow

Step 1 — Permit and Isolation: Obtain a hot-work or confined-space permit as applicable. Isolate the monitor channel at the rack (place the 3300/16 or 3500/42 channel in bypass mode) to prevent a spurious trip during probe removal.

Step 2 — Record As-Found Gap Voltage: Before disconnecting the old probe, record the DC gap voltage at the Proximitor output terminals. This baseline confirms whether the original probe had drifted out of calibration and provides a reference for the new installation.

Step 3 — Remove Old Probe and Extension Cable: Unscrew the probe from its mounting boss using the correct spanner (avoid gripping the cable). Disconnect the extension cable at both the probe connector and the Proximitor input. Inspect the mounting boss threads and clean with a thread chaser if necessary.

Step 4 — Install 330905-00-14-05-02-00: Thread the new probe finger-tight, then torque to the manufacturer’s specification (typically 20–25 N·m for M14 probes). Connect the matched extension cable. Route the cable away from heat sources and high-voltage conductors, securing with non-metallic cable ties at 300 mm intervals.

Step 5 — Set Gap and Verify Output: With the shaft stationary, adjust the probe gap to achieve –10.0 VDC ± 0.5 V at the Proximitor output (corresponding to approximately 1.27 mm gap for standard 3300 NSv calibration). Document the as-left gap voltage in the maintenance record.

Step 6 — Remove Bypass and Confirm OK Status: Remove the channel bypass at the monitor rack. Confirm the OK LED is illuminated and that the vibration reading is within the expected baseline range for the machine at rest. Notify the control room before returning the machine to service.

Step 7 — Update Spare Parts Register: Log the replaced part number, serial number, installation date, and as-left gap voltage in the plant CMMS. Order a replacement 330905-00-14-05-02-00 to restore the critical-spare inventory level.

Spare Parts Support FAQ

Q1: Is the 330905-00-14-05-02-00 a direct drop-in replacement for earlier 3300 NSv probe variants?
Yes, provided the extension cable and Proximitor are from the same matched 3300 NSv system. The –00-14-05-02-00 suffix denotes a 14 mm probe, 5 m integral cable, standard connector, and no special options. If your existing installation uses a different cable length suffix, verify the total system length (probe + extension) matches the Proximitor’s calibrated range before installation.

Q2: What pre-shipment testing does SMARTNEXMSK perform on this probe?
Each 330905-00-14-05-02-00 unit undergoes a three-point calibration check (gap voltage at 0.5 mm, 1.0 mm, and 2.0 mm), insulation resistance measurement between the cable shield and conductors, and a visual inspection of the probe tip and connector. A test report is available on request and accompanies bulk orders.

Q3: How should this probe be stored in a critical-spare inventory?
Store in the original packaging or an anti-static bag inside a climate-controlled cabinet (10–35 °C, <70% RH). Keep the probe tip protected with the supplied plastic cap. Inspect the connector O-ring annually and replace if cracked. Recommended maximum storage period before re-testing is 36 months.

Q4: What is covered under the 12-month warranty?
The warranty covers manufacturing defects, calibration drift beyond factory tolerance, and connector or cable failures under normal operating conditions. It does not cover physical damage from incorrect installation torque, chemical attack, or operation outside the specified temperature range. Warranty claims are processed within 5 business days of receiving the returned unit, with a replacement dispatched immediately upon confirmation.
