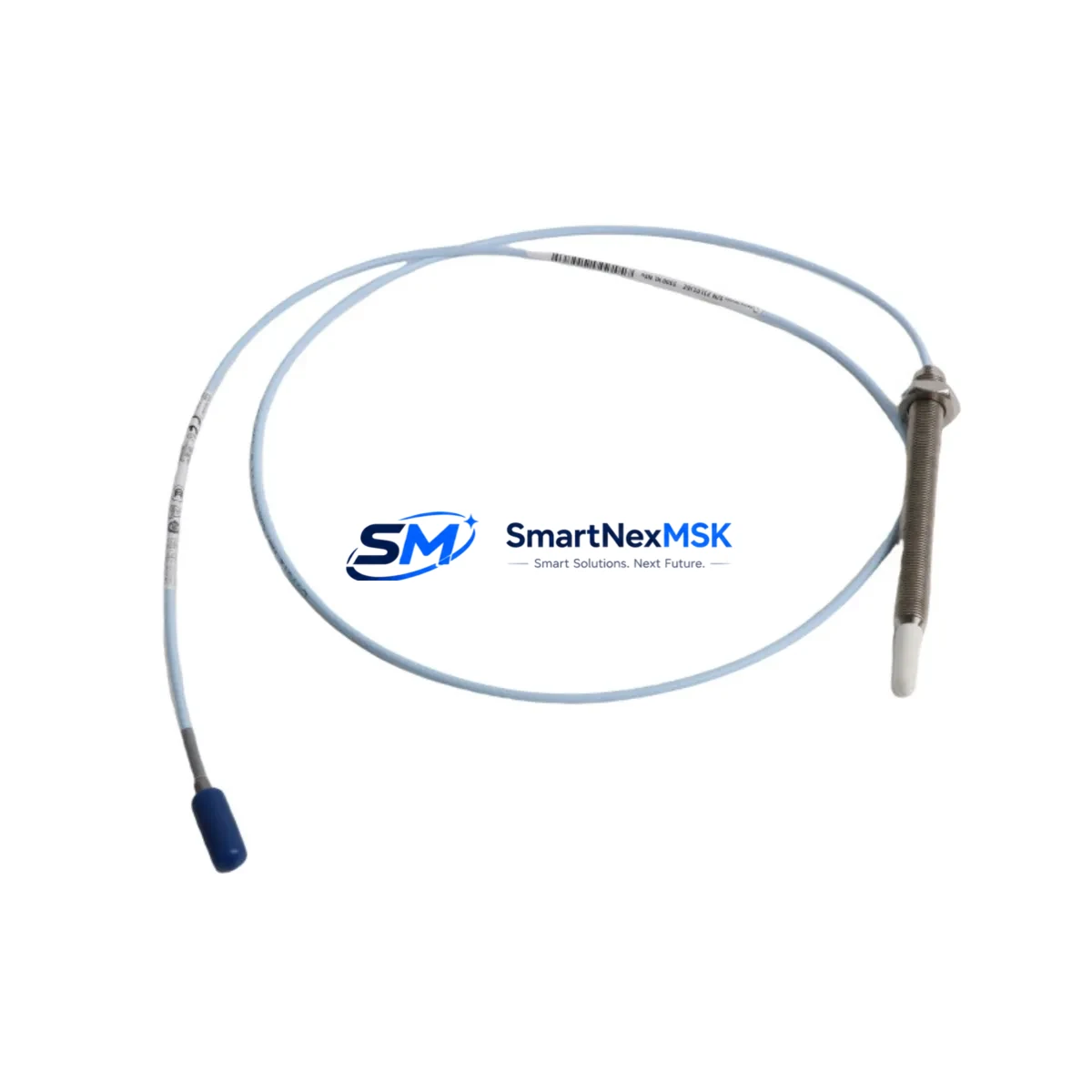

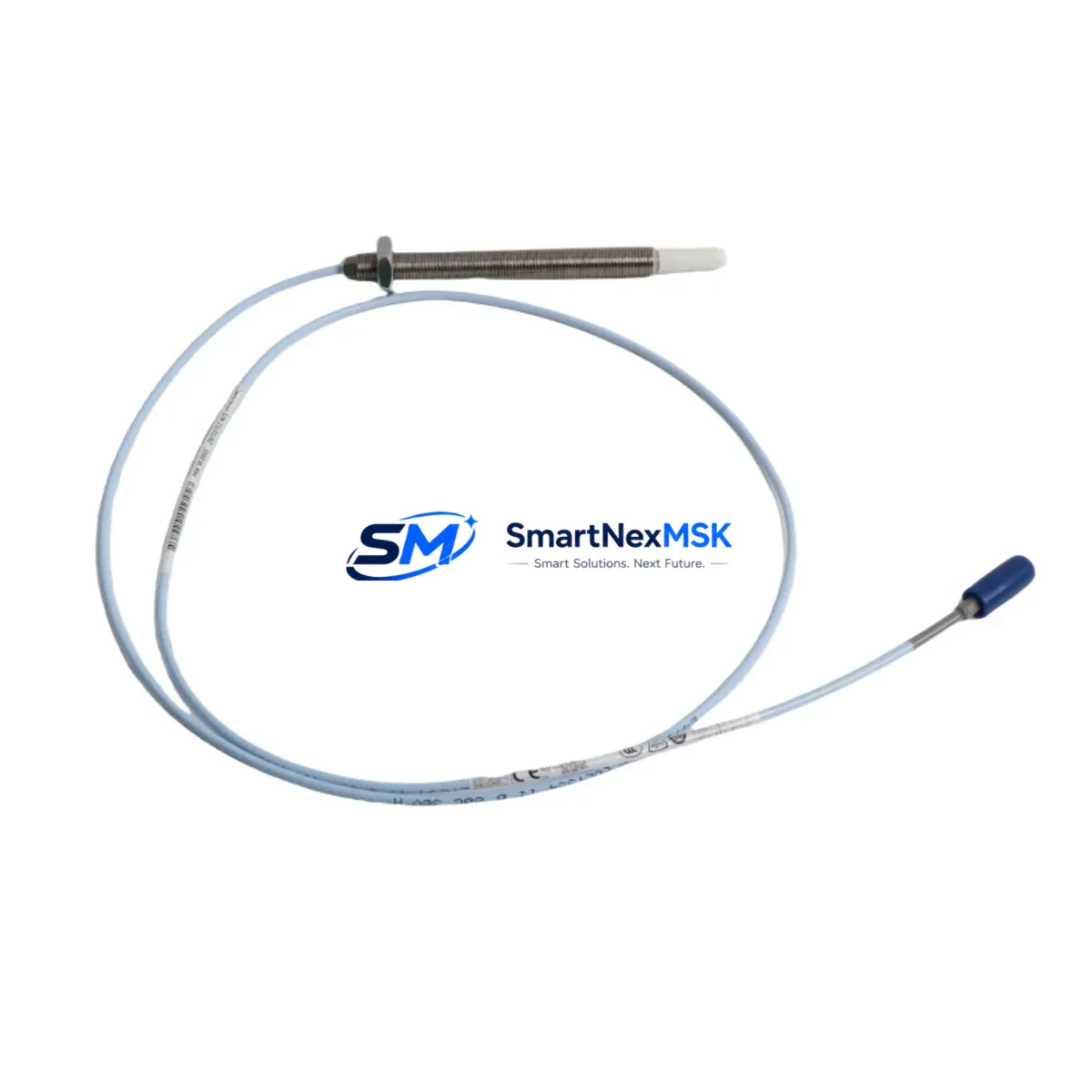

Bently Nevada 330905-00-14-10-02-05 3300 NSv Proximity Probe

Bently Nevada 330905-00-14-10-02-05 3300 NSv Retrofit-Ready Proximity Probe: Compatible Modernization for Legacy Vibration Monitoring Systems

The Bently Nevada 330905-00-14-10-02-05 is a 3300 NSv Series proximity probe engineered for non-contact vibration and position measurement in rotating machinery protection systems. As legacy Bently Nevada 3300 Series installations approach end-of-support cycles, plant engineers and reliability teams increasingly require verified drop-in replacements that preserve existing wiring, terminal assignments, and system calibration without triggering full-panel redesigns. This unit is stocked, tested, and ready for immediate dispatch to support planned turnarounds and emergency breakdowns alike.

Whether you are replacing a failed probe on a steam turbine, compressor train, or pump skid, the 330905-00-14-10-02-05 integrates directly into existing 3300 NSv monitor racks without requiring changes to the 3300/16 or 3300/20 monitor cards. The probe’s 5-metre armored extension cable and standard 8 mm tip diameter are dimensionally consistent with the original factory specification, eliminating the need for conduit rerouting or bracket modification during swap-out.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330905-00-14-10-02-05 into an operating plant begins well before the physical swap. Retrofit planning should account for the full signal chain: from the probe tip through the 330130-080-00-00 extension cable, into the 3300 NSv proximitor/driver, and finally to the monitor card housed in the 3500 rack or legacy 3300 rack assembly. Each element in this chain must be verified for continuity and correct impedance before the machine is returned to service.

When the existing proximitor — typically a 330180-X1-05 or 330180-X1-CN driver — is also due for replacement, it is advisable to replace the probe and driver as a matched pair. Mismatched probe-driver combinations can introduce sensitivity errors that fall outside the ±0.5% linearity specification required by API 670 machinery protection standards. If the 3300/16 monitor card shows an OK LED fault immediately after probe installation, the most common cause is an incorrect gap distance; the target gap for 8 mm probes is typically 1.0–1.5 mm, producing a –10 to –12 VDC bias voltage.

For plants migrating from the legacy 3300 Series rack to the current 3500 Series platform, the 330905-00-14-10-02-05 probe remains fully compatible with 3500/42M and 3500/42E proximity monitor modules. The 3500 rack’s I/O module accepts the same BNC-terminated probe cable without adapter hardware, and the 3500/92 communication gateway preserves Modbus RTU and FOUNDATION Fieldbus connectivity to the plant DCS — typically a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA — without requiring changes to the historian tag mapping or alarm setpoint database.

Control cabinet upgrades that incorporate this probe alongside a 3500/20 rack power supply module, a 3500/15 power supply, and updated 3500/22M transient data interface cards benefit from the standardized terminal block layout shared across the 3500 platform. Engineers replacing multiple measurement points simultaneously should also verify the 3500/01 rack interface module firmware version to ensure compatibility with the plant’s System 1 Evolution condition monitoring software, which aggregates vibration trend data for predictive maintenance scheduling.

Where I/O expansion is required — for example, when adding axial position monitoring alongside radial vibration channels — the 3500/40M position monitor module can be installed in an adjacent rack slot without disrupting existing probe wiring. The 330905-00-14-10-02-05 is equally suited to axial thrust position measurement when paired with the appropriate target material and gap calibration curve, making it a versatile choice for both new channel additions and direct replacements.

Downtime Control During System Migration

Minimizing unplanned downtime during probe replacement requires a structured pre-outage checklist. Before isolating the measurement channel, capture the current gap voltage, vibration amplitude, and phase reference readings from the 3300/16 or 3500/42M monitor display. These baseline values serve as the acceptance criteria for post-installation verification and allow the commissioning technician to confirm that the replacement probe is performing within the original calibration envelope without requiring a full system recalibration.

Where the plant control philosophy permits, the affected monitor channel should be placed in bypass mode within the safety instrumented system (SIS) or the turbine control system before the probe is disconnected. This prevents a spurious trip signal from propagating to the emergency shutdown system (ESD) during the brief period when the probe circuit is open. The bypass should be logged in the permit-to-work system and cleared immediately after the new probe is gapped, connected, and verified.

For installations where the 3300 or 3500 rack is shared across multiple measurement channels, the replacement can be completed on a single channel without affecting adjacent channels, provided the rack power supply — typically a 3500/15 or 3500/20 module — remains energized throughout the procedure. The modular architecture of the 3500 platform is specifically designed to support hot-swap maintenance on individual monitor cards, reducing the scope of the outage to the single machine train under maintenance rather than the entire monitoring panel.

After the 330905-00-14-10-02-05 is installed and gapped, the commissioning sequence should include: (1) gap voltage verification at the proximitor output terminals, (2) OK relay status confirmation on the monitor card front panel, (3) vibration amplitude cross-check against the adjacent probe channel or a portable vibration analyzer, and (4) alarm and danger setpoint confirmation in the monitor configuration. Only after all four checks are satisfactory should the bypass be removed and the machine returned to normal monitored operation. All steps and readings should be documented in the plant maintenance management system (CMMS) for traceability and future reference.

Retrofit Support FAQ

Q1: Is the 330905-00-14-10-02-05 a direct replacement for the original Bently Nevada part, or does it require recalibration?
A: This unit is a verified drop-in replacement for the original 330905-00-14-10-02-05. It shares the same sensitivity (7.87 V/mm), tip diameter (8 mm), and cable length (5 m), and is compatible with all standard 3300 NSv proximitor/driver units. No recalibration of the monitor card is required provided the installation gap is set correctly (–10 to –12 VDC bias voltage at nominal gap).

Q2: What wiring changes are needed when installing this probe in an existing 3300 NSv system?
A: No wiring changes are required. The probe uses the standard BNC connector and is compatible with existing 330130 extension cables and 3300 NSv terminal block assignments. If the extension cable is also being replaced, ensure the total system cable length does not exceed 9 m to maintain sensitivity specification.

Q3: Can this probe be used with the Bently Nevada 3500 Series monitoring platform?
A: Yes. The 330905-00-14-10-02-05 is fully compatible with 3500/42M and 3500/42E proximity monitor modules. No adapter hardware is required. The probe’s output characteristics fall within the 3500 platform’s accepted input range, and the installation and gapping procedure is identical to the 3300 NSv application.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating and storage conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. Replacement units are dispatched after fault verification, with no requirement to return the defective unit in advance for standard claims.
