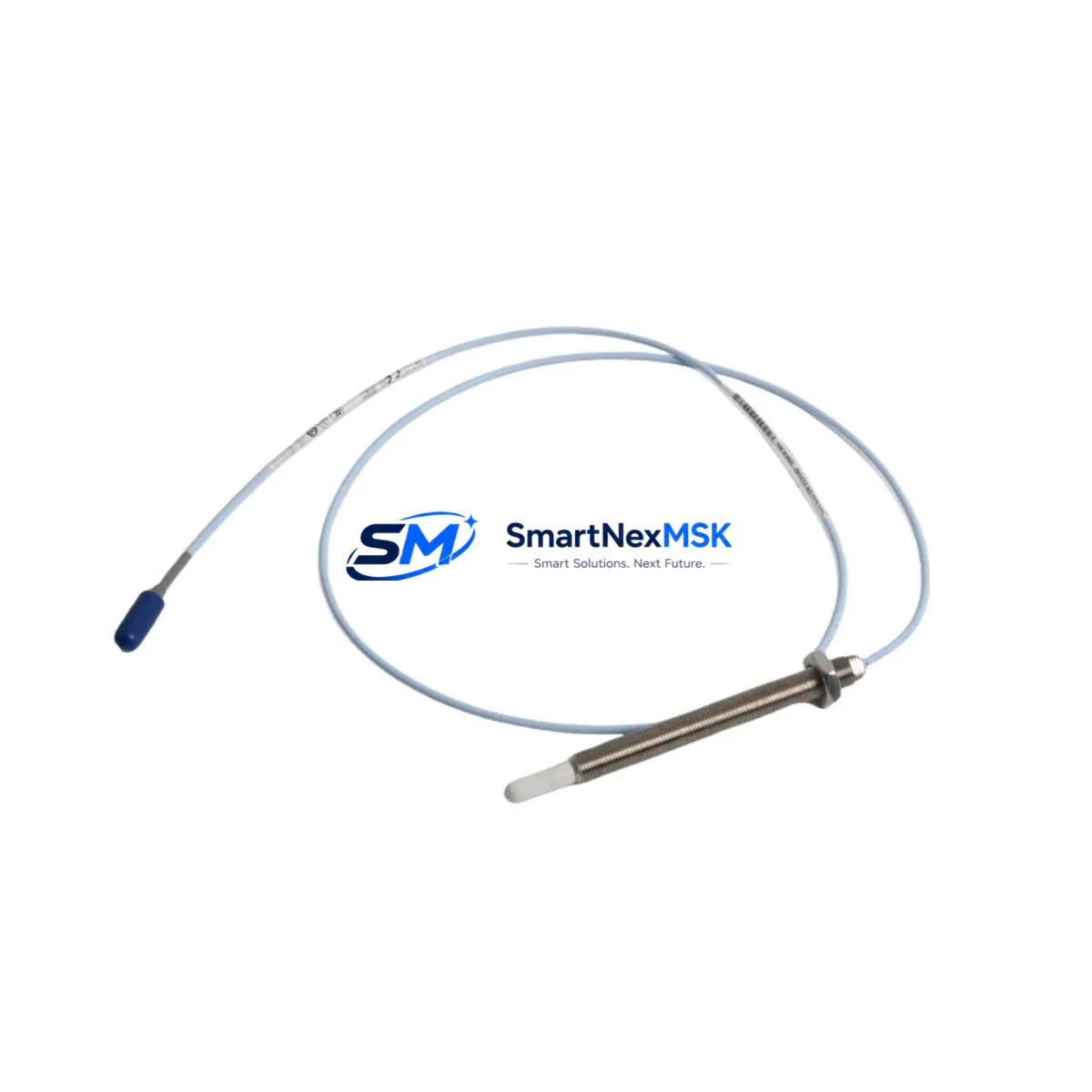

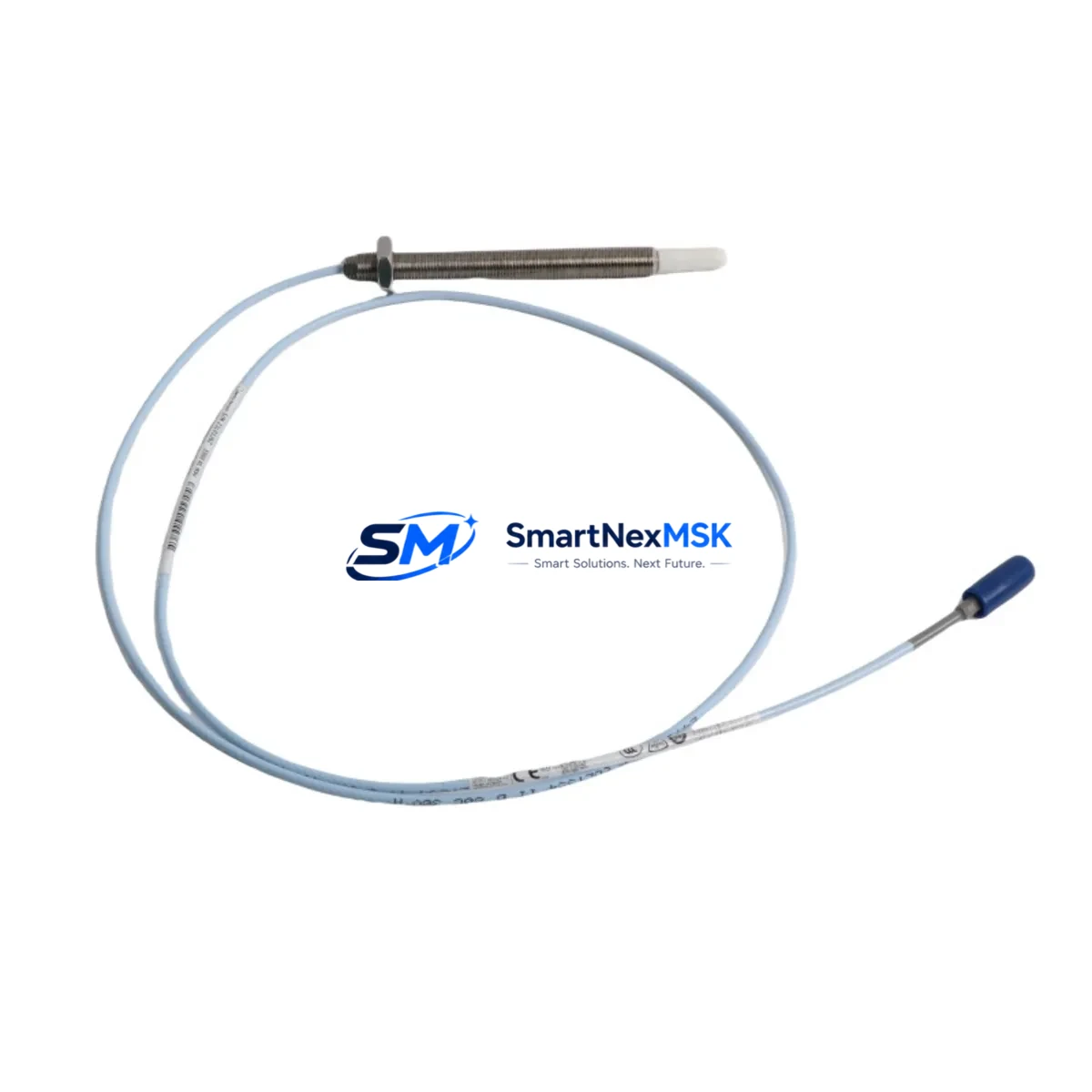

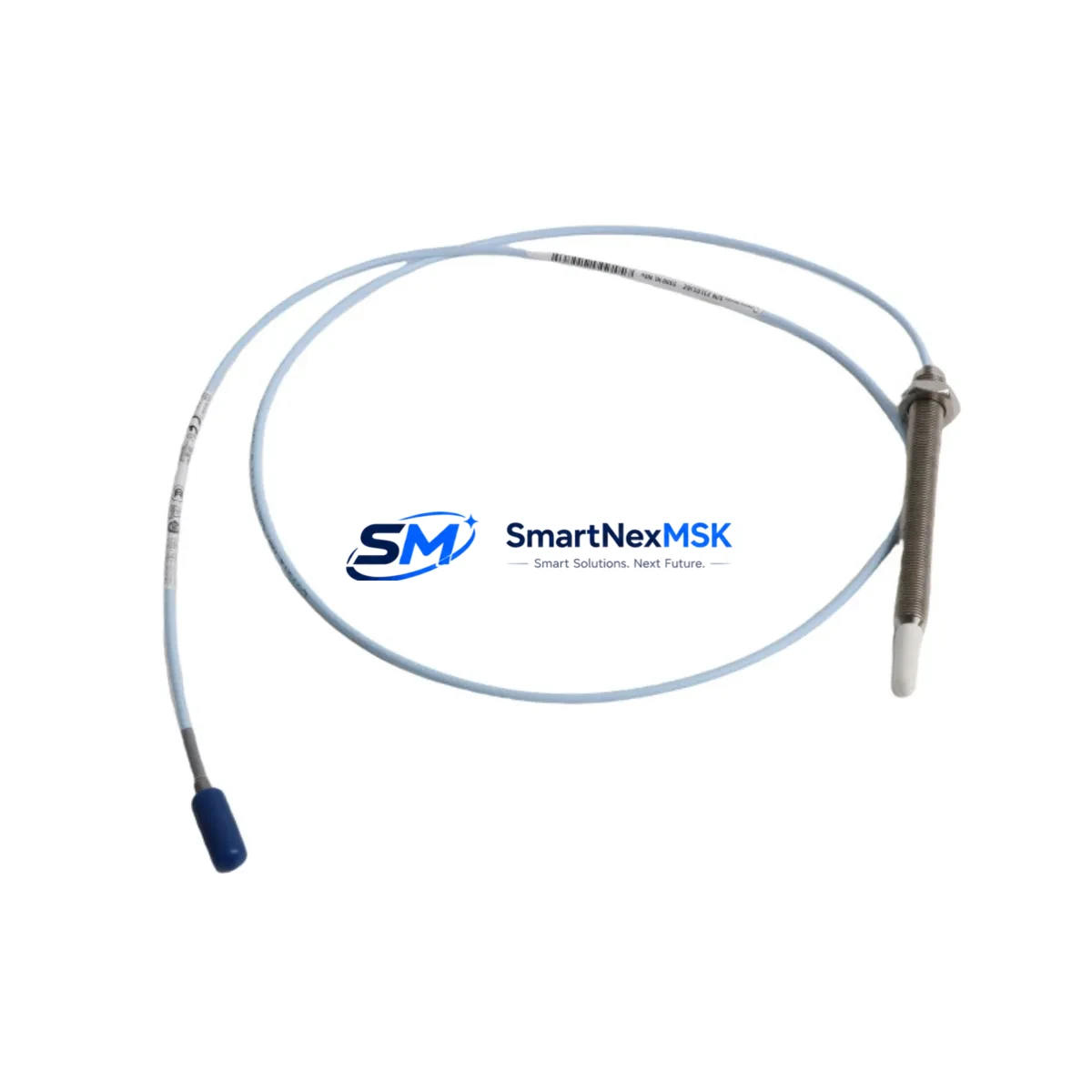

The Bently Nevada 330905-00-16-10-02-CN is an original eddy-current proximity probe engineered for the 3300 NSv (Non-contact Vibration) monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe represents a critical first-line sensor in continuous vibration monitoring. When a probe fails or degrades, the entire protection loop is compromised, and unplanned downtime becomes an immediate risk.

Sourced as an original Bently Nevada component, the 330905-00-16-10-02-CN is stocked and tested prior to shipment. Each unit undergoes functional verification to confirm output sensitivity, cable integrity, and connector condition before leaving our facility. With a 12-month warranty and documented traceability, this spare is suitable for both emergency replacement and planned maintenance inventory.

Whether you are managing a scheduled turnaround, responding to a high-vibration alarm, or building a critical-spare buffer for a long-running asset, the 330905-00-16-10-02-CN provides the reliability and compatibility your maintenance program demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330905-00-16-10-02-CN in the field is rarely an isolated task. A proximity probe failure or degraded output is often a symptom of broader issues in the vibration monitoring loop, and a thorough maintenance engineer will use the replacement event as an opportunity to inspect the entire signal chain.

Begin with the 3300 XL 8mm Extension Cable (typically the 330130 series) that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, especially in high-vibration environments, and a worn cable can introduce noise or signal loss that mimics probe failure. Inspect the cable jacket, connectors, and any conduit routing for abrasion or crush damage.

Next, verify the 3300 NSv Proximitor/Evolver (such as the 330180 or 330181 series) mounted in the junction box or control cabinet. The proximitor converts the probe’s raw impedance signal into a calibrated voltage output. A faulty proximitor will cause erratic readings even with a new probe installed. Check the supply voltage (typically -24 VDC) and confirm the output is within the expected linear range.

Inspect the 3500/42M Proximitor Monitor or equivalent rack-mounted monitor card that receives the proximitor output. Confirm that the monitor’s OK relay is energized and that the channel is not in bypass or inhibit mode. If the monitor card has been in service for more than 10 years, consider scheduling a calibration verification or card swap during the next planned outage.

Review the 3500 Rack Power Supply (such as the 3500/15 or 3500/05) feeding the monitoring system. An unstable or aging power supply can introduce ripple that affects all channels simultaneously. Check the DC output voltage under load and inspect the backup battery if the rack includes a UPS module.

For machines where the 330905-00-16-10-02-CN monitors radial vibration on a shaft, also inspect the Keyphasor probe and proximitor (commonly the 330980 series) in the same loop. The Keyphasor signal is used for phase reference and balancing; a degraded Keyphasor can affect vibration vector calculations across the entire monitoring system.

If the machine is connected to a System 1 Evolution or System 1 Optimizer data acquisition platform, verify that the channel configuration matches the new probe’s sensitivity and gap voltage settings. Incorrect configuration will result in false alarms or missed trips even after a successful physical replacement.

Finally, check the terminal strip and field wiring in the junction box. Loose terminals, corroded contacts, or incorrect shielding grounding are common causes of intermittent probe faults. Use a calibrated gap tool to set the probe gap to the manufacturer’s recommended voltage (typically -10 VDC ±0.25 VDC at the nominal gap) before returning the machine to service.

Site Replacement Workflow

Step 1 — Identify and Isolate: Confirm the channel alarm status on the 3500 monitor rack. Place the affected channel in bypass mode to prevent a spurious trip during replacement. Document the existing probe gap voltage and OK status before removal.

Step 2 — Remove the Old Probe: Disconnect the extension cable at the junction box. Unthread the probe from the bracket using the correct spanner. Note the thread engagement depth for reference during reinstallation.

Step 3 — Install the 330905-00-16-10-02-CN: Thread the new probe into the bracket to the same engagement depth. Connect the extension cable. Apply anti-seize compound to the threads if operating in a high-temperature or corrosive environment.

Step 4 — Set the Gap: Power the proximitor and measure the output voltage at the monitor or junction box test point. Adjust the probe gap until the output reads within the specified linear range (typically -10 VDC ±0.25 VDC). Lock the probe in position with the jam nut.

Step 5 — Verify and Return to Service: Confirm the OK relay is energized on the monitor card. Remove the bypass. Observe the vibration reading during machine startup and confirm it is within normal operating range. Update the maintenance log with the replacement date, probe serial number, and gap voltage.

This workflow is compatible with legacy 3300 series installations and current 3500 rack systems, making the 330905-00-16-10-02-CN a reliable drop-in replacement that minimizes engineering time and reduces the risk of configuration errors during emergency maintenance.

Spare Parts Support FAQ

Q1: Is the 330905-00-16-10-02-CN compatible with both the 3300 and 3500 monitoring systems?
Yes. The 330905-00-16-10-02-CN is designed for the 3300 NSv system and is also compatible with 3500 series rack monitors when used with the appropriate proximitor and extension cable. Always verify the monitor channel configuration matches the probe sensitivity (200 mV/mil) before returning to service.

Q2: What is included in the 12-month warranty?
Each unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units are tested prior to shipment and include a basic inspection report. Warranty claims are processed via our sales team at sales@smartnexmsk.com.

Q3: How do you verify the probe is genuine and not a counterfeit?
All units are sourced through verified industrial channels and inspected for correct labeling, connector type, cable construction, and output characteristics. We do not source from unverified secondary markets. If you require additional documentation or traceability records, please contact our team before ordering.

Q4: Can you supply multiple units for a planned maintenance inventory program?
Yes. We support bulk orders for critical-spare programs and can provide consistent supply for long-term maintenance contracts. For orders of 3 or more units, please contact us directly for lead time confirmation and volume pricing. We maintain stock of the 330905-00-16-10-02-CN and related 3300 NSv components to support ongoing maintenance requirements.
