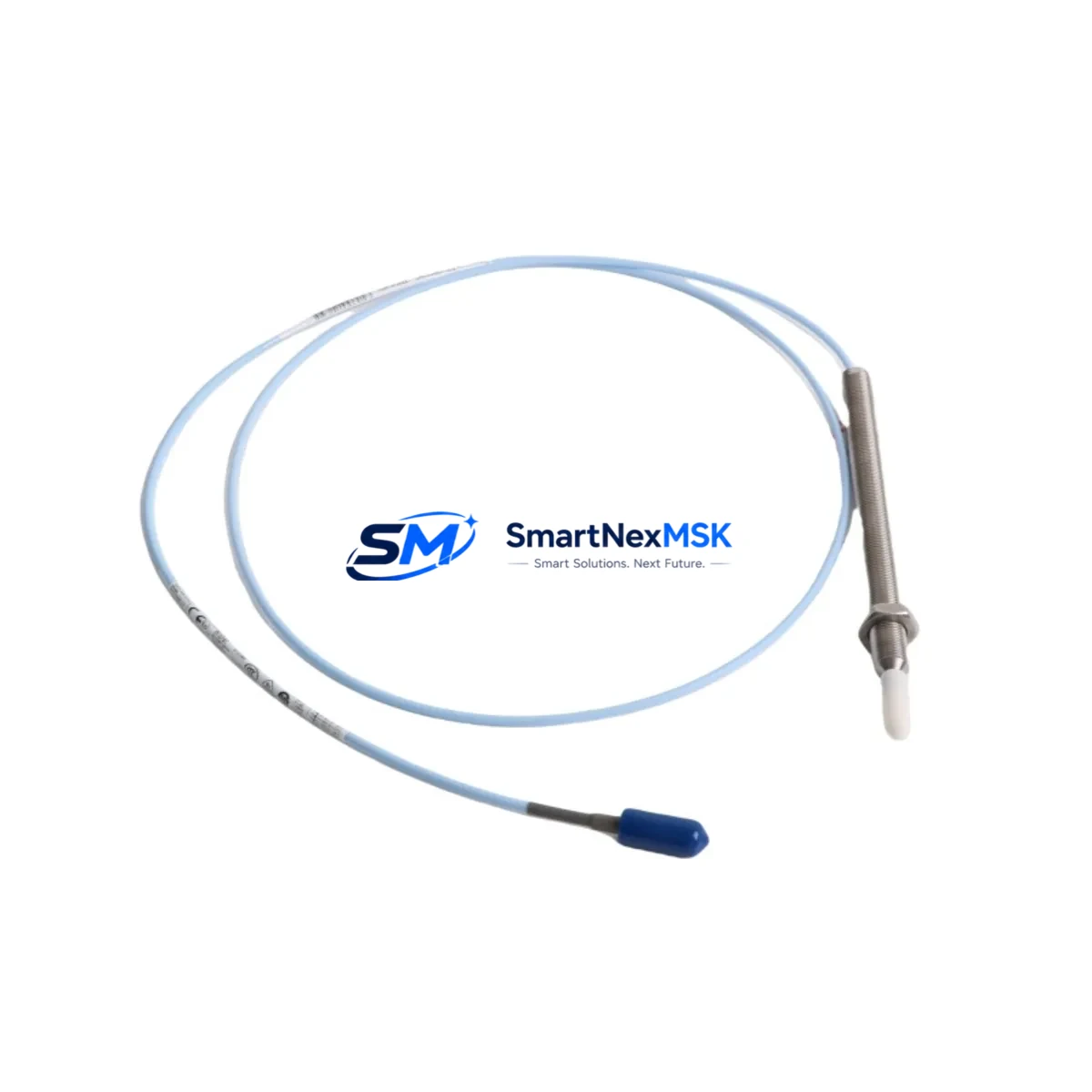

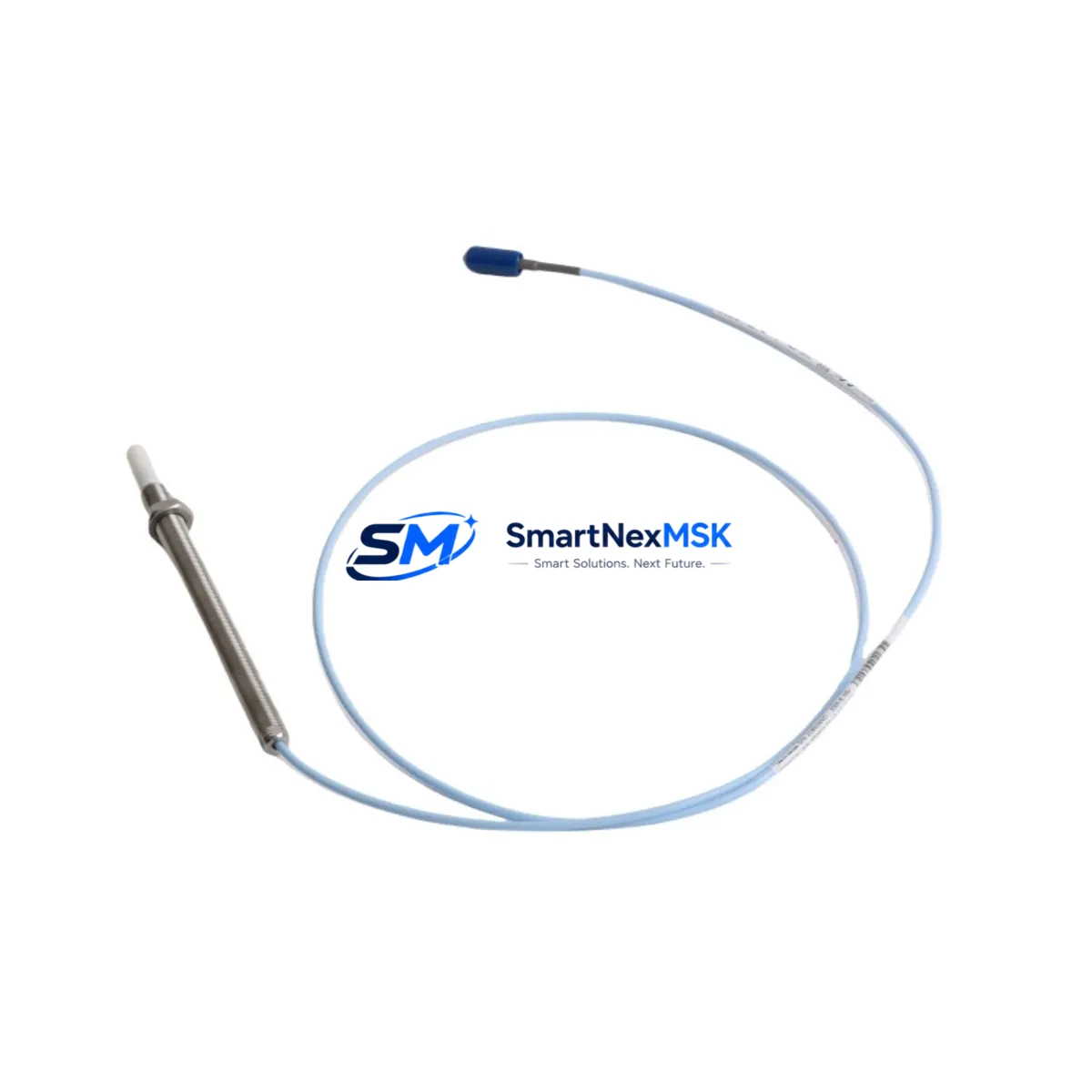

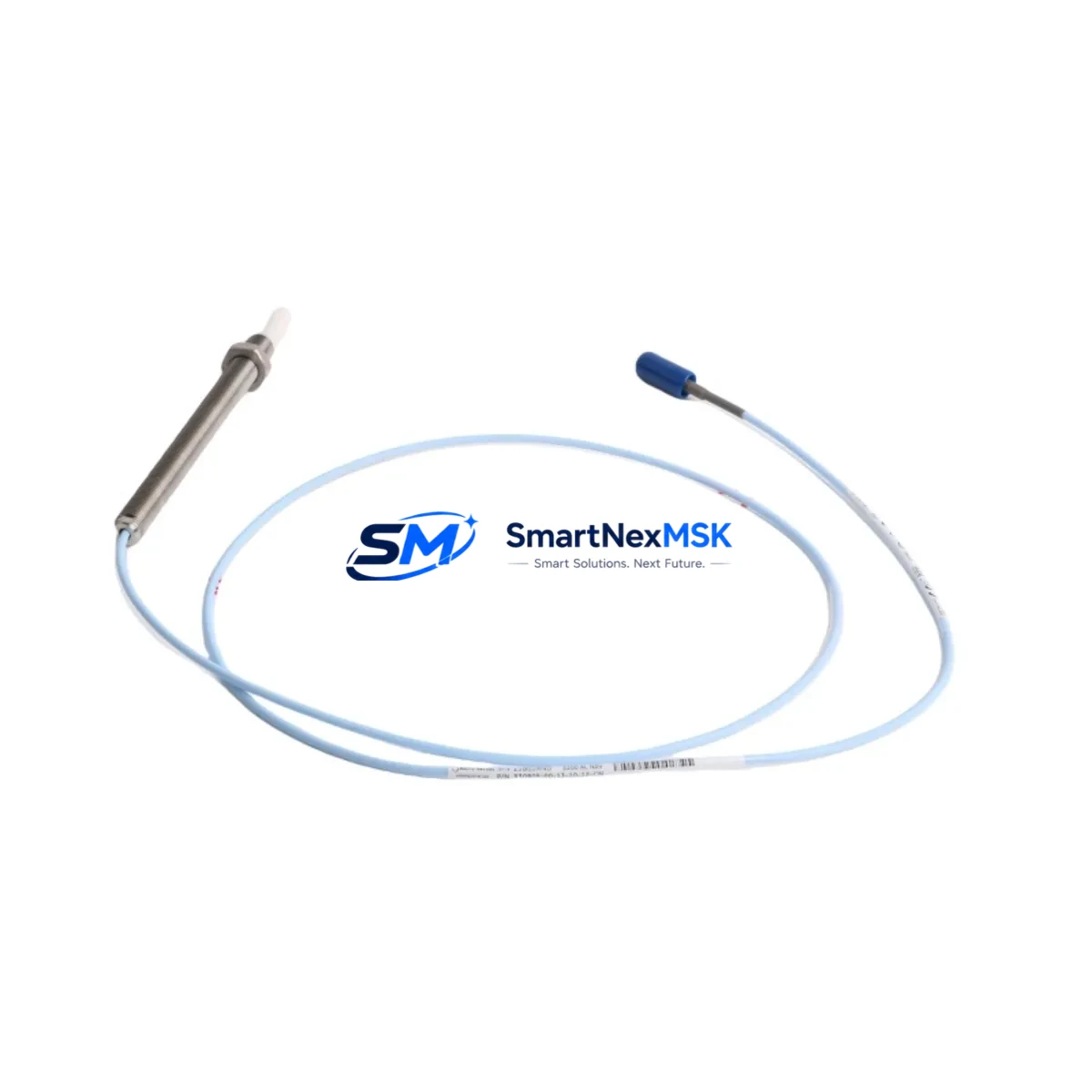

The Bently Nevada 330905-00-20-10-02-00 is an original 5mm eddy-current proximity probe engineered for the 3300 NSv Non-contacting Vibration monitoring system. Designed for continuous shaft vibration and position measurement in rotating machinery, this probe is a critical spare component in turbines, compressors, pumps, and gearboxes operating under ISO 10816 and API 670 standards. When a proximity probe fails or degrades, the entire vibration monitoring loop is compromised — triggering false alarms, masking real faults, or causing unplanned shutdowns. Maintaining a verified replacement unit of the 330905-00-20-10-02-00 in your spare parts inventory is a fundamental requirement for any maintenance-ready industrial facility.

This unit ships fully tested, with output sensitivity verified at -7.87 V/mm (200 mV/mil), gap voltage confirmed within the linear range, and packaging inspected for connector and cable integrity. Each unit carries a 12-month warranty covering manufacturing defects and electrical performance. SMARTNEXMSK sources this probe through authorized industrial channels and performs pre-shipment functional verification to ensure drop-in compatibility with existing 3300 NSv monitor racks.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330905-00-20-10-02-00 in the field is rarely an isolated task. Maintenance engineers and reliability teams should treat a proximity probe replacement as an opportunity to audit the entire vibration monitoring loop and adjacent control cabinet components. When this probe is pulled for replacement, the following components should be inspected or replaced concurrently to prevent repeat failures and maximize uptime between planned outages.

The 330180-91-00 extension cable that connects the probe to the driver module is subject to mechanical fatigue, especially in high-vibration environments. Inspect the cable jacket, connector pins, and shield continuity before reinstalling. If the cable shows any abrasion or impedance drift, replace it alongside the probe. Similarly, the 330130-080-01-00 proximitor/driver module mounted in the 3300 NSv rack should be verified for output voltage stability — a degraded driver will cause the new probe to read incorrectly even if the probe itself is healthy.

Within the same control cabinet, check the 3300/20 rack power supply module for output ripple and voltage regulation. Proximity probe systems are sensitive to supply noise; a marginal power supply can introduce measurement error that mimics mechanical faults. If the facility runs a 3300/55 or 3300/65 monitor card for radial vibration or axial position, verify that the monitor’s OK relay output and alarm setpoints are correctly configured after probe replacement — gap voltage changes during installation can shift the operating point.

For facilities using Bently Nevada 3500 series monitors in parallel or as part of a migration plan, confirm that the probe sensitivity and gap settings are compatible with the 3500/42M or 3500/40M position monitor cards. If the control system interfaces with a DCS via 4–20 mA output modules or FOUNDATION Fieldbus transducers, verify signal integrity at the marshalling panel after probe swap. Terminal blocks, particularly Phoenix Contact or Weidmüller spring-clamp terminal strips, should be inspected for loose connections and corrosion at the probe signal input terminals.

Where the vibration monitoring system feeds into a safety instrumented system (SIS) or emergency shutdown (ESD) logic, coordinate with the SIS engineer before performing the replacement to ensure the voting logic (1oo2 or 2oo3) is not inadvertently triggered during the maintenance window. Signal isolators — such as MTL or Pepperl+Fuchs galvanic isolators — installed between the proximitor output and the DCS input card should also be tested for correct pass-through gain and offset after the probe is reinstalled.

Finally, if the machine is equipped with a Bently Nevada 3300/46 or 3300/50 keyphasor module, verify that the keyphasor gap and signal amplitude are within specification, as the keyphasor reference is essential for phase-referenced vibration analysis and balancing after any probe maintenance event.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement unit part number 330905-00-20-10-02-00 matches the installed probe label. Check the driver module output voltage at the proximitor terminal (nominal -18 VDC at correct gap) before disconnecting the old probe. Document the existing gap voltage as a baseline.

Step 2 — Safe isolation: Inhibit the monitor channel at the 3300 NSv rack to prevent spurious alarms or ESD trips during the swap. If the system uses a 2oo3 voting configuration, confirm that the remaining two channels are healthy before inhibiting the third.

Step 3 — Physical replacement: Remove the old probe using the correct spanner to avoid thread damage on the probe boss. Install the 330905-00-20-10-02-00 and set the gap to the machine OEM specification (typically 1.0–1.5 mm for most steel shafts). Reconnect the extension cable and verify connector seating.

Step 4 — Commissioning check: Re-energize the channel and measure the gap voltage at the proximitor output. Confirm the reading falls within the linear range (-10 to -18 VDC). Compare against the pre-replacement baseline. If the gap voltage is outside range, re-adjust the probe depth.

Step 5 — System restoration: Remove the channel inhibit, confirm OK relay status, verify alarm and danger setpoints are active, and log the replacement in the maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of a replacement 330905-00-20-10-02-00 unit.

This workflow minimizes downtime to under 2 hours for a trained technician and ensures the vibration monitoring system is returned to full protective function without residual configuration errors.

Spare Parts Support FAQ

Q1: Is the 330905-00-20-10-02-00 a direct drop-in replacement for older 3300 NSv probes?
Yes. The 330905-00-20-10-02-00 is backward compatible with all 3300 NSv monitor racks and 330180 series extension cable drivers. No firmware changes or recalibration of the monitor card are required, provided the installation gap is set correctly per the machine OEM specification.

Q2: What pre-shipment testing does SMARTNEXMSK perform on this probe?
Each unit undergoes output sensitivity verification (-7.87 V/mm ±5%), gap voltage linearity check across the full operating range, connector continuity test, and cable insulation resistance measurement before dispatch. A test report is available upon request for critical applications.

Q3: How should this probe be stored as a long-term spare?
Store in the original packaging or an ESD-safe bag in a dry environment between -20°C and +70°C. Avoid coiling the integral cable tightly. Inspect the connector pins and cable jacket annually. Shelf life under proper storage conditions exceeds 5 years with no performance degradation.

Q4: What is covered under the 12-month warranty?
The warranty covers manufacturing defects, electrical performance outside published specifications, and connector or cable failures under normal operating conditions. It does not cover physical damage from improper installation, chemical exposure, or operation outside the rated temperature and gap range. Warranty claims are processed within 5 business days with advance replacement available for critical applications.
