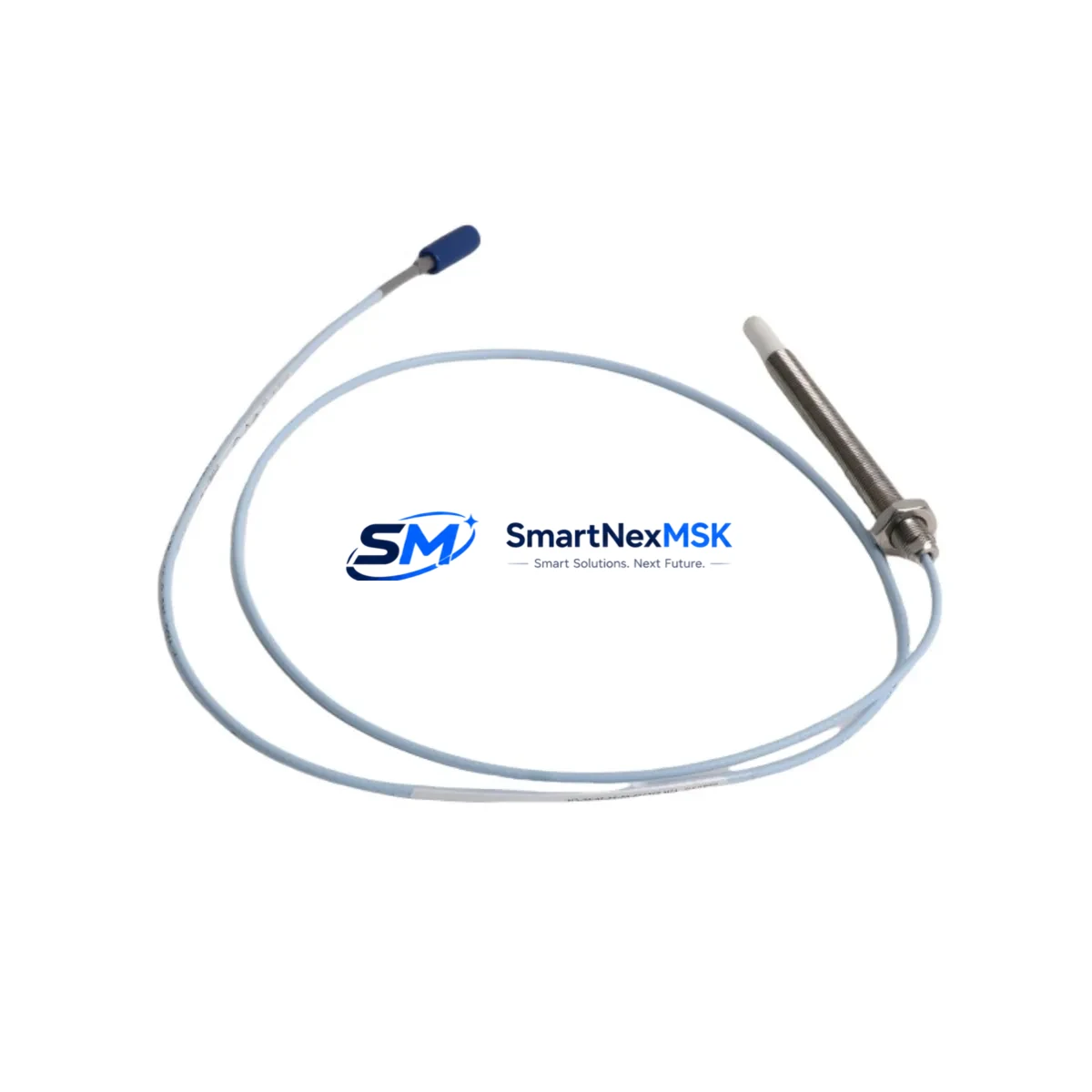

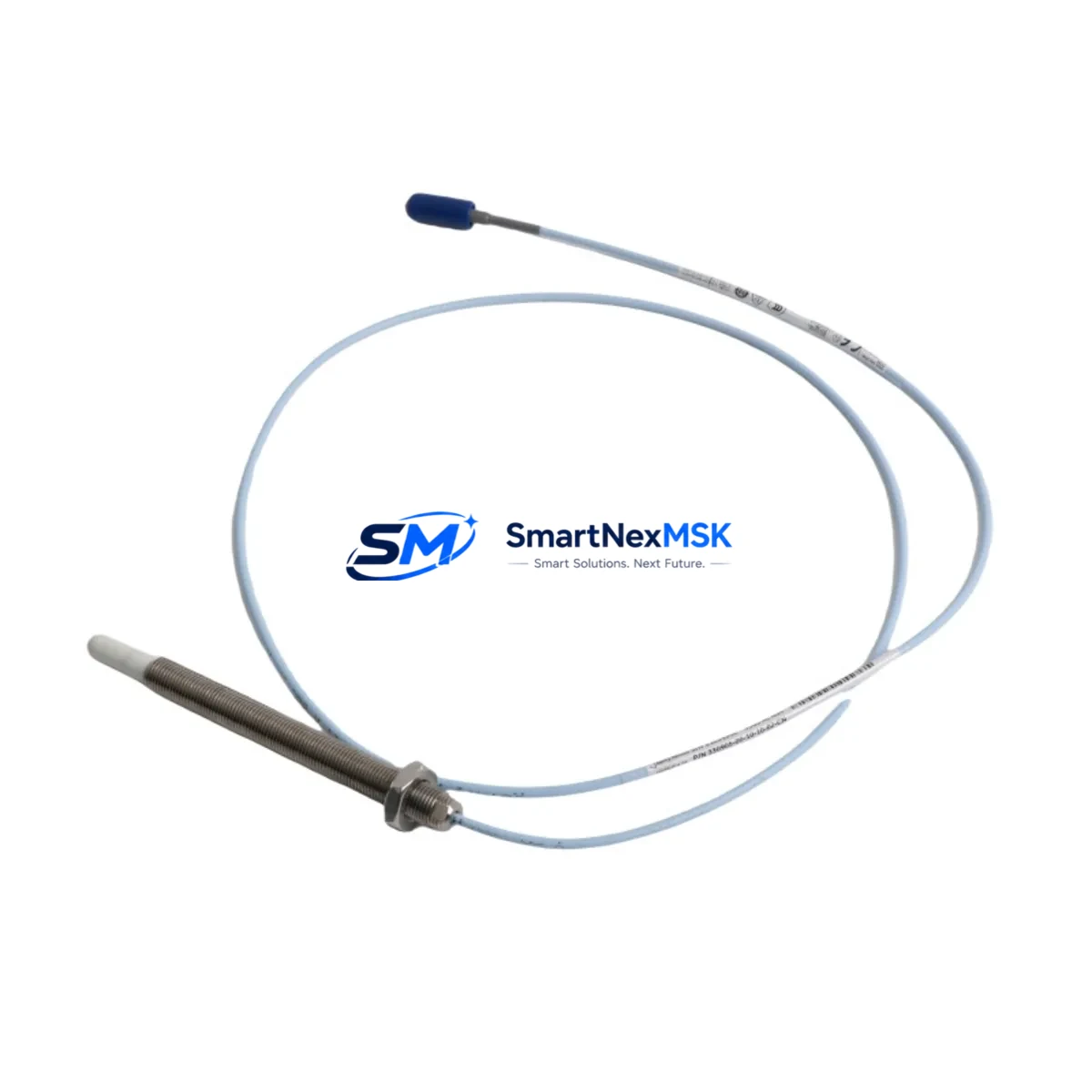

The Bently Nevada 330905-00-22-10-02-00 is an original eddy current proximity probe engineered for the 3300 NSv Proximitor/Seismic Monitor System. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a critical sensing element responsible for continuous shaft displacement and vibration monitoring. When this component degrades or fails, the entire machinery protection loop is compromised, creating unplanned downtime risk and potential equipment damage. Stocking a verified replacement is not optional; it is a fundamental element of any serious predictive maintenance and spare parts strategy.

This probe is designed for direct installation into existing 3300 NSv monitor racks without reconfiguration. Its 22 mm body length, 10 mm tip diameter, and 2-metre integral cable make it a drop-in replacement for worn or damaged field units. Maintenance engineers can complete a swap during a planned outage window or emergency shutdown with minimal tooling, restoring full vibration monitoring capability quickly and safely.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330905-00-22-10-02-00 probe is rarely an isolated task. A disciplined maintenance engineer treats a probe replacement as an opportunity to audit the entire vibration monitoring loop and adjacent control cabinet components. Before returning the machine to service, the following items should be inspected or replaced as part of the same work order:

The 3300 NSv Proximitor driver module (330180-91-00 or equivalent) should be bench-tested for output linearity and gap voltage accuracy. A degraded Proximitor will produce erroneous readings even with a new probe installed. Similarly, the extension cable assembly connecting the probe to the Proximitor — typically a 3300 XL or NSv-compatible armoured coaxial cable — should be inspected for jacket damage, connector corrosion, and continuity. Cable faults are a leading cause of false vibration alarms and nuisance trips.

At the monitor rack level, verify the 3300 NSv monitor card (such as the 330130 Dual Voting or 330100 standard monitor) for alarm setpoint integrity and relay output function. Relay output modules — including the 3300/20 Relay Module — should be exercised to confirm trip relay operation. If the relay has not been tested in over 12 months, include it in the replacement cycle.

Power supply integrity is equally critical. The 3300/15 Power Supply module feeding the monitor rack should be load-tested. A marginal power supply can cause intermittent probe signal dropout that mimics probe failure. Where redundant power supplies are installed, verify automatic switchover function.

For systems integrated with a System 1 condition monitoring platform, confirm that the new probe’s gap voltage and sensitivity constants are correctly entered in the software configuration. Incorrect sensitivity settings will produce scaled vibration readings that do not reflect actual shaft motion.

In control cabinets housing both vibration monitoring and process control equipment, also inspect terminal blocks and DIN rail mounted signal isolators that pass 4–20 mA or digital signals from the 3300 NSv system to the DCS or safety PLC. Loose terminations and degraded isolators are common sources of spurious trips in older installations. If the cabinet also contains Bently Nevada 3500 series modules for other measurement channels, use the same outage window to verify their rack power and I/O card status.

Finally, for legacy systems approaching end-of-life, consider whether the 3300 NSv architecture should be migrated toward the Bently Nevada 3500 platform or a modern equivalent. Proactive lifecycle planning — including maintaining a minimum two-unit spare inventory of the 330905-00-22-10-02-00 probe — is the most cost-effective strategy for avoiding unplanned outages on critical rotating assets.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitor channel is in bypass or inhibit mode to prevent a spurious trip during probe removal.

Step 2 — Gap Measurement and Documentation: Before removing the old probe, record the existing gap voltage from the Proximitor front panel or System 1 display. This baseline confirms the installed gap and provides a reference for the new probe setup.

Step 3 — Probe Removal: Unscrew the probe from the bearing housing bracket. Inspect the probe tip for wear, pitting, or contamination. Inspect the mounting threads and bracket for damage. Clean the target area on the shaft.

Step 4 — New Probe Installation: Install the 330905-00-22-10-02-00 replacement probe. Set the air gap to the manufacturer-specified nominal gap (typically 1.0 mm / 40 mil for this probe series) using a feeler gauge or gap voltage reference. Torque the locknut to specification.

Step 5 — Cable Routing and Connection: Route the integral cable to the Proximitor, avoiding sharp bends and heat sources. Connect to the Proximitor input. Verify the extension cable (if used) is properly terminated and shielded.

Step 6 — Functional Verification: Remove the channel inhibit. Confirm gap voltage reads within the linear range (typically -10 VDC ± 1 VDC at nominal gap). Verify the System 1 or monitor display shows a stable, noise-free vibration reading. Perform a slow-roll check if the machine can be safely rotated.

Step 7 — Documentation and Return to Service: Record the new probe serial number, installation date, gap voltage, and technician ID in the maintenance management system. Update the spare parts inventory to trigger reorder of a replacement unit.

Spare Parts Support FAQ

Q1: Is the 330905-00-22-10-02-00 a direct replacement for older 3300 NSv probes with the same body and cable dimensions?
Yes. The 330905-00-22-10-02-00 is designed as a direct mechanical and electrical replacement within the 3300 NSv system. Provided the Proximitor model and gap setting are compatible, no reconfiguration of the monitor card or System 1 software is required beyond confirming sensitivity constants.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes electrical continuity verification, tip impedance check, and output linearity confirmation before dispatch. Units are individually packaged with anti-static protection and include a test record. Our 12-month warranty covers manufacturing defects and electrical performance from the date of shipment.

Q3: How many units should we stock for a critical rotating machine?
Industry best practice for critical assets (Category A machinery) is a minimum of two probes per monitored bearing, plus one additional unit per machine train as a cold spare. For plants with multiple identical machines, a pooled spare of four to six units is recommended to cover both planned maintenance and emergency replacement scenarios.

Q4: Can this probe be used with non-Bently Nevada Proximitor drivers or third-party eddy current systems?
The 330905-00-22-10-02-00 is optimised for use with Bently Nevada 3300 NSv Proximitor drivers. While the probe’s physical characteristics (22 mm body, 10 mm tip, coaxial output) may be compatible with some third-party drivers, sensitivity calibration and linear range performance are validated only against the Bently Nevada 3300 NSv system. Compatibility with other systems should be verified by your instrumentation engineer before installation.
