Bently Nevada 330905-00-24-10-02-00 Retrofit-Ready Proximity Probe for 3300 NSv

Bently Nevada 330905-00-24-10-02-00 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

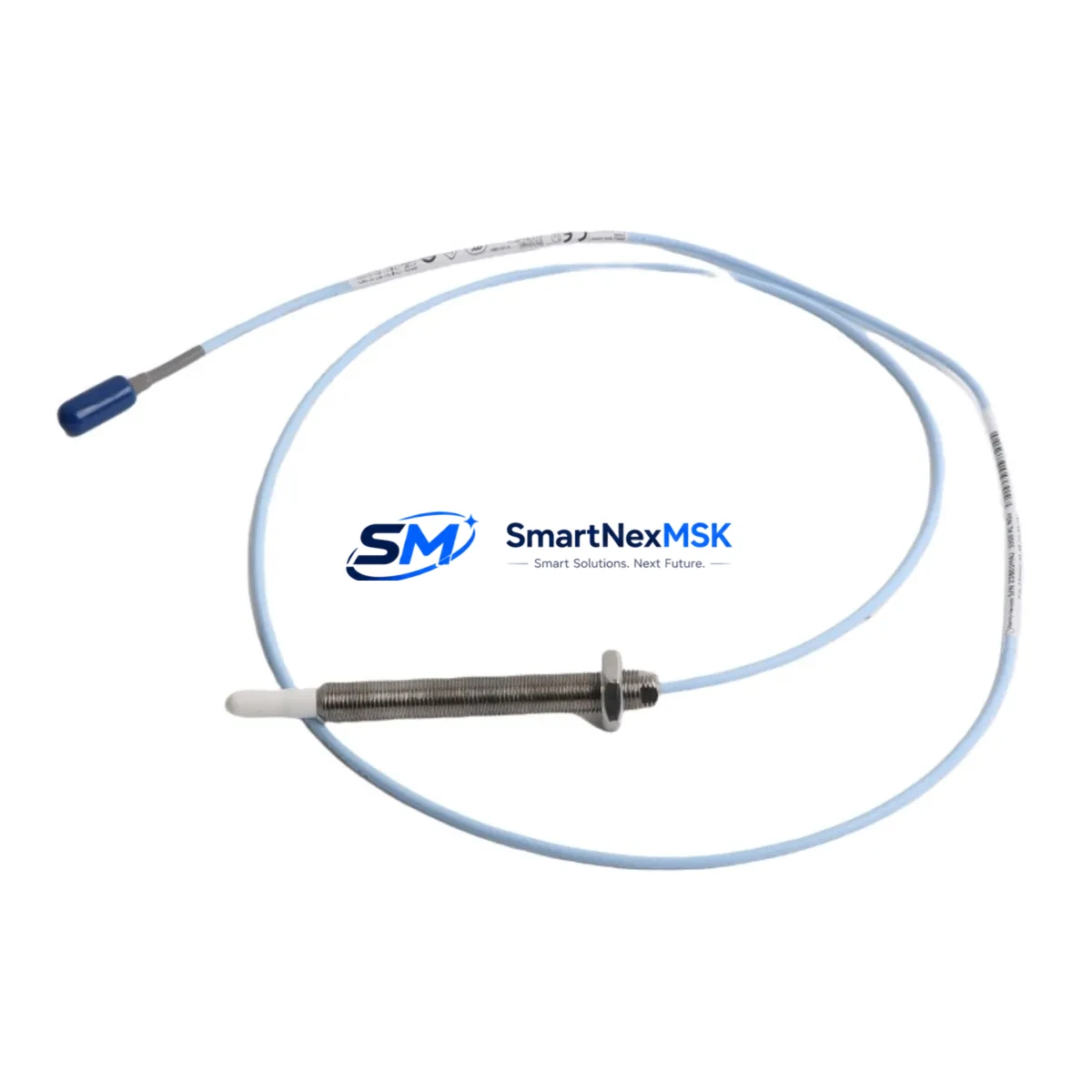

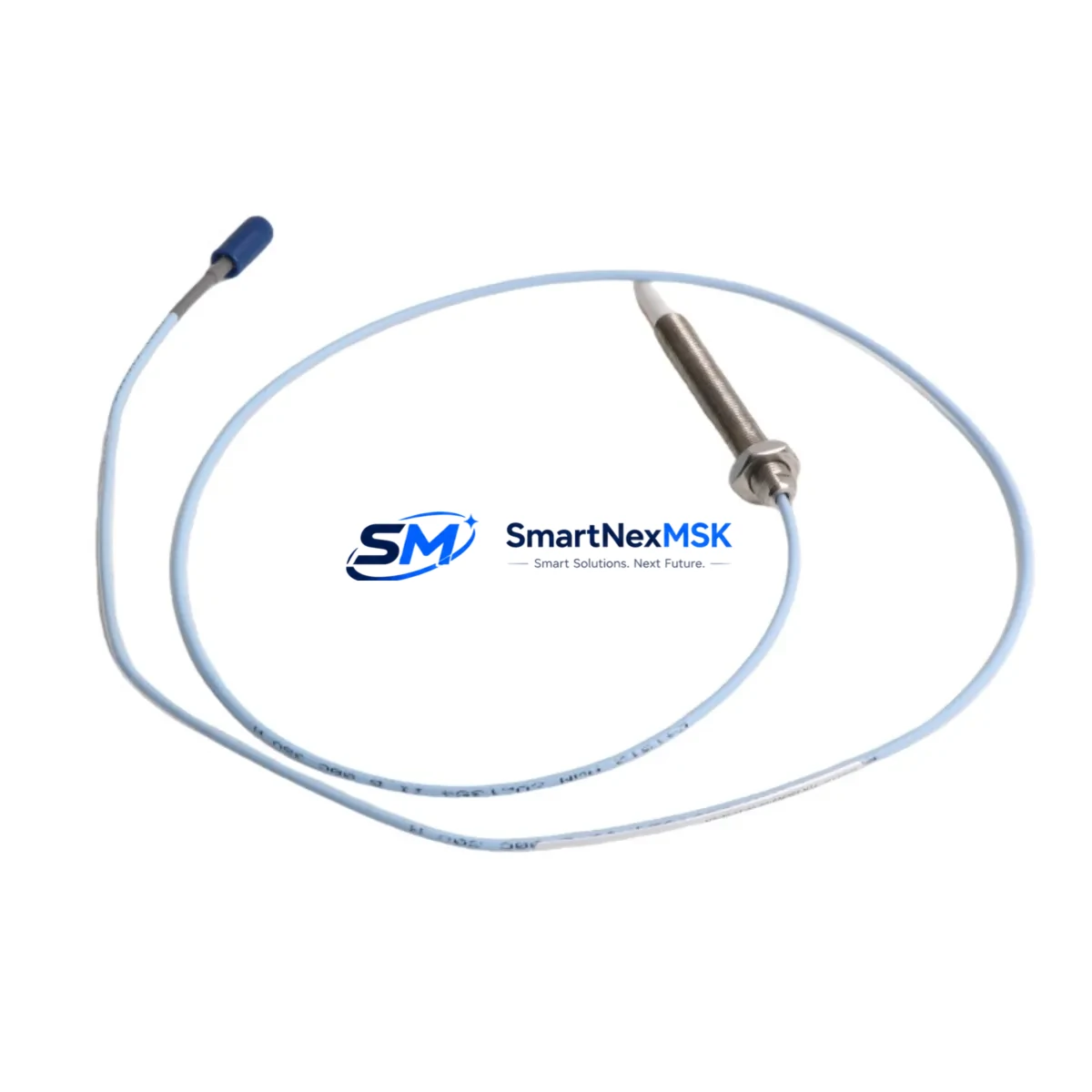

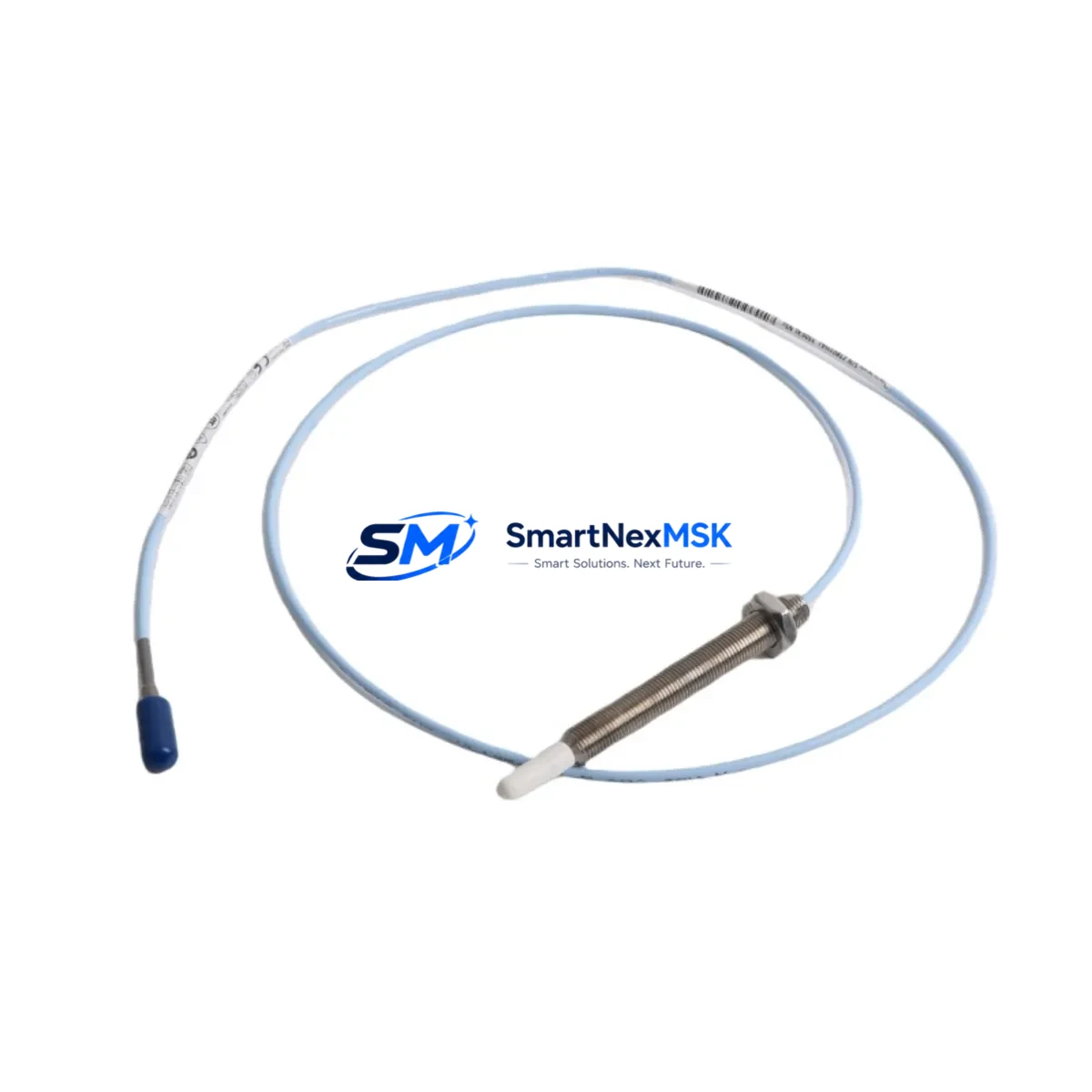

The Bently Nevada 330905-00-24-10-02-00 is a 24-inch extension proximity probe engineered for the 3300 NSv series vibration monitoring platform. As aging machinery protection systems reach end-of-life or face discontinued spare parts availability, this probe serves as a direct retrofit solution for facilities operating legacy Bently Nevada 3300 Series monitors, including the 3300/16 and 3300/20 rack-mounted monitors. Whether you are replacing a failed probe in a critical turbine protection loop or upgrading an entire vibration monitoring cabinet, the 330905-00-24-10-02-00 delivers the dimensional accuracy, signal integrity, and installation compatibility required for seamless integration into existing control architectures.

Industrial facilities running continuous rotating equipment — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — depend on proximity probes for real-time shaft displacement and vibration measurement. When the original 330905-series probe fails or becomes unavailable through standard supply channels, unplanned downtime and extended lead times create significant operational risk. The 330905-00-24-10-02-00 addresses this directly: it maintains the same 8 mm probe tip diameter, standard Bently Nevada connector interface, and -24 VDC bias voltage characteristics required by the 3300 NSv proximitor/driver, ensuring that no reprogramming of the monitor or recalibration of the gap voltage is required when performing a like-for-like swap.

For retrofit projects involving older 3300 XL or 3300/55 monitors, engineers should verify the proximitor model — typically the 330180 or 330130 series proximitor — to confirm signal conditioning compatibility before installation. The probe cable length and connector type must also be matched to the existing field wiring harness. In most 3300 NSv installations, the probe is paired with a 330130-080-00-00 or 330130-045-00-00 extension cable; confirming the total system length (probe + extension) against the proximitor’s calibrated range is a mandatory pre-installation step.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330905-00-24-10-02-00 into an operating plant begins well before the probe arrives on site. The first step is a full audit of the existing vibration monitoring cabinet. In a typical 3300 NSv installation, the cabinet houses a 3300 rack with multiple monitor cards — such as the 3300/16 dual-channel vibration monitor or the 3300/20 Keyphasor monitor — alongside the associated 330180 proximitor modules mounted in the field junction box. Each proximitor is powered from the rack’s internal power supply, and the field wiring runs from the proximitor back to the probe through a dedicated coaxial extension cable, commonly the 330130-080-00-00 for longer runs or the 330130-045-00-00 for shorter installations.

Before disconnecting the failed probe, technicians should document the existing gap voltage reading at the proximitor output terminal. This baseline value — typically between -9.5 VDC and -10.5 VDC for a correctly gapped 8 mm probe — serves as the reference for commissioning the replacement unit. If the gap voltage was outside this range prior to failure, the probe holder position may need adjustment during reinstallation. The probe holder itself, usually a threaded stainless steel fitting welded to the bearing housing, should be inspected for thread condition and cleanliness before the new probe is installed.

For facilities that are simultaneously upgrading from an older 3300/55 monitor to the current 3300 NSv platform, the retrofit scope expands significantly. In these cases, the 3300 rack backplane and I/O termination modules must be replaced, and the new monitor cards require configuration via the System 1 software platform. The DCS interface — whether a 4–20 mA analog input card or a Modbus RTU link to a Rockwell ControlLogix or Siemens S7-300 PLC — must be verified to ensure the signal scaling and alarm setpoints are correctly transferred. HMI faceplates displaying shaft vibration trends should be reviewed and updated to reflect any changes in channel numbering or tag naming introduced during the monitor upgrade.

In multi-machine installations, it is common to find a mix of probe generations within the same cabinet. A single 3300 NSv rack may monitor both the main turbine and the driven compressor, with probes of different vintage installed at each machine. Replacing only the failed 330905-00-24-10-02-00 while leaving adjacent probes in service is fully supported, as each channel operates independently. However, this is also an opportune moment to assess the condition of neighboring probes and extension cables — particularly the 330130 series cables — and schedule preventive replacement during the same maintenance window to avoid repeat outages.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement requires a structured approach that protects both the physical installation and the existing control logic. The most effective strategy is to prepare the replacement 330905-00-24-10-02-00 for installation before the machine is taken offline. This includes pre-measuring the probe tip-to-holder gap using a feeler gauge or depth micrometer, pre-connecting the extension cable, and verifying the proximitor output voltage on the bench using a signal simulator if available.

When the machine is shut down and the probe is accessible, the replacement sequence should follow the Bently Nevada installation procedure precisely: remove the old probe, clean the probe holder threads, install the new probe to the correct gap dimension, secure the locknut, and reconnect the extension cable. The entire mechanical installation typically takes less than 30 minutes for an experienced technician. The critical path item is the gap-setting verification: with the machine stationary, apply power to the proximitor and measure the output voltage. A reading of -10 VDC ± 0.5 V confirms correct installation. If the reading is outside this range, adjust the probe gap incrementally until the target voltage is achieved.

Once the gap is confirmed, the monitor channel should be taken out of bypass (if it was placed in bypass during the replacement), and the OK relay status should be verified at the 3300 NSv monitor card. The DCS or safety system — whether a Triconex TMR controller, a Honeywell Safety Manager, or a conventional relay-based trip circuit — should confirm that the vibration channel is returning a valid, in-range signal before the machine is restarted. This final verification step ensures that the machinery protection system is fully operational and that no spurious trips will occur during startup due to an incorrectly gapped probe or a loose cable connection.

For facilities with redundant monitoring channels, the replacement can often be performed with the machine running by placing the affected channel in maintenance bypass within the 3300 NSv monitor. This approach eliminates downtime entirely but requires strict adherence to the plant’s management of change (MOC) procedure and must be approved by the machinery engineer and operations supervisor before work begins.

Retrofit Support FAQ

Q1: Is the 330905-00-24-10-02-00 a direct replacement for the original Bently Nevada part, and will it work with my existing 330180 proximitor?
Yes. The 330905-00-24-10-02-00 is manufactured to the same dimensional and electrical specifications as the original Bently Nevada part. It is fully compatible with the 330180 and 330130 series proximitors used in 3300 NSv installations. No recalibration of the proximitor is required; only the standard gap-setting procedure needs to be performed after installation.

Q2: What wiring checks should I perform before installing the replacement probe?
Inspect the coaxial extension cable (typically a 330130-080-00-00 or 330130-045-00-00) for any signs of damage, kinking, or connector corrosion. Measure the cable continuity and shield integrity with a multimeter before connecting the new probe. Verify that the proximitor power supply voltage is within the specified range (-24 VDC ± 1 V) at the proximitor input terminals. Any wiring anomalies should be corrected before the new probe is installed to avoid misdiagnosis of a probe fault.

Q3: Do I need to make any changes to my DCS program or HMI configuration after replacing the probe?
For a like-for-like replacement of the 330905-00-24-10-02-00, no DCS program or HMI changes are required. The signal chain — probe, extension cable, proximitor, monitor card, and analog output to the DCS — remains identical. If you are simultaneously upgrading the monitor card or changing the channel configuration within the 3300 NSv rack, then DCS tag mapping and HMI faceplate updates may be necessary. Consult the 3300 NSv configuration record and the DCS I/O list before making any software changes.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every 330905-00-24-10-02-00 unit undergoes a functional test prior to shipment, verifying probe tip continuity, cable integrity, and connector condition. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, improper gap setting, mechanical impact, or operation outside the specified environmental conditions. Warranty claims are processed promptly; replacement units are dispatched within 3 business days of claim approval.
