Bently Nevada 330905-08-13-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330905-08-13-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

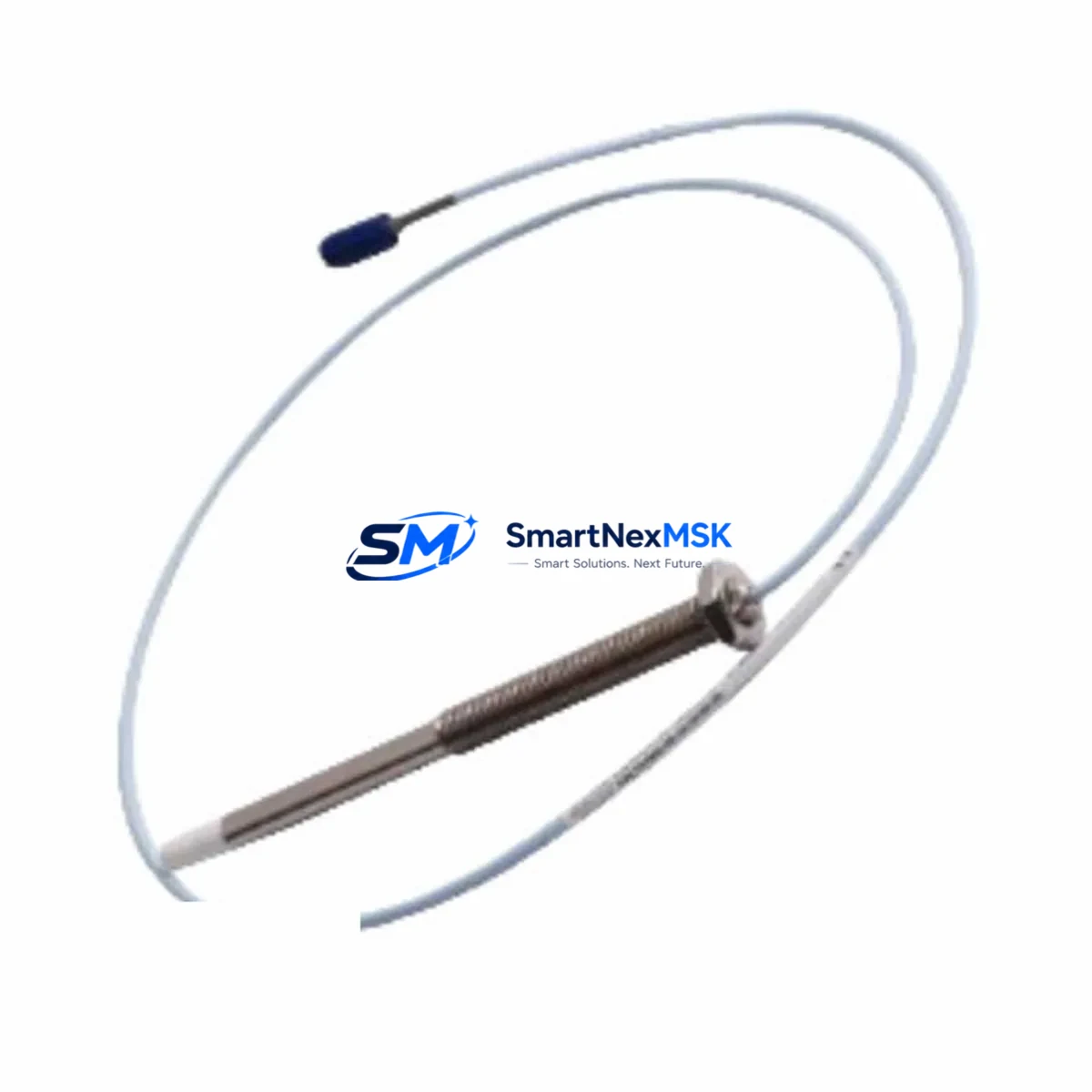

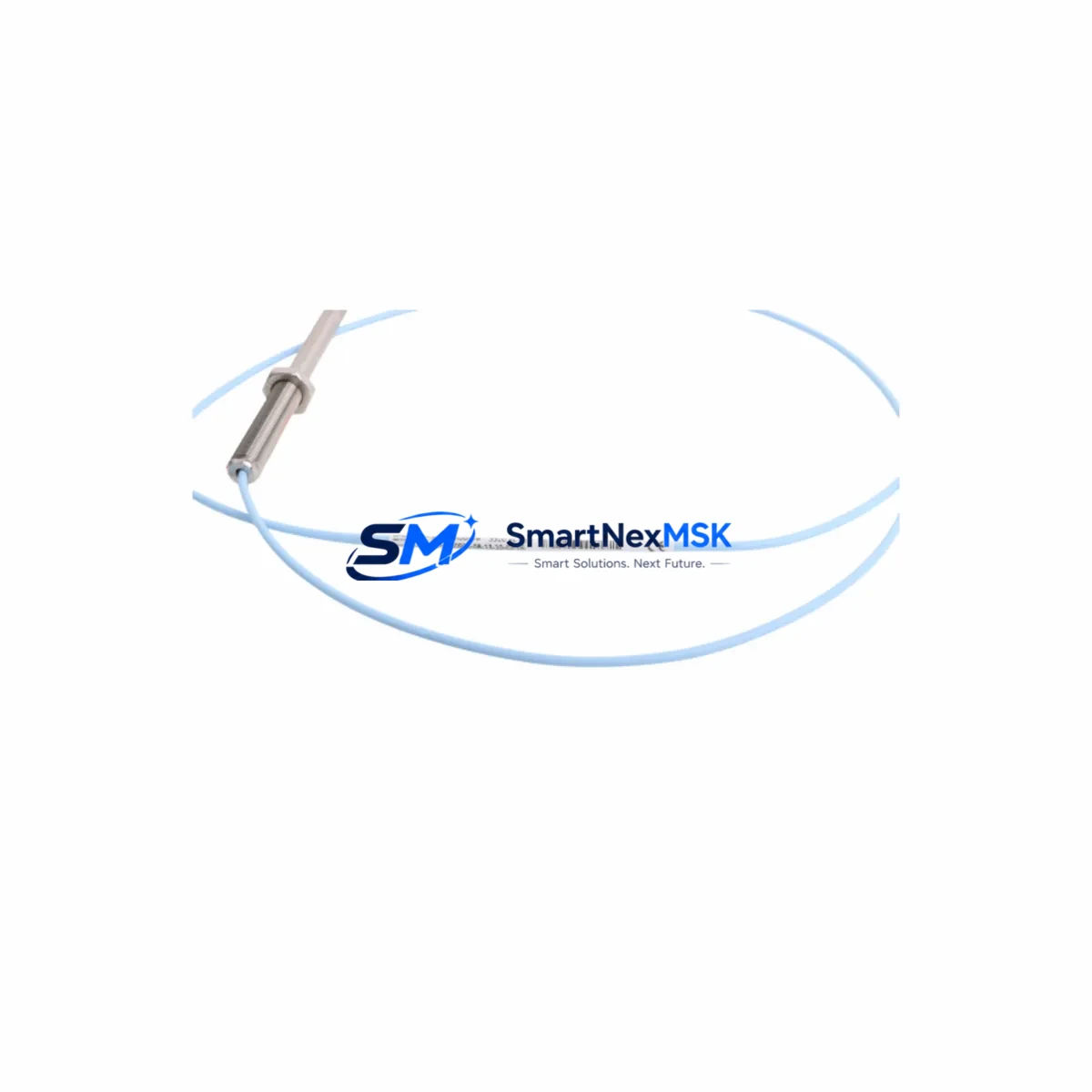

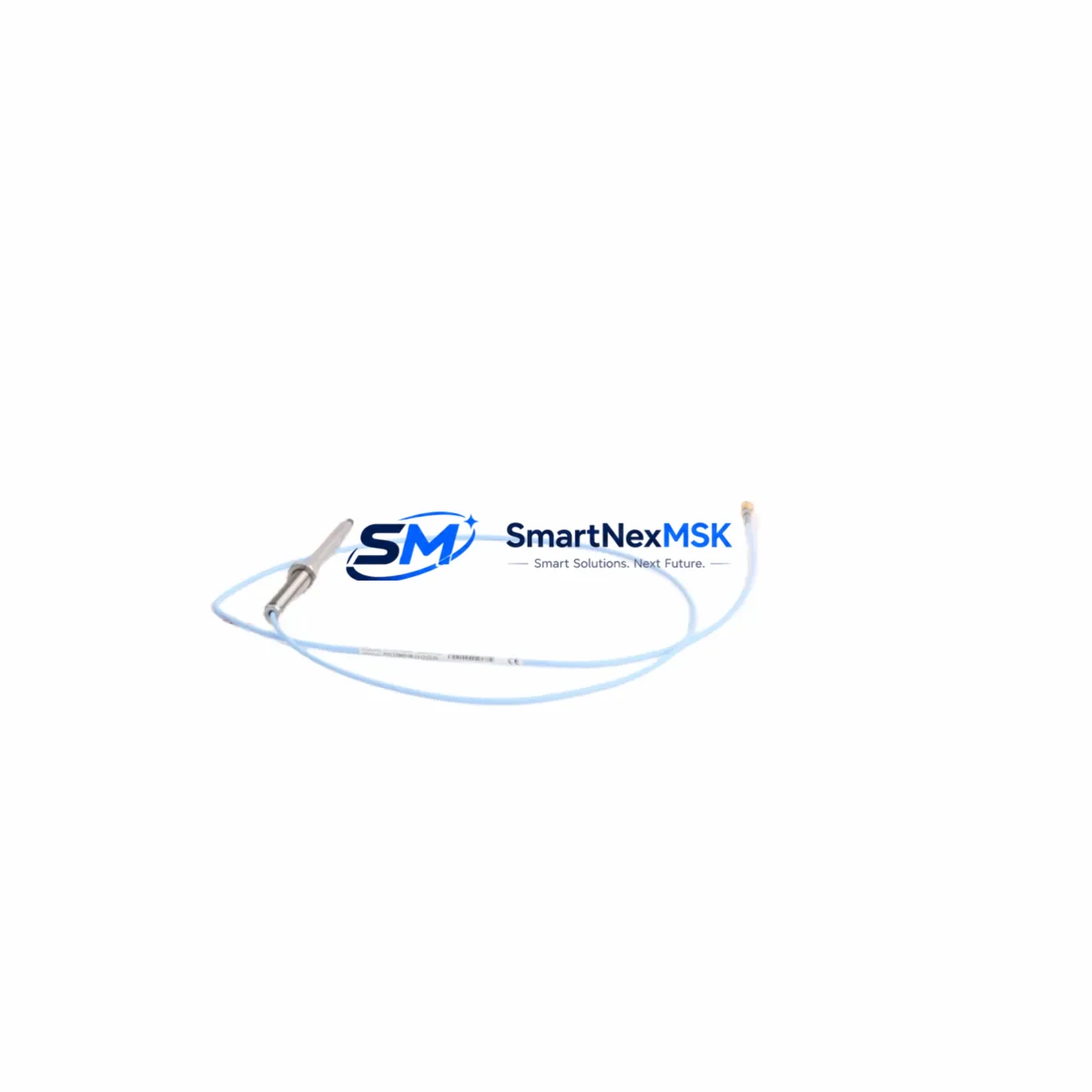

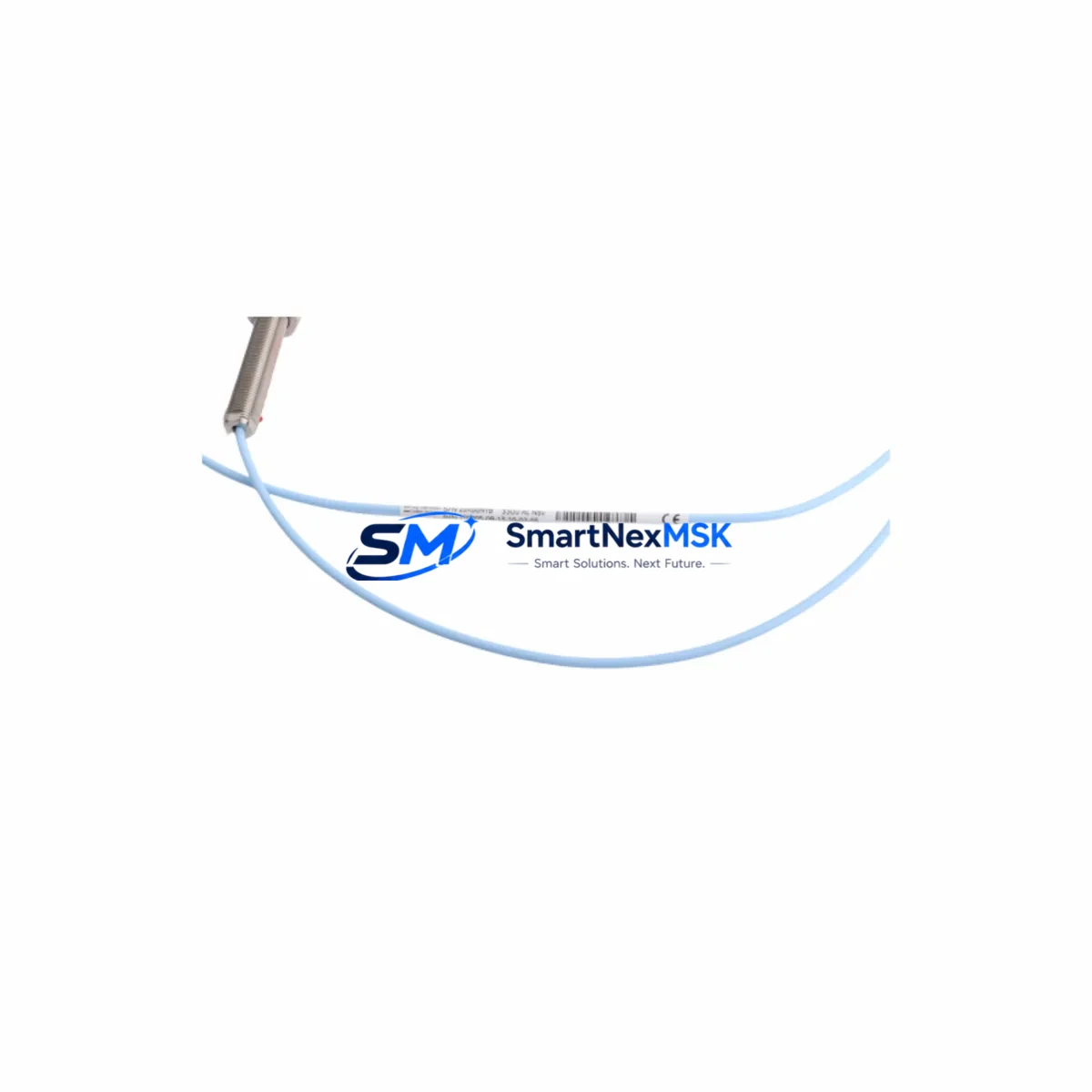

The Bently Nevada 330905-08-13-10-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL series vibration monitoring platform. Widely deployed in rotating machinery protection systems across power generation, oil & gas, petrochemical, and heavy industrial facilities, this probe is the preferred retrofit solution for plants migrating away from discontinued 3300 NSv and legacy 7200 series sensor assemblies. Whether you are replacing a failed probe in a live turbine protection loop or upgrading an entire machinery monitoring cabinet, the 330905-08-13-10-02-05 delivers dimensional and electrical compatibility that minimizes re-engineering effort and commissioning time.

The probe is designed to work within the complete Bently Nevada 3300 XL measurement chain. It pairs directly with the 330130 extension cable and the 3300 XL 8mm proximitor/driver, such as the 330180 series, to form a calibrated eddy-current system. When retrofitting from an older 7200 series installation, engineers must verify that the replacement proximitor driver is matched to the 8mm probe sensitivity factor (200 mV/mil, –24 VDC bias) and that the existing Bently Nevada 3500/42M or 3500/45 vibration monitor cards are configured for the correct gap voltage range. Mismatched sensitivity factors are the most common source of false trip events during initial commissioning after a probe swap.

In control cabinet upgrades where the 3300 XL rack is being consolidated with a Bently Nevada 3500 series rack, the 330905-08-13-10-02-05 can be retained as the field sensor while the signal conditioning migrates to the 3500 platform. This approach protects the existing conduit runs, terminal block wiring, and machine-side mounting hardware, reducing retrofit scope and outage duration. Confirm that the junction box terminal assignments for the probe, extension cable shield, and proximitor power supply match the new rack’s I/O channel wiring diagram before energizing.

For plants running GE Bently Nevada System 1 condition monitoring software, the probe replacement does not require a software license change, but the channel configuration in System 1 should be reviewed to confirm that the transducer type, scale factor, and OK limit thresholds reflect the 8mm probe specification. If the monitoring system also interfaces with a DCS via a 3500/92 communication gateway or a Modbus TCP link, verify that the channel mapping and alarm setpoints are consistent between the rack and the DCS historian tag database.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough audit of the existing measurement chain. Before removing the old probe, document the installed gap voltage at the proximitor output terminal — typically measured between the COM and SIG terminals on the 330180 proximitor — and record the OK status of the channel on the 3500/42M monitor card. This baseline reading confirms whether the existing probe failure is electrical (open circuit, shorted coil) or mechanical (probe tip damage, target surface condition).

When the 330905-08-13-10-02-05 is installed, the gap must be reset to achieve the –10.0 VDC nominal output at the specified air gap of 1.0 mm from the shaft target area. Use a calibrated gap-setting tool or a precision feeler gauge in conjunction with a digital voltmeter connected to the proximitor SIG and COM terminals. Do not rely on the monitor card OK indicator alone during initial gap setting, as the OK window may be wider than the optimal operating range.

In systems where the 330130 extension cable runs through conduit shared with power cables, verify that the cable shield is grounded at one end only — typically at the proximitor end — to prevent ground loops that introduce noise into the vibration signal. If the existing conduit run uses an older 9000-series extension cable, confirm the cable impedance matches the 330180 proximitor specification before reuse; mismatched cable impedance shifts the system calibration and can cause the 3500/42M card to report a false OK fault.

For control cabinets undergoing a broader upgrade — for example, migrating from a standalone 3300 XL rack to an integrated Bently Nevada 3500 rack with a 3500/20 rack interface module — the 330905-08-13-10-02-05 probe can remain in service while the rack, proximitor, and monitor cards are replaced. This phased approach allows the machine to remain in monitored operation during the cabinet rebuild, with the new rack brought online in bypass mode before the final cutover. Coordinate the cutover timing with the DCS operator to ensure that the 3500/92 Modbus gateway or the 3500/22M transient data interface is online and communicating with the System 1 server before releasing the bypass.

Additional components commonly involved in 3300 XL retrofit projects include the 3500/15 power supply module, the 3500/32 4-channel relay module for trip output wiring, the 3500/70M communications gateway for Ethernet/IP integration, and the Bently Nevada TK-3 portable calibrator used for field verification of the complete measurement chain after installation. HMI screens tied to the vibration channels should be reviewed to confirm that the tag names, engineering unit scaling, and alarm setpoint displays are updated to reflect any changes made during the rack migration.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement or rack migration requires a structured pre-outage checklist. Before the maintenance window opens, confirm that a tested spare 330905-08-13-10-02-05 probe and a matched 330130 extension cable are on-site and have passed a bench continuity and insulation resistance check. Pre-stage the gap-setting tools, a calibrated digital voltmeter, and the 3500 rack configuration file (exported from Bently Nevada System 1 or the rack configuration software) so that the commissioning team can work without interruption.

During the outage, follow a channel-by-channel replacement sequence rather than removing all probes simultaneously. This preserves partial monitoring capability on the remaining channels and allows the protection system to remain armed on the channels not yet under maintenance. After each probe is installed and gapped, verify the OK status on the 3500/42M card and confirm the vibration reading is within the expected baseline range before moving to the next channel.

After all channels are restored, perform a full system functional test: simulate a high-vibration condition using the TK-3 calibrator or a signal injector to confirm that the 3500/32 relay module trips correctly and that the DCS receives the trip signal via the 3500/92 gateway. Verify that the System 1 trend data resumes logging on all channels and that no latched alarms remain active. Document the final gap voltages, OK status, and vibration baseline readings in the maintenance record before returning the machine to service. This documentation supports the 12-month warranty claim process and provides the baseline for the next scheduled calibration interval.

Retrofit Support FAQ

Q1: Is the 330905-08-13-10-02-05 a direct drop-in replacement for the 3300 NSv 8mm probe?
A: The probe body dimensions and M10 × 1 mm mounting thread are compatible, but the 3300 NSv system uses a different proximitor driver that is not interchangeable with the 330180 used in the 3300 XL chain. A complete driver swap to the 330180 series is required when migrating from a 3300 NSv installation. The 3500/42M monitor card is compatible with both systems once the correct driver is installed.

Q2: What wiring changes are needed when replacing the probe in an existing 3300 XL installation?
A: In a like-for-like 3300 XL probe replacement, no wiring changes are required at the junction box or the proximitor terminal block. The probe integral cable connects to the 330130 extension cable using the standard TNC connector. After installation, reset the gap to –10.0 VDC and verify the OK status on the monitor card. If the extension cable is also being replaced, confirm the new cable length suffix matches the original to maintain system calibration.

Q3: How is compatibility verified before shipment?
A: Each 330905-08-13-10-02-05 unit supplied by SMARTNEXMSK undergoes a pre-shipment functional test that includes coil resistance measurement, insulation resistance check, and a calibrated gap-voltage verification against a reference target. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance outside the published specification.

Q4: Can this probe be used with a Bently Nevada 3500/45 position monitor?
A: Yes. The 330905-08-13-10-02-05 is compatible with the 3500/45 position monitor when used with the 330180 proximitor driver. Configure the 3500/45 channel for the 8mm probe sensitivity factor and verify the gap voltage and OK limits in the rack configuration software. No hardware modification to the monitor card is required.
