Bently Nevada 330906-02-12-05-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

Bently Nevada 330906-02-12-05-02-00 retrofit-ready 8mm proximity probe. Drop-in replacement for 3300 XL systems. Compatibility verified, 12-month warranty.

SKU330906-02-12-05-02-00
BrandBently Nevada
Series3309
Bently Nevada 330906-02-12-05-02-00 Proximity Probe
Model context is attached to every quote action. Use WhatsApp for urgent downtime, or Email for purchasing records.
Model checkSKU and compatibility review Quality evidencePhotos and label notes when available Export supportPacking, courier, and delivery notes
Product Information

Model Details

SKU / Model 330906-02-12-05-02-00
Brand Bently Nevada
Product Type Proximity Probe
Series 3309
Catalog Category Business & Industrial > Automation, Control & Flow Devices > Sensors
Country of Origin US
Tags 3300 XL, Bently Nevada, Proximity Probe, Replacement, Retrofit
Catalog Paths

Continue from this exact model

Use the live catalog paths below to compare the same brand, product type, or series before sending your RFQ.

RFQ Intent Desk

Choose the right sourcing path for this model

Each action carries the product model and intent into the inquiry record so the sales follow-up starts with useful context.

Exact Model Quote

Use this path when the SKU, brand, quantity, and destination are already confirmed.

Start
Replacement Check

Use this path for old, obsolete, or uncertain models that need compatibility review.

Start
Quality Confirmation

Ask for label photos, packing notes, documentation, or pre-shipment checks.

Start
Urgent Dispatch

Route downtime or maintenance requests with target dispatch timing and courier country.

Start
Description

Bently Nevada 330906-02-12-05-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems Overview

Bently Nevada 330906-02-12-05-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

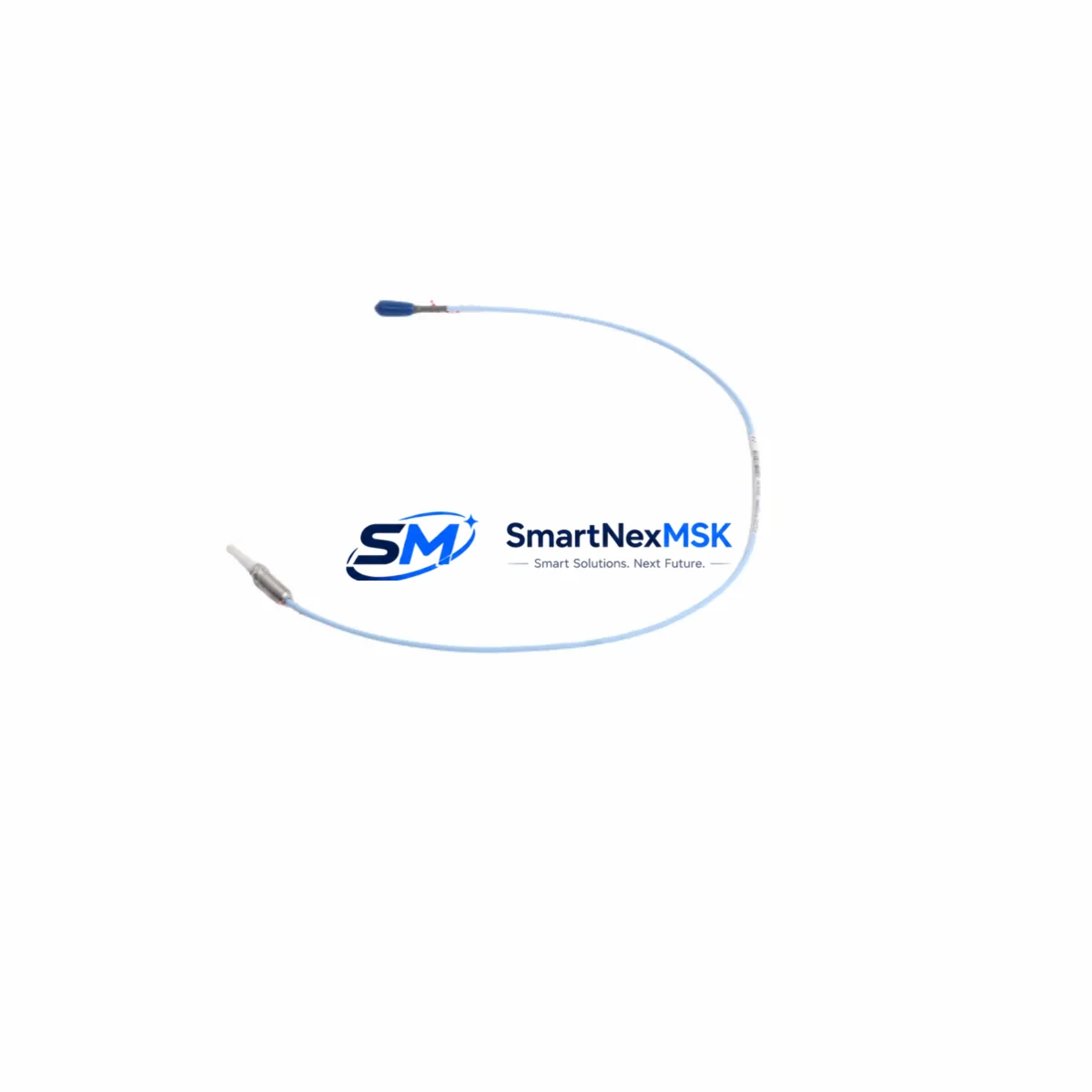

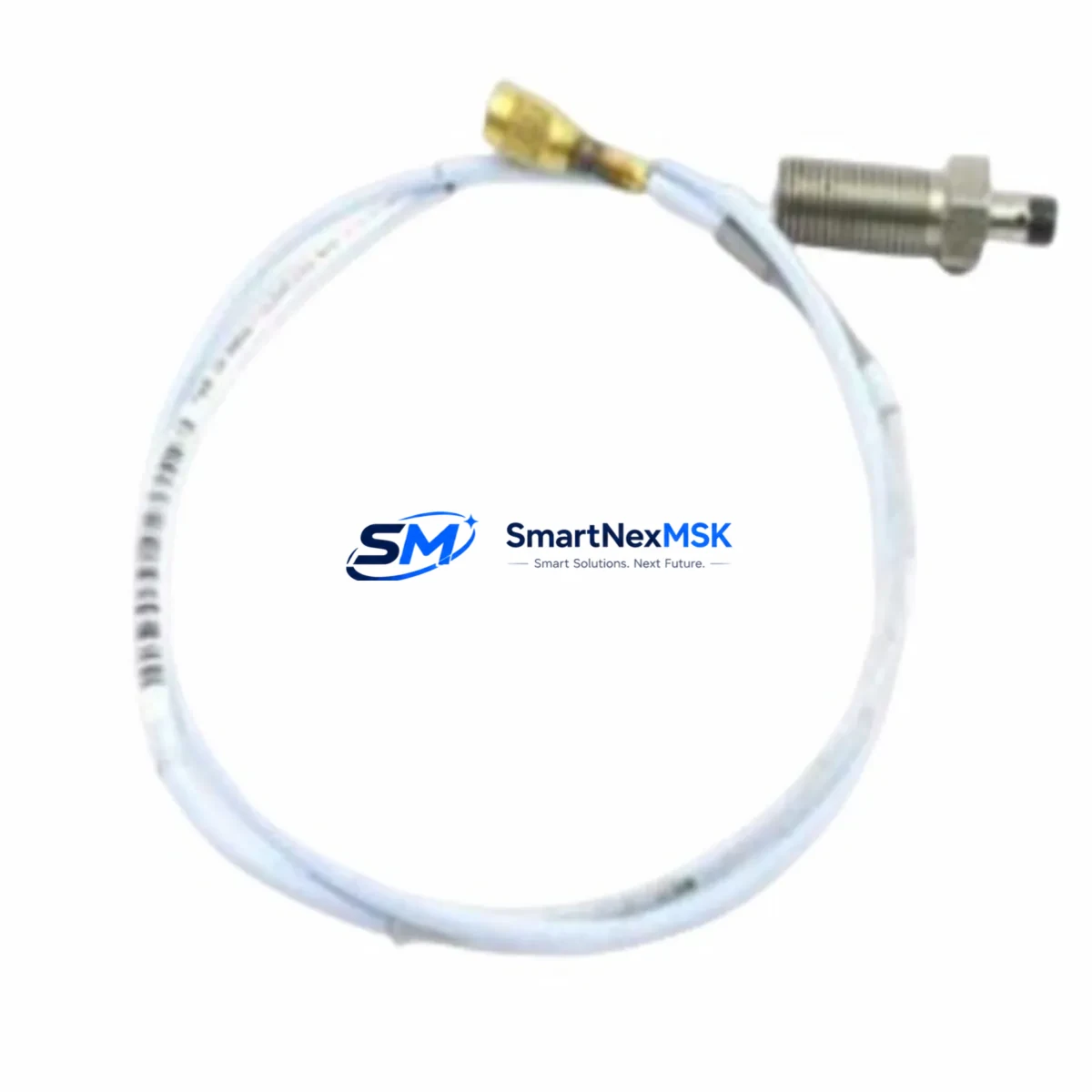

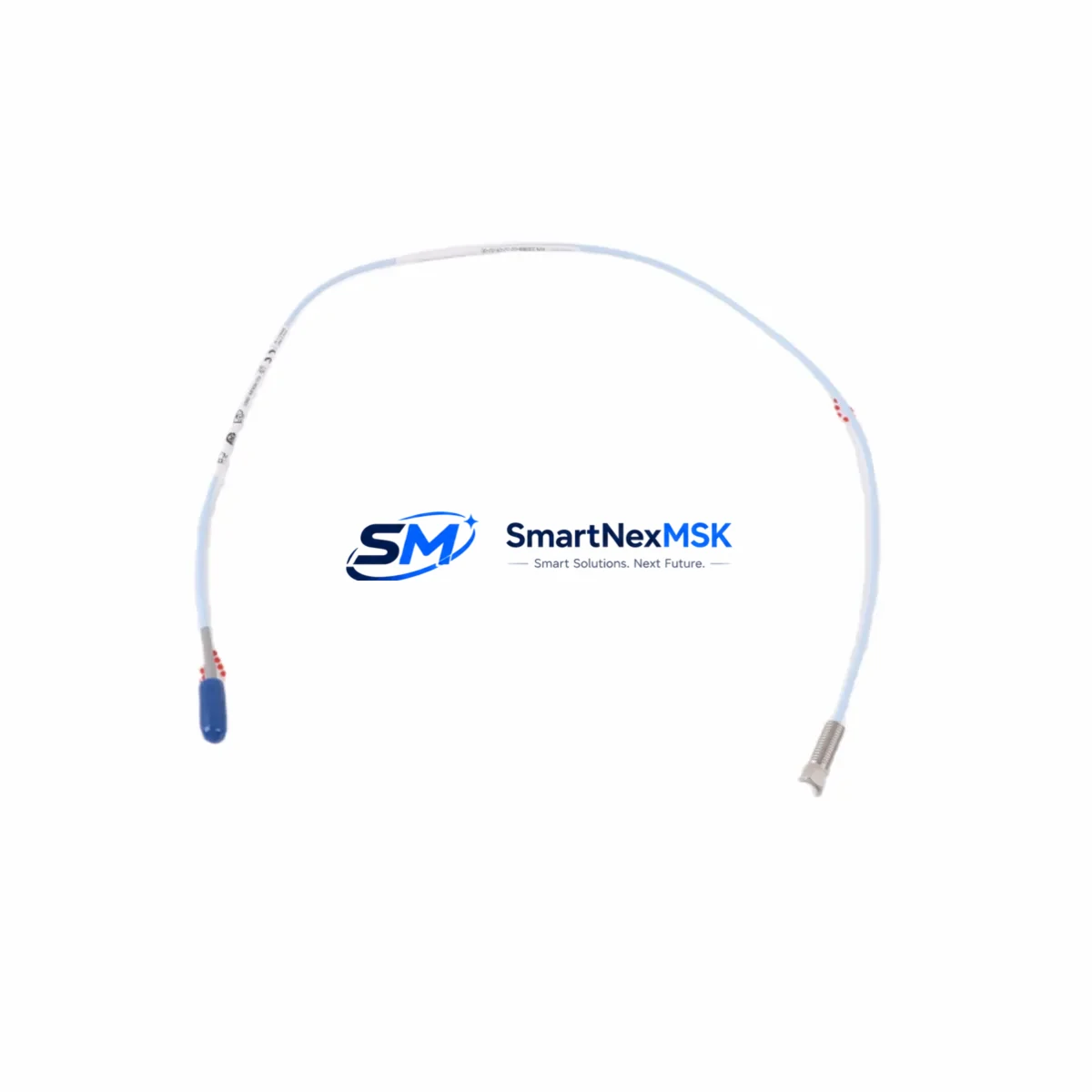

The Bently Nevada 330906-02-12-05-02-00 is an 8mm reverse-mount proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems reach end-of-service milestones, this probe serves as a verified drop-in replacement for discontinued 3300 XL field assemblies, enabling plant engineers to restore full monitoring capability without redesigning the existing wiring infrastructure or reconfiguring the rack-mounted signal conditioning chain. Whether you are recovering from an unplanned trip, sourcing a long-lead spare, or executing a planned outage upgrade, the 330906-02-12-05-02-00 is stocked, tested, and ready to ship with a 12-month warranty covering both parts and workmanship.

This probe is designed to interface directly with the Bently Nevada 3300 XL 8mm Proximitor Sensor — typically the 330180-X1-05 or 330180-X1-CN series — without requiring recalibration of the gap voltage setpoint when the installation gap is maintained at the factory-specified 1.0 mm (40 mil) nominal. The extension cable, commonly the 330130-045-00-00 or equivalent armored assembly, connects the probe tip to the Proximitor housing and must be verified for length and connector compatibility before installation. The complete field assembly — probe, extension cable, and Proximitor — must be treated as a matched system to preserve the linear output range of 200 mV/mil.

Upgrade Compatibility Table

Parameter Detail
SKU / Part Number 330906-02-12-05-02-00
Brand / OEM Bently Nevada (Baker Hughes)
Series Compatibility 3300 XL 8mm Reverse Mount System
Probe Diameter 8 mm
Mount Type Reverse Mount
Nominal Gap 1.0 mm (40 mil)
Output Sensitivity 200 mV/mil (7.87 V/mm)
Interface Bently Nevada 3300 XL Proximitor Sensor (330180 series)
Extension Cable Compatibility 330130 series armored extension cables
Communication / Signal Analog DC voltage (eddy-current non-contact)
Replacement Scope Direct drop-in for discontinued 3300 XL field assemblies
Installation Requirement Maintain OEM gap spec; no recalibration required if gap is preserved
Debugging Focus Gap voltage verification, cable continuity, Proximitor output check
Warranty 12-Month Warranty (parts and workmanship)

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When integrating the 330906-02-12-05-02-00 into an existing 3300 XL rack, the first step is to audit the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor I/O Module that receives the probe signal. These rack-mounted I/O cards define the channel configuration, alert setpoints, and danger thresholds stored in the 3500 Rack Configuration Software. If the rack firmware has not been updated in several years, a firmware compatibility check against the current 3500 System Software release is advisable before the outage begins.

On the field side, inspect the existing conduit and junction box for the 330130 series extension cable. Verify that the cable jacket is intact, the connector threads are undamaged, and the cable length matches the probe body specification — a mismatch between probe body length and extension cable length will shift the system scale factor and invalidate the calibration. If the extension cable shows signs of abrasion or moisture ingress, replace it concurrently with the probe rather than scheduling a second outage.

For plants running a Bently Nevada System 1 condition monitoring software platform, the channel tag, engineering unit scaling, and alarm logic are stored in the System 1 database. After probe replacement, confirm that the live gap voltage reading in System 1 matches the expected value for the installed air gap. A reading outside the ±10% tolerance of the nominal gap voltage indicates either an incorrect gap, a cable fault, or a Proximitor supply voltage issue — typically sourced from the 3500/15 Power Supply Module in the rack.

Plants that have already migrated part of their monitoring infrastructure to the Bently Nevada 3701/44 or 3701/46 series machinery protection systems may be running a hybrid rack environment. In this scenario, the 330906-02-12-05-02-00 probe can still serve the legacy 3300 XL channels while the newer I/O modules handle upgraded measurement points. Coordinate with the DCS — often a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA system — to ensure that the analog input card receiving the 4–20 mA converted signal from the Proximitor is correctly scaled and that the historian tag is not orphaned during the probe swap.

If the plant uses a Modbus RTU or FOUNDATION Fieldbus gateway to aggregate vibration data from the 3500 rack into the DCS, verify that the gateway polling cycle and the rack communication module — such as the 3500/92 Communication Gateway — remain online during the probe replacement. Loss of communication during the swap can trigger nuisance alarms in the DCS and may require a manual alarm acknowledgment sequence before the unit can be returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear rollback plan. Before breaking the probe connection, capture a screenshot or historian export of the current gap voltage, direct vibration (1X, 2X), and phase readings from the 3500 rack display or System 1 dashboard. These baseline values serve as the acceptance criteria for post-installation verification and protect the original program logic from being overwritten during the rack configuration upload.

During the swap, place the affected channel in bypass mode within the 3500 rack to prevent a spurious danger output from tripping the machine. Most 3500/42M and 3500/44M modules support per-channel bypass via the rack keypad or the 3500 Rack Configuration Software without requiring a full rack restart. This approach preserves the control continuity of adjacent channels — including any keyphasor inputs from a 3500/25 Enhanced Keyphasor Module — and keeps the remaining protection logic active throughout the maintenance window.

After installing the 330906-02-12-05-02-00 and reconnecting the 330130 extension cable, restore the channel from bypass and verify the gap voltage against the pre-outage baseline. If the reading is within specification, clear the bypass flag, confirm alarm setpoints are active, and document the as-left gap measurement in the maintenance record. The entire swap — from bypass activation to channel restoration — can typically be completed within 30 to 60 minutes when spare parts are pre-staged and the technician is familiar with the 3500 rack interface.

Retrofit Support FAQ

Q1: Is the 330906-02-12-05-02-00 a direct replacement for my existing 3300 XL probe without recalibration?
Yes, provided the installation air gap is maintained at the OEM-specified 1.0 mm (40 mil) nominal. The probe, extension cable, and Proximitor must be treated as a matched system. If the gap is preserved during installation, the output scale factor remains valid and no recalibration of the 3500 rack setpoints is required.

Q2: What wiring checks should I perform before energizing the replacement probe?
Verify cable continuity from the probe tip connector through the 330130 extension cable to the Proximitor input terminals. Check that the Proximitor supply voltage — typically –24 VDC from the 3500/15 Power Supply Module — is within specification before connecting the probe. Inspect all connector threads for cross-threading or corrosion, and confirm that the cable shield is grounded at one end only to avoid ground loops.

Q3: How do I confirm compatibility with my existing 3500 rack configuration?
Open the 3500 Rack Configuration Software and verify that the channel assigned to this probe is configured for an 8mm proximity system with a 200 mV/mil scale factor. Confirm that the Proximitor model selected in the software matches the 330180 series unit installed in the field. If the rack configuration file has not been backed up recently, export a copy before making any changes.

Q4: What does the 12-month warranty cover, and how is it processed?
The 12-month warranty covers manufacturing defects and workmanship failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the fault. Replacement units are dispatched after fault verification, and return shipping of the defective unit is required for warranty processing.
