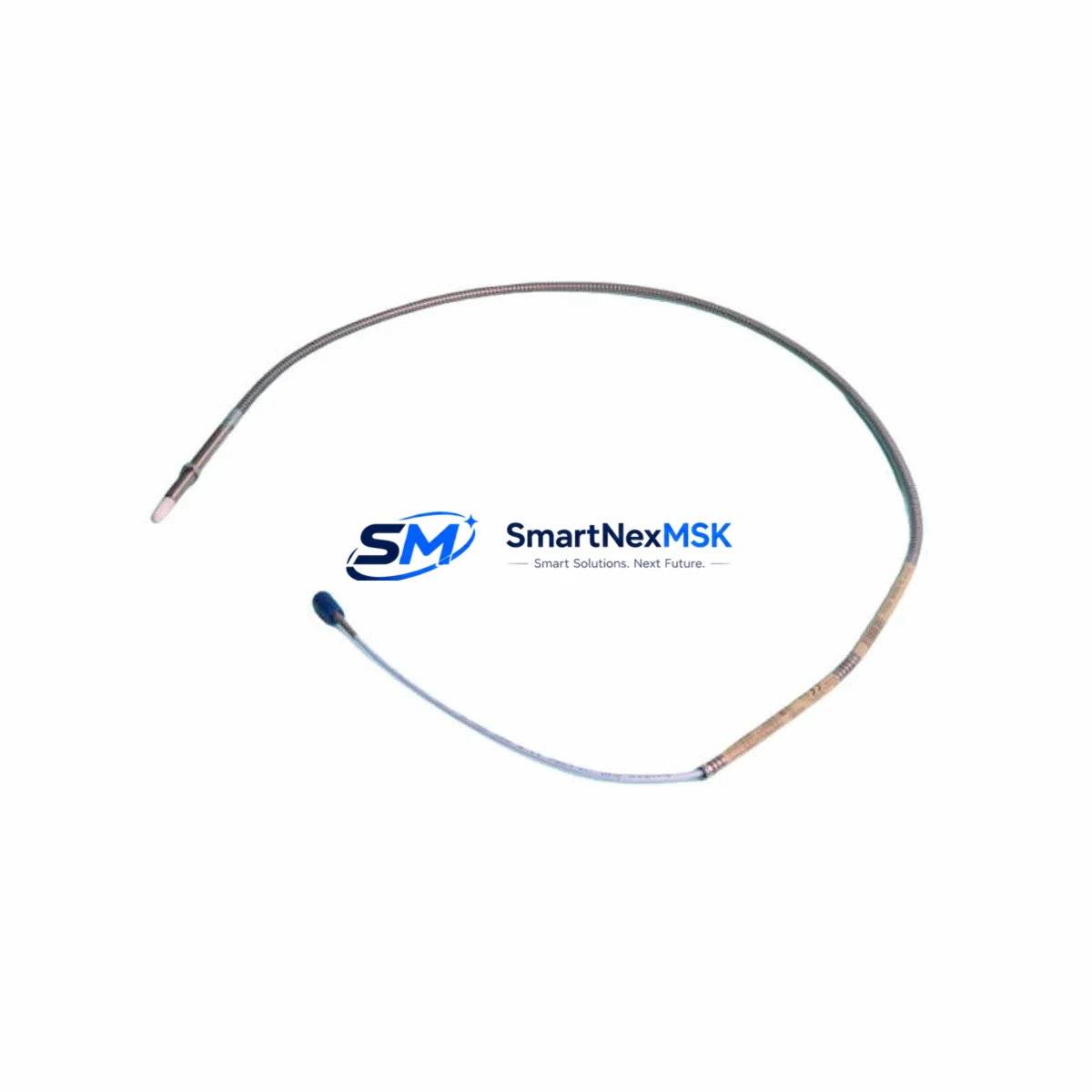

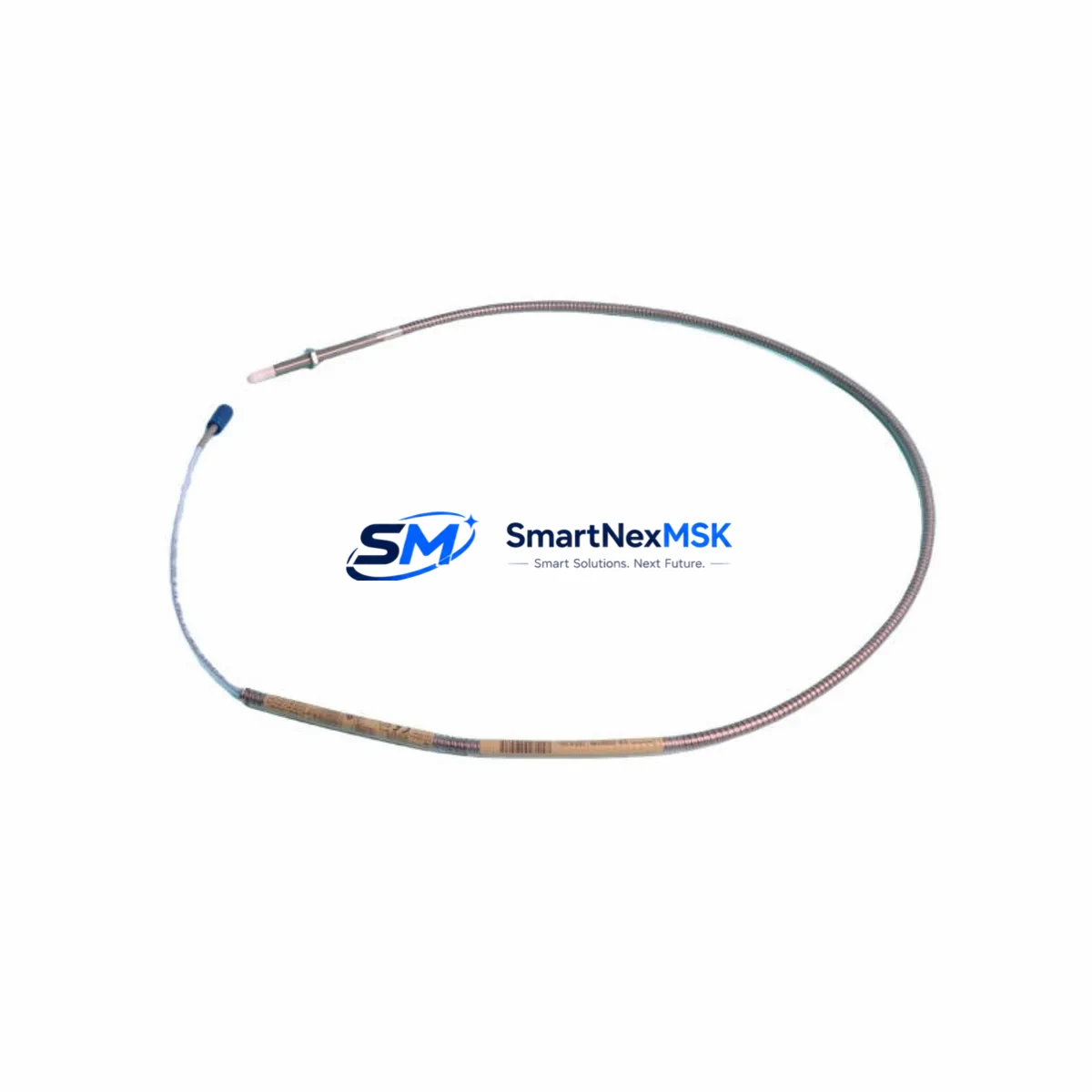

Bently Nevada 330906-02-12-70-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330906-02-12-70-02-00 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring platform. Designed as a retrofit-ready, drop-in replacement for legacy installations, this transducer maintains full signal compatibility with existing 3300 XL monitor modules, junction boxes, and extension cables — enabling plant engineers to restore vibration and position measurement capability without modifying field wiring or reconfiguring monitor channel parameters.
For facilities operating aging rotating machinery protection systems, sourcing a verified replacement for the 330906-02-12-70-02-00 is a critical step in both planned turnaround maintenance and emergency spare-part recovery. This unit ships pre-tested against Bently Nevada factory output specifications, with documented sensitivity (V/mm), gap voltage, and frequency response data included in the shipment package. A 12-month warranty covers all units against manufacturing defects from the date of delivery.
Upgrade Compatibility Table
| Parameter | 330906-02-12-70-02-00 (This Unit) | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8mm | Matches standard 3300 XL 8mm mounting boss; no re-boring required |
| Cable Length | 12 inches (integral) | Pair with 330130-045-00-CN or equivalent 3300 XL extension cable to reach junction box |
| Target Gap Range | 0.25 – 2.54 mm (10 – 100 mil) | Verify gap voltage at –10.0 VDC ±0.5 V at nominal gap; adjust probe depth if needed |
| Sensitivity | 7.87 V/mm (200 mV/mil) | Matches 3300 XL monitor channel default scale factor; no software reconfiguration required |
| Supply Voltage | –24 VDC (from monitor) | Confirm 3300 XL monitor module power rail is within –22 to –26 VDC before installation |
| Connector Type | MIL-C-5015 style | Compatible with standard 3300 XL field wiring harness; no adapter required |
| Communication / Signal | Analog voltage (eddy-current) | No protocol migration needed; direct replacement on existing monitor input terminals |
| Monitor Compatibility | 3300 XL 01/02/11/16/25 Series monitors | Confirm monitor firmware revision supports 8mm probe; update if below Rev. D |
| Warranty | 12-Month Warranty from date of delivery — covers manufacturing defects and factory specification conformance | |
Retrofit Planning for Existing Automation Systems
Replacing the 330906-02-12-70-02-00 in an operating plant requires a structured approach that accounts for the full signal chain from probe tip to control room. The transducer connects to the 3300 XL monitor rack via a matched extension cable — typically a 330130-series armored extension — which terminates at the monitor module’s BNC or terminal-block input. Before pulling the old probe, engineers should document the existing gap voltage reading and compare it against the channel’s OK limits stored in the 3300 XL monitor configuration. This baseline reading becomes the acceptance criterion for the replacement unit after installation.
In systems where the 3300 XL rack also hosts a 3300/16 or 3300/25 dual-channel monitor module alongside the transducer channel, it is important to verify that the rack’s internal power supply — often a 3300/05 or 3300/15 power module — can sustain the additional –24 VDC load of the new probe without dropping below the minimum supply threshold. If the power module is approaching end-of-life, a concurrent replacement of the power module during the same maintenance window eliminates a second planned outage.
For installations where the 330906-02-12-70-02-00 feeds into a System 1 or System 1 Evolution software platform via a 3500/22M transient data interface or a 3500/42M proximitor monitor, the replacement probe must be re-gapped and the channel re-zeroed within the software’s channel configuration screen. The System 1 database tag associated with the channel should be updated to reflect the new probe serial number for traceability. If the plant also operates a 3500 Series rack in parallel with the 3300 XL rack for redundancy, both channels should be verified simultaneously to avoid a split-brain condition during the commissioning window.
Plants migrating from older 7200 Series or 3000 Series Bently Nevada hardware to the 3300 XL platform as part of a broader control system modernization will find that the 330906-02-12-70-02-00 is a natural anchor point for the new installation. The 8mm probe format is consistent across the 3300 XL family, meaning that a single spare SKU can cover multiple measurement points — radial vibration, axial position, and differential expansion — across the upgraded rack. Pairing the probe with a 330180-X0-05 or 330180-X0-12 proximitor driver and a 330130-series extension cable creates a complete, factory-matched sensor chain that minimizes field calibration time.
For control cabinets that also house a Rockwell Automation ControlLogix or CompactLogix PLC communicating with the 3300 XL rack via a 1756-DHRIO or EtherNet/IP gateway module, the transducer replacement does not require any PLC program modification — the analog signal is processed entirely within the 3300 XL monitor, and only the 4–20 mA or relay output to the PLC changes if the new probe’s gap voltage shifts the OK relay state during installation. Coordinating the replacement with the PLC operator ensures that any transient relay transitions are acknowledged in the HMI alarm summary and do not trigger an unplanned shutdown interlock.
Downtime Control During System Migration
Minimizing unplanned downtime during a 330906-02-12-70-02-00 replacement begins with pre-staging all components before the maintenance window opens. This means having the replacement transducer, the matched extension cable, a calibrated gap-setting tool, and the channel configuration printout from the 3300 XL monitor ready at the work site before the machine is taken offline. For critical rotating equipment — compressors, turbines, pumps — the replacement should be scheduled during a planned turnaround rather than as an emergency repair, because the gap-setting and signal verification steps require the shaft to be stationary and the monitor channel to be in bypass mode.
During the replacement, the 3300 XL monitor channel should be placed in bypass (not deleted) so that the rack’s overall OK status is maintained and the System 1 or DCS historian continues to log the channel as “bypassed” rather than “failed.” This distinction is important for post-maintenance audit trails and for demonstrating to the plant safety system that the bypass was intentional and time-bounded. Once the new probe is installed and gapped, the channel should be taken out of bypass only after the gap voltage, sensitivity, and OK limits have been verified against the original baseline.
For plants with a hot-standby or redundant measurement architecture — where two probes monitor the same shaft journal at 90° — the replacement of one probe can be performed while the second probe remains active, provided the monitor is configured for OR-logic OK voting. This approach keeps the protection system armed throughout the replacement and eliminates the need for a full machine shutdown in many cases. After the replacement probe is commissioned, both channels should be trended for at least one full operating cycle before the maintenance record is closed.
Retrofit Support FAQ
Q1: Is the 330906-02-12-70-02-00 a direct drop-in replacement for earlier 330906 variants?
Yes. The 330906-02-12-70-02-00 is backward-compatible with earlier 330906 suffix variants (e.g., -01-12-70-02-00) in terms of probe diameter, sensitivity, and connector type. However, the integral cable length may differ between suffix revisions — verify the cable length against your extension cable routing before ordering. All units ship with a factory test report confirming sensitivity and gap voltage conformance.
Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to achieve –10.0 VDC ±0.5 V at the monitor’s OK input terminals using a calibrated gap tool. Verify the OK relay closes and the channel status in System 1 or the 3300 XL front panel shows OK. Record the as-found and as-left gap voltage in the maintenance management system. If the channel feeds a DCS or PLC via a 4–20 mA output, verify the analog signal at the receiving end before releasing the machine to operations.
Q3: Can this transducer be used with non-Bently Nevada monitor racks?
The 330906-02-12-70-02-00 outputs a standard eddy-current analog voltage signal and can in principle be used with third-party monitor modules that accept –24 VDC-powered 8mm proximity probes with 200 mV/mil sensitivity. However, SMARTNEXMSK recommends using this probe exclusively with Bently Nevada 3300 XL or 3500 Series monitor modules to ensure full specification compliance and warranty coverage. Compatibility with non-Bently Nevada racks must be verified by the end user.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, sensitivity out-of-specification, and connector or cable integrity failures from the date of delivery. It does not cover damage resulting from incorrect gap setting, installation in an incompatible monitor rack, mechanical impact, or operation outside the specified supply voltage range. Warranty claims are processed through SMARTNEXMSK’s after-sales team with a return merchandise authorization (RMA) number issued within 2 business days of the claim submission.
