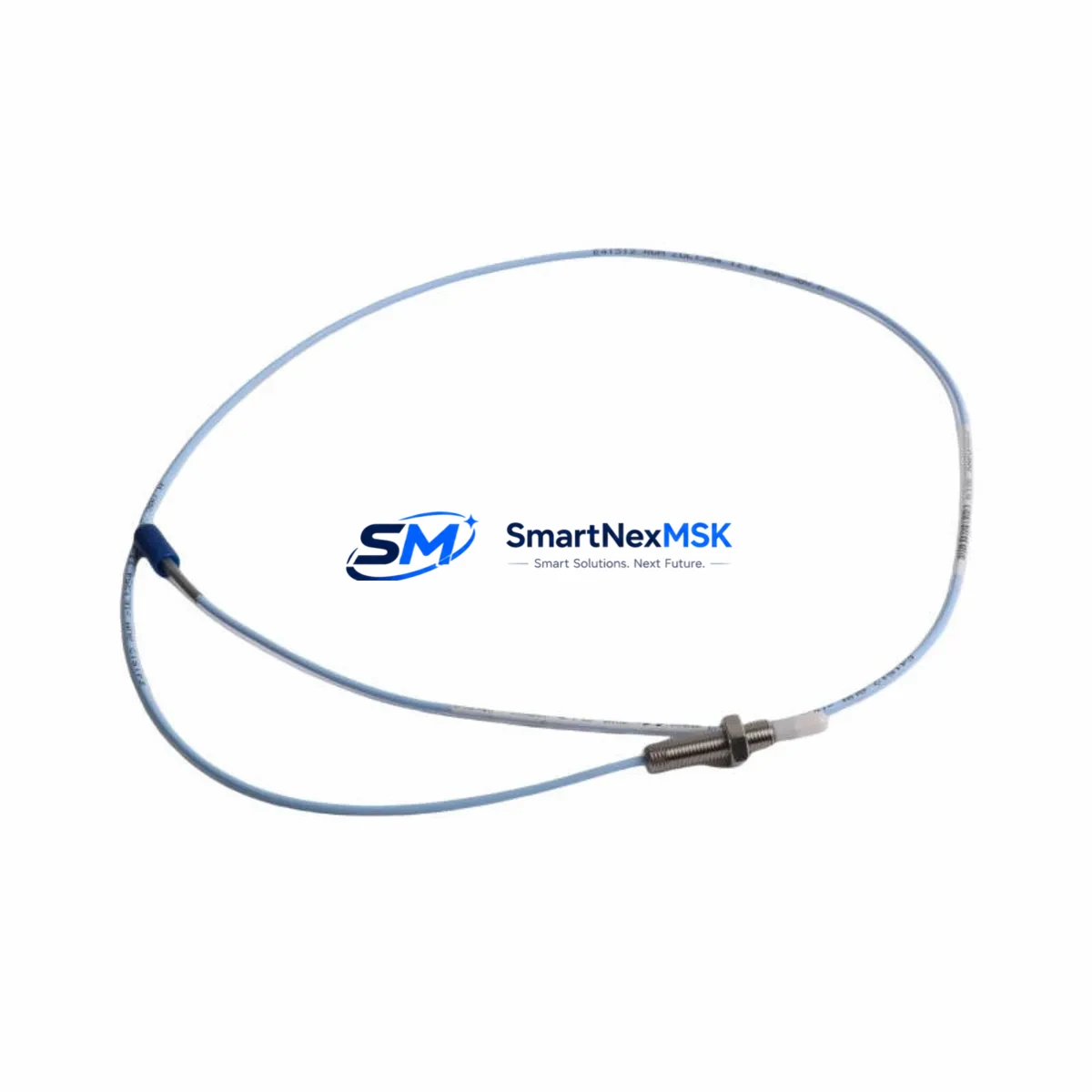

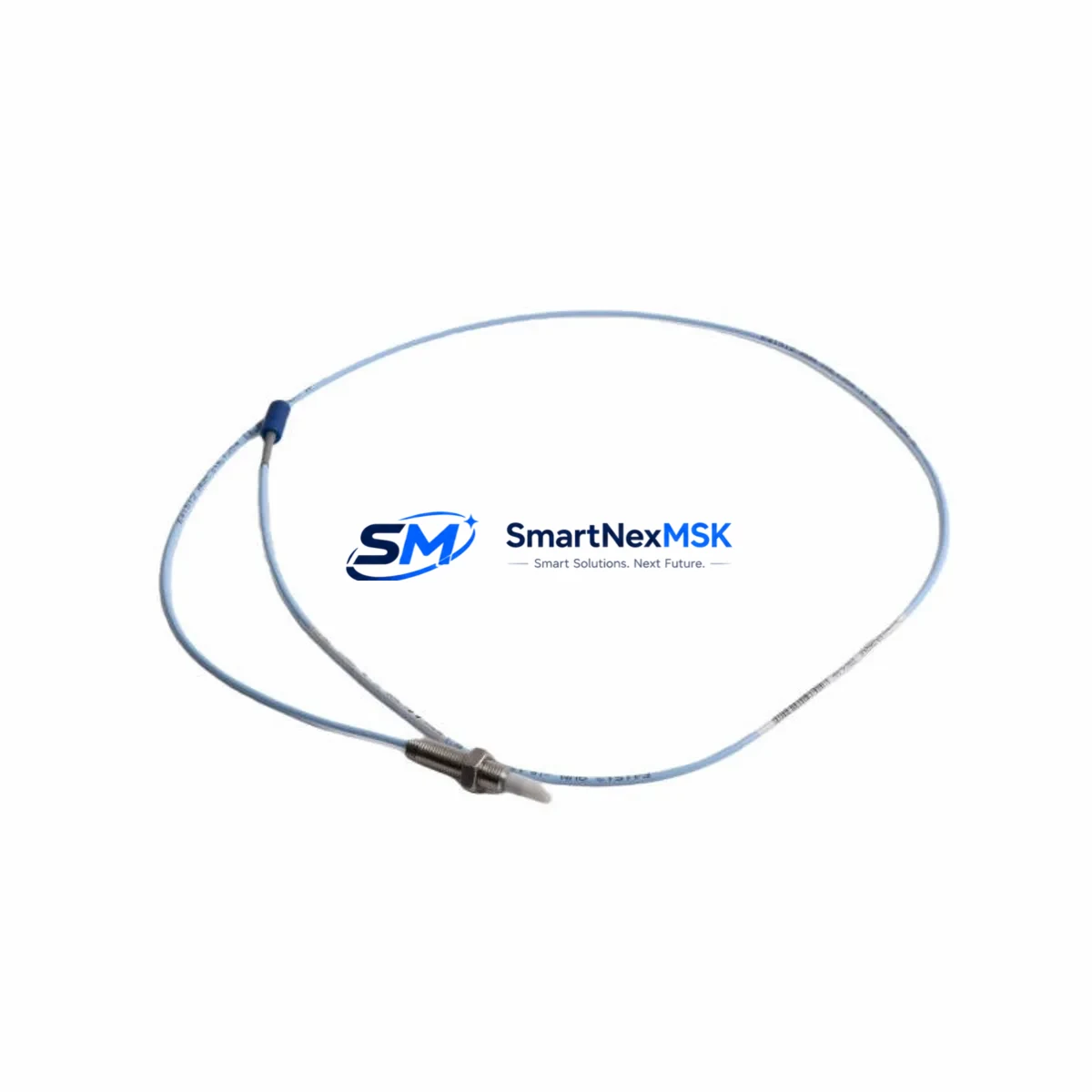

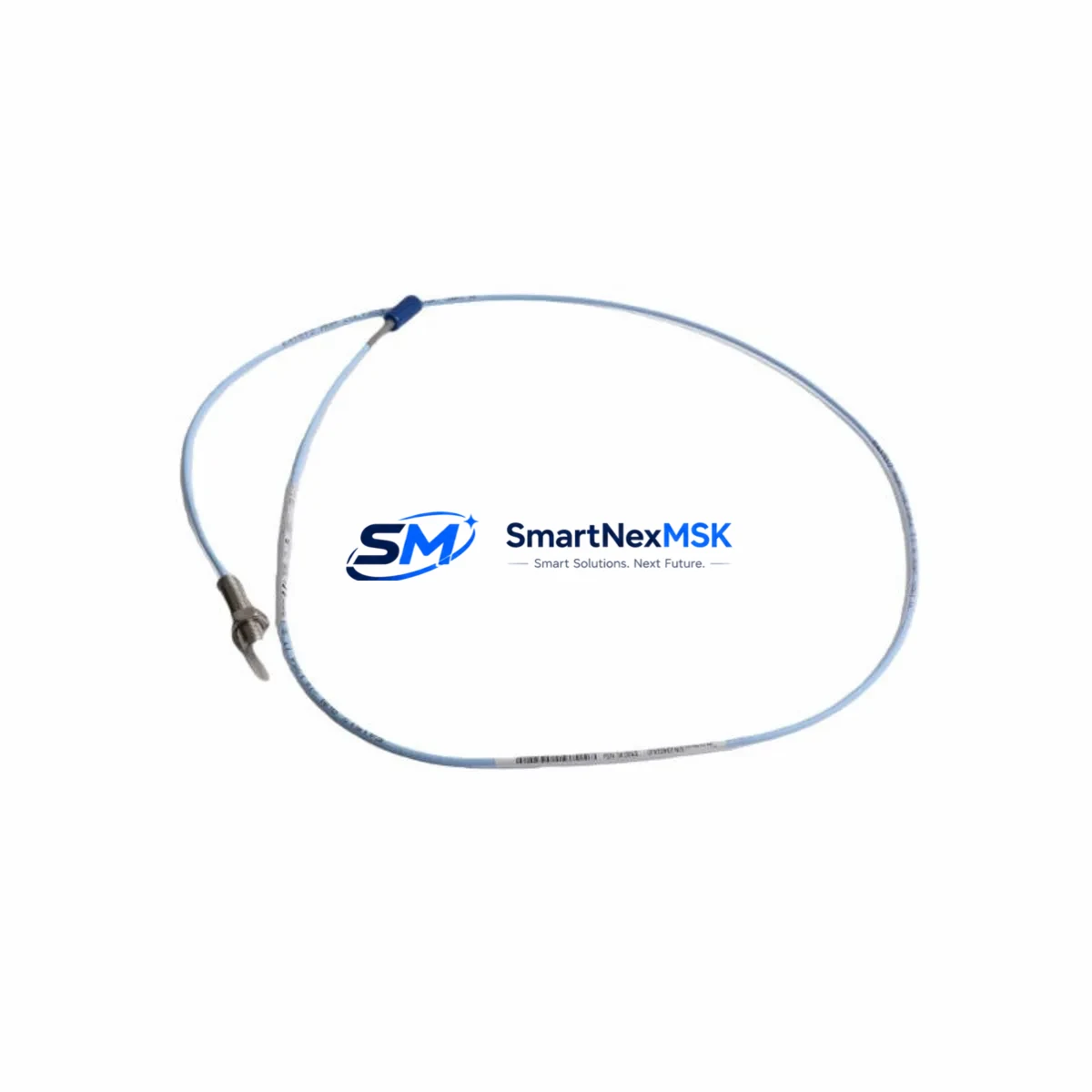

The Bently Nevada 330906-02-12-70-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring system. As legacy rotating machinery protection systems age out of manufacturer support, this unit serves as a direct retrofit replacement for facilities operating turbines, compressors, pumps, and gearboxes that rely on continuous shaft vibration and position monitoring. Whether you are replacing a failed probe in an emergency shutdown scenario or executing a planned upgrade of an aging 3300 Series installation, this probe delivers drop-in mechanical and electrical compatibility with the existing 3300 XL signal conditioning infrastructure.

The 330906-02-12-70-02-05 integrates directly with the Bently Nevada 3300 XL proximitor/seismic monitor, maintaining the standard -24 VDC bias voltage and 200 mV/mil (7.87 V/mm) scale factor that the 3300 XL system expects. Field engineers replacing this probe do not need to recalibrate the proximitor or modify the 3500 rack configuration if the installation is part of a hybrid 3300/3500 migration. The probe’s 12-inch (305 mm) armored extension cable and standard TNC connector ensure compatibility with existing field wiring runs and junction boxes without requiring new conduit or connector adapters.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330906-02-12-70-02-05 begins well before the maintenance window opens. Engineers should pull the existing proximitor datasheet — typically a Bently Nevada 3300 XL 8mm Proximitor/Seismic Monitor — and confirm the current gap voltage reading at the proximitor output terminal. This baseline reading, usually between -10 VDC and -18 VDC for a healthy installation, becomes the acceptance criterion after the new probe is installed and gapped.

In installations where the 3300 XL rack is mounted in a control cabinet alongside a Bently Nevada 3500 rack, the retrofit scope may extend beyond the probe itself. The 3500/42M Proximitor I/O Module may need its channel configuration reviewed in System 1 software to ensure the new probe’s scale factor and gap range are correctly mapped. If the facility is mid-migration from a 3300 Series to a full 3500 Series architecture, this probe replacement is an opportunity to audit the 3500/01 Power Supply Module load budget and confirm that adding or replacing channels does not exceed the rack’s power envelope.

Wiring continuity is the most common failure point in probe retrofits. Before disconnecting the old probe, photograph and document the terminal assignments at the proximitor’s field wiring connector. The standard 3300 XL wiring uses a three-conductor shielded cable: the center conductor carries the RF signal, the inner shield is the return, and the outer armor provides EMI protection. When routing the replacement probe’s integral cable through existing conduit, avoid sharp bends tighter than the cable’s minimum bend radius to prevent impedance discontinuities that will shift the scale factor.

For facilities running a Yokogawa CENTUM VP or Honeywell Experion PKS DCS, the 4–20 mA analog output from the 3300 XL proximitor feeds directly into the DCS analog input card. No changes to the DCS I/O configuration or historian tag mapping are required when replacing the probe, provided the proximitor remains in service. However, if the retrofit includes replacing the proximitor itself with a newer Bently Nevada 3300 XL 8mm Proximitor, engineers should verify that the DCS alarm setpoints — typically configured in the DCS controller or in a dedicated machinery protection relay — still reflect the correct engineering unit scaling after the swap.

HMI screens in GE iFIX, Wonderware InTouch, or Ignition SCADA that display shaft vibration trends should be reviewed for tag binding after any proximitor replacement. The analog signal path from probe to proximitor to DCS to historian to HMI must be validated end-to-end during commissioning. A simple bump test — briefly moving the probe target by a known distance and confirming the HMI reading changes proportionally — is the fastest way to verify signal integrity without a full calibration rig.

In multi-machine trains where the 330906-02-12-70-02-05 monitors a compressor or turbine shaft, the retrofit should be coordinated with the control room to place the affected channel in bypass mode within the machinery protection logic. This prevents a spurious trip during the gap-setting procedure. Once the probe is installed, gapped, and the bias voltage confirmed, the channel bypass is removed and the system is returned to normal protection mode. All steps should be logged in the plant’s maintenance management system with the new probe’s serial number and the as-found/as-left gap voltage readings.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe retrofit requires a pre-staged replacement strategy. Before the maintenance window, verify that the replacement 330906-02-12-70-02-05 has passed a pre-shipment functional test — our units ship with a test report confirming bias voltage, scale factor, and linear range compliance. Having a tested spare on the shelf eliminates the most common source of extended downtime: discovering a defective replacement after the machine is already offline.

For facilities with redundant measurement paths — for example, an X-Y probe pair monitoring the same journal bearing — the retrofit can often be performed on one channel while the machine remains online, provided the protection system is configured to tolerate single-channel operation. Confirm this with the machinery protection engineer before proceeding. In single-channel installations, the machine must be shut down, but the outage duration can be held to under two hours if the replacement probe, gap tool, and wiring documentation are staged in advance.

Program logic in the PLC or DCS that references the vibration channel — for example, a Rockwell Automation ControlLogix L7x controller running an RSLogix 5000 program with a vibration interlock rung — should be placed in maintenance mode before the probe is disconnected. This prevents the loss of signal from triggering a false shutdown or alarm flood. After the new probe is installed and the signal is verified, the maintenance mode override is removed and the interlock logic is re-enabled. The entire sequence, including documentation, typically takes less time than the machine cool-down period, meaning the probe swap is rarely the critical path in the overall outage schedule.

For facilities planning a broader migration from the 3300 Series to the 3500 Series platform, this probe replacement can be executed independently of the rack migration. The 330906-02-12-70-02-05 is fully compatible with both the legacy 3300 XL proximitor and the newer 3500/42M I/O module, giving maintenance teams the flexibility to replace probes on a condition-based schedule while deferring the rack upgrade to a future planned outage.

Retrofit Support FAQ

Q: Is the 330906-02-12-70-02-05 a direct replacement for my existing 330906 series probe?
A: Yes. The 330906-02-12-70-02-05 is a drop-in mechanical and electrical replacement for other 330906 series variants with the same cable length and gap specification. Verify the suffix codes on your existing probe to confirm cable length (-12 = 12 inch integral cable) and gap range (-70 = standard gap) match your installation requirements before ordering.

Q: Do I need to recalibrate the 3300 XL proximitor after replacing the probe?
A: Not if you are replacing a 330906 series probe with this unit in an existing 3300 XL installation. The scale factor and bias voltage are matched to the 3300 XL system. After installation, verify the gap voltage at the proximitor output is within the expected range for your shaft-to-probe gap, and confirm the reading against your baseline documentation. A full recalibration is only required if the proximitor itself is also being replaced.

Q: What pre-shipment testing is performed on this probe?
A: Each unit undergoes a functional test verifying bias voltage output, scale factor linearity across the specified gap range, and connector integrity. A test report is included with shipment. The 12-month warranty covers manufacturing defects identified after installation, provided the probe has been installed and operated within the published specification limits.

Q: Can this probe be used with a Bently Nevada 3500/42M Proximitor I/O Module instead of the 3300 XL proximitor?
A: Yes, with configuration. The 3500/42M supports 8mm probes with the 200 mV/mil scale factor. You will need to configure the channel in System 1 or the 3500 Rack Configuration Software to match the probe’s scale factor and linear range. Consult the 3500/42M manual for channel setup procedures and confirm the probe cable length is compatible with the proximitor’s input impedance specification.
