Bently Nevada 330907-05-30-10-02-05 Spare for 3300 NSv Automation: Spare Replacement & Downtime Risk Control

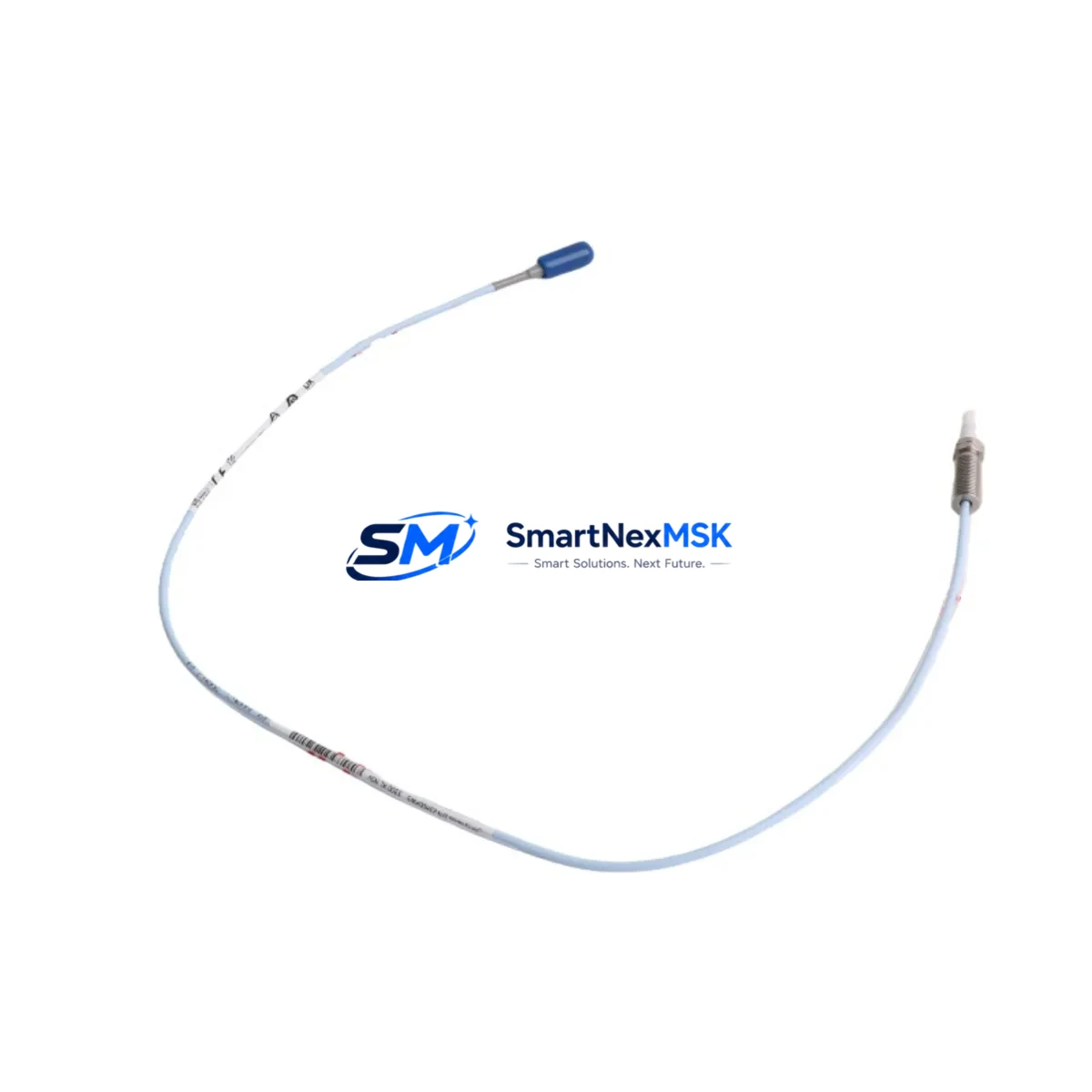

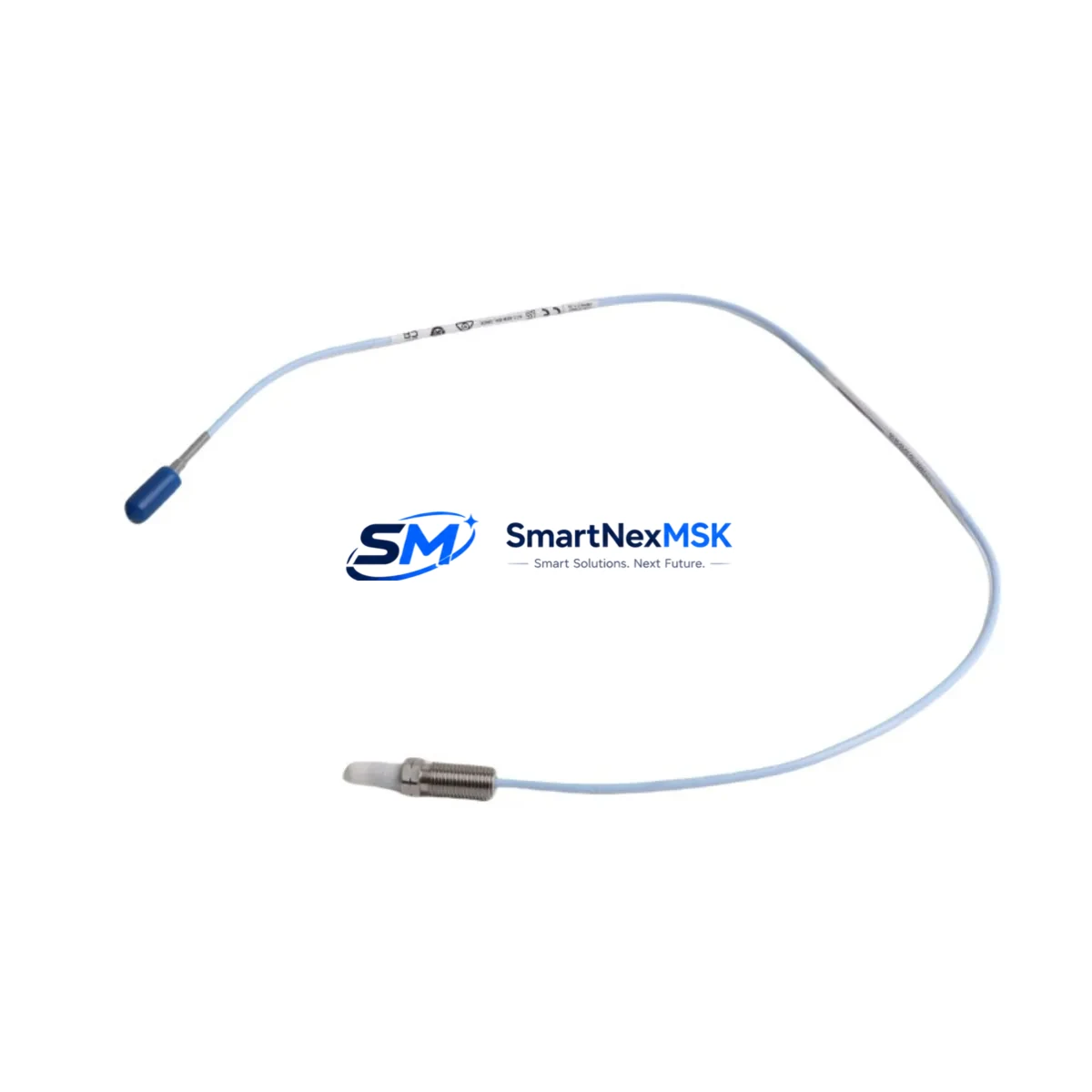

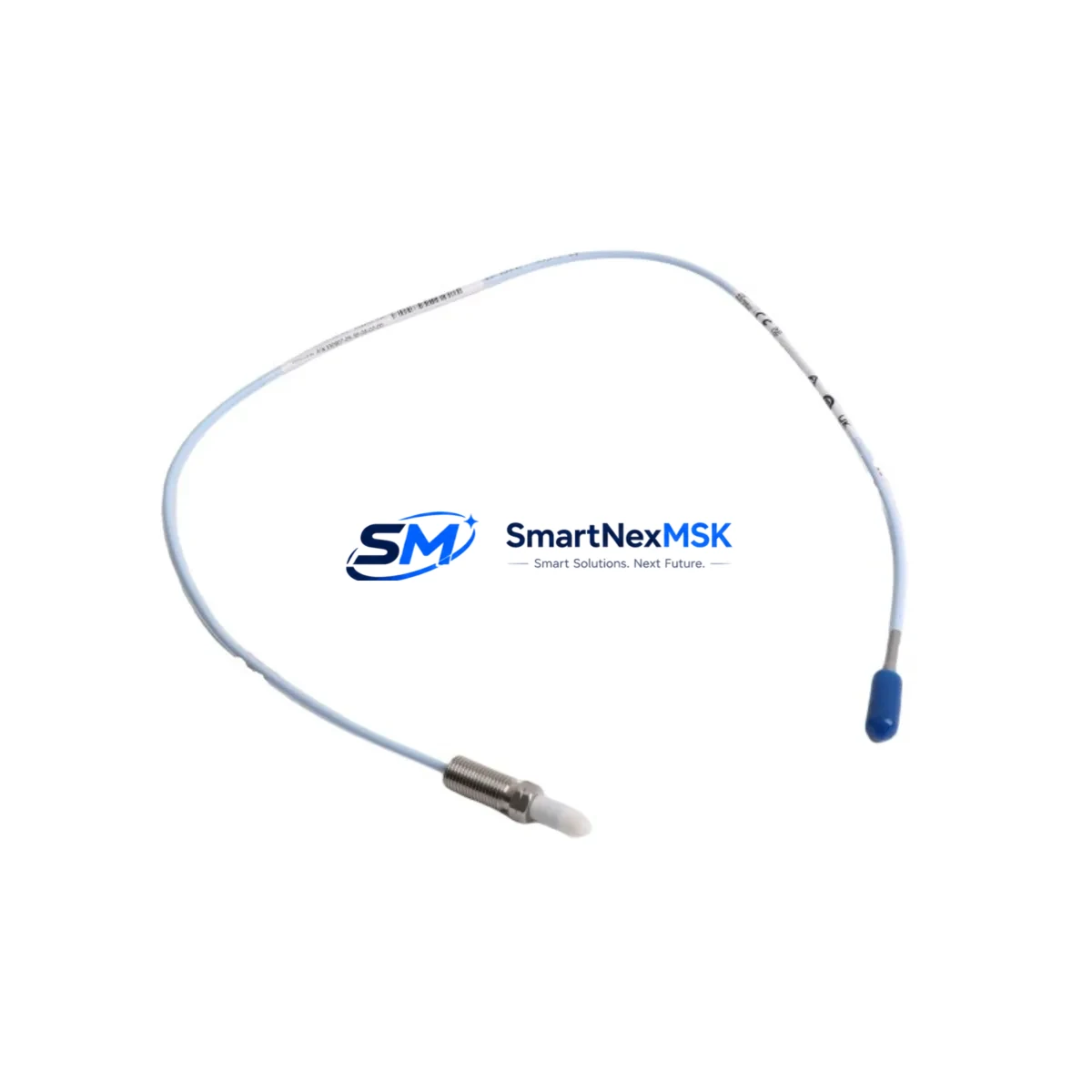

The Bently Nevada 330907-05-30-10-02-05 is an original eddy current proximity probe engineered for the 3300 NSv Reverse Mount Proximity Transducer System. Designed for continuous vibration monitoring in rotating machinery — including turbines, compressors, pumps, and motors — this probe is a critical component in any industrial predictive maintenance program. When this probe fails or degrades, the entire vibration monitoring loop is compromised, leaving rotating equipment unprotected and exposing the facility to unplanned shutdown risk.
At SMARTNEXMSK, we supply original, tested 330907-05-30-10-02-05 units with full traceability, pre-shipment electrical verification, and a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford extended lead times on critical spare parts.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330907-05-30-10-02-05 |
| Brand | Bently Nevada |
| Series | 3300 NSv Reverse Mount Proximity Transducer System |
| Product Type | Eddy Current Proximity Probe |
| Probe Length | 5 inches (127 mm) |
| Cable Length | 30 inches (762 mm) |
| Thread Size | 10-32 UNF |
| Connector Type | 02 (Standard) |
| Armor Type | 05 (Armored Cable) |
| Supply Voltage | -24 VDC (nominal) |
| Output Range | -2 VDC to -18 VDC |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Gap Range | 0–80 mil (0–2.03 mm) |
| Frequency Response | DC to 10,000 Hz |
| Operating Temperature | -35°C to +177°C |
| Application Environment | Turbines, Compressors, Pumps, Motors, Fans |
| Compatibility | 3300 NSv Proximitor Sensor, 3300 XL 8mm Proximitor (cross-check gap) |
| Installation | Reverse mount bracket; torque to manufacturer spec; verify gap with oscilloscope |
| Maintenance Interval | Inspect every 6–12 months; replace on signal drift >5% |
| Warranty | 12 Months from shipment date |
| Origin | USA |
| Condition | Original, New or Refurbished-to-OEM-spec (stated at order) |
Maintenance Planning for Continuous Operation
When a 330907-05-30-10-02-05 proximity probe is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A thorough inspection of the entire vibration monitoring loop and surrounding control infrastructure is essential to prevent repeat failures and ensure system integrity upon restart.
Begin by inspecting the 3300 NSv Proximitor Sensor (e.g., 330180-91-00) — the signal conditioning module paired with this probe. A degraded Proximitor can produce erratic output even with a new probe installed. Simultaneously, verify the extension cable (typically 330130-series) for continuity, insulation resistance, and connector integrity; cable damage is a leading cause of false vibration alarms.
Check the -24 VDC power supply module feeding the Proximitor. Voltage sag or ripple will directly affect probe bias voltage and output linearity. If the cabinet houses a 3500-series rack (e.g., 3500/42M Proximitor I/O Module), inspect the I/O module’s channel card for corrosion or loose terminations. Review the 3500/20 Power Supply for alarm relay output status and verify that the 3500/22M Transient Data Interface is logging correctly.
For facilities running legacy 3300 RAM Rack systems, also inspect the 3300/16 Power Supply and any 3300/55 Keyphasor Module in the same rack — Keyphasor signal loss can mask real vibration events. If the machine train includes thrust position monitoring, cross-check the 330106-series thrust probe and its associated Proximitor for consistent gap readings.
On the control system side, confirm that the DCS analog input card receiving the 4–20 mA or voltage signal from the monitoring rack is reading within calibrated range. Signal isolators between the monitoring rack and DCS should be tested for drift. Finally, review the HMI trend display for historical baseline data — a sudden step change in the vibration trend prior to probe failure often indicates a mechanical issue that the new probe will immediately re-detect upon installation.
Stocking a complete spare kit — probe, extension cable, Proximitor sensor, and a spare I/O channel card — reduces mean time to repair (MTTR) from hours to minutes and is the recommended strategy for any facility operating critical rotating machinery 24/7.
Site Replacement Workflow
Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the Proximitor supply rail. Document the existing probe gap voltage (typically -10 VDC ±0.5 V at nominal gap) before removal.
Step 2 — Probe Removal: Loosen the locknut and unthread the 330907-05-30-10-02-05 probe from the reverse mount bracket. Inspect the bracket threads and target area for wear, scoring, or contamination.
Step 3 — New Probe Installation: Thread the replacement probe to the bracket. Set the gap to the OEM-specified value (typically 50 mil / 1.27 mm for this series) using a non-metallic feeler gauge. Tighten the locknut to the specified torque.
Step 4 — Electrical Verification: Re-energize the Proximitor supply. Measure the DC bias voltage at the Proximitor output with a calibrated DMM. Confirm the output is within the linear range (-10 VDC ±1 V). Connect an oscilloscope to verify AC vibration signal quality and absence of electrical noise.
Step 5 — System Confirmation: Clear any latched alarms at the 3500 rack or DCS. Confirm the HMI displays a stable baseline vibration reading consistent with pre-fault historical data. Log the replacement in the CMMS with probe serial number, gap setting, and bias voltage reading.
This workflow is compatible with both the legacy 3300 RAM system and the current 3500 Series rack architecture, ensuring a smooth transition without system reconfiguration or recalibration of adjacent channels.
Spare Parts Support FAQ
Q1: Is the 330907-05-30-10-02-05 still available as a new original part?
A: Yes. SMARTNEXMSK maintains stock of original and OEM-equivalent units. Each unit undergoes pre-shipment electrical testing including bias voltage verification and cable continuity check. Availability is confirmed at order placement.
Q2: What is the warranty coverage and what does it include?
A: All units carry a 12-month warranty from the shipment date, covering manufacturing defects and electrical performance failures under normal operating conditions. Warranty claims are processed with a replacement unit dispatched within 5 business days upon fault confirmation.
Q3: Can this probe replace older 330907-series variants with different cable or connector codes?
A: The 330907 part number structure encodes probe length, cable length, thread, connector, and armor type. Cross-substitution is possible only when the physical dimensions and connector type match the installation. Our technical team can verify compatibility against your existing bracket and Proximitor model before shipment — contact us with your full system configuration.
Q4: How should this spare be stored if not immediately installed?
A: Store in the original packaging in a dry, temperature-controlled environment (0°C to 40°C), away from strong magnetic fields and mechanical vibration. Inspect the connector and cable jacket annually. Recommended maximum shelf storage before installation verification: 3 years.
