Bently Nevada 330907-05-30-10-02-CN 3300 NSv Probe

Bently Nevada 330907-05-30-10-02-CN 3300 NSv Probe: Retrofit-Ready Compatibility for Legacy Vibration Monitoring Systems

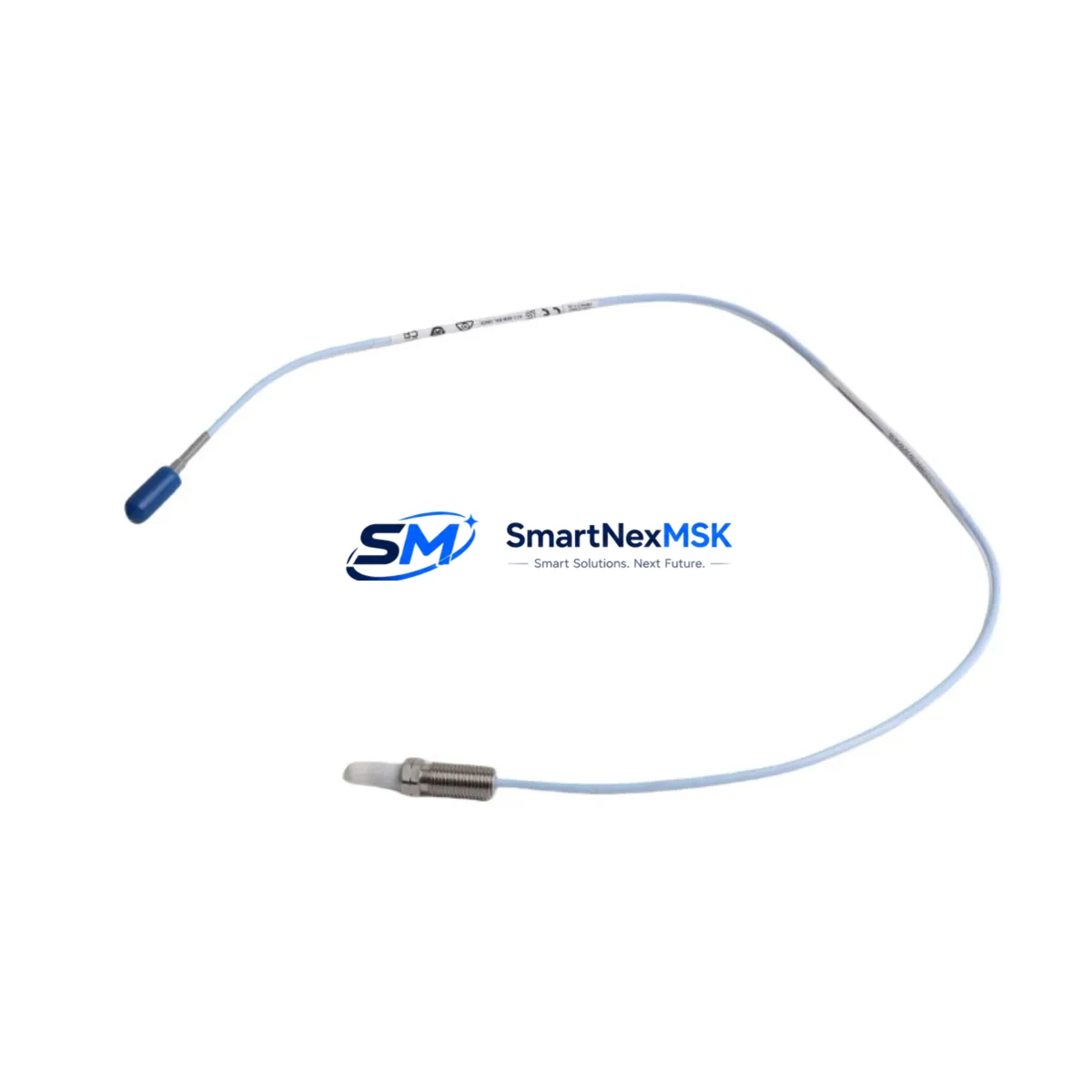

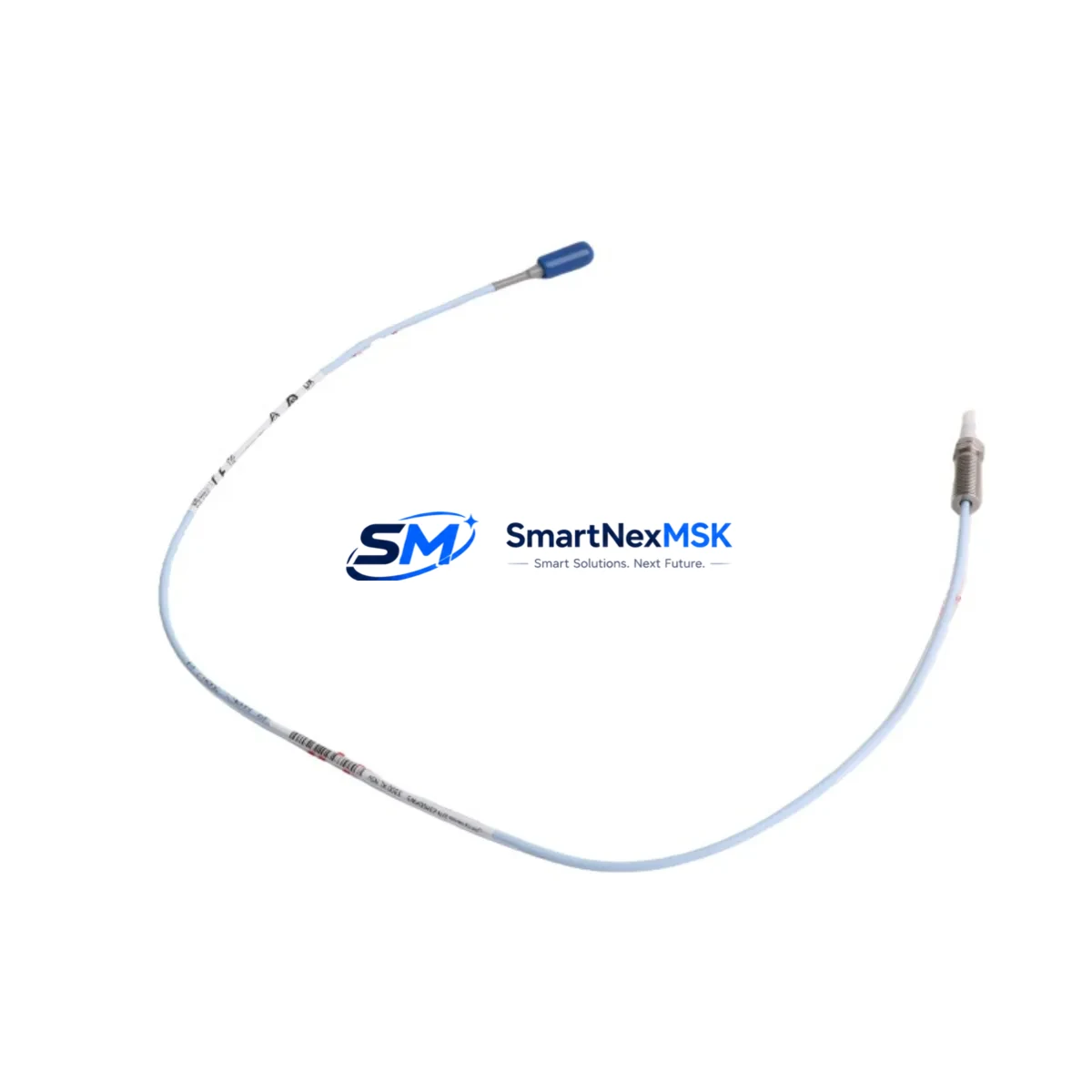

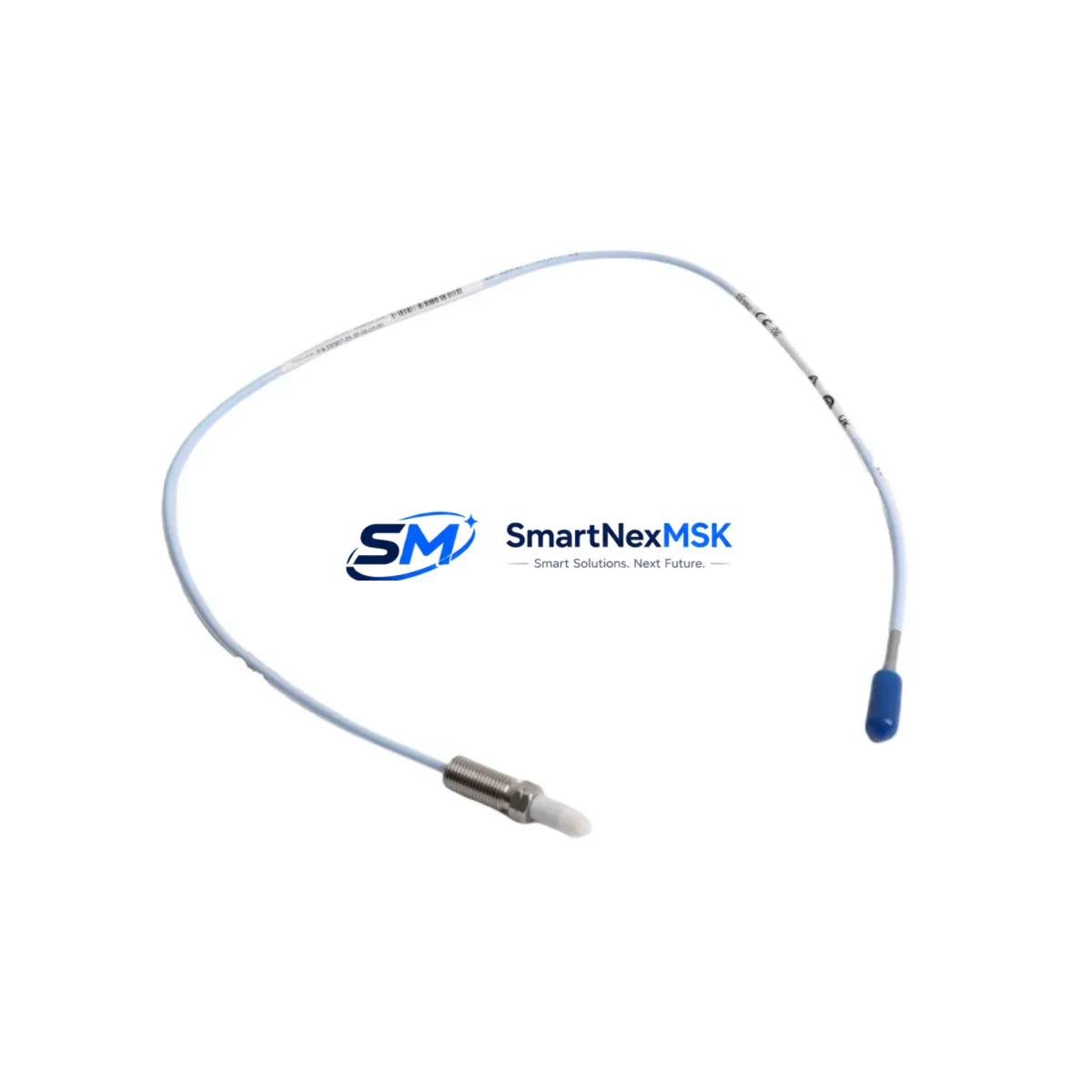

The Bently Nevada 330907-05-30-10-02-CN is a reverse-mount proximity probe engineered for the 3300 NSv (Non-contact Vibration) monitoring platform. As aging 3300 Series installations approach end-of-support cycles, plant engineers and reliability teams increasingly rely on verified drop-in replacements to sustain continuous machinery protection without triggering full system overhauls. This probe delivers the same eddy-current sensing geometry, cable length, and connector interface as the original factory part, making it the preferred choice for brownfield retrofit projects across rotating equipment applications including turbines, compressors, pumps, and gearboxes.

When planning a probe replacement within an existing 3300 NSv rack, the first verification step is confirming that the installed Bently Nevada 3300/16-23-01-01-00-00-00 proximitor or equivalent signal conditioner module remains within its calibration window. The 330907-05-30-10-02-CN operates on the standard Bently Nevada eddy-current driver circuit, so no recalibration of the proximitor is required provided the gap voltage is re-established at commissioning — typically between −10 VDC and −18 VDC depending on target material and shaft diameter.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 NSv probe retrofit begins well before the maintenance window opens. Engineers should pull the existing rack drawing to confirm the 3300 Rack 16-channel backplane slot assignments and verify that the associated Bently Nevada 3300/16 I/O module terminal wiring matches the replacement probe’s cable color code. In installations where the original probe was routed through a 3300 Extension Cable (5 m or 9 m), the extension connector condition should be inspected and replaced if oxidation or mechanical damage is present — a degraded connector is the most common source of intermittent gap voltage drift after a probe swap.

For plants running the Bently Nevada 3500 Series rack in parallel with legacy 3300 hardware, the migration path typically involves installing a 3500/42M Proximitor/Seismic Monitor module to accept the same probe signal while enabling Modbus TCP or FOUNDATION Fieldbus communication to the plant DCS. This approach preserves the existing probe installation and cabling while upgrading the signal processing and communication layer — a cost-effective strategy that avoids re-cabling the machine train.

Where the control system interfaces with a GE Mark VIe or Emerson Ovation DCS, the 3500 gateway module handles protocol translation transparently. The Bently Nevada 3500/92 Communication Gateway supports both Modbus RTU and Ethernet/IP, allowing the vibration data from the 330907-05-30-10-02-CN to be mapped directly into the DCS historian without additional signal conditioning hardware.

On the HMI side, plants using GE Cimplicity or Wonderware InTouch screens for machinery protection displays should update the tag database to reflect the new probe channel address after the swap. If the rack slot assignment is unchanged, the HMI tag mapping typically requires no modification — only a confirmation that the live gap voltage reading falls within the alarm setpoint band configured in the Bently Nevada System 1 Evolution software.

I/O expansion considerations are relevant when the retrofit is part of a broader machine train upgrade. Adding a 3500/20 Rack Interface Module allows the existing 3300 NSv data to be aggregated alongside new 3500-series channels, providing a unified view in System 1 without requiring a full rack replacement. This is particularly valuable in compressor train applications where multiple probe points — radial vibration X/Y, axial position, and speed — must be monitored simultaneously.

All replacement probes are pre-tested against factory gap voltage and sensitivity specifications prior to shipment. Each unit ships with a test certificate confirming eddy-current output linearity across the full measurement range. Stock is maintained for immediate dispatch, with standard lead times of 3–7 business days for international destinations.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement requires a structured hot-swap protocol. Where the process permits, the 3300 NSv channel should be placed in bypass mode within the machinery protection logic before the probe is disconnected — this prevents a spurious trip signal from propagating to the turbine or compressor shutdown relay while the gap is open. The bypass command is typically issued from the Bently Nevada System 1 operator interface or directly via the rack front-panel keyswitch, depending on the installed firmware version.

Once the replacement 330907-05-30-10-02-CN is installed and the gap is set, the channel should be returned to active monitoring only after the gap voltage has stabilized within the ±0.5 VDC tolerance band for a minimum of five minutes. This settling period accounts for thermal expansion of the probe tip and target shaft surface. The original program logic — including vibration alarm setpoints, danger thresholds, and time-delay relays — requires no modification, as the replacement probe maintains identical sensitivity (200 mV/mil) and frequency response characteristics.

For facilities operating under ISA-18.2 alarm management standards, the bypass event should be logged in the plant CMMS with the start and end timestamps, the technician ID, and the post-installation gap voltage reading. This documentation supports both regulatory compliance and future predictive maintenance scheduling. The 12-month warranty coverage begins from the shipment date and covers manufacturing defects in the probe body, cable assembly, and connector — providing assurance throughout the first full maintenance cycle after installation.

Retrofit Support FAQ

Q1: Is the 330907-05-30-10-02-CN a direct replacement for the original Bently Nevada part with the same SKU?
Yes. This unit is manufactured to the same dimensional and electrical specifications as the original 330907-05-30-10-02-CN. It is a direct drop-in replacement requiring only gap voltage re-establishment after installation. No driver module recalibration or rack configuration changes are required.

Q2: What wiring checks are required before installing the replacement probe?
Verify the extension cable connector for corrosion or pin damage before connecting the new probe. Confirm the 3300/16 I/O module terminal screws are torqued to specification and that the cable shield is grounded at one end only (typically at the proximitor end). Measure cable insulation resistance before powering the channel.

Q3: How is compatibility with the 3500 Series rack confirmed?
The 330907-05-30-10-02-CN is compatible with the 3500 rack when used with a 3500/42M Proximitor/Seismic Monitor module. Confirm the module’s input configuration is set for 8 mm probe geometry and that the gap voltage setpoints match the target material (typically carbon steel shaft). No firmware update to the 3500 rack is required for standard proximity probe inputs.

Q4: What does the 12-month warranty cover, and how is a claim initiated?
The 12-month warranty covers manufacturing defects in the probe body, cable assembly, and connector interface. It does not cover damage resulting from incorrect installation gap, mechanical impact, or chemical exposure. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. Replacement units are dispatched within 5 business days of claim approval.
