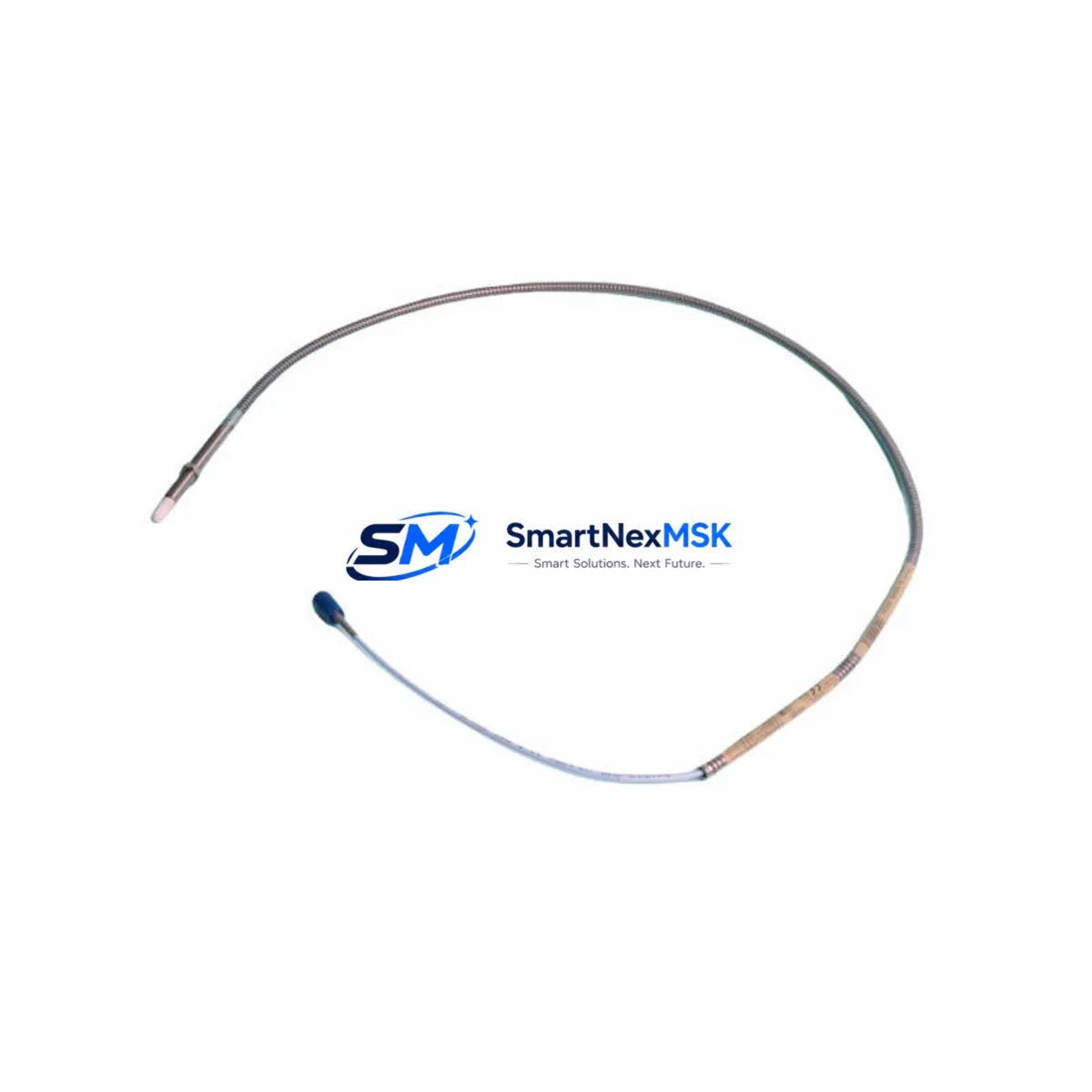

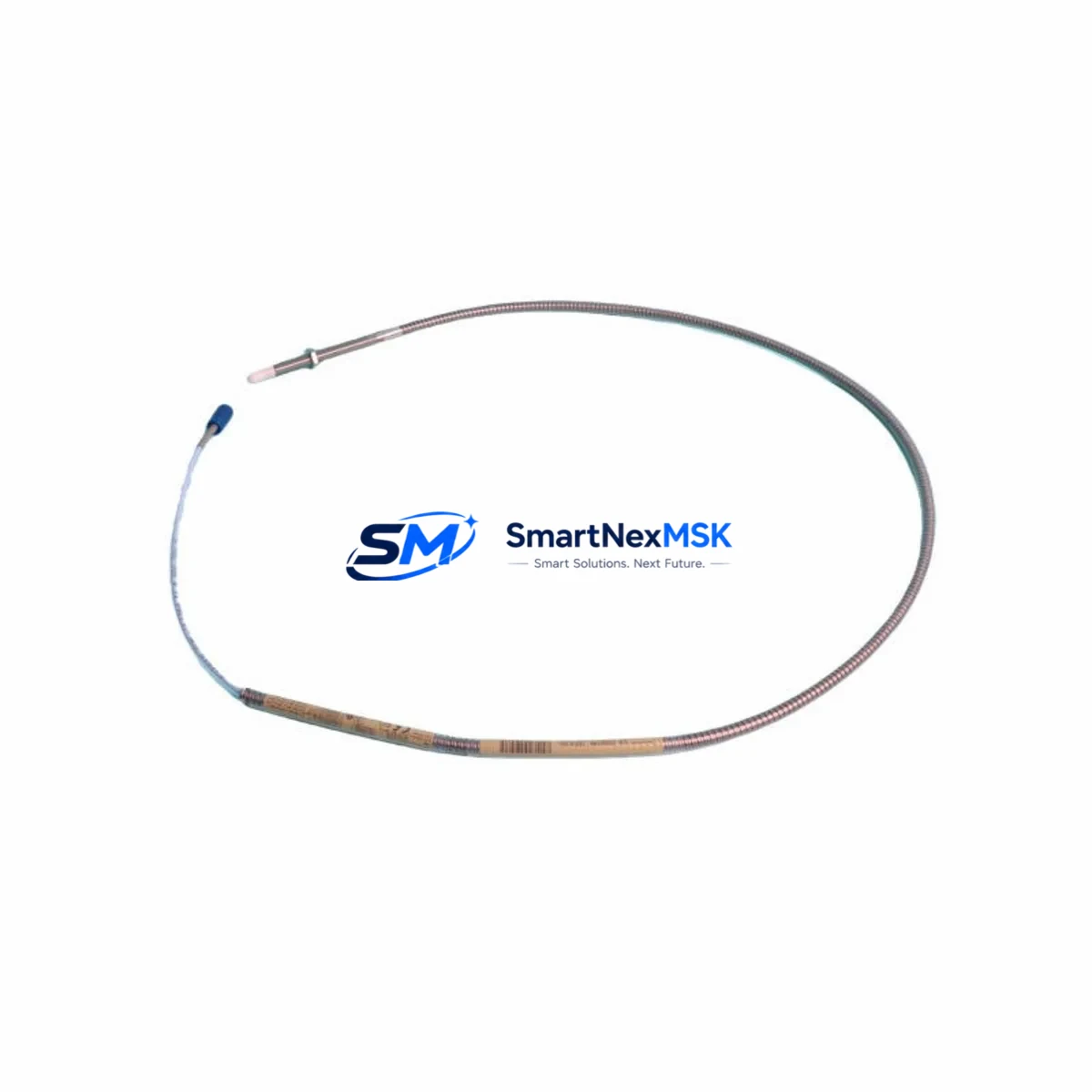

The Bently Nevada 330907-05-30-70-02-CN is an original eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. Designed for high-reliability rotating machinery protection — including turbines, compressors, pumps, and motors — this transducer delivers precise radial vibration and position measurement critical to plant safety and uptime. When a transducer fails or reaches end-of-life, rapid like-for-like replacement with a verified original spare is the fastest path to restoring full monitoring capability and avoiding unplanned shutdown escalation.

At SMARTNEXMSK, every 330907-05-30-70-02-CN unit is sourced from authorized supply channels, inspected prior to dispatch, and shipped with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford lead-time uncertainty on critical rotating equipment spares.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330907-05-30-70-02-CN proximity transducer is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the transducer itself is rarely the only component requiring attention. The 3300 XL monitoring system is an integrated signal chain, and restoring full measurement integrity means inspecting every link in that chain.

Start with the 3300 XL Proximitor® Sensor (driver module, typically a 330180 or 330130 series unit) mounted in the field junction box or control cabinet. The Proximitor converts the transducer’s raw eddy-current signal into a calibrated voltage output; a degraded or mismatched driver will produce erroneous readings even with a new probe installed. Inspect the driver’s bias voltage output and confirm it falls within the –18 to –24 VDC specification before closing out the work order.

Next, examine the extension cable assembly — commonly a 330130-045-00-CN or equivalent matched-length cable — for jacket damage, connector corrosion, and continuity. Extension cables are frequently overlooked during transducer swaps but are a leading cause of post-maintenance signal drift. Replace the cable as a matched set with the probe whenever the installation environment involves high vibration, steam, or chemical exposure.

In the control cabinet, verify the 3300/16 or 3500/42 monitor card that receives the Proximitor output. These rack-mounted I/O cards process the analog signal and generate alarm and trip relay outputs. A card with a degraded input channel may mask a genuine machinery fault or generate nuisance trips after a transducer replacement. Pull the card, inspect the terminal block connections, and confirm the channel is reading correctly against a known-good reference gap.

Check the 24 VDC power supply module feeding the Proximitor circuit. Bently Nevada 3300 and 3500 systems are sensitive to supply ripple and voltage sag; a failing power supply — such as an aging 3500/15 Power Supply module — can introduce noise that mimics vibration events. Measure output voltage under load and replace if ripple exceeds specification.

For systems with keyphasor transducers (e.g., 330980 series), confirm the keyphasor signal is clean and phase-referenced correctly after any shaft-proximity work. Keyphasor integrity is essential for vector-based vibration analysis and balancing operations.

If the machine is part of a DCS or safety instrumented system, verify that the analog input card receiving the 3300 XL monitor’s 4–20 mA or relay output has not been affected by the maintenance activity. Signal isolators or barriers between the monitor and the DCS input card should be inspected for drift, particularly in older installations where galvanic isolation modules may have accumulated thermal aging.

Finally, review the terminal strip and field wiring in the local junction box. Loose terminations, corroded ferrules, and undersized cable shields are common root causes of intermittent faults that reappear shortly after a transducer replacement. Torque all terminals to specification and confirm shield grounding is single-point at the control cabinet end.

Site Replacement Workflow

Step 1 — Compatibility Verification: Confirm the replacement 330907-05-30-70-02-CN matches the installed probe’s thread size (8 mm), cable length suffix, and connector type. Cross-reference the machine’s original Bently Nevada system drawing or the existing Proximitor label to verify the matched-set part numbers.

Step 2 — Safe Isolation: Follow site LOTO procedures. Inhibit the monitor channel at the 3300/16 or 3500/42 rack to prevent spurious trips during installation. Document the pre-removal gap voltage reading from the Proximitor output for reference.

Step 3 — Probe Removal and Installation: Remove the old transducer carefully to avoid shaft contact. Install the 330907-05-30-70-02-CN and set the air gap to the manufacturer’s recommended nominal value (typically 1.0–1.5 mm for 8 mm probes on steel targets). Use a non-metallic gap-setting tool to avoid scratching the shaft.

Step 4 — Signal Verification: With the machine stationary, measure the Proximitor bias voltage at the monitor card input. Confirm it falls within the –10 to –18 VDC window for the installed gap. Compare against the pre-removal reference reading.

Step 5 — System Restore and Functional Test: Remove the channel inhibit, restore normal monitoring, and observe the vibration reading during machine run-up. Confirm alarm and trip setpoints are active and that the channel is trending within historical baseline values.

This workflow minimizes downtime, eliminates re-work caused by overlooked compatibility issues, and ensures the replacement spare performs to original specification from first startup.

Spare Parts Support FAQ

Q1: Is the 330907-05-30-70-02-CN a direct drop-in replacement for older 330907 series probes?
Yes, within the 3300 XL 8 mm system family, the 330907-05-30-70-02-CN is designed as a compatible replacement for earlier 330907 variants sharing the same thread, cable length, and connector suffix. Always verify the matched Proximitor driver part number to ensure the complete system remains within Bently Nevada’s calibrated specification.

Q2: How do you verify the unit before shipment?
Every 330907-05-30-70-02-CN dispatched by SMARTNEXMSK undergoes pre-shipment inspection covering connector integrity, cable continuity, and physical condition. Units are packaged in anti-static, shock-protected packaging. A 12-month warranty is included from the date of shipment, covering manufacturing defects and verified performance failures.

Q3: What is the recommended spare parts inventory strategy for 3300 XL proximity systems?
For critical rotating machinery, maintenance best practice is to hold a minimum of one matched spare set — probe, extension cable, and Proximitor driver — per monitored machine train. For plants with multiple identical machines, a pooled inventory of 2–3 sets per machine type reduces per-unit holding cost while maintaining rapid-response capability. Long lead times on legacy Bently Nevada components make proactive stocking essential for older installations.

Q4: Can this transducer be used on non-ferromagnetic target materials?
The 330907-05-30-70-02-CN is optimized for ferromagnetic and conductive metal targets (carbon steel, alloy steel, stainless steel). Performance on non-ferromagnetic materials such as titanium or certain aluminum alloys will deviate from the standard calibration curve. If your application involves non-standard target materials, contact our technical team to confirm suitability and discuss recalibration options.
