Bently Nevada 330908-00-20-70-02-05 NSv Automation Spare: Spare Replacement & Industrial Downtime Risk Control

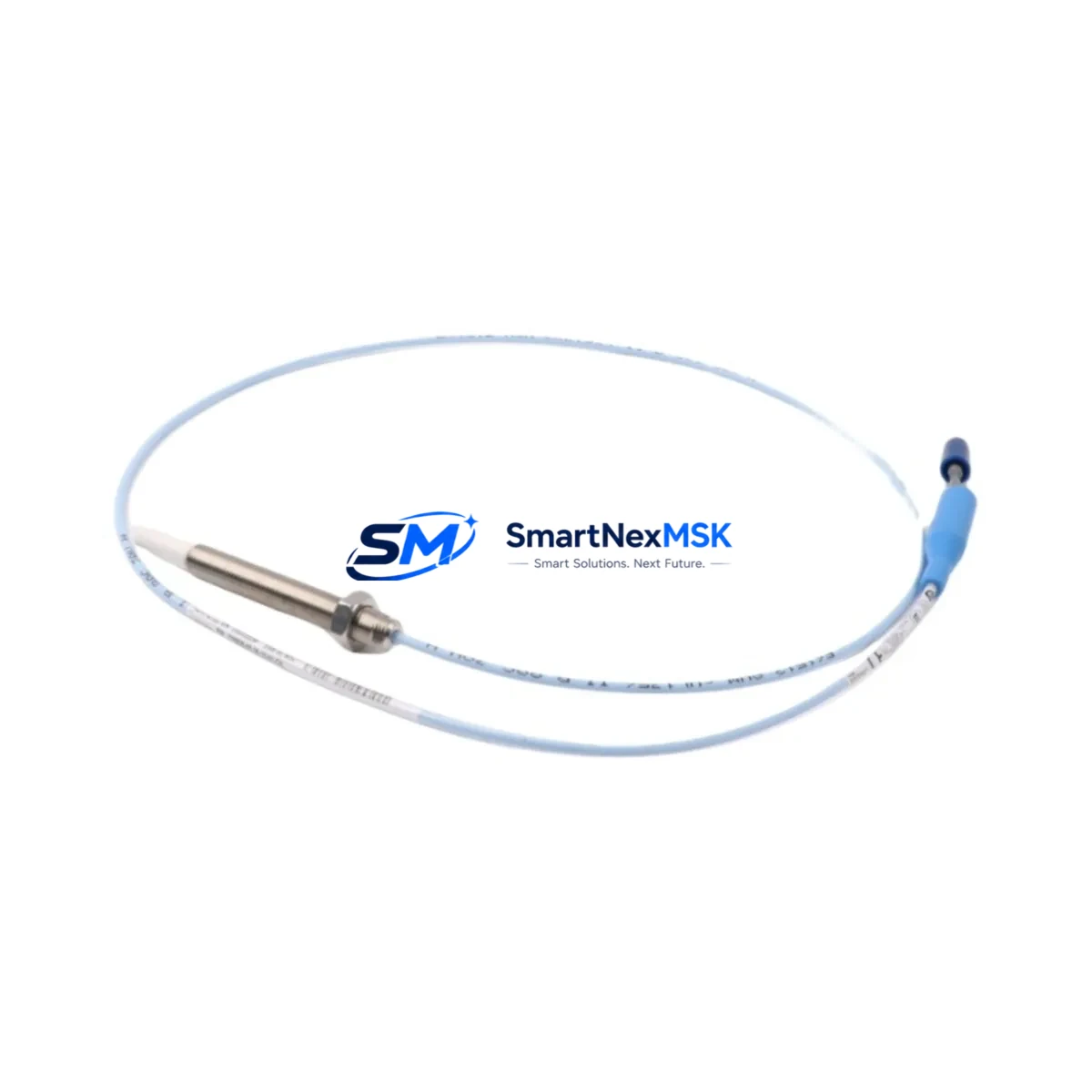

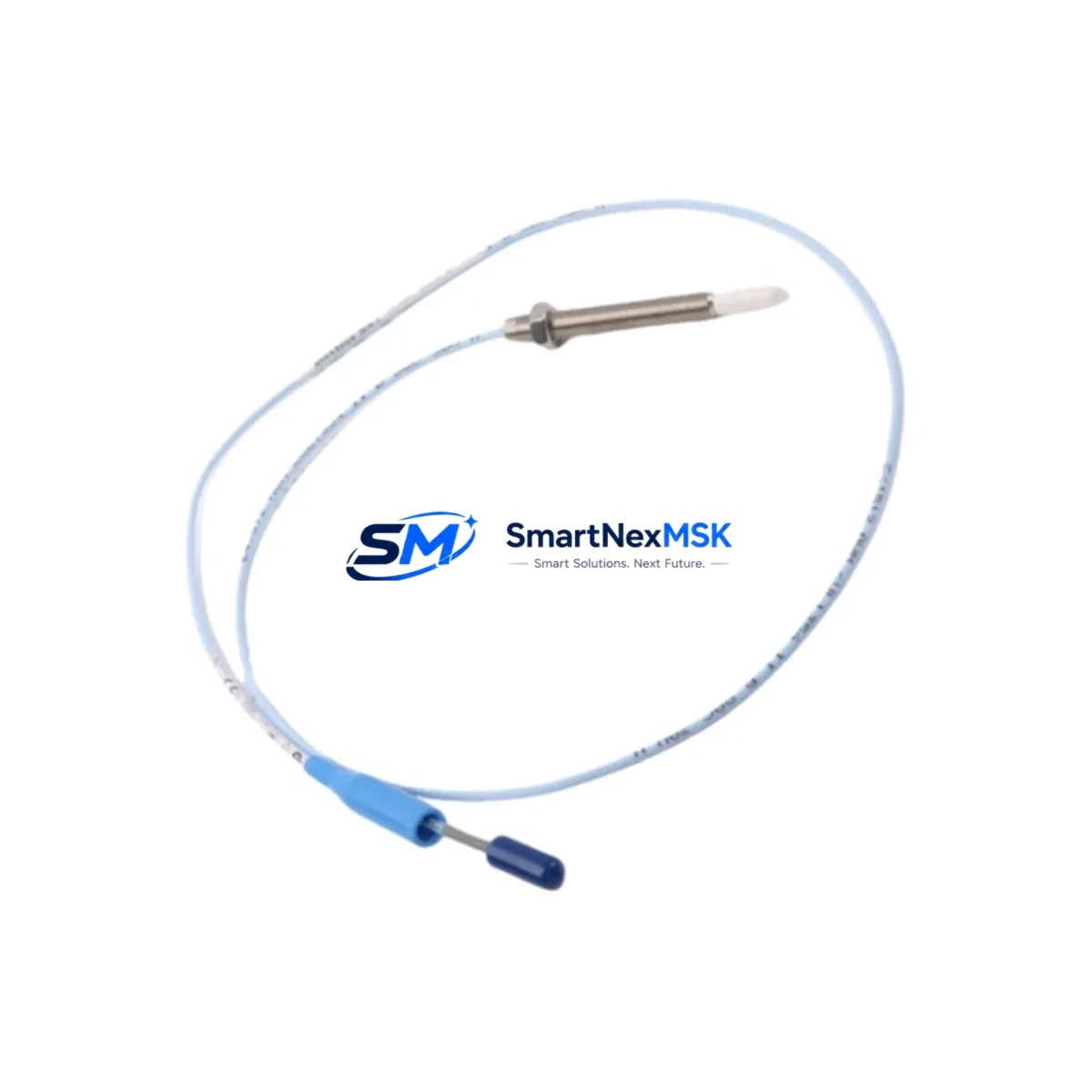

The Bently Nevada 330908-00-20-70-02-05 is an original NSv eddy-current proximity probe engineered for continuous vibration monitoring in rotating machinery protection systems. As a maintenance-ready spare, this probe is a critical component in turbine, compressor, and pump protection loops where unplanned downtime carries significant operational and financial risk. Sourced from verified supply channels and tested prior to shipment, this unit is stocked to support both emergency replacement and planned maintenance cycles.

For maintenance engineers managing aging 3300 Series monitoring systems, having a qualified spare of the 330908-00-20-70-02-05 on hand eliminates the lead-time risk that often extends unplanned outages. The NSv (Non-Standard Voltage) configuration is specifically designed for installations where standard probe output ranges are incompatible with existing signal conditioning infrastructure. Confirming the correct probe variant before replacement is essential to avoid recalibration of the entire measurement chain.

Procurement engineers sourcing this part should verify compatibility with the installed 3300 XL 8mm Extension Cable and the corresponding 3300 XL Proximitor® Sensor (driver), as the probe, extension cable, and driver form a matched system. Substituting any single element without verifying the system calibration range can introduce measurement error and trigger false alarms or missed trips in the machinery protection system.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330908-00-20-70-02-05 probe in the field, a thorough inspection of the surrounding measurement loop is strongly recommended to prevent repeat failures and ensure system integrity. Maintenance engineers should treat this replacement as an opportunity to audit the full vibration channel.

Begin by inspecting the 3300 XL Extension Cable for jacket damage, connector corrosion, or continuity loss — a degraded cable is a common root cause of erratic gap voltage readings that are often misdiagnosed as probe failure. Next, verify the 3300 XL Proximitor® Sensor output voltage and confirm it falls within the calibrated range for the NSv system. If the driver is beyond its service interval or shows drift, replace it as a matched set with the new probe.

Check the 3500/42M Proximitor®/Seismic Monitor or equivalent rack-mounted monitor card for alarm setpoint integrity and channel configuration. Confirm that the 3500 Rack Power Supply is delivering stable voltage — power fluctuations are a leading cause of premature probe and driver degradation. Inspect the terminal strip and field wiring in the junction box for loose terminations, moisture ingress, or insulation breakdown.

For systems with multiple measurement planes, cross-check the keyphasor probe (typically a 330980 or 330905 series) to ensure phase reference signals remain clean and stable. If the installation includes a 3300 XL 5mm probe on a secondary bearing, inspect it simultaneously to avoid a second unplanned outage. Where signal isolators or barriers are installed between the Proximitor output and the DCS analog input card, verify isolation resistance and signal fidelity — degraded isolators can mask true vibration levels.

Finally, document the as-found gap voltage before removal and the as-left gap voltage after installation. This baseline data supports future predictive maintenance trending and simplifies the next planned inspection cycle.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the measurement channel at the monitor rack. Do not de-energize the entire protection system unless required by site procedure — most 3500 series monitors support channel bypass to maintain protection on adjacent channels during maintenance.

Step 2 — As-Found Documentation: Record the existing gap voltage (typically –10 VDC ±20% for standard 3300 XL systems; verify NSv range with site calibration records). Photograph probe orientation, cable routing, and connector labeling before removal.

Step 3 — Probe Removal: Loosen the probe locknut and back the probe out carefully. Inspect the probe tip for impact damage or contamination. Inspect the probe holder threads and target area for wear or runout that may have contributed to the original failure.

Step 4 — New Probe Installation: Install the 330908-00-20-70-02-05 replacement probe to the documented gap distance. Reconnect the matched extension cable. Torque the locknut to specification and secure cable routing to prevent vibration-induced wear.

Step 5 — Verification & Commissioning: Restore channel power and verify gap voltage is within the NSv calibrated range. Confirm alarm and danger setpoints are active. Remove the channel bypass and return the system to normal monitoring status. Update the maintenance log with as-left readings and part number installed.

This workflow minimizes downtime exposure and ensures the replacement is fully commissioned before the machine returns to service — reducing the risk of a second trip event caused by an improperly installed spare.

Spare Parts Support FAQ

Q1: Is the 330908-00-20-70-02-05 a direct drop-in replacement for older 330908 variants?
The 330908 series shares a common mechanical form factor, but the NSv output configuration (-05 suffix) is not interchangeable with standard voltage variants without recalibrating the Proximitor driver. Always confirm the full part number including all suffixes before ordering. If your site uses a mixed fleet of standard and NSv probes, maintain separate spare inventories to avoid cross-installation errors.

Q2: How is the unit tested before shipment?
Each 330908-00-20-70-02-05 unit undergoes functional verification including output voltage check, continuity test, and visual inspection of the probe tip, integral cable, and connector. A test report is available upon request. Units are packaged in anti-static, impact-resistant packaging to prevent transit damage.

Q3: What is the recommended spare parts inventory strategy for this probe?
For critical rotating machinery (turbines, compressors, boiler feed pumps), industry best practice recommends holding a minimum of one spare probe per measurement plane, plus one spare Proximitor driver per monitor rack. For facilities with 10 or more 3300 XL measurement points, a buffer of 2–3 probes and 1–2 extension cables is advisable to cover both planned and emergency replacement scenarios without waiting on procurement lead times.

Q4: What warranty and long-term supply support is provided?
All units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Long-term supply continuity is supported through established sourcing channels for legacy Bently Nevada 3300 series components. For facilities managing end-of-life system extensions, multi-unit procurement agreements are available to lock in pricing and ensure stock availability over a defined maintenance horizon.
