Bently Nevada 330910-00-04-05-01-CN 3300 NSv Probe

Bently Nevada 330910-00-04-05-01-CN 3300 NSv Probe: Retrofit-Ready Replacement for Legacy Vibration Monitoring Systems

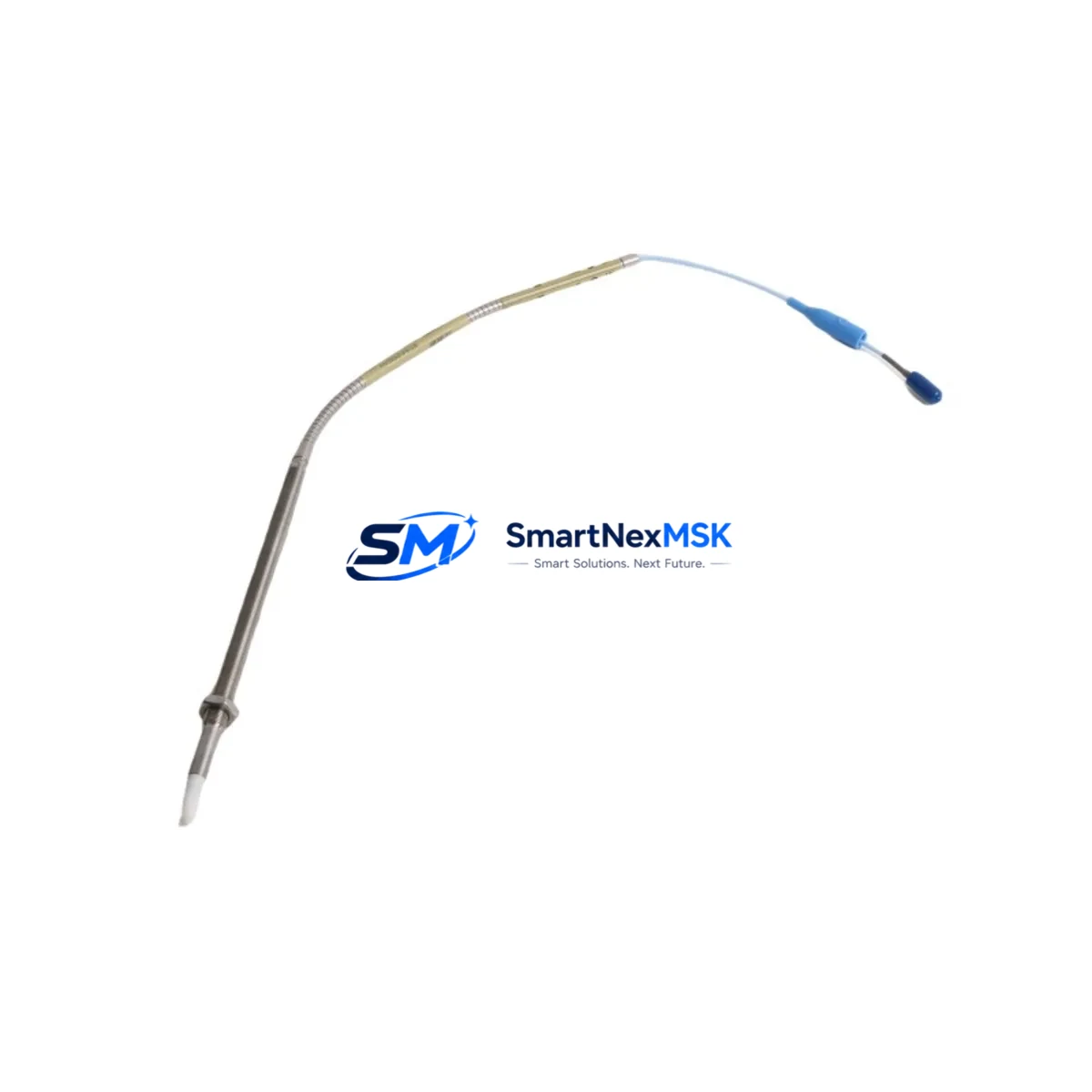

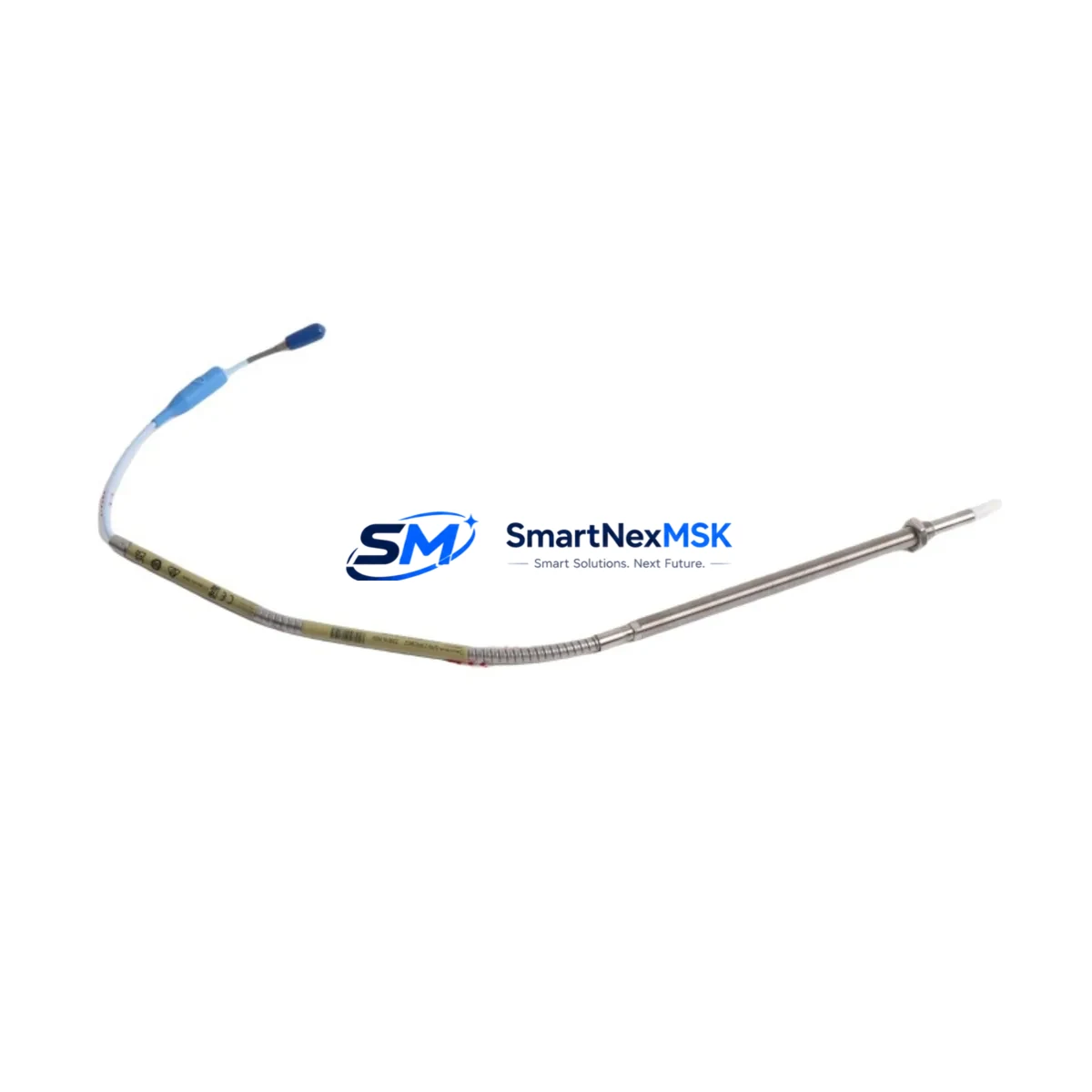

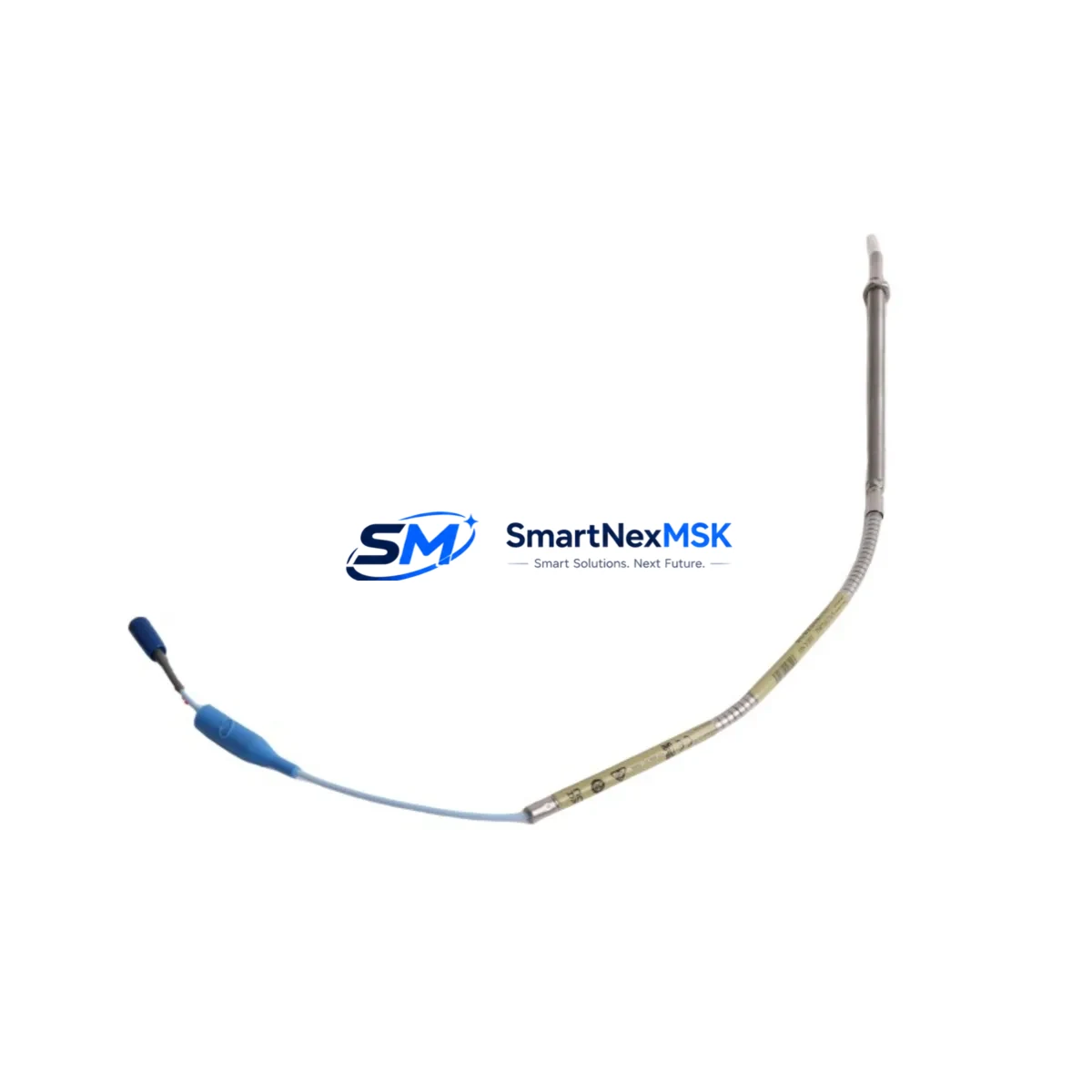

The Bently Nevada 330910-00-04-05-01-CN is a 3300 NSv series eddy-current proximity probe engineered for non-contact vibration, position, and speed measurement in rotating machinery. As legacy 3300 NSv systems approach end-of-life or face discontinued spare-parts availability, this probe serves as a verified retrofit-ready replacement that preserves existing wiring, signal conditioning, and monitor compatibility without requiring a full system overhaul.

Industrial facilities operating turbines, compressors, pumps, and gearboxes under continuous monitoring programs frequently encounter the challenge of sourcing reliable replacements for discontinued Bently Nevada probes. The 330910-00-04-05-01-CN addresses this directly: it maintains the same 5-metre integral cable length, standard 3/8-24 UNF thread body, and 200 mV/mil (7.87 V/mm) sensitivity that the 3300 NSv monitor system expects, ensuring that existing Bently Nevada 3300/16 monitors and 3300/20 monitors continue to receive calibrated signals without reconfiguration.

When integrating this probe into a retrofit project, engineers should verify the following before installation: the power supply rail feeding the 3300 XL driver or 3300 NSv driver must deliver a stable −24 VDC within ±1 V tolerance; terminal block wiring at the junction box must be inspected for insulation degradation common in high-temperature environments; and the gap voltage at the target shaft surface should be set to −10.0 VDC ±0.5 V using a calibrated gap tool before the machine is returned to service.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330910-00-04-05-01-CN into an operating plant begins well before the maintenance window opens. The probe is typically installed alongside a Bently Nevada 3300 XL driver that conditions the raw eddy-current signal before it reaches the rack-mounted monitor. In older installations, the driver may be a 3300/05 driver or 3300/16 driver; both remain compatible with the 330910-00-04-05-01-CN provided the supply voltage and cable impedance are within specification.

For facilities running a System 1 condition monitoring platform, the probe replacement does not require any database reconfiguration as long as the transducer type and sensitivity remain unchanged. Engineers should confirm that the System 1 Evolution or legacy System 1 Classic node assigned to the measurement point still references the correct transducer table entry. If the plant uses a Bently Nevada 3500 series rack alongside the 3300 NSv system for other measurement channels, ensure that the two systems share a common earth reference to avoid ground-loop interference after the probe swap.

Wiring continuity from the probe tip through the integral cable, junction box terminal strip, and extension cable to the driver input must be verified with a low-resistance ohmmeter before energising the system. The 3300 NSv extension cable (typically a 330130 series) should be inspected for jacket damage, especially where it passes through conduit fittings or cable glands that may have caused abrasion over years of service. If the extension cable shows any sign of moisture ingress or insulation breakdown, it should be replaced concurrently with the probe to avoid a repeat outage.

In control cabinets where the 3300 NSv system shares a backplane or DIN-rail space with other I/O modules — such as analogue input cards feeding a DeltaV controller or a Rockwell ControlLogix chassis — the probe replacement should be coordinated with the control system engineer to confirm that the analogue input channel assigned to the vibration signal is placed in manual or bypass mode during the swap. This prevents nuisance trips or false high-vibration alarms from propagating to the safety instrumented system or the DCS historian during the brief period when the probe is disconnected.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist. Before the maintenance window, the operations team should confirm that the machine can be safely isolated, that the 3300 NSv monitor channel is placed in bypass within the System 1 platform or the DCS, and that a spare 330910-00-04-05-01-CN is staged at the work site with its gap voltage pre-verified on a bench fixture.

During the swap, the original probe gap voltage reading should be recorded from the monitor front panel or the System 1 trend display before disconnection. This reference value allows the technician to set the replacement probe to the same gap distance without relying solely on the mechanical stop, which may have shifted due to shaft wear or bearing clearance changes. Once the new probe is installed and the gap voltage confirmed at −10.0 VDC ±0.5 V, the monitor channel should be taken out of bypass and the vibration trend observed for at least five minutes at operating speed before the machine is returned to full load.

For facilities with a Bently Nevada TDXnet or Orbit 60 data acquisition system, the replacement event should be logged as a maintenance annotation in the historian so that any step-change in the vibration baseline is correctly attributed to the probe swap rather than a change in machine condition. This protects the integrity of the long-term trend data and prevents false alarms from automated anomaly-detection algorithms.

All replacement probes supplied by SMARTNEXMSK are function-tested prior to shipment. Each unit is verified for correct sensitivity, gap voltage linearity, and cable continuity. A 12-month warranty covers manufacturing defects and performance deviations from published specifications, giving maintenance teams confidence that the replacement will perform reliably through the next scheduled inspection interval.

Retrofit Support FAQ

Q1: Is the 330910-00-04-05-01-CN a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit matches the original OEM part number, thread size, cable length, sensitivity, and gap voltage specification. No changes to the monitor configuration, driver settings, or control system program are required for a like-for-like replacement.

Q2: What wiring checks should be completed before installing the replacement probe?
Verify that the extension cable (330130 series or equivalent) shows no insulation damage or moisture ingress. Confirm terminal block connections at the junction box are tight and corrosion-free. Measure supply voltage at the driver input to confirm −24 VDC ±1 V before connecting the new probe.

Q3: How is the gap voltage set and verified after installation?
With the machine stationary and the driver energised, adjust the probe axial position in the holder until the driver output reads −10.0 VDC ±0.5 V on a calibrated digital voltmeter or the monitor front-panel display. Lock the probe in position with the locknut and re-verify the gap voltage after tightening. Record the final value in the maintenance log.

Q4: What does the 12-month warranty cover, and how is a claim initiated?
The warranty covers manufacturing defects, sensitivity out-of-specification, and cable or connector failures under normal operating conditions. To initiate a claim, contact SMARTNEXMSK with the order number, installation date, and a description of the fault. A replacement unit or full refund will be arranged within the agreed lead time.
