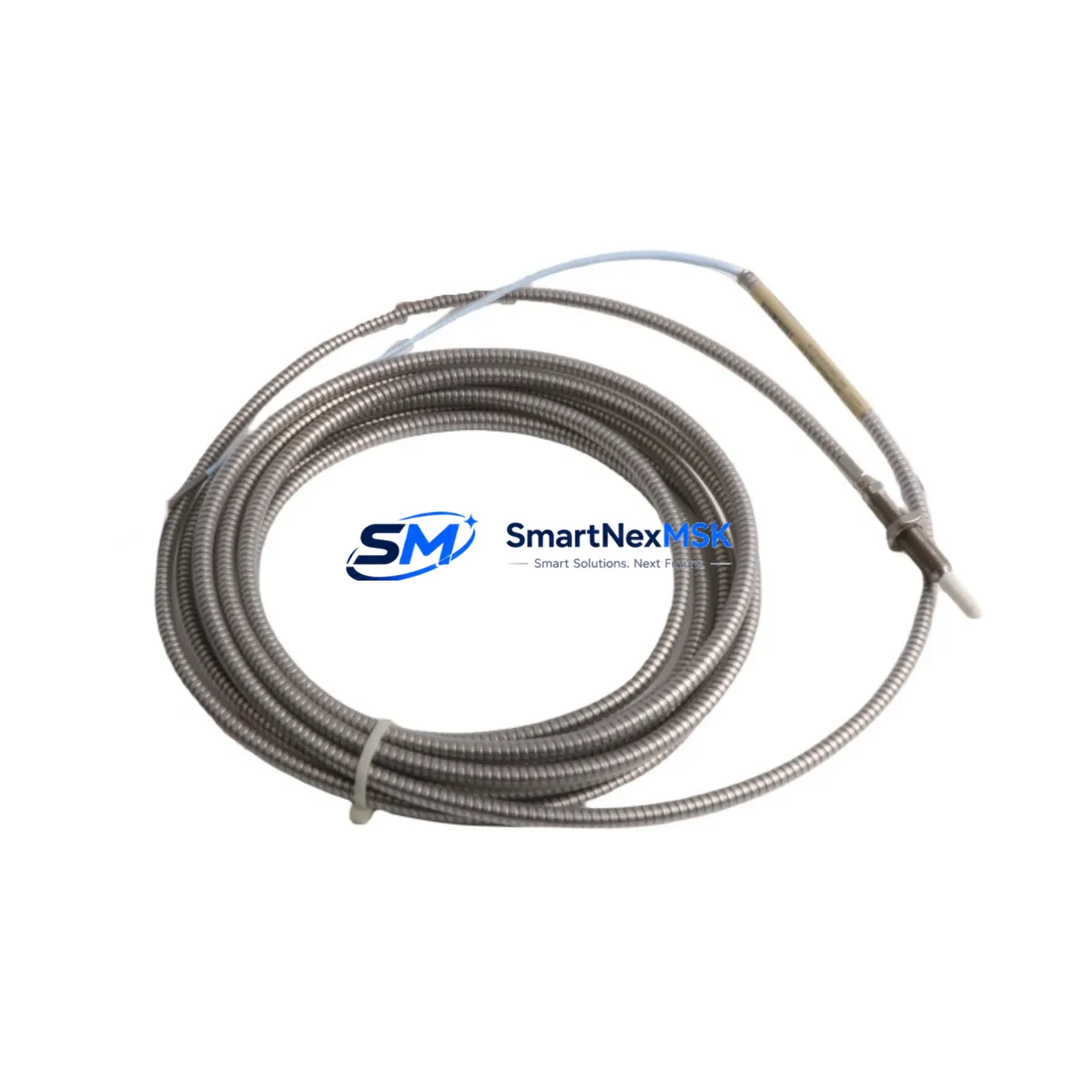

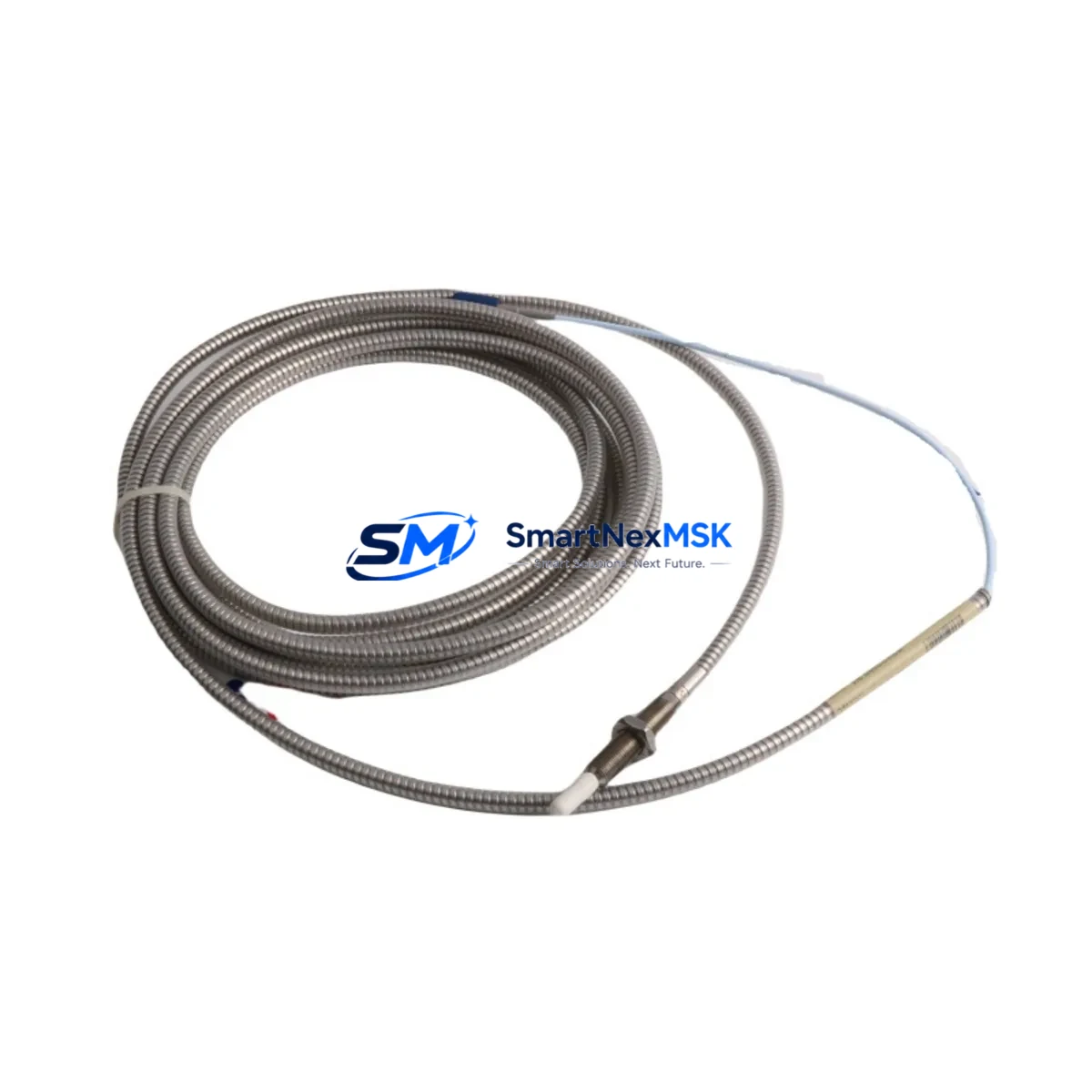

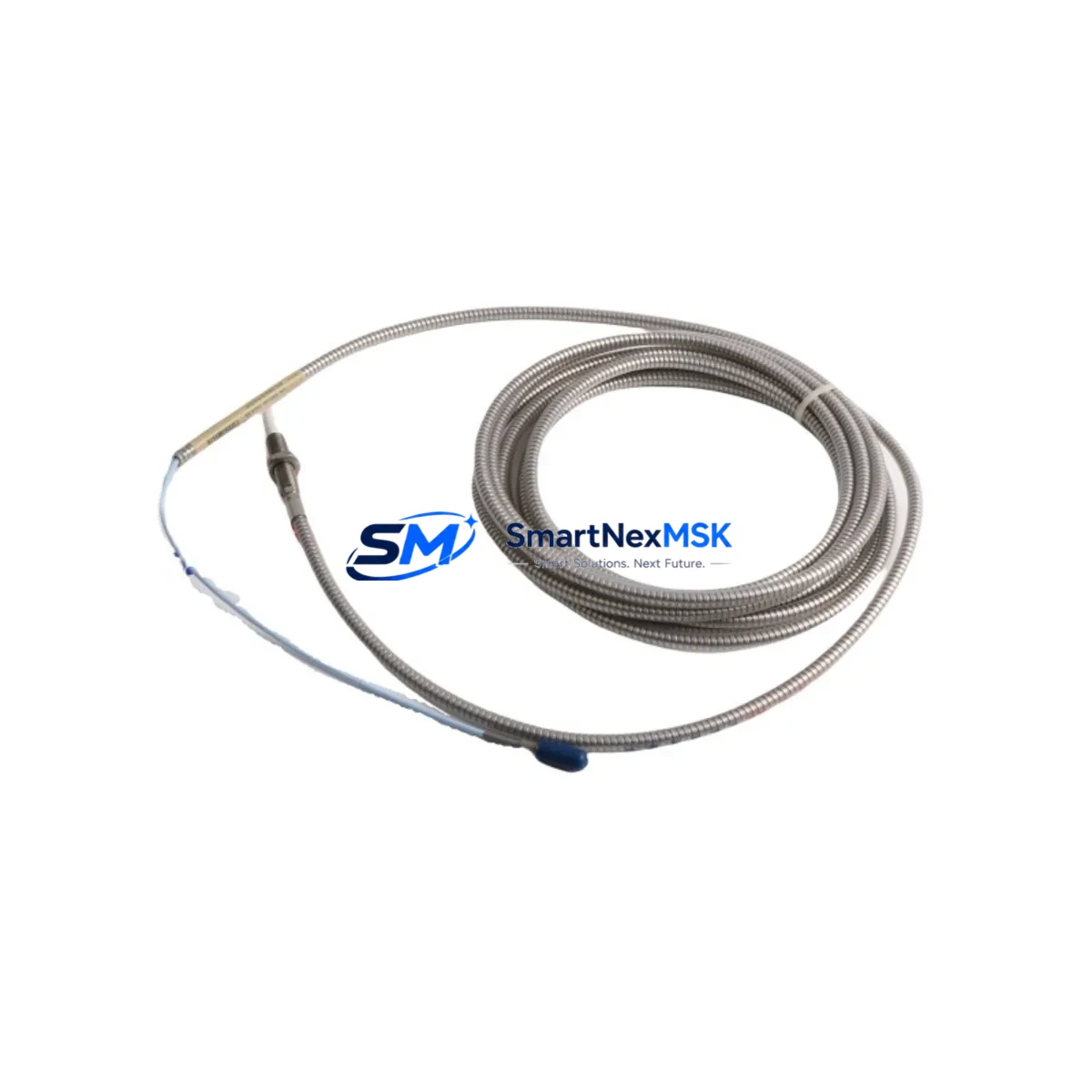

Bently Nevada 330910-00-06-05-01-00 Retrofit 3300 NSv Probe

Bently Nevada 330910-00-06-05-01-00 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

The Bently Nevada 330910-00-06-05-01-00 is an 8mm proximity probe engineered for seamless integration into Bently Nevada 3300 NSv vibration monitoring systems. As legacy machinery protection infrastructure ages, plant engineers and reliability teams increasingly face the challenge of sourcing verified drop-in replacements that maintain full signal chain integrity without requiring reprogramming, recalibration of the entire loop, or modification of existing conduit runs. This probe is stocked and tested to meet that exact requirement.

Whether you are replacing a failed probe on a critical rotating machine, upgrading a brownfield control cabinet, or executing a planned outage to modernize your condition monitoring architecture, the 330910-00-06-05-01-00 delivers the dimensional accuracy, output sensitivity, and connector compatibility required for a confident, low-risk swap. The probe integrates directly with the 3300 NSv proximitor/seismic module and is fully compatible with the standard Bently Nevada extension cable assemblies used across the 3300 platform family.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful probe retrofit within a 3300 NSv-based machinery protection system requires careful coordination across multiple hardware layers. Before removing the failed or aging 330910-00-06-05-01-00, technicians should document the existing gap voltage reading at the proximitor input — typically the 3300/16-24-01 or 3300/20 proximitor module — to establish a baseline for post-installation verification. The gap voltage target for an 8mm probe is generally between -10 VDC and -18 VDC depending on the target gap distance, and this value must be re-confirmed after the new probe is seated and the locknut torqued to specification.

Extension cable routing is a common source of signal degradation in retrofit projects. The 330130 series extension cables must be inspected for jacket integrity, connector corrosion, and continuity before reuse. In many brownfield installations, the extension cable has been in service for a decade or more and should be replaced concurrently with the probe to avoid a repeat outage. The full signal chain — probe, extension cable, and proximitor module — should be treated as a matched set during any planned upgrade.

For installations where the 3300 NSv rack also houses a 3300/55 temperature monitor, a 3300/46M position monitor, or a 3300/25 relay module, the retrofit window should be used to inspect terminal block connections on those modules as well. Loose or oxidized terminals on adjacent I/O modules are a frequent source of nuisance alarms following a probe replacement, and addressing them during the same outage minimizes future unplanned downtime.

In control cabinets where the 3300 NSv rack is integrated with a DCS or safety system via a 3500/92 communication gateway or a Modbus TCP interface card, the probe replacement itself does not require any changes to the communication configuration. However, the OK relay output from the proximitor module should be verified to confirm that the new probe is recognized as healthy by the system before the machine is returned to service. If the plant uses a System 1 condition monitoring software platform, the probe channel should be confirmed as active and trending correctly before closing out the work order.

Plants migrating from older Bently Nevada 7200 series or 3000 series hardware to the 3300 NSv platform as part of a broader modernization program will find that the 330910-00-06-05-01-00 is a key enabling component. The 8mm probe format is consistent across the 3300 platform, and the same probe model is used in radial vibration, axial position, and differential expansion measurement configurations depending on the proximitor module selected. This commonality simplifies spare parts inventory management and reduces the risk of incorrect part substitution during emergency maintenance.

Downtime Control During System Migration

Minimizing machine downtime during a probe replacement or system migration is a primary concern for plant operations teams. The 330910-00-06-05-01-00 is designed for rapid field replacement: the probe body threads directly into the existing bracket without requiring bracket modification, and the coaxial connector mates to the extension cable without tools beyond a standard wrench for the locknut. A prepared technician with the correct gap-setting tool and a calibrated voltmeter can complete a single-channel probe swap in under 30 minutes on a machine that is already shut down.

For planned outages involving multiple probe replacements across a 3300 NSv rack, a channel-by-channel approach is recommended. Replace and verify one channel before moving to the next, using the proximitor OK relay status as a real-time confirmation of probe health. This approach preserves the ability to restart the machine on remaining healthy channels if the outage window is compressed, and it prevents the common error of mixing up probe-to-channel assignments in multi-shaft or multi-bearing configurations.

Where the 3300 NSv system is connected to a turbine control system or compressor control panel via hardwired 4–20 mA outputs or discrete relay contacts, the control system logic should be placed in manual or bypass mode for the affected channels during the probe swap. This prevents spurious trips or false alarms from propagating to the control system while the probe signal is interrupted. The bypass should be documented, time-limited, and removed immediately after the new probe is verified as healthy.

All units supplied by SMARTNEXMSK are subject to pre-shipment functional testing. Each 330910-00-06-05-01-00 probe is verified for dimensional conformance, connector integrity, and coil resistance before dispatch. This reduces the risk of receiving a defective unit and eliminates the need for incoming inspection beyond a visual check, further compressing the time from receipt to installation.

Retrofit Support FAQ

Q1: Is the 330910-00-06-05-01-00 a direct replacement for my existing probe without any wiring changes?
Yes. The 330910-00-06-05-01-00 uses the same M10 x 1.0 thread, the same coaxial connector interface, and the same output sensitivity as the original Bently Nevada specification. No wiring modifications, adapter cables, or bracket changes are required. After installation, verify the gap voltage at the proximitor input and confirm the OK relay is active before returning the machine to service.

Q2: Can this probe be used with both the 3300/16-24-01 and the 3300/20 proximitor modules?
Yes. The 330910-00-06-05-01-00 is compatible with the full range of 3300 NSv proximitor modules, including the 3300/16-24-01 and 3300/20 variants. The probe output characteristics are within the input specification of all standard 3300 NSv proximitor modules. Confirm the gap voltage target for your specific proximitor model from the Bently Nevada installation manual before setting the final probe gap.

Q3: What commissioning steps are required after installing the replacement probe?
After threading the probe to the correct gap distance and torquing the locknut, measure the DC gap voltage at the proximitor input terminals. The target range is typically -10 VDC to -18 VDC for an 8mm probe, depending on the target gap. Confirm the OK relay output is energized, check for clean AC vibration signal on the monitor display or System 1 software, and verify that no alert or danger alarms are active before releasing the machine to operations.

Q4: What warranty coverage is provided, and what does it include?
All 330910-00-06-05-01-00 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, dimensional non-conformance, and electrical failure under normal operating conditions. Units that fail within the warranty period will be replaced or credited at SMARTNEXMSK’s discretion. Pre-shipment functional testing is performed on all units prior to dispatch to minimize field failures.
