Bently Nevada 330910-00-06-05-01-CN Spare 3300 NSv

Bently Nevada 330910-00-06-05-01-CN Spare 3300 NSv: Precision Spare for Vibration Monitoring Downtime Recovery

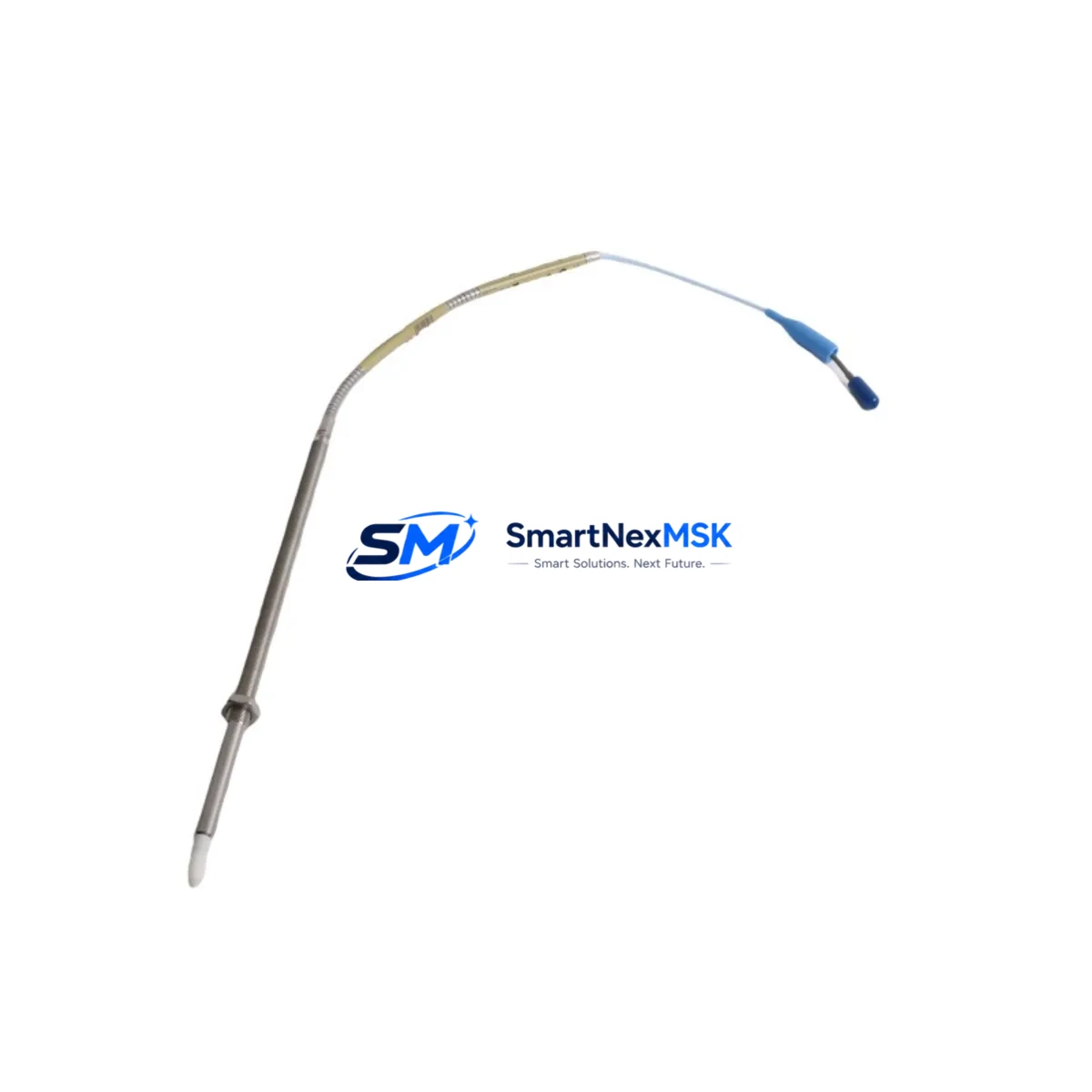

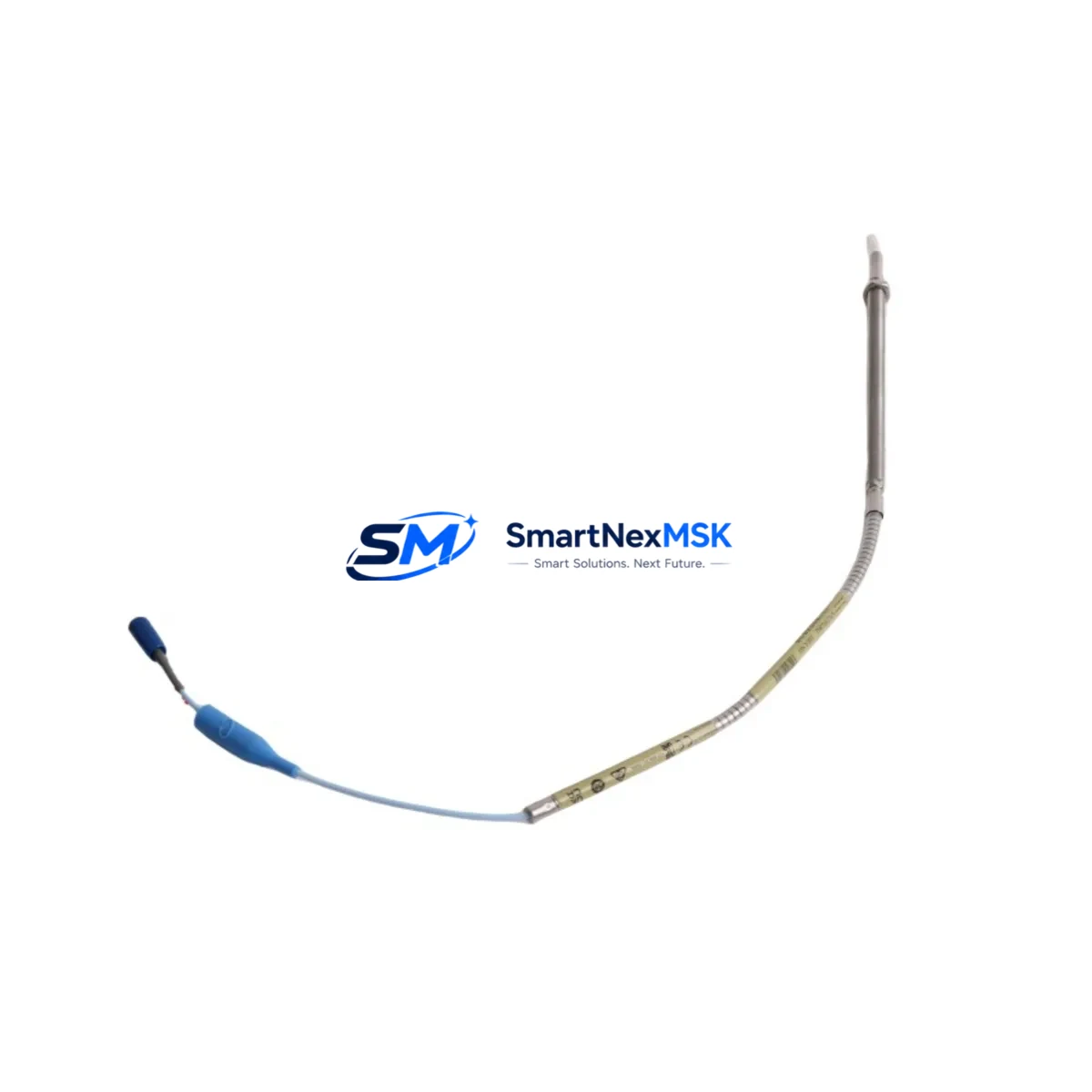

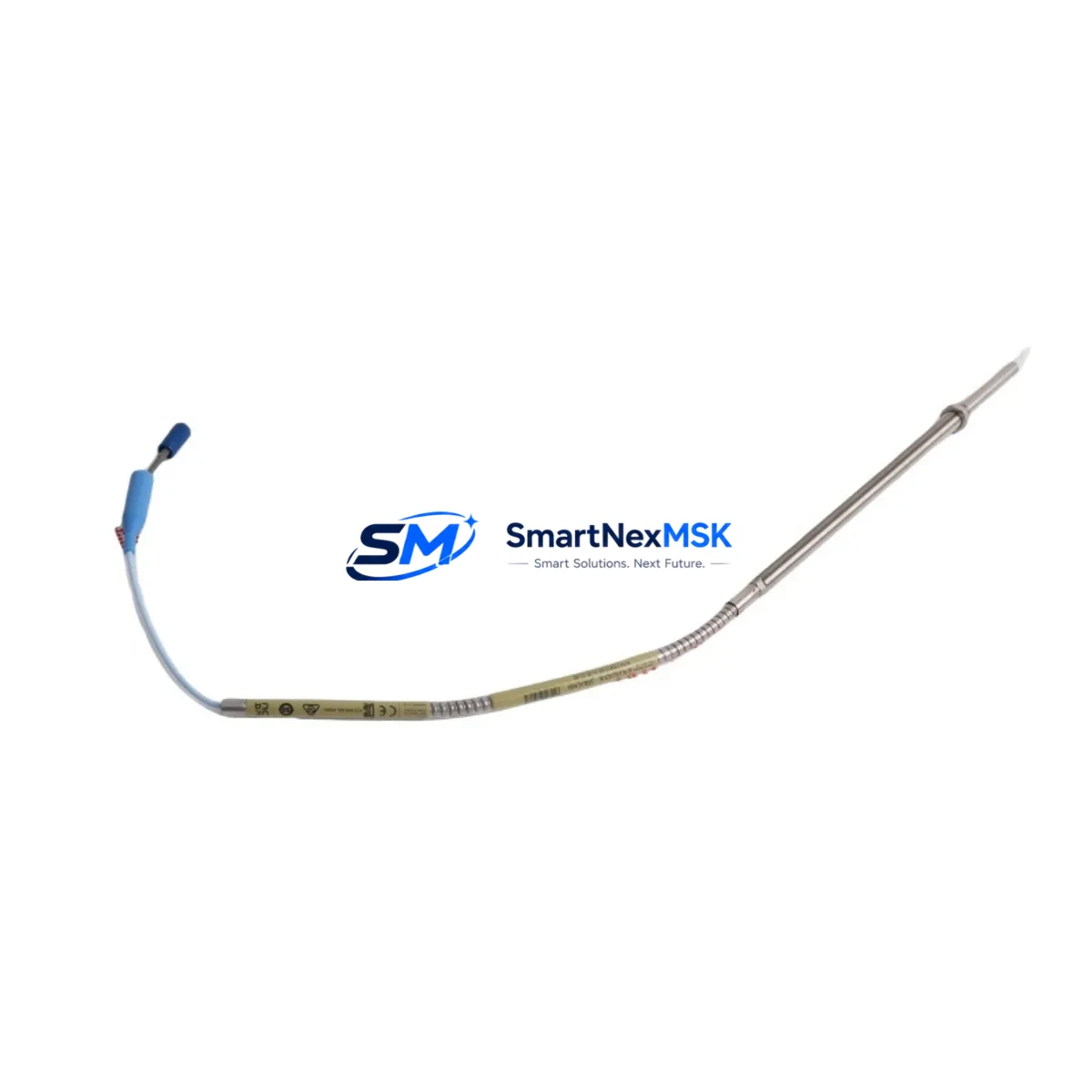

The Bently Nevada 330910-00-06-05-01-CN is an original proximity probe engineered for the 3300 NSv (Non-contact Shaft Vibration) monitoring system — one of the most widely deployed vibration measurement platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe represents a critical line-replaceable unit (LRU) whose failure can trigger immediate machinery shutdown and unplanned downtime.

This spare is stocked, tested, and shipped with a 12-month warranty to support both emergency replacement and planned maintenance cycles. Whether you are executing a scheduled outage, responding to a high-vibration alarm, or building a strategic spare parts inventory for a legacy 3300 NSv system, the 330910-00-06-05-01-CN delivers verified compatibility and fast restoration of your condition monitoring loop.

Maintenance and procurement engineers working with Bently Nevada 3300 Series systems understand that a single failed proximity probe can disable an entire channel — rendering the associated Keyphasor, radial vibration, or axial position measurement invalid. Sourcing a certified original replacement with documented traceability is not optional; it is a plant reliability requirement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330910-00-06-05-01-CN in the field, a disciplined maintenance engineer does not stop at the probe itself. The 3300 NSv measurement chain is a system — and any weak link can corrupt vibration data or cause nuisance trips. The following components should be inspected or replaced concurrently to ensure a complete and reliable restoration:

Begin with the 3300 NSv Driver/Oscillator (e.g., 330180-91-00 or equivalent). The driver powers the probe and converts gap distance to a DC voltage signal; a degraded driver will produce non-linear output even with a new probe installed. Inspect the driver’s output voltage at the nominal gap and verify it falls within the calibrated range.

Next, check the extension cable assembly — typically a 3300 NSv-compatible 5 m or 9 m cable. Damaged shielding, cracked connectors, or moisture ingress in the cable jacket are common failure modes in high-vibration environments. The cable is a consumable in aggressive installations and should be part of every probe replacement kit.

The Bently Nevada 3300/16 Radial Vibration Monitor card should be inspected for alarm setpoint integrity and channel configuration. After probe replacement, re-verify the OK relay status and confirm the channel is not latched in a fault state. If the monitor card has accumulated operating hours beyond its recommended service interval, consider stocking a spare 3300/16 card alongside the probe.

For systems using a Keyphasor probe (e.g., 330900-series) on the same shaft, verify that the Keyphasor signal is clean and phase-referenced correctly after reinstalling the radial probe. A disturbed Keyphasor can invalidate 1X and 2X vibration vector data across all channels on that machine train.

Inspect the terminal strip and field wiring in the junction box. Loose terminations, corroded lugs, or incorrect shielding grounding are frequent causes of elevated noise floors in proximity probe circuits. Use a calibrated multimeter to verify shield continuity and insulation resistance before closing the junction box.

If the machine is part of a Bently Nevada System 1 or 3500 Series migration path, confirm that the replacement probe’s sensitivity and gap voltage are correctly entered in the software configuration. Mismatched sensitivity factors will produce systematic measurement errors that are difficult to diagnose without a calibration reference.

For control cabinet integrity, also inspect the 24 VDC power supply module feeding the 3300 NSv rack. Voltage ripple or transient spikes from an aging power supply can introduce noise into the proximity probe signal chain. A dedicated, regulated DC supply with adequate current headroom is essential for measurement accuracy.

Finally, review the signal isolator or barrier (if installed between the driver output and the DCS/PLC analog input card). Zener barriers or galvanic isolators used in hazardous area installations can degrade over time, introducing offset errors or reducing bandwidth. Replace any isolator that shows signs of thermal stress or exceeds its rated service life.

Site Replacement Workflow

Replacing the 330910-00-06-05-01-CN on-site follows a structured sequence designed to minimize downtime and eliminate re-work. Before removing the old probe, document the installed gap voltage using the existing driver output — this establishes a baseline for the new probe’s gap setting. Record the reading in your maintenance management system (CMMS) against the equipment tag.

Remove the probe assembly by disconnecting the extension cable at the junction box first, then carefully unthreading the probe from its mounting bracket. Inspect the probe mounting threads and bracket for corrosion or mechanical damage. Clean the target area on the shaft and verify there are no surface defects that could affect the new probe’s linear range.

Install the replacement 330910-00-06-05-01-CN and set the air gap to the manufacturer-specified nominal value (typically 1.0 mm for a 6 mm probe on steel). Reconnect the extension cable and driver, then power up the channel. Verify the driver output voltage corresponds to the correct gap per the probe’s calibration curve. Confirm the monitor channel returns to OK status and that vibration readings are within expected baseline values for the machine at rest or at operating speed.

This workflow supports direct replacement of legacy 330910-series probes without requiring system reconfiguration, making it suitable for both emergency shutdowns and planned turnaround maintenance. The 330910-00-06-05-01-CN is a drop-in replacement for earlier 330910 variants with the same cable length and connector type, reducing the risk of compatibility errors during urgent repairs.

Spare Parts Support FAQ

Q1: Is the 330910-00-06-05-01-CN compatible with both 3300 NSv and 3300 XL monitoring systems?
The 330910-00-06-05-01-CN is designed for the 3300 NSv system. Compatibility with 3300 XL depends on the driver module in use. The probe’s 6 mm tip and CN connector are standard across the 3300 family, but always verify the driver part number and sensitivity specification before installation. Contact our technical team with your driver model for a compatibility confirmation.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every 330910-00-06-05-01-CN shipped by SMARTNEXMSK undergoes functional output verification at nominal gap, cable continuity testing, and connector integrity inspection before dispatch. The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. It does not cover damage from incorrect installation, mechanical impact, or operation outside specified parameters.

Q3: How should I manage spare inventory for a fleet of 3300 NSv systems?
For plants operating multiple machines with 3300 NSv monitoring, we recommend maintaining a minimum of one probe assembly per critical machine train, plus one driver module per rack as a cold spare. Probes in high-vibration or high-temperature environments should be inspected at every planned outage and replaced on a condition basis rather than a fixed interval. Centralizing spare stock under a single part number (330910-00-06-05-01-CN) simplifies procurement and reduces lead time risk.

Q4: Can this probe replace older 330910 variants with different suffix codes?
The suffix codes in the 330910 series encode cable length, connector type, and probe tip configuration. The 330910-00-06-05-01-CN specifies a 6 mm tip, 5 m cable, and CN connector. It is a direct replacement for units with identical suffix parameters. For cross-reference to other suffix variants, provide your existing probe’s full part number and we will confirm interchangeability before shipment.
