Bently Nevada 330910-00-07-10-02-CN 3300 NSv Spare

Bently Nevada 330910-00-07-10-02-CN 3300 NSv Spare: Precision Spare Parts Replacement for Industrial Downtime Control

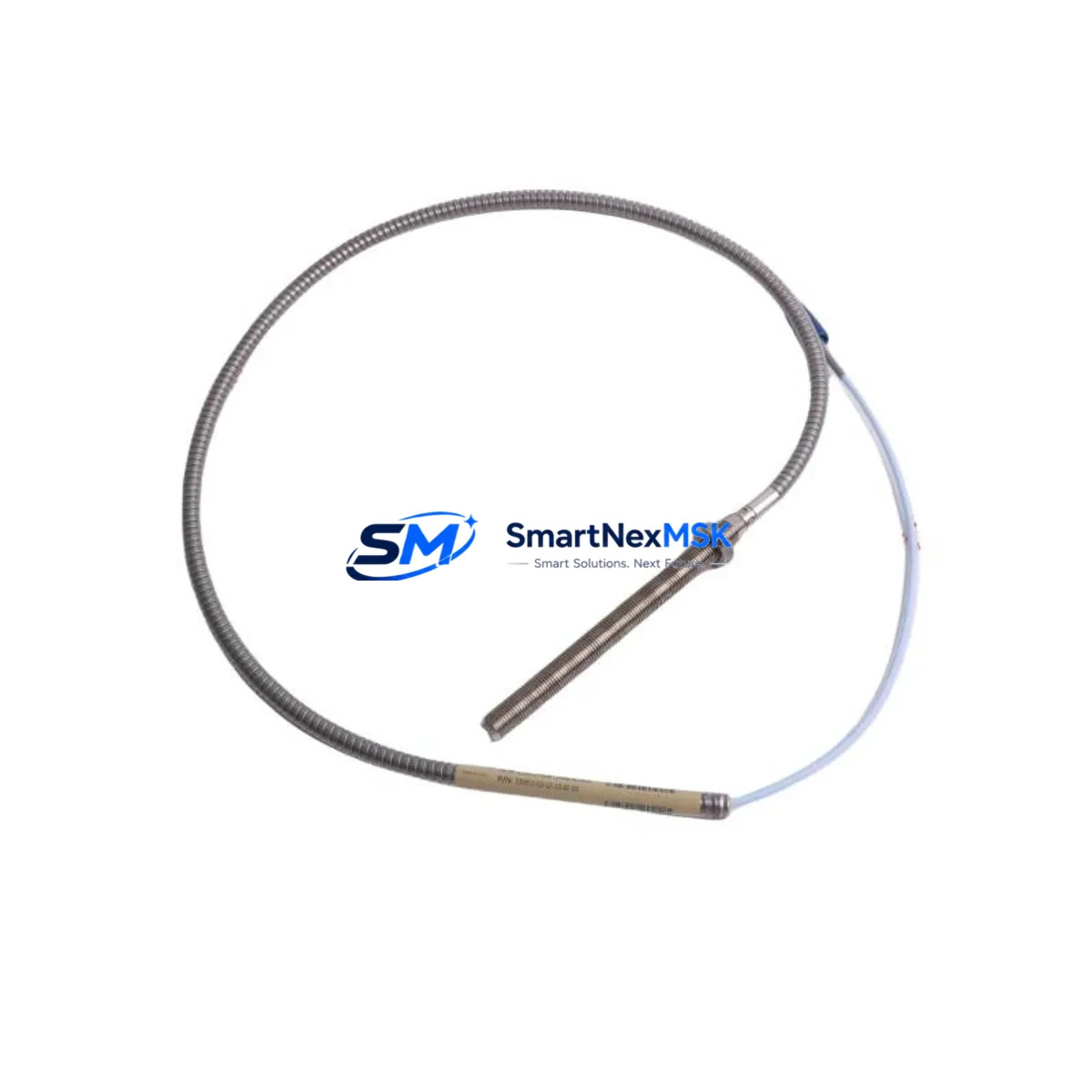

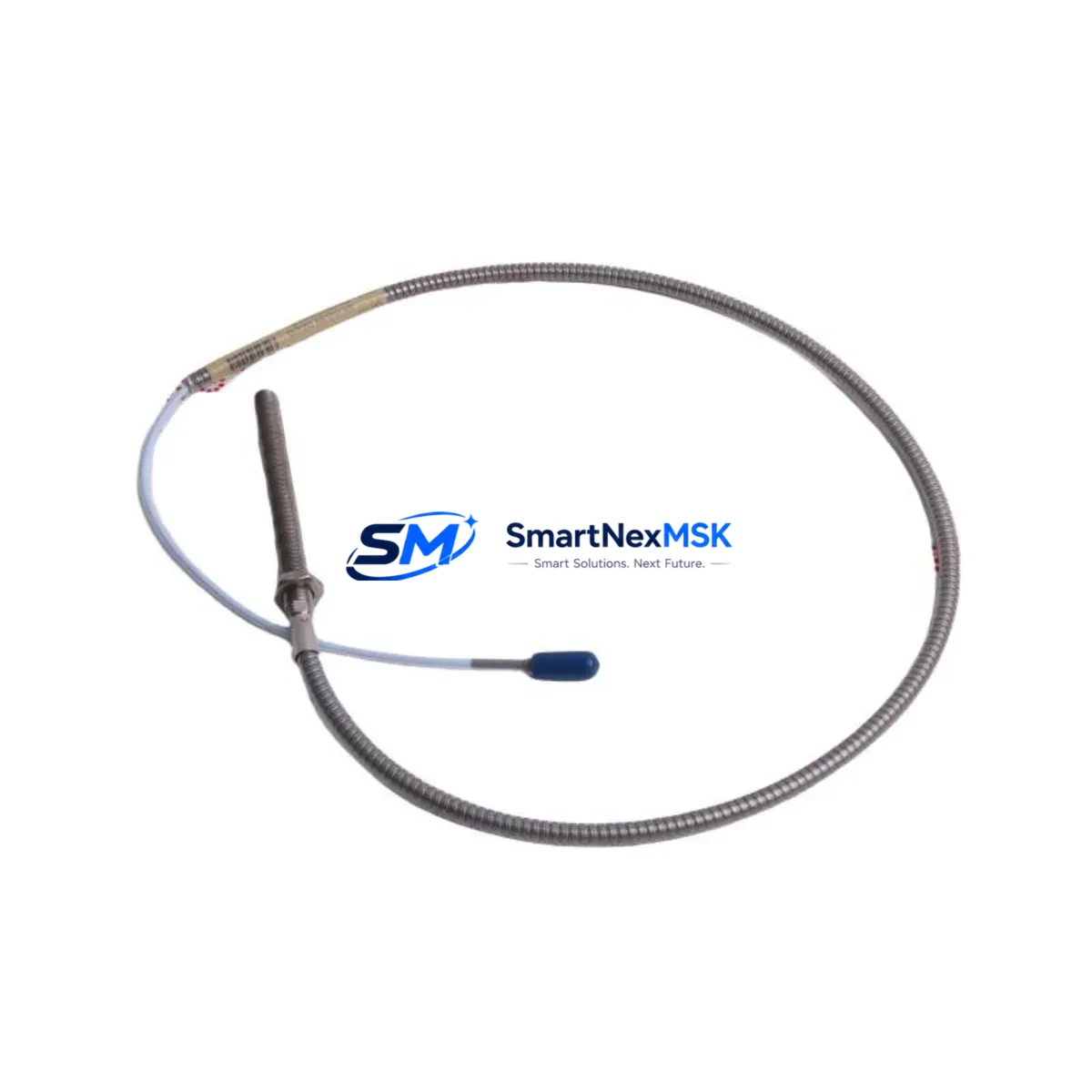

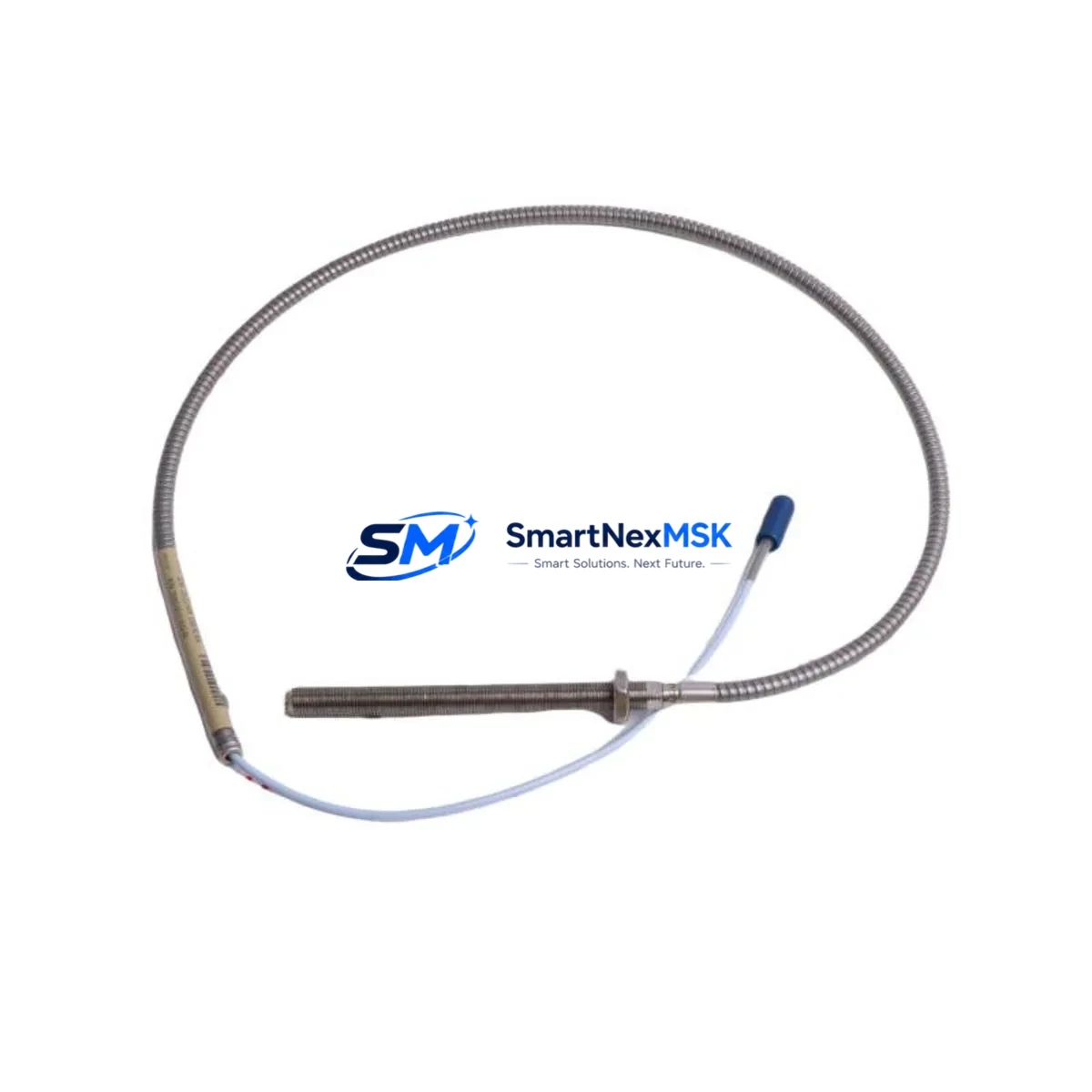

The Bently Nevada 330910-00-07-10-02-CN is an original eddy current proximity probe engineered for the 3300 NSv series vibration monitoring system. Designed for continuous shaft displacement and vibration measurement in rotating machinery, this probe is a critical maintenance-ready spare for turbines, compressors, pumps, and generators operating in oil & gas, power generation, and heavy industrial environments. When a proximity probe fails or degrades, the consequences extend beyond a single sensor — the entire vibration monitoring loop is compromised, risking undetected shaft excursions, bearing failures, and unplanned shutdowns.

At SMARTNEXMSK, every 330910-00-07-10-02-CN unit is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a 12-month warranty. Our inventory is maintained to support both emergency replacement and planned maintenance schedules, ensuring your facility can restore monitoring capability with minimal downtime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330910-00-07-10-02-CN probe is rarely an isolated task. Maintenance engineers performing a planned outage or responding to a vibration alarm should treat the probe replacement as the starting point of a broader loop inspection. The 3300 NSv system relies on a matched set of components — the probe, the extension cable (such as the 330130-045-00-00 or 330130-080-00-00 series), and the Proximitor driver module (typically a 330180 or 330185 series unit) — all of which must be calibrated together to maintain system accuracy.

During the same maintenance window, technicians should verify the condition of the 3300 NSv rack-mounted I/O modules and confirm that the 3500/22M transient data interface or equivalent monitor card is receiving clean signal. Loose or corroded terminal blocks on the I/O barrier strip are a common source of false alarms and should be inspected and re-torqued. If the control cabinet houses a Bently Nevada 3500 series rack, this is also the appropriate time to check the 3500/15 power supply module for output voltage stability, as a marginal power supply can cause intermittent probe faults that mimic mechanical issues.

For facilities running legacy DCS or safety instrumented systems, the 4–20 mA output from the Proximitor may feed into a Yokogawa, Emerson, or Honeywell DCS I/O card. Verifying signal integrity at the marshalling cabinet — including checking signal isolators and surge protection barriers — prevents nuisance trips after probe replacement. Where the vibration signal is also wired to a safety relay or SIS voting logic, confirm that the relay module (such as a Phoenix Contact or Pilz safety relay) is not latched in a fault state before returning the machine to service.

Procurement engineers should consider stocking at minimum one spare probe, one spare extension cable, and one spare Proximitor driver per critical machine train. For facilities with multiple identical trains, a consolidated spare parts list covering the 330910 probe family, 330130 extension cables, and 330180 Proximitor sensors reduces emergency procurement lead times significantly.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the machine from the control system. Confirm the 3500 monitor rack is in bypass or the channel is inhibited to prevent spurious trips during probe removal.

Step 2 — Gap Measurement: Before removing the old probe, record the installed gap voltage using a calibrated voltmeter at the Proximitor output. This baseline confirms the target shaft surface condition and provides a reference for reinstallation.

Step 3 — Probe Removal: Unscrew the probe from the bracket using the appropriate spanner. Inspect the probe tip for impact damage, contamination, or corrosion. Inspect the probe holder and bracket for wear or misalignment.

Step 4 — Cable & Connector Inspection: Examine the integral cable and the extension cable junction for chafing, moisture ingress, or connector pin damage. Replace the extension cable if the outer jacket is cracked or if continuity is intermittent.

Step 5 — Installation of 330910-00-07-10-02-CN: Thread the new probe into the bracket and set the gap to the manufacturer-specified nominal (typically 50 mil / 1.27 mm for most steel targets). Verify gap voltage at the Proximitor output falls within the linear range (approximately -10 VDC ± 1 VDC at nominal gap).

Step 6 — System Verification: Remove the channel inhibit, observe the vibration reading on the 3500 monitor or DCS display, and confirm the reading is stable and within normal operating range. Document the as-left gap voltage and vibration baseline in the maintenance record.

This workflow applies equally to radial vibration, axial position, and differential expansion probe installations across the 3300 NSv and 3500 series platforms, making the 330910-00-07-10-02-CN a versatile and interchangeable spare across multiple machine trains.

Spare Parts Support FAQ

Q1: Is the 330910-00-07-10-02-CN compatible with both the 3300 NSv and 3500 series monitor racks?
Yes. The 330910 probe family is designed for use with the 3300 NSv Proximitor sensor and is fully compatible with 3500 series monitor racks when paired with the correct Proximitor driver. Always verify the system scale factor and gap range match the monitor configuration before installation.

Q2: What is the recommended spare parts stocking strategy for this probe?
For critical rotating machinery, we recommend maintaining at least one probe, one matched extension cable, and one Proximitor driver as on-site cold spares. For facilities with multiple identical machine trains, a shared pool of two to three probe assemblies per probe model reduces both cost and emergency lead time.

Q3: How is the 330910-00-07-10-02-CN tested before shipment?
Every unit undergoes functional verification including output voltage linearity check across the specified gap range, cable continuity and insulation resistance test, and connector integrity inspection. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q4: Can this probe replace older or discontinued Bently Nevada proximity probe models?
The 330910-00-07-10-02-CN can serve as a direct replacement for earlier 7 mm, 10 ft cable, CN-connector variants within the 3300 series family, provided the Proximitor driver and extension cable are also matched to the 3300 NSv specification. For cross-series compatibility (e.g., replacing a 330105 or 330780 series probe), consult the system documentation or contact our technical team to confirm interchangeability before installation.
