Bently Nevada 330910-00-10-50-02-05 Retrofit-Ready Proximity Transducer for 3300 XL NSv

Bently Nevada 330910-00-10-50-02-05 Retrofit-Ready Proximity Transducer for 3300 XL NSv Control Systems

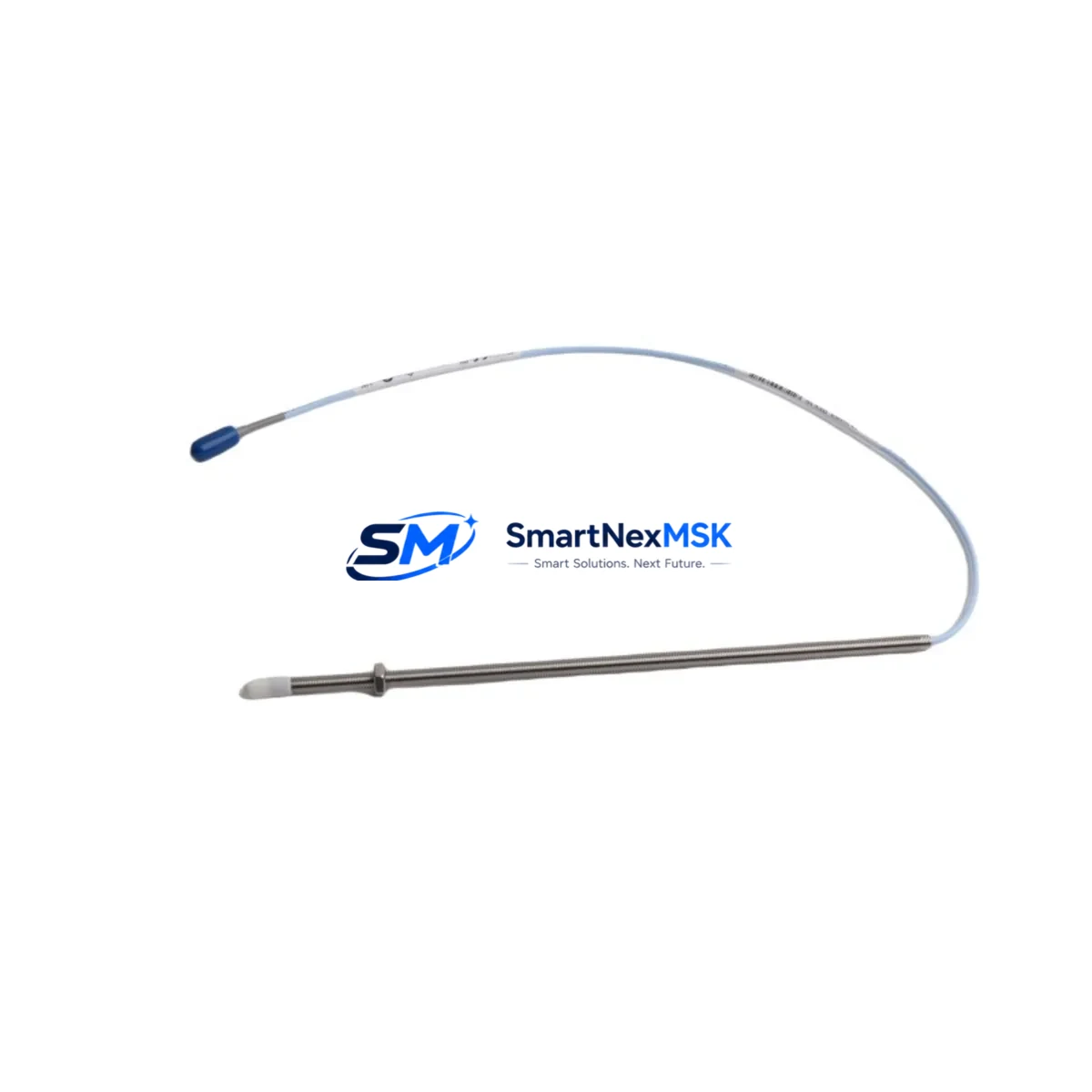

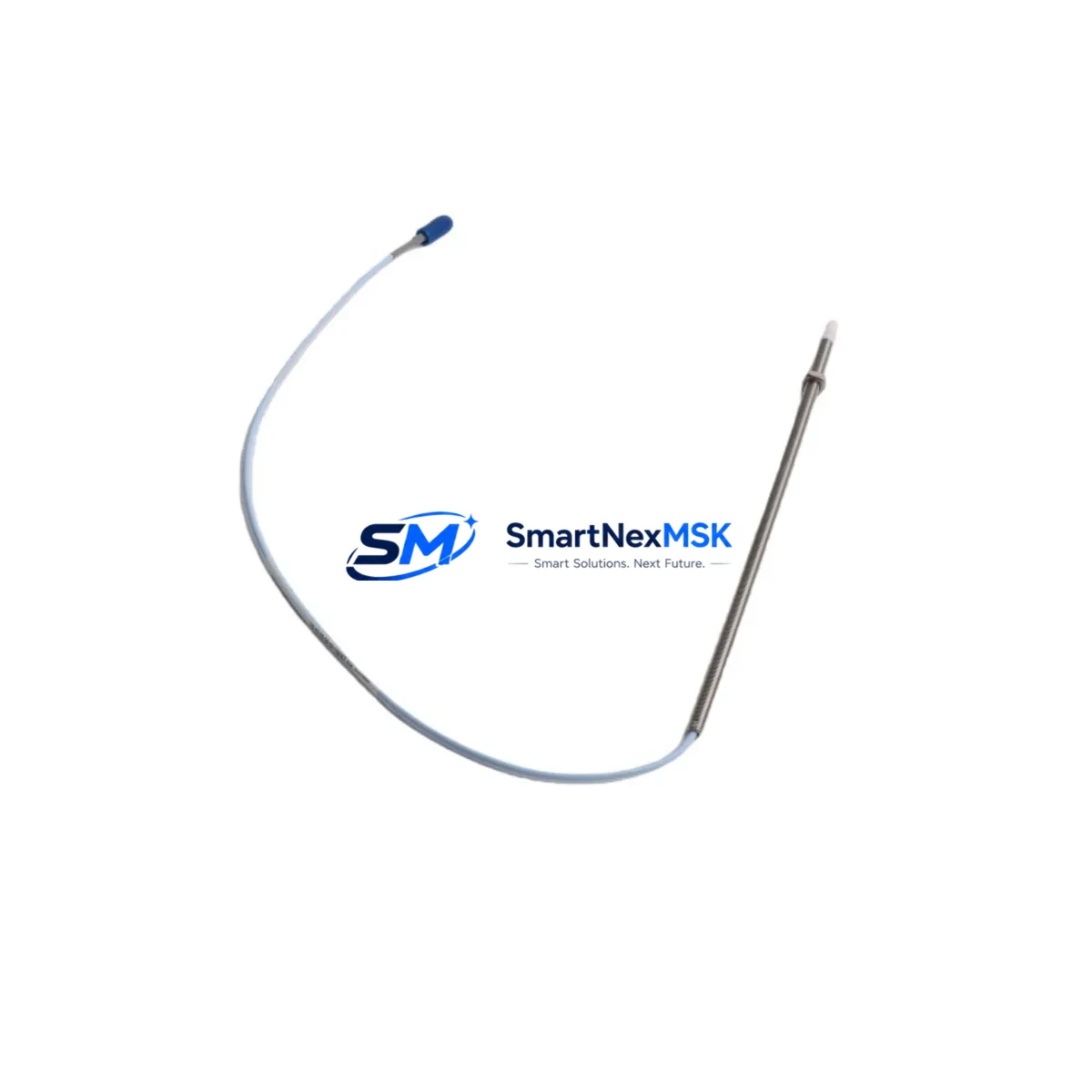

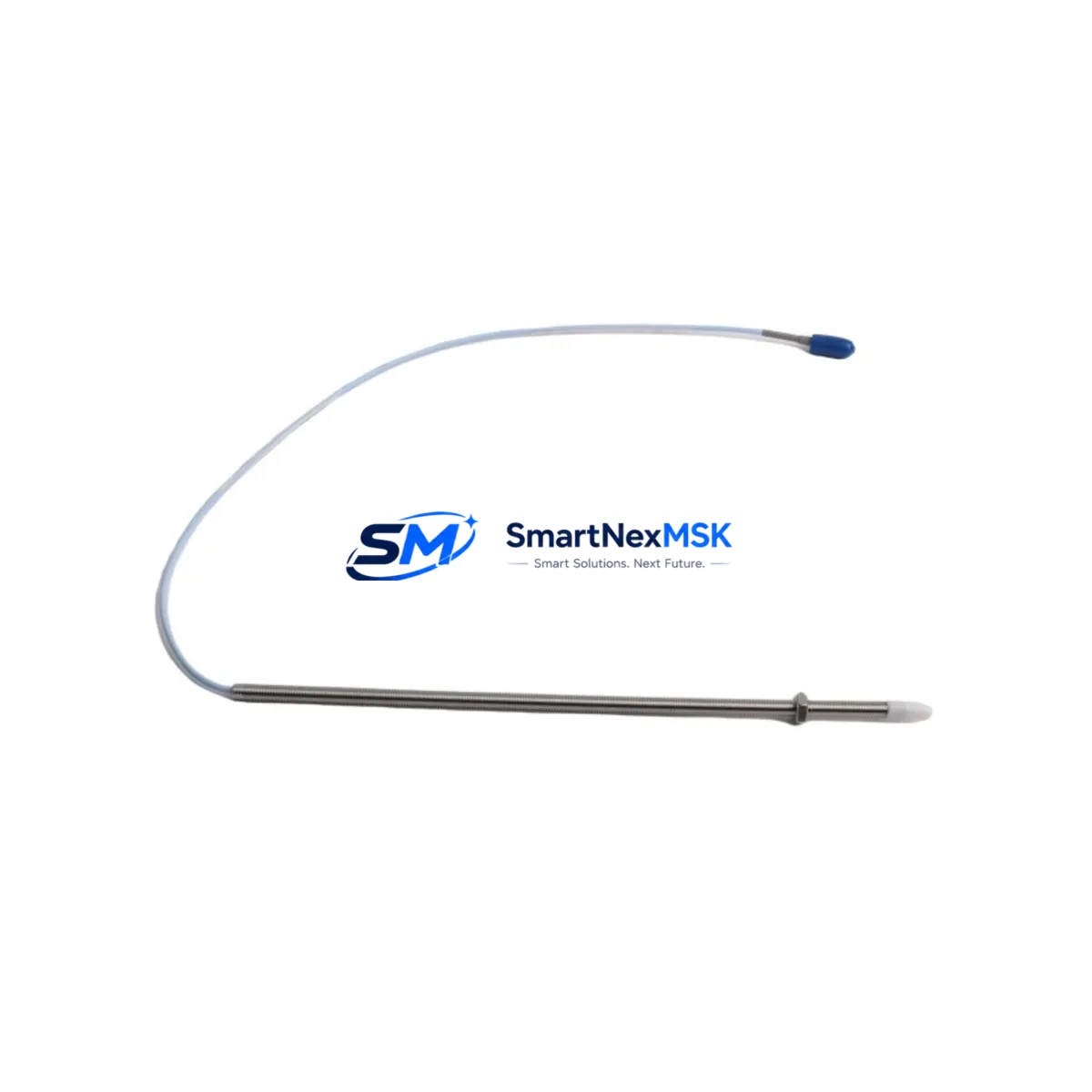

The Bently Nevada 330910-00-10-50-02-05 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSv Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life or face discontinued spare parts availability, this transducer serves as a verified drop-in replacement that preserves existing wiring infrastructure, signal conditioning architecture, and machinery protection logic without requiring a full system overhaul.

Industrial facilities operating steam turbines, gas compressors, centrifugal pumps, and large rotating equipment rely on the 3300 XL NSv system for continuous shaft vibration, axial position, and eccentricity monitoring. When the original 330910-00-10-50-02-05 transducer reaches the end of its service life or is damaged during maintenance, sourcing a compatible replacement with verified calibration data is critical to maintaining API 670 compliance and avoiding unplanned shutdowns.

This unit ships pre-tested and calibrated to Bently Nevada factory specifications, with a scale factor of 200 mV/mil (7.87 V/mm), an operating range of 25–200 mil (0.635–5.08 mm), and a frequency response suitable for both static and dynamic displacement measurements. The 5-meter integral cable assembly terminates in a standard Bently Nevada connector compatible with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor housing, eliminating the need for field re-termination or cable replacement in most retrofit scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330910-00-10-50-02-05 into an operating plant environment requires a structured pre-outage engineering review. Before scheduling the replacement window, maintenance engineers should pull the existing channel configuration from the 3300 XL Monitor — typically a 3300/16 or 3300/20 dual-channel vibration monitor — and confirm that the transducer scale factor, OK limits, and alert/danger setpoints stored in the monitor’s non-volatile memory match the replacement unit’s calibration certificate.

In systems where the 3300 XL Proximitor Sensor (the signal conditioning driver) has also aged beyond its recommended service interval, it is advisable to replace the Proximitor simultaneously rather than risk a second outage within months. The Proximitor housing mounts directly to the machinery casing or a bracket adjacent to the bearing cap, and its output connects via the 3300 XL 8mm Extension Cable to the monitor rack. Verifying the extension cable continuity and shield integrity before reinstallation prevents intermittent signal faults that are difficult to diagnose under load.

For facilities running a full 3300 XL rack — which may include the 3300/55 Keyphasor Module for phase reference, the 3300/46M Eccentricity Monitor, and the 3300/25 Thrust Position Monitor alongside vibration channels — the transducer replacement should be coordinated with a rack-level I/O audit. Each monitor card’s terminal block wiring should be photographed and verified against the as-built loop drawings before disconnection. The 3300 XL system communicates with the plant DCS or safety system via hardwired relay contacts or, in newer integrations, through a 3500 Series gateway module using Modbus RTU or Ethernet/IP — confirming that the replacement transducer’s OK relay output is correctly mapped in the DCS logic prevents nuisance trips during restart.

Where the plant is migrating from the legacy 3300 XL platform toward the Bently Nevada 3500 Series machinery protection system, the 330910-00-10-50-02-05 transducer remains fully compatible with 3500/42M Proximitor I/O Modules, allowing a phased migration strategy: replace the monitor rack first while retaining existing transducers and cabling, then upgrade transducers during the next scheduled turnaround. This approach minimizes capital expenditure per outage and avoids the risk of simultaneous multi-point failures during a full cutover.

All replacement units supplied by SMARTNEXMSK are function-tested prior to shipment, with gap voltage, scale factor linearity, and OK threshold verified against the original Bently Nevada calibration standard. A calibration certificate and test report accompany each unit, supporting your site’s incoming inspection and quality records requirements.

Downtime Control During System Migration

Minimizing production downtime during a proximity transducer replacement on a critical rotating machine requires pre-staging all materials, tools, and documentation before the machine is taken offline. The replacement 330910-00-10-50-02-05 should be bench-tested against a reference target material (typically AISI 4140 steel) to confirm the gap voltage curve matches the calibration certificate before the outage begins — this eliminates the risk of discovering a calibration discrepancy after the machine is already shut down.

During the outage, the original program logic in the 3300 XL Monitor does not require modification for a like-for-like transducer replacement, provided the replacement unit carries the same scale factor and OK limits. The monitor’s configuration — including alert multipliers, danger setpoints, and time delays — remains intact in non-volatile memory and does not need to be re-entered. This is a significant advantage over platform migrations that require full I/O remapping and HMI screen reconfiguration.

For sites where the 3300 XL system feeds vibration data to a plant historian or condition monitoring platform via a 3300 XL Data Manager or a third-party OPC server, the data channel tag assignments remain unchanged after a transducer swap, preserving trend history continuity. Operators should monitor the first 30 minutes of post-restart operation closely, comparing live vibration amplitude and phase readings against the pre-outage baseline stored in the historian to confirm the replacement transducer is performing within expected parameters.

SMARTNEXMSK maintains ready stock of the 330910-00-10-50-02-05 and related 3300 XL Series components to support emergency replacement scenarios, with same-day dispatch available for confirmed orders placed before 14:00 CST. All units are covered by a 12-month warranty from the date of shipment, with direct technical support available to assist with installation verification and commissioning questions.

Retrofit Support FAQ

Q1: Is the 330910-00-10-50-02-05 a direct replacement for the original Bently Nevada part, or are there wiring differences I need to account for?
A: This unit is a direct drop-in replacement for the original 330910-00-10-50-02-05. The connector, cable length, thread size, and electrical characteristics are identical to the factory original. No wiring modifications are required. After installation, verify the gap voltage at the Proximitor output terminal falls within the OK window specified on the monitor’s configuration sheet — typically between –10.0 VDC and –18.0 VDC for standard steel targets.

Q2: Can this transducer be used with the Bently Nevada 3500 Series monitors if we are migrating platforms?
A: Yes. The 330910-00-10-50-02-05 is compatible with 3500/42M Proximitor I/O Modules when used with the appropriate 3500 Series Proximitor driver. This makes it suitable for phased migration projects where the monitor rack is upgraded before the field transducers, allowing existing cabling and transducer installations to be retained during the transition period.

Q3: What commissioning checks should be performed after installing the replacement transducer?
A: After installation, perform the following: (1) Measure gap voltage at the Proximitor output and confirm it falls within the OK range. (2) Verify the OK relay on the 3300 XL Monitor has closed and the channel is not in a fault state. (3) Compare the live vibration reading (in mils pk-pk or µm pk-pk) against the pre-outage baseline. (4) Check the signal noise floor with the machine at rest to confirm cable shielding integrity. (5) Confirm the channel data is updating correctly in the DCS or historian.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
A: The 12-month warranty covers manufacturing defects, calibration drift beyond factory tolerance, and connector or cable integrity failures under normal operating conditions. It does not cover damage resulting from incorrect installation gap settings, electrical overstress, or physical impact. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with your order number, a description of the fault, and the calibration certificate supplied with the unit. Replacement or repair will be arranged within 5 business days of fault confirmation.
