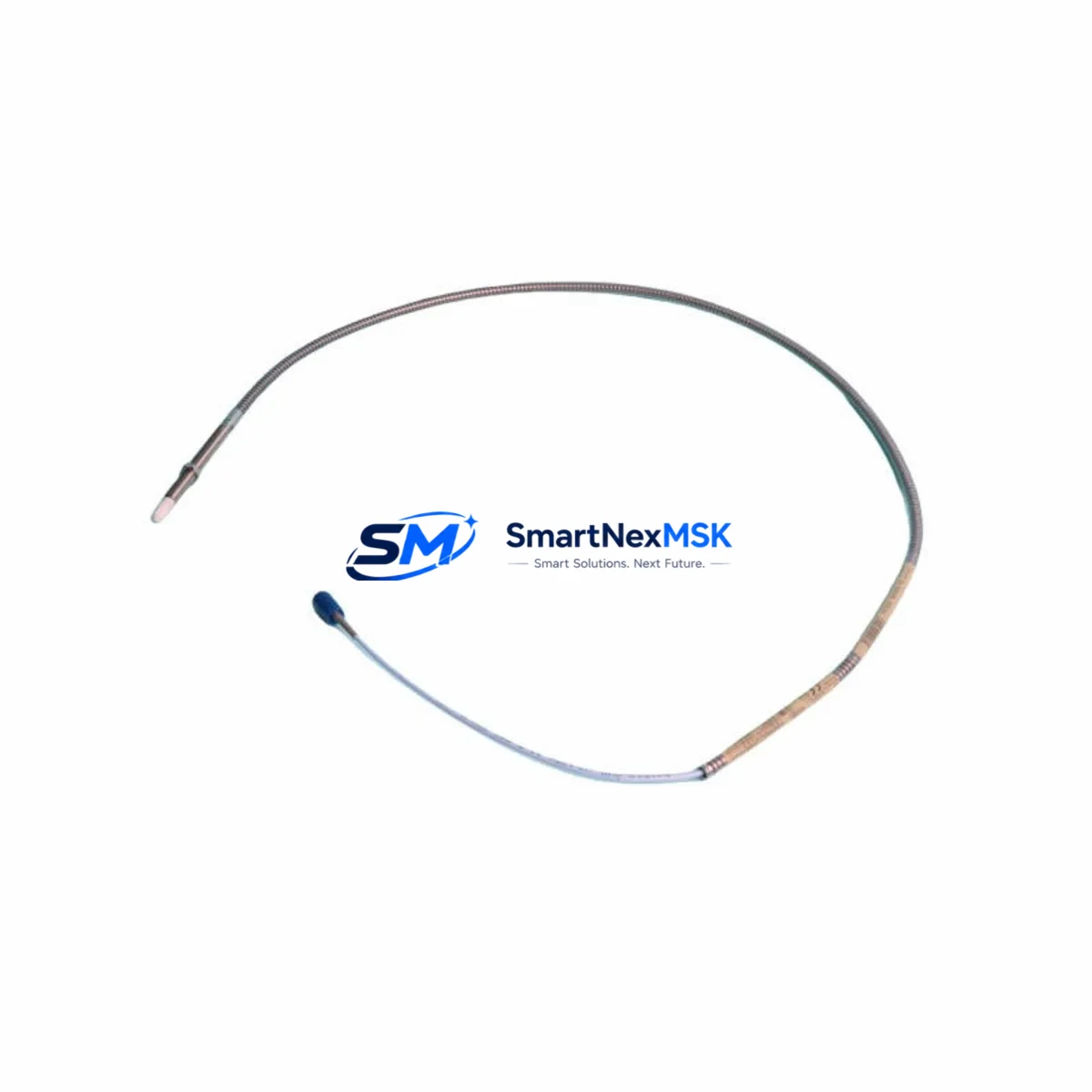

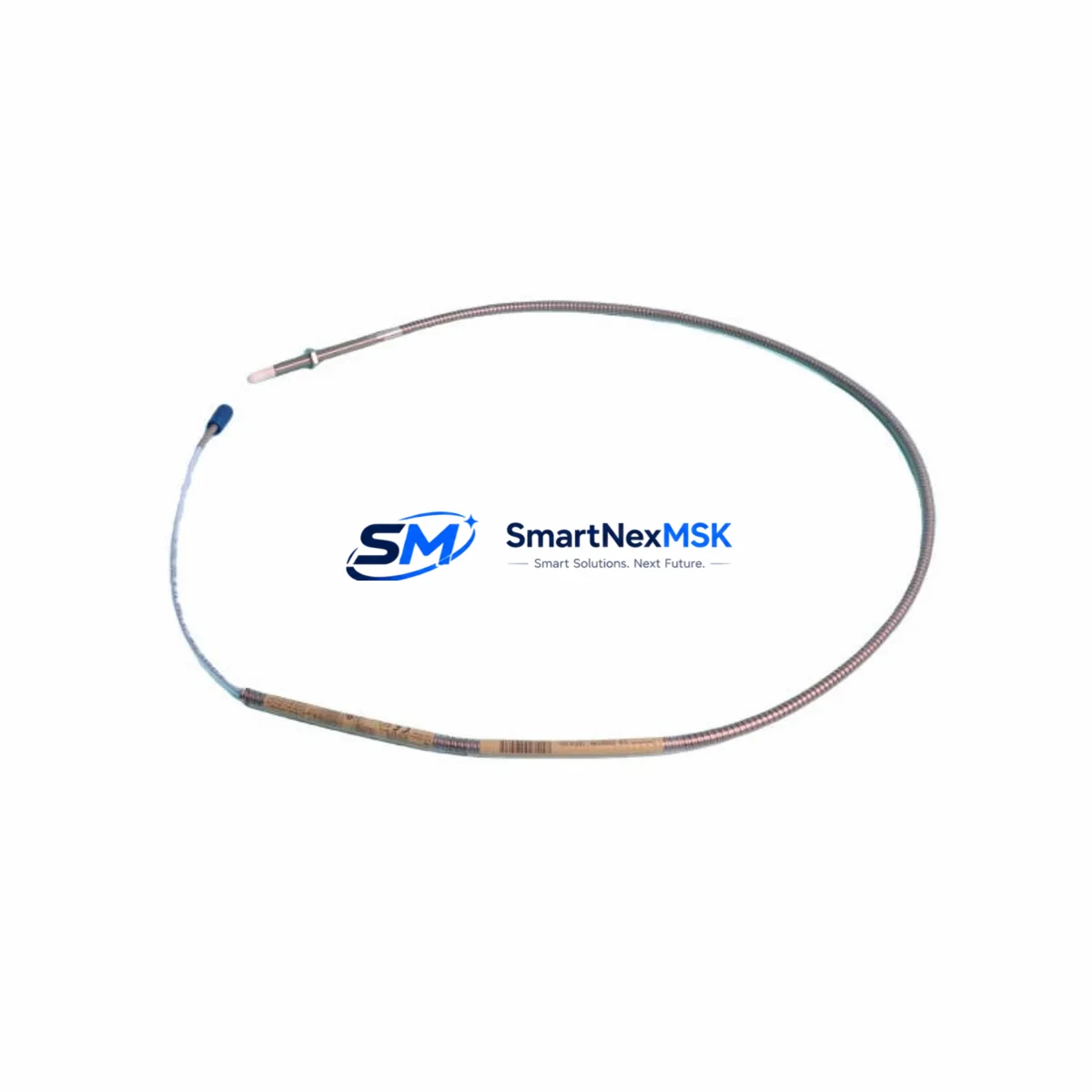

Bently Nevada 330910-00-14-10-02-05 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330910-00-14-10-02-05 is a 5mm eddy current proximity transducer engineered for seamless integration into legacy 3300 XL Series vibration monitoring systems. Whether you are executing a planned control system modernization, replacing a discontinued spare, or recovering from an unplanned shutdown, this transducer delivers verified drop-in compatibility with existing Bently Nevada 3300 XL monitor racks, junction boxes, and signal conditioning modules — without requiring firmware changes or re-engineering of the monitoring loop.
Industrial facilities operating rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — rely on continuous shaft displacement monitoring to prevent catastrophic failure. When a proximity transducer reaches end-of-life or a legacy unit becomes unavailable through OEM channels, the 330910-00-14-10-02-05 provides a qualified, tested replacement that restores full API 670 compliance and maintains the integrity of your existing vibration protection architecture.
Upgrade Compatibility Table
| Parameter | 330910-00-14-10-02-05 (This Unit) | Retrofit Notes |
|---|---|---|
| Series Compatibility | Bently Nevada 3300 XL | Direct replacement; no rack modification required |
| Tip Diameter | 5 mm | Verify existing probe bore; 8mm variants require different SKU |
| Cable Length | 10 m (extension cable included) | Match total system cable length to driver calibration range |
| Connector Interface | Standard BNC / coaxial | Compatible with 3300 XL junction box terminal blocks |
| Communication / Signal | Analog voltage output (–24 VDC bias) | No protocol migration required; direct signal loop continuity |
| Installation Requirement | Threaded probe mount, standard gap setting | Re-gap to 1.0–1.5 mm per OEM specification during commissioning |
| Replacement Recommendation | Pair with 3300 XL driver module (e.g., 330180-X1-05) | Confirm driver calibration range matches probe tip size |
| Commissioning Focus | Gap voltage verification, OK relay status, Keyphasor® sync | Use portable oscilloscope or Bently Nevada Trendmaster interface |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330910-00-14-10-02-05 into an operating plant begins well before the maintenance window opens. The first step is a full audit of the existing monitoring loop: confirm the installed 3300 XL driver module part number (commonly the 330180-51-05 or 330180-91-05 variant), verify the junction box wiring diagram, and document the current gap voltage at the operating shaft position. This baseline data ensures that the replacement transducer is calibrated to the same linear range as the outgoing unit.
In systems where the 3300 XL rack also hosts a 3300/16 Dual Voting Trip module or a 3300/20 Overspeed Detection module, it is critical to confirm that the new transducer’s output characteristics remain within the trip setpoint thresholds already programmed in the monitor. No setpoint changes should be made during the transducer swap unless a formal Management of Change (MOC) process has been completed.
For facilities migrating from older 7200 Series or 3000 Series Bently Nevada hardware to the 3300 XL platform, the 330910-00-14-10-02-05 is a natural anchor point. The migration typically also involves replacing the 3300 XL power supply module (such as the 3300/05 Power Supply), updating the rack backplane connections, and re-terminating field cables at the new junction box. If the plant uses a System 1 condition monitoring software platform, the new transducer’s channel must be re-mapped in the database and the dynamic data acquisition parameters re-confirmed.
Where I/O expansion is part of the modernization scope — for example, adding shaft absolute vibration channels using a seismic velocity transducer alongside the existing proximity probe — the rack slot allocation must be reviewed to ensure sufficient card slots remain in the 3300 XL chassis. In multi-train installations, it is common to also address Keyphasor® module wiring at the same time, since the Keyphasor® signal is shared across multiple monitor channels and any wiring disturbance can affect phase reference accuracy across the entire protection system.
All replacement units supplied by SMARTNEXMSK undergo a pre-shipment functional test that verifies output linearity, OK relay operation, and connector integrity. Units are shipped with a test certificate and are backed by a 12-month warranty covering manufacturing defects.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer replacement requires a structured hot-swap protocol. Where the process permits a brief bypass, the 3300 XL monitor’s bypass switch should be engaged on the affected channel before the probe is removed. This prevents a spurious trip signal from propagating to the Emergency Shutdown System (ESD) or Distributed Control System (DCS) during the physical swap.
The original probe should be removed carefully, with the gap distance measured and recorded before extraction. The replacement 330910-00-14-10-02-05 is then installed and gapped to the same dimension, and the output voltage is verified at the driver module before the bypass is released. This procedure typically takes 20–40 minutes per channel and can be executed during a short process hold without a full unit shutdown.
For systems where the 3300 XL monitor is integrated with a Programmable Logic Controller (PLC) — for example, a Rockwell Automation ControlLogix or Siemens S7-300 platform receiving the vibration OK signal as a digital input — the PLC program logic should be reviewed to confirm that the bypass state is correctly handled and that no latched fault conditions will prevent a clean restart. If the plant uses a HART-enabled transmitter alongside the proximity system for process variable monitoring, the HART loop should also be verified for continuity after the swap.
Maintaining a small buffer stock of the 330910-00-14-10-02-05 at site level is strongly recommended for critical rotating equipment. A single spare unit per train, stored in the original packaging in a climate-controlled environment, provides insurance against lead-time exposure and allows maintenance teams to execute unplanned replacements within a single shift.
Retrofit Support FAQ
Q: Is the 330910-00-14-10-02-05 a direct drop-in replacement for the original Bently Nevada unit?
A: Yes. This unit is manufactured to the same dimensional and electrical specifications as the original 330910-00-14-10-02-05 and is compatible with all standard 3300 XL Series driver modules and junction boxes. No mechanical modification or recalibration of the driver is required, provided the total system cable length remains within the driver’s specified range.
Q: What commissioning steps are required after installation?
A: After physical installation, set the probe gap to achieve the nominal –10 VDC output at the operating shaft position (typically 1.0–1.5 mm gap for a 5mm probe). Verify the OK relay is energized, confirm the vibration reading is within expected baseline range, and release the monitor bypass. Document the as-found and as-left gap voltages in the maintenance record.
Q: Can this transducer be used with non-Bently Nevada driver modules?
A: The 330910-00-14-10-02-05 is optimized for use with Bently Nevada 3300 XL Series driver modules. Use with third-party drivers is possible if the driver is calibrated for a 5mm eddy current probe with the same sensitivity (200 mV/mil or 7.87 V/mm), but compatibility must be verified by the end user. SMARTNEXMSK recommends pairing this probe with the original Bently Nevada driver for guaranteed performance.
Q: What does the 12-month warranty cover, and what is included with shipment?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit is pre-tested before dispatch and ships with a functional test certificate. The warranty does not cover damage resulting from incorrect installation, improper gapping, or operation outside the specified electrical parameters. Replacement or repair is provided at no charge for confirmed warranty claims.
