Bently Nevada 330910-00-16-05-01-00 Spare 3300 XL Automation: Precision Spare Part for Vibration Monitoring Downtime Control

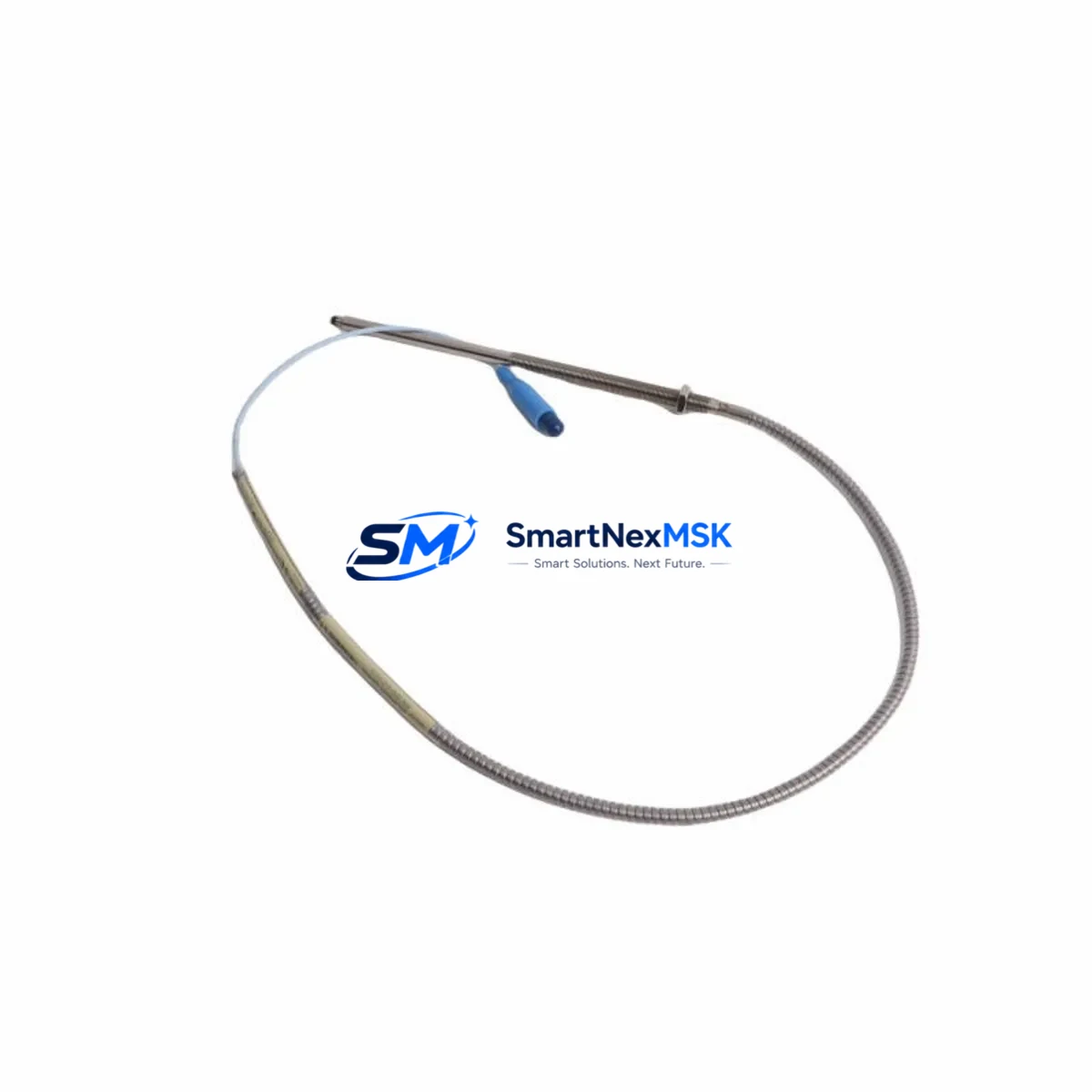

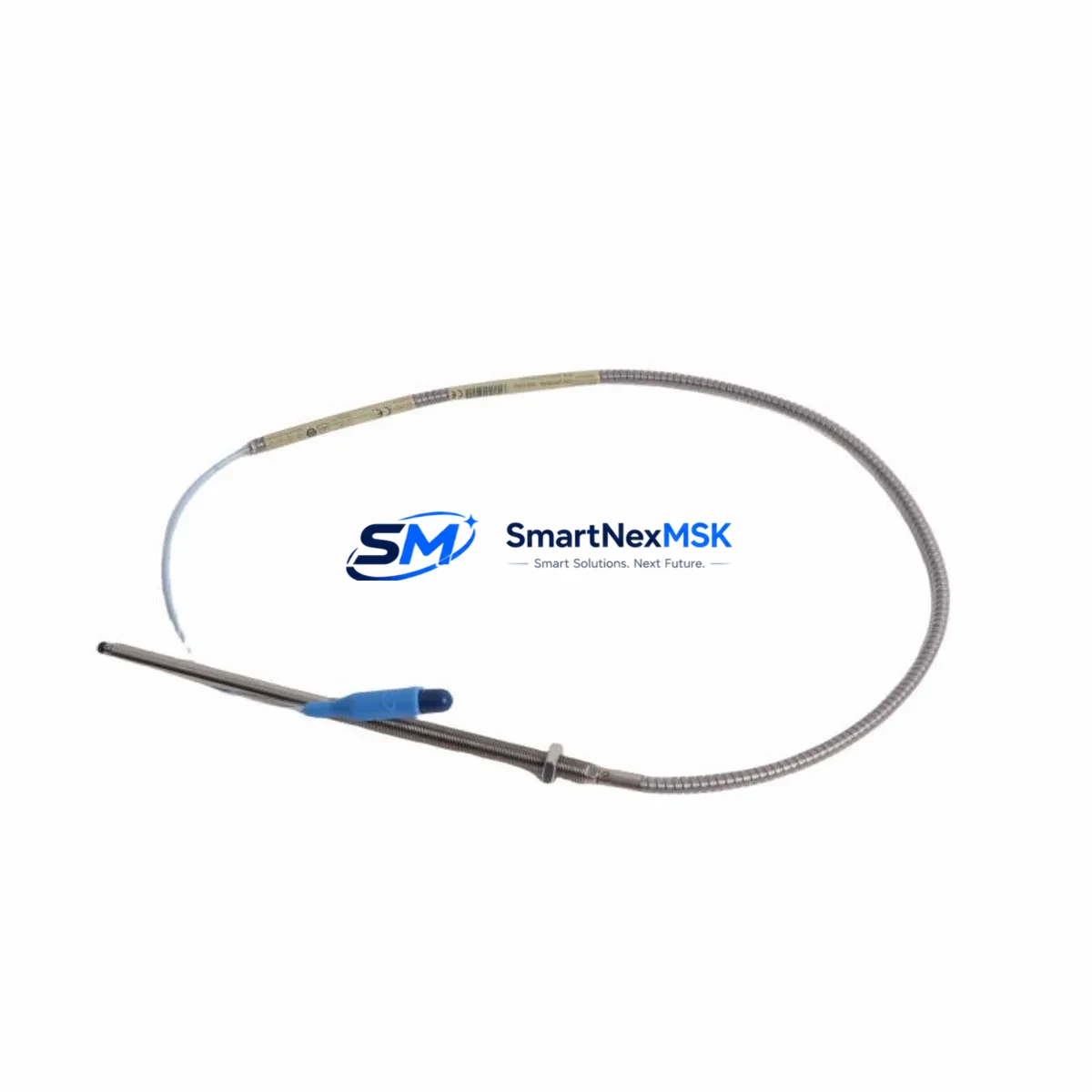

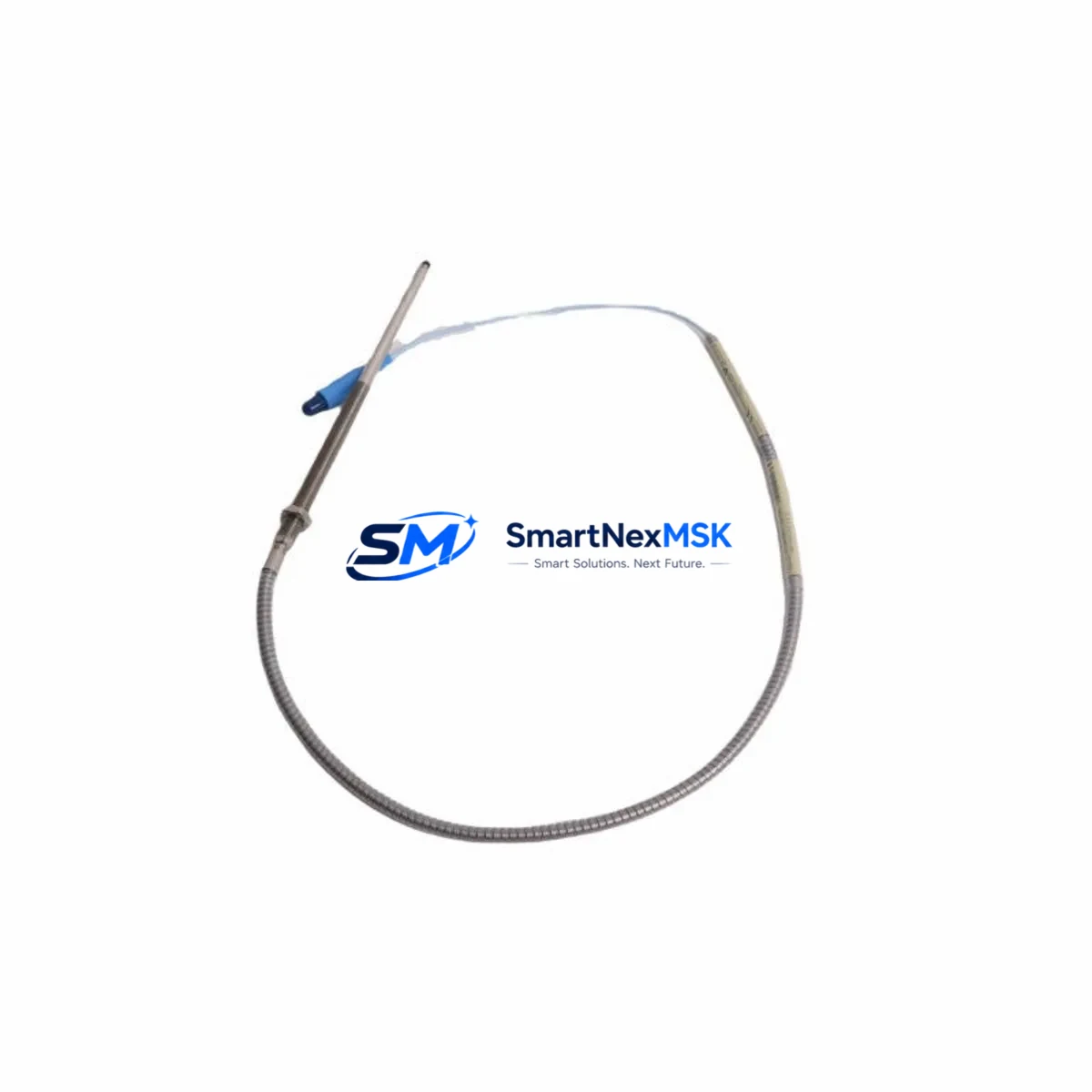

The Bently Nevada 330910-00-16-05-01-00 is an original 5mm eddy current proximity probe engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection across petrochemical, power generation, compressor, and turbine applications. When this probe fails or degrades, the entire vibration channel goes offline, leaving critical rotating equipment unprotected and triggering unplanned shutdowns. Stocking a verified original spare is the single most effective measure a maintenance team can take to restore protection and minimize mean time to repair (MTTR).

This spare is sourced, inspected, and dispatched with full traceability. Each unit undergoes pre-shipment electrical verification — including gap voltage linearity, output sensitivity, and cable continuity — before leaving our facility. A 12-month warranty covers all units against manufacturing defects and performance deviation from published specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. When the 330910-00-16-05-01-00 is pulled from service — whether due to tip damage, cable fatigue, sensitivity drift, or connector corrosion — the maintenance window should be used to inspect the entire vibration channel and adjacent control infrastructure.

Start with the 3300 XL extension cable (such as the 330130-080-00-00 or 330130-045-00-00). Extension cables are subject to mechanical stress at conduit entry points and connector pins, and a degraded cable will cause the same gap voltage errors as a failed probe. Inspect the 3300 XL driver/proximitor (e.g., 330180-51-05 or equivalent 5mm driver) for output voltage stability and housing integrity — a driver that has been running with a failed probe may have experienced transient overvoltage conditions.

At the rack level, verify the 3500/42M Proximitor/Seismic Monitor or equivalent 3300 series monitor card is reading correctly after probe swap. Check the 3500 rack power supply (e.g., 3500/15 or 3500/05) for output ripple and voltage regulation — an unstable supply rail will introduce noise into all transducer channels simultaneously. If the cabinet houses a 3500/22M Transient Data Interface, confirm that the channel mapping and alarm setpoints are intact after the replacement.

For plants running System 1 Evolution or legacy System 1 condition monitoring software, verify that the new probe’s gap voltage is within the configured OK limit window and that the channel is returning to normal status in the software dashboard. If the machine uses a Keyphasor module (e.g., 3500/25 or 330980 series), confirm the once-per-revolution reference signal is clean and phase-locked after the probe installation, as Keyphasor integrity affects all vector measurements on the shaft.

In cabinets where the 3300 XL system coexists with Bently Nevada 3300/55 Overspeed Detection or 3300/65 Tachometer modules, inspect terminal block connections and shielding continuity. Poor shield grounding on proximity probe cables is a leading cause of high-frequency noise that can trigger nuisance alarms on adjacent channels. Finally, if the plant is running an aging 3300 RAM (Rack Adapter Module) or legacy 3300/20 Dual Proximitor Monitor, this maintenance event is an appropriate time to assess whether those modules are candidates for the 3500 series migration path.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a hot-work or confined-space permit as applicable. Isolate the vibration channel at the monitor rack by placing the channel in bypass mode via System 1 or the front-panel bypass switch on the 3500/42M. Do not de-energize the rack unless required — keeping the rack powered allows you to monitor adjacent channels during the swap.

Step 2 — Probe removal: Disconnect the extension cable at the proximitor junction. Using the correct probe wrench, back the 330910-00-16-05-01-00 out of the mounting bracket. Note the installed gap (typically measured with a feeler gauge or recorded from the last calibration sheet) for reference during reinstallation.

Step 3 — New probe installation: Thread the replacement 330910-00-16-05-01-00 into the bracket. Set the gap to the manufacturer-specified nominal (typically 1.0–1.5 mm for 5mm probes, per the machine OEM’s vibration monitoring specification). Reconnect the extension cable and verify connector seating.

Step 4 — Gap voltage verification: With the system energized, measure the DC output voltage at the proximitor output terminals. For a 5mm probe at nominal gap, expect approximately -10 to -12 VDC. Confirm the reading falls within the OK window defined in the monitor configuration.

Step 5 — Channel release: Remove the bypass, confirm the channel returns to OK status in System 1 or the monitor front panel, and document the as-left gap voltage and date in the maintenance management system (CMMS). Update the spare parts inventory to reflect consumption of one 330910-00-16-05-01-00 unit and initiate a replenishment order to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 330910-00-16-05-01-00 compatible with both the 3300 XL and legacy 3300 series systems?
The 330910-00-16-05-01-00 is designed for the 3300 XL system. Compatibility with legacy 3300 (non-XL) monitors depends on the specific monitor card and driver configuration. We recommend confirming the driver part number (5mm vs. 8mm) and monitor card revision before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 330910-00-16-05-01-00 unit is tested for gap voltage linearity across the full linear range, output sensitivity (target: 200 mV/mil ±10%), cable continuity, and connector integrity before dispatch. A test record is available upon request for quality-critical applications.

Q3: How should this spare be stored to maintain long-term reliability?
Store in original packaging or anti-static foam in a dry, temperature-controlled environment (10–35°C, <70% RH non-condensing). Avoid coiling the integral cable tightly or storing near strong magnetic fields. Inspect the probe tip and connector annually if held in long-term storage exceeding 24 months.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, sensitivity deviation beyond ±15% of specification, and cable/connector failures under normal operating conditions. It does not cover physical damage from improper installation, chemical exposure, or operation outside the rated temperature range. Warranty claims are processed with return of the defective unit and a completed failure report.
