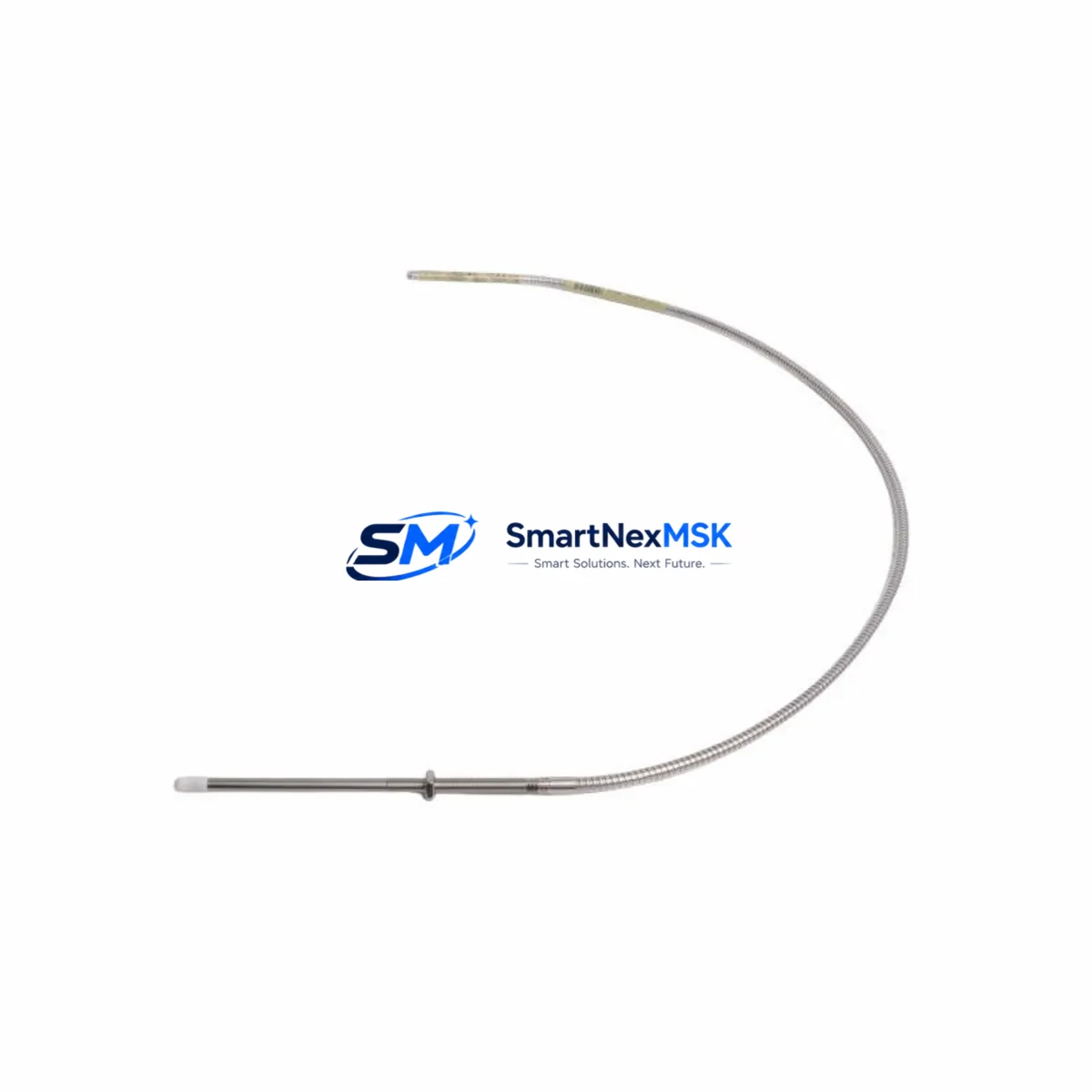

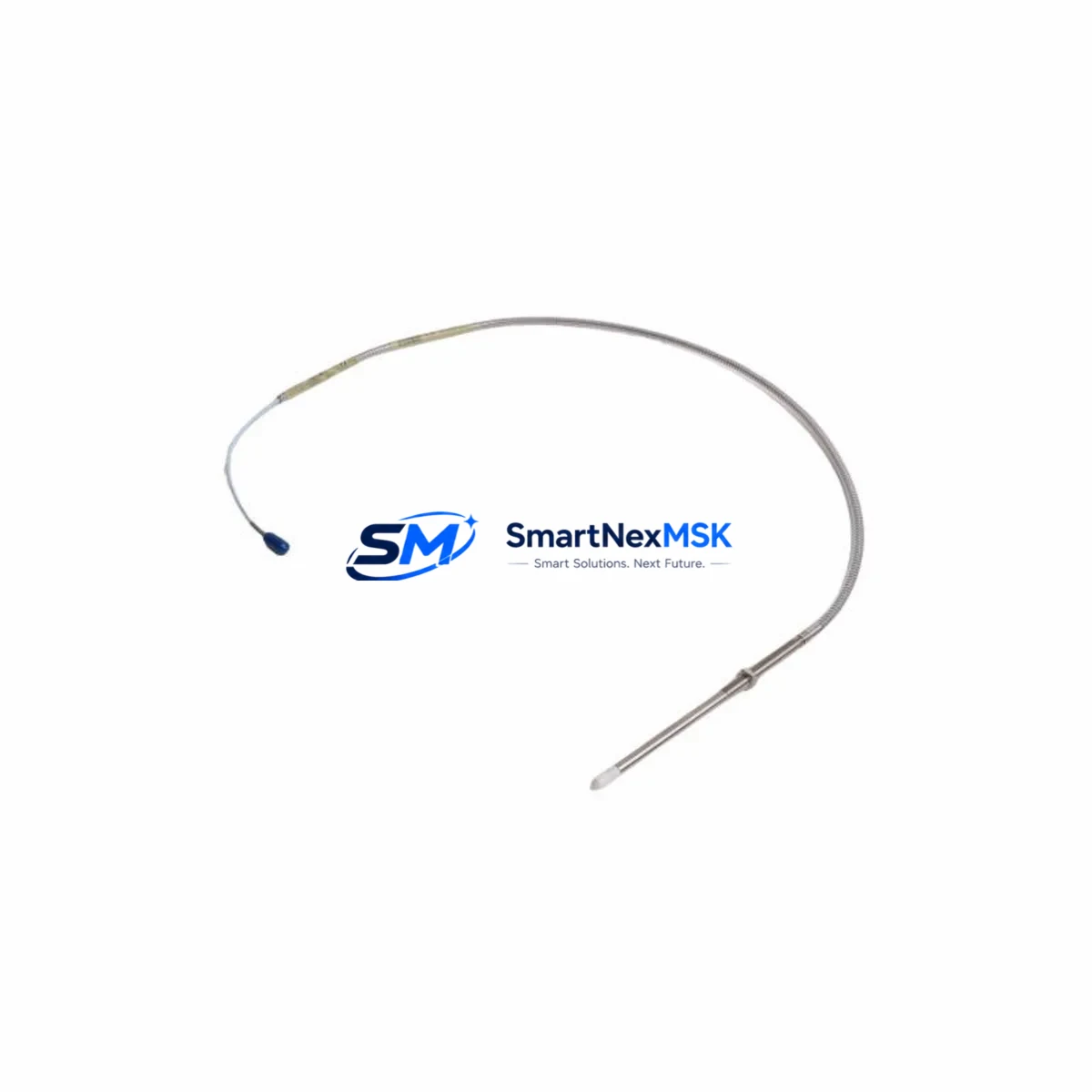

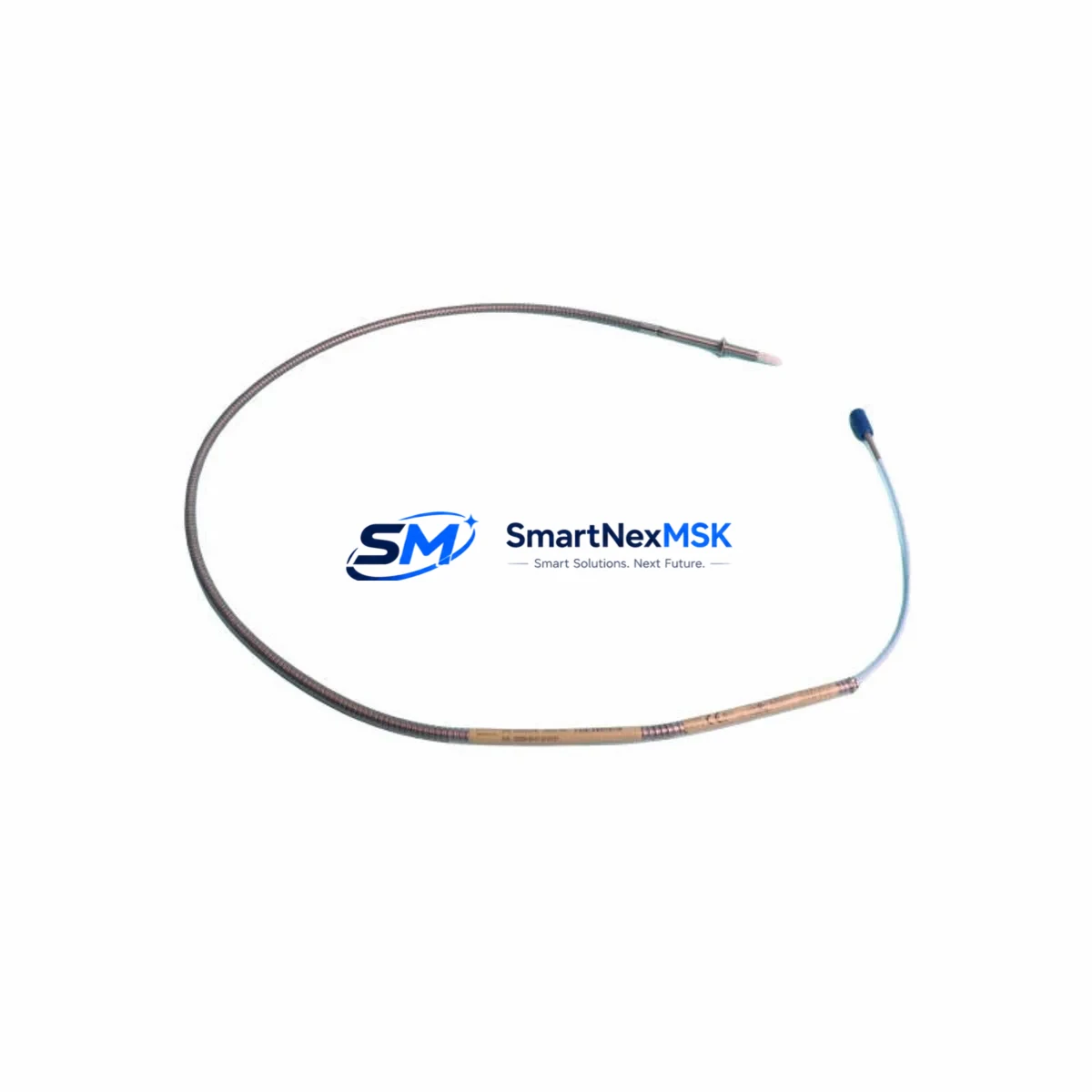

The Bently Nevada 330910-00-16-05-02-00 is a proximity transducer system engineered for seamless retrofit and compatible replacement within the 3300 XL Series vibration monitoring platform. As legacy eddy-current transducer assemblies reach end-of-life or become obsolete in aging rotating machinery protection systems, this unit provides a verified upgrade path that preserves existing bracket geometry, coaxial cable routing, and Proximitor interface wiring — minimizing engineering rework and reducing total downtime during system migration.

For control system engineers managing turbine, compressor, or pump protection panels built around the Bently Nevada 3300 XL architecture, the 330910-00-16-05-02-00 addresses the most common retrofit challenge: replacing a discontinued or worn transducer assembly without triggering a full monitor rack reconfiguration. The unit ships tested and ready for installation, backed by a 12-month warranty from date of shipment, making it suitable for both planned upgrade projects and emergency replacement stock.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330910-00-16-05-02-00 into an existing 3300 XL installation begins well before the maintenance window opens. The first step is a full audit of the vibration monitoring loop: confirm that the 3300 XL Proximitor module (such as the 330180 series) is supplying a stable -24 VDC output and that its output voltage at the current gap is within the monitor’s acceptance window. A Proximitor that is already degraded will produce erratic readings with a new transducer, leading to misdiagnosis of the replacement as faulty.

Next, inspect the coaxial extension cable assembly — typically an armored 330130 series cable — for jacket integrity, shield continuity, and secure termination at both ends. In retrofit projects where the original cable has been in service for more than five years, replacing the extension cable alongside the transducer is strongly recommended to avoid a second unplanned outage caused by cable failure shortly after the transducer swap.

Within the 3300 XL monitor rack, check the relevant monitor card (such as the 3300/16 or 3300/20 dual-channel monitor) for correct scale factor configuration. If the retrofit is migrating from an older 3300 Series (non-XL) transducer to the 330910-00-16-05-02-00, confirm that the monitor card firmware and configuration parameters are compatible with the XL-series sensitivity specification of 7.87 V/mm. In some legacy installations, the rack power supply module may need to be verified for adequate current capacity if additional monitoring channels are being added as part of the broader upgrade.

For facilities that are simultaneously upgrading their control platform — for example, migrating DCS historian connections from a legacy 3300 Series I/O terminal board to a modern System 1 Evolution software interface — the transducer replacement should be coordinated with the communications link reconfiguration. Verify that the analog output from the monitor card is correctly mapped to the new DCS input channel before closing the maintenance window.

In control cabinets where the 3300 XL rack shares enclosure space with relay output modules, signal isolators, and terminal blocks, take the opportunity during the retrofit to inspect all adjacent wiring for insulation wear and terminal torque. Loose terminals on the monitor card’s relay output or the Proximitor’s signal cable are a common source of intermittent alarms that are incorrectly attributed to transducer degradation. If the installation includes a Bently Nevada 3500 Series rack in the same cabinet for other machine trains, confirm that the -24 VDC power distribution is segregated to avoid cross-interference during the 3300 XL retrofit work.

For HMI integration, verify that the operator interface panel — whether a dedicated Bently Nevada display or a third-party SCADA screen — correctly reflects the updated channel tag and engineering unit scaling after the transducer replacement. In older systems where HMI graphics were configured against the original transducer’s serial number or calibration tag, a minor screen update may be required to maintain accurate alarm annunciation.

Downtime Control During System Migration

Minimizing downtime during a 330910-00-16-05-02-00 retrofit requires a structured pre-outage preparation protocol. Before the machine is taken offline, place the affected monitor channel in bypass mode through the 3300 XL monitor front panel or via the DCS bypass command — this prevents a spurious trip signal from propagating to the turbine or compressor protection logic during the physical swap.

Prepare the replacement transducer assembly, extension cable, and all required tools (non-ferrous feeler gauge, coaxial torque wrench, and a calibrated multimeter) in advance. Having the 330910-00-16-05-02-00 pre-staged with the correct gap pre-set on a bench fixture — if the bracket geometry is known — can reduce on-machine gap-setting time significantly.

During the swap, record the gap voltage of the old transducer before disconnection. This baseline confirms whether the original unit had drifted out of its linear range, which is valuable for root-cause documentation and for justifying the replacement to asset management teams. After installing the new transducer, set the gap to the mid-linear-range value (approximately 1.0 mm / 40 mil) and verify the Proximitor output voltage before reconnecting the monitor channel.

Once the channel is restored from bypass, observe the monitor reading for a minimum of five minutes under normal operating conditions before returning the machine to service. If the installation is part of a broader system migration — for example, transitioning from a standalone 3300 XL rack to an integrated System 1 condition monitoring platform — ensure that the new data path is validated and historian logging is confirmed active before the outage window closes. Maintaining a pre-tested spare unit of the 330910-00-16-05-02-00 in the site spare parts store eliminates the lead-time risk for future unplanned replacements, keeping total recovery time within a single shift.

Retrofit Support FAQ

Q1: Does the 330910-00-16-05-02-00 directly replace older 3300 Series (non-XL) transducer assemblies without monitor card changes?
In most cases, yes — the physical probe format, bracket compatibility, and coaxial connector interface are consistent across the 3300 and 3300 XL families. However, the XL-series sensitivity specification (7.87 V/mm) must be confirmed against the monitor card’s configured scale factor. If the existing monitor card was configured for an older sensitivity value, a configuration update is required before the replacement is placed in service. Contact our technical team for guidance on specific monitor card and transducer combinations.

Q2: What pre-shipment testing is performed on the 330910-00-16-05-02-00?
Each unit undergoes functional testing prior to dispatch, including output voltage verification at a known gap distance, coaxial cable continuity and shield integrity check, and connector inspection. A test report is available upon request for quality-critical or safety-instrumented system installations.

Q3: Can this transducer be used in a 3500 Series monitor rack as part of a platform upgrade?
The 330910-00-16-05-02-00 is calibrated for the 3300 XL Proximitor system. Integration into a 3500 Series rack requires verification of the monitor card’s input sensitivity configuration and scale factor settings. Physical connector compatibility is generally maintained, but the commissioning engineer must confirm the gap voltage and channel configuration before placing the channel in service. We recommend providing your existing monitor card model number for a compatibility assessment before ordering.

Q4: What does the 12-month warranty cover, and how are claims processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage from incorrect installation, mechanical impact, chemical exposure, or operation outside specified environmental limits. Warranty claims require return of the defective unit along with installation documentation. Replacement or repair is processed upon receipt and inspection of the returned item.
