Bently Nevada 330910-00-25-50-02-00 Spare 3300 XL NSv

Bently Nevada 330910-00-25-50-02-00 Maintenance-Ready Spare for 3300 XL NSv Automation

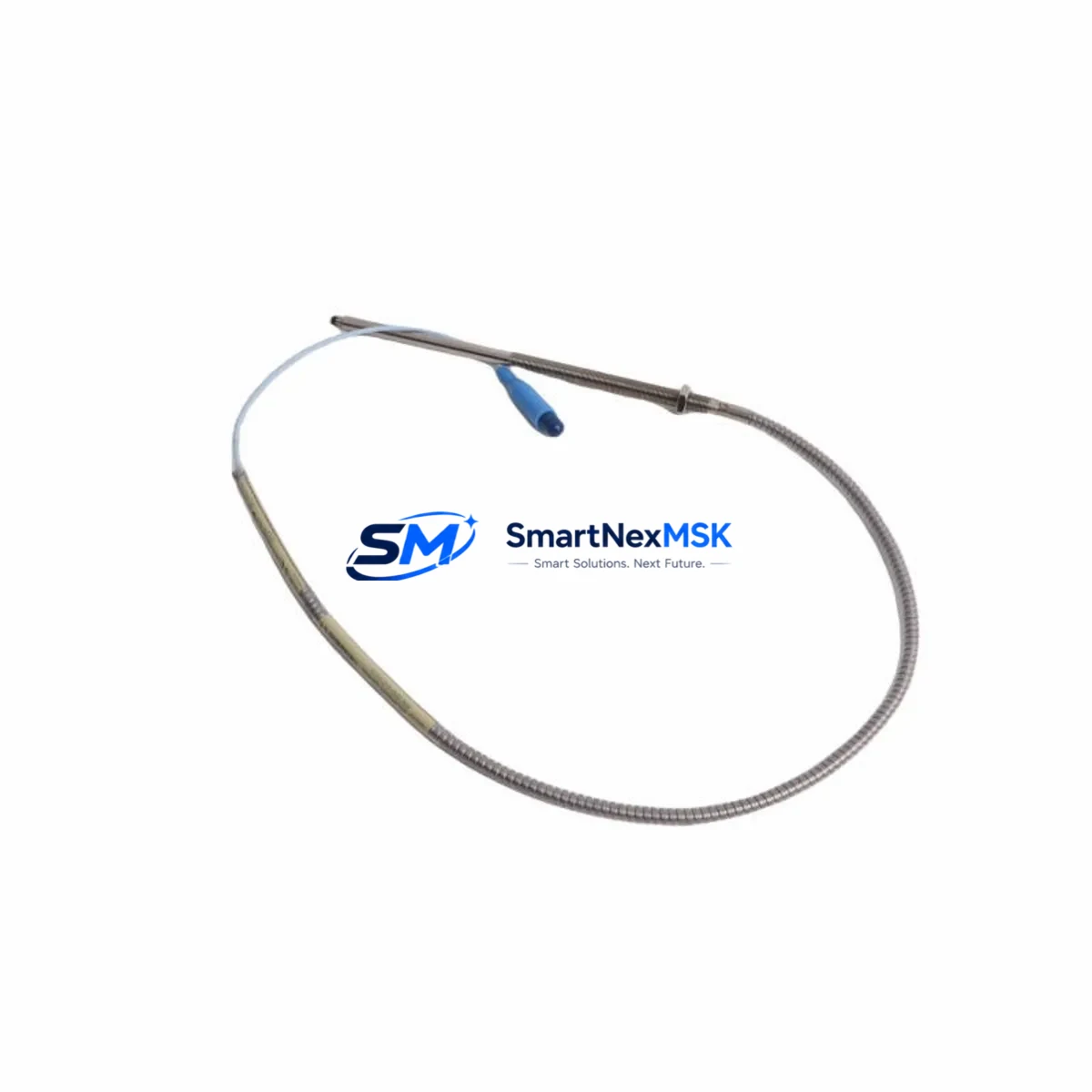

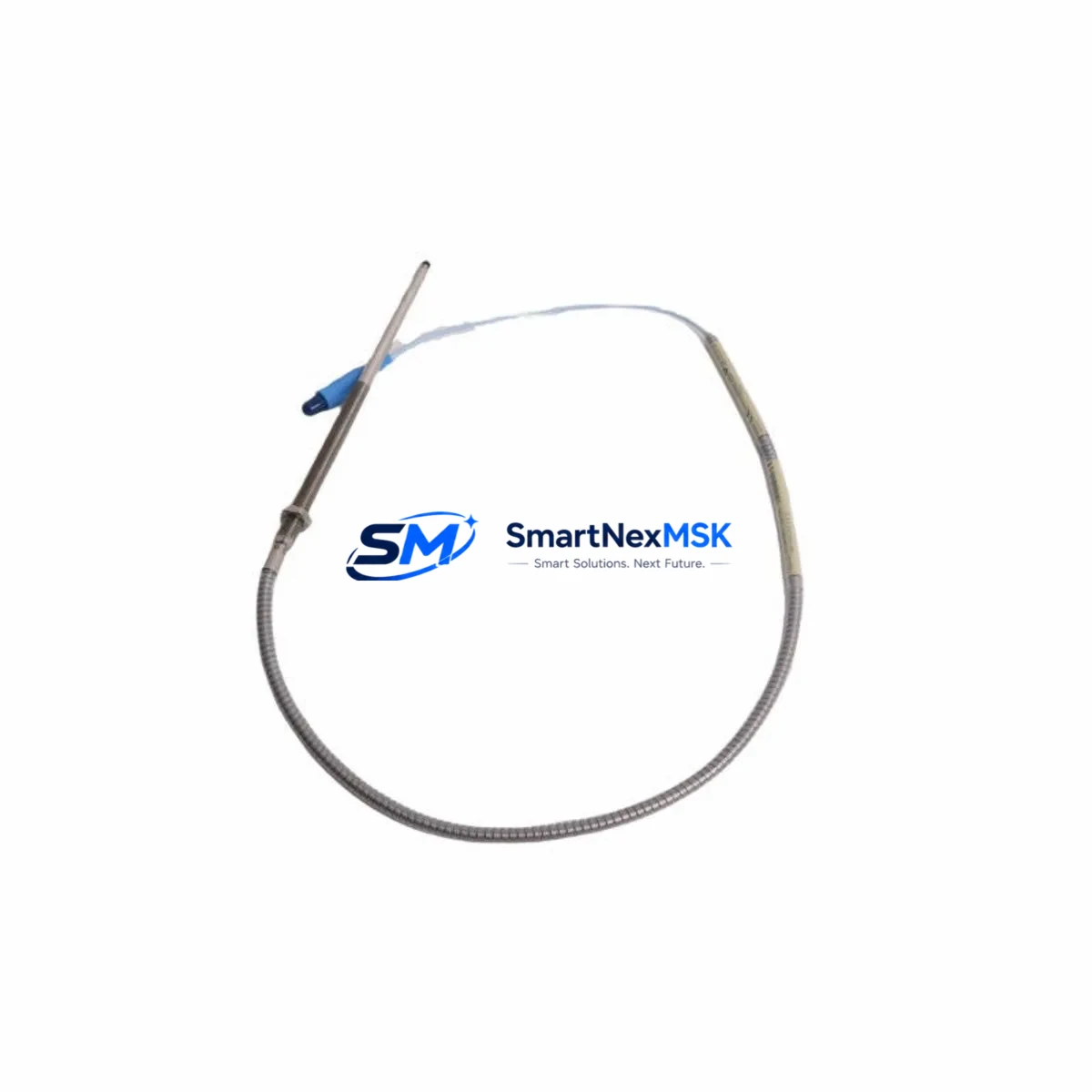

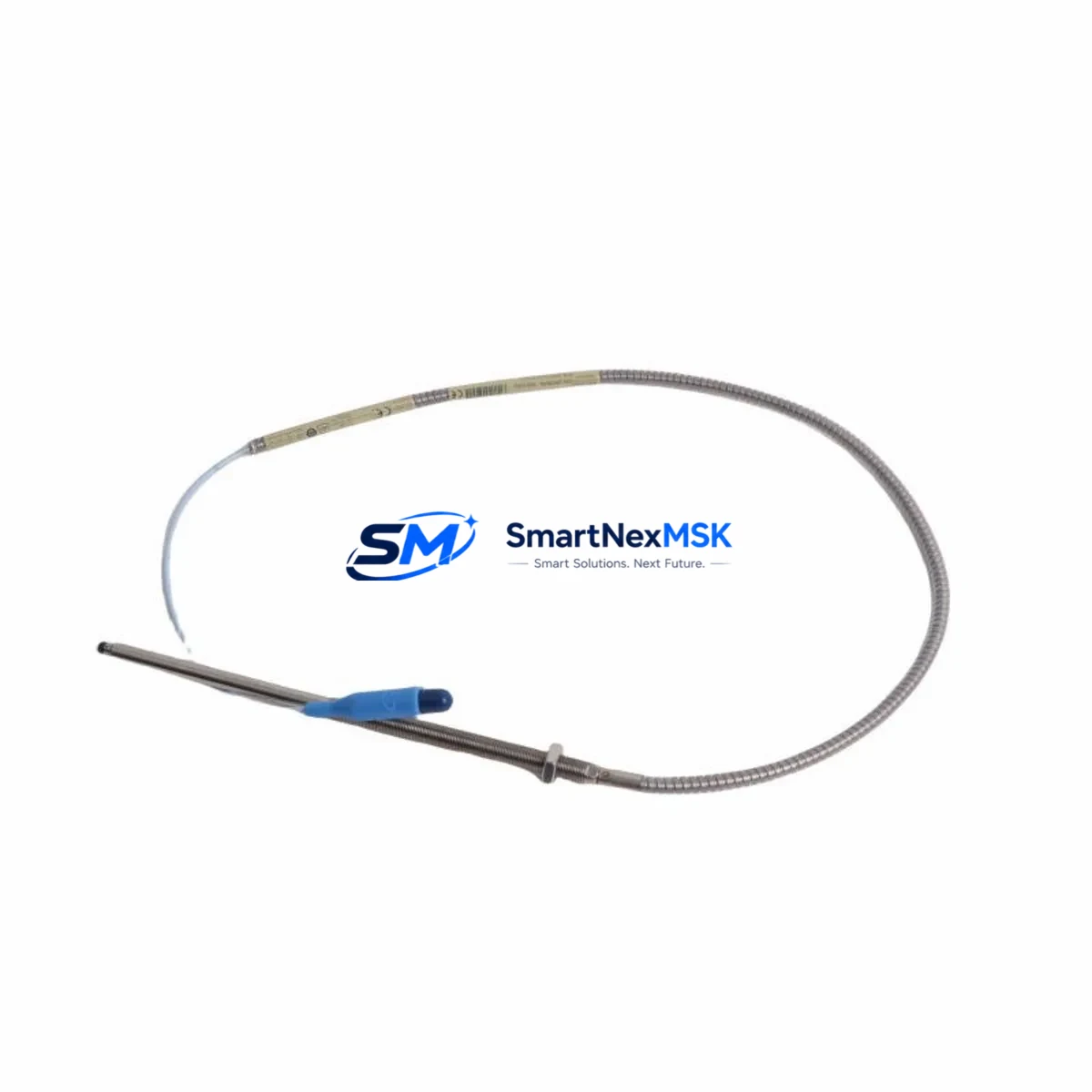

The Bently Nevada 330910-00-25-50-02-00 is an original proximity transducer designed for the 3300 XL NSv Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and motors in continuous-process industries, this transducer is a critical spare that directly impacts machine availability and unplanned downtime risk.

When a proximity transducer fails or drifts out of calibration, the entire vibration monitoring loop is compromised. The 3300 XL NSv system relies on precise eddy-current sensing to deliver real-time shaft displacement data to the plant’s condition monitoring infrastructure. Replacing the 330910-00-25-50-02-00 with a verified original spare — rather than a field-repaired or non-OEM substitute — ensures signal integrity, system certification compliance, and continued protection of high-value rotating assets.

At SMARTNEXMSK, every unit is sourced from authorized supply chains, inspected prior to dispatch, and shipped with a 12-month warranty. We maintain ready stock to support both planned maintenance windows and emergency breakdown recovery scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330910-00-25-50-02-00 transducer is rarely an isolated task. In a well-structured maintenance plan, the transducer swap is the trigger for a broader inspection of the entire vibration monitoring loop and the surrounding control cabinet. Maintenance engineers should treat this replacement as an opportunity to audit the full signal chain.

Start with the 3300 XL extension cable (typically the 330130 or 330180 series) — cable insulation degradation and connector corrosion are leading causes of signal noise and false trips. Inspect the 3300 XL proximitor/driver (such as the 330180-91-00 or 330180-51-00) for output voltage drift; a transducer replacement paired with a failing driver will not restore system accuracy. Verify the 3300 XL monitor module (e.g., 3300/16 or 3300/20) for alarm setpoint integrity and channel calibration records.

At the power supply level, confirm that the 3300 XL power supply module is delivering stable -24 VDC to the proximitor. Voltage sag under load is a common root cause of intermittent transducer faults that are misdiagnosed as transducer failure. If the cabinet houses a Bently Nevada 3500 series rack for more critical machinery, cross-check that the 3500/42M or 3500/45 vibration monitor modules are not showing similar drift patterns on adjacent channels.

For plants running integrated DCS or safety systems, verify that the 4–20 mA output signal from the 3300 XL monitor is correctly received at the DCS I/O card. Inspect terminal blocks and DIN rail wiring in the junction box for loose connections, which can introduce ground loops that corrupt vibration readings. If signal isolation is required between the monitor output and the DCS input, check the condition of any installed signal isolator or barrier (such as a Pepperl+Fuchs or MTL unit) in the loop.

For older installations where the 3300 XL system is approaching end-of-life, this maintenance event is also the right time to evaluate whether a Bently Nevada 3500 rack migration is warranted, or whether extending the 3300 XL system life with a full spare kit — including backup transducers, extension cables, and a spare proximitor — is the more cost-effective strategy for the next 3–5 years of operation.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement part number matches the installed transducer exactly. The 330910 series has multiple sub-variants differentiated by cable length, thread size, and connector type. Verify the gap voltage of the installed transducer before removal using a calibrated voltmeter; document the reading as a baseline.

Step 2 — Safe isolation: Coordinate with the control room to place the affected monitor channel in bypass mode before disconnecting the transducer. This prevents a false trip or spurious shutdown during the swap. Follow site LOTO (Lockout/Tagout) procedures for the junction box and proximitor housing.

Step 3 — Physical replacement: Remove the old transducer from the bracket. Clean the probe tip and target area. Install the new 330910-00-25-50-02-00, setting the air gap to the manufacturer-specified value (typically 50 mil / 1.27 mm for standard steel targets). Torque the locknut to specification.

Step 4 — Signal verification: With the proximitor powered, measure the output voltage at the monitor terminal. Confirm it falls within the linear range (-10 to -18 VDC typical). Compare against the pre-removal baseline. If the reading is outside range, recheck gap setting and cable connections before returning the channel to service.

Step 5 — Return to service: Remove the bypass, confirm alarm setpoints are active, and log the replacement in the plant CMMS with the new part serial number and gap voltage reading. Update the spare parts inventory to trigger reorder of a replacement unit for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the 330910-00-25-50-02-00 a direct drop-in replacement for older 330910 variants?
The 330910-00-25-50-02-00 is compatible with 3300 XL NSv system configurations using 8 mm thread, 50 cm cable, and standard 2-pin connectors. However, always verify the full part number against your installed system documentation, as cable length and connector variants affect interchangeability. Contact our technical team at sales@smartnexmsk.com to confirm compatibility before ordering.

Q2: What testing is performed before shipment?
Every 330910-00-25-50-02-00 unit dispatched by SMARTNEXMSK undergoes pre-shipment functional verification including output voltage check, insulation resistance test, and visual inspection of the probe tip, cable jacket, and connector. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q3: How should we manage long-term spare parts inventory for the 3300 XL system?
For critical rotating machinery, we recommend maintaining a minimum of two 330910-series transducers per machine train in your on-site spare parts store. Given that the 3300 XL platform is a mature product line, securing a multi-unit stock now protects against future supply constraints. SMARTNEXMSK offers volume pricing and can support blanket order arrangements for multi-site maintenance programs.

Q4: What is the lead time for emergency orders?
For in-stock units, SMARTNEXMSK ships within 1–3 business days via express freight. For urgent breakdown recovery situations, contact us directly at +86 18259474341 to arrange priority dispatch. We support both single-unit emergency orders and bulk procurement for planned maintenance shutdowns.
