Bently Nevada 330910-03-09-05-02-05 Retrofit Proximity for 3300 XL

Bently Nevada 330910-03-09-05-02-05 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

The Bently Nevada 330910-03-09-05-02-05 is a complete proximity transducer system engineered for the 3300 XL Series continuous machinery protection platform. As legacy 3300 XL installations age and original components reach end-of-life, maintenance and procurement engineers face increasing pressure to source compatible replacements that preserve system integrity without triggering full-scale platform migrations. This unit delivers a verified drop-in retrofit path — maintaining signal compatibility, mechanical fit, and monitor calibration alignment with existing 3300 XL rack infrastructure.

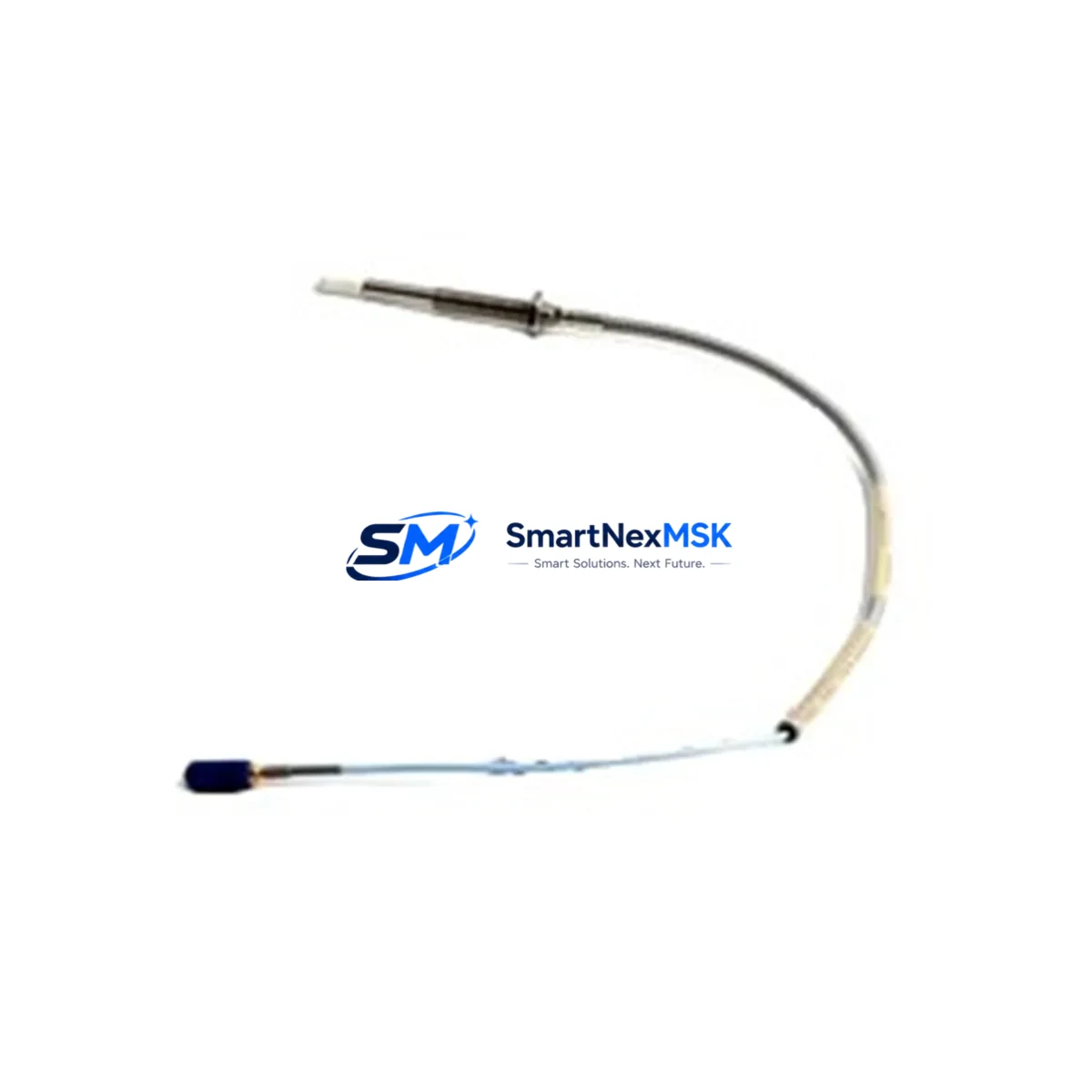

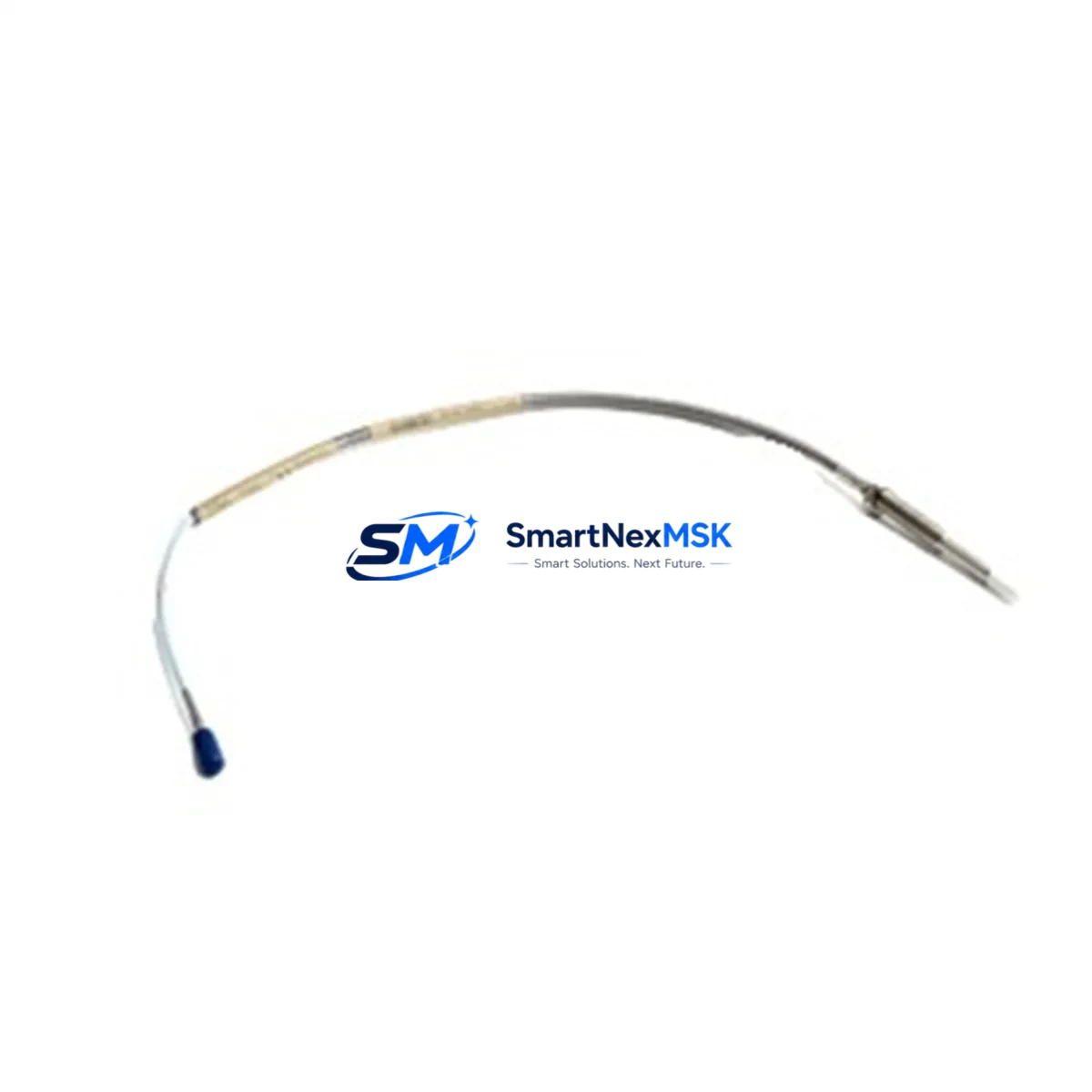

The 330910-03-09-05-02-05 is a three-component proximity system comprising a probe, extension cable, and proximitor/oscillator. The probe tip diameter, thread specification, and gap voltage characteristics are factory-matched to the 3300 XL monitor inputs, eliminating the need for recalibration when replacing a failed or degraded unit in the field. For retrofit engineers managing aging turbine, compressor, or pump protection systems, this means faster restoration of full protection coverage with minimal configuration changes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330910-03-09-05-02-05 in an operating plant is rarely an isolated task. Maintenance engineers conducting a planned outage or responding to a protection trip should treat the transducer replacement as an opportunity to audit the surrounding measurement chain and control infrastructure. Begin with the proximitor power supply: the 3300 XL proximitor requires a stable −24 VDC supply, typically sourced from a dedicated instrument power distribution module within the control cabinet. Verify that the supply rail voltage is within tolerance before installing the new unit, as a degraded power supply can cause erratic gap voltage readings that mimic probe failure.

Next, inspect the extension cable and interconnect cable for insulation damage, connector corrosion, or shield continuity breaks — these are common failure points in high-vibration environments and are frequently overlooked when only the probe is replaced. The 3300 XL monitor card itself, such as the 3300/16 dual-channel monitor or the 3300/20 radial vibration monitor, should be checked for alarm setpoint integrity and OK relay status after the new transducer is installed. If the monitor has been in service for more than ten years, consider proactive replacement with a current-production 3300 XL monitor card to avoid a secondary failure shortly after the transducer retrofit.

For plants running the System 1 condition monitoring software or interfacing the 3300 XL rack with a DCS via a 3500/92 communication gateway, confirm that the channel configuration in the software still maps correctly to the new transducer after replacement. I/O terminal assignments on the 3300 XL rack’s field wiring termination module should be verified against the original loop drawing before powering up. If the installation uses a Bently Nevada 3300/05 power supply module to feed the rack, check its output voltage and current capacity — a marginal power supply under full rack load can cause intermittent OK dropouts on newly installed transducers.

In retrofit scenarios where the original 330910 series probe is being replaced due to a target material change or shaft geometry modification, the gap setting procedure must be repeated. Use a calibrated digital voltmeter to set the probe gap to the nominal −10 VDC (1.0 mm gap) before tightening the locknut. Document the as-found and as-left gap voltages in the maintenance record. For systems with redundant transducer pairs monitoring the same shaft, replace both channels simultaneously to maintain measurement symmetry and avoid false differential alarms during the commissioning window.

Downtime Control During System Migration

Minimizing production downtime during a 330910-03-09-05-02-05 replacement requires pre-staging all components before the protection system is taken offline. Confirm that the replacement transducer system — probe, extension cable, and proximitor — is on-hand and bench-tested before scheduling the outage window. A pre-installation continuity check of the extension cable and a static gap voltage test of the proximitor using a bench power supply can eliminate the risk of discovering a defective replacement unit after the machine is already shut down.

Where plant safety procedures permit, consider using the 3300 XL monitor’s bypass function to temporarily inhibit the protection channel while the transducer is being replaced on a running machine during a brief maintenance window. This approach is only appropriate for non-critical monitoring channels and must be authorized by the site machinery protection engineer. For critical radial vibration or axial position channels, a full machine shutdown is required before any transducer work begins.

After installation, restore the protection channel in a defined sequence: power up the proximitor, verify the OK LED status, confirm the gap voltage at the monitor front panel, and then release the bypass or re-enable the protection trip. Log the commissioning data — gap voltage, vibration baseline, and alarm acknowledgment — in the plant’s maintenance management system before returning the machine to service. This structured workflow ensures that the retrofit is fully documented and that the protection system is restored to its original functional state with no residual configuration gaps.

Retrofit Support FAQ

Q1: Is the 330910-03-09-05-02-05 a direct drop-in replacement for other 330910 suffix variants?
The 330910 series uses a suffix code to define probe length, extension cable length, and interconnect cable length. The -03-09-05-02-05 suffix specifies a particular combination of these dimensions. Before ordering, verify that the suffix matches your existing installation’s cable routing and probe mounting depth. If the suffix differs, the transducer system will still be electrically compatible with the 3300 XL monitor, but mechanical fit and cable reach must be confirmed against the field layout.

Q2: Does replacing the transducer require recalibration of the 3300 XL monitor?
No monitor recalibration is required when replacing a 330910 series transducer with an equivalent suffix variant. The 3300 XL monitor’s scale factor and alarm setpoints remain valid. However, the probe gap voltage must be physically set and verified at the installation point using a digital voltmeter. The target gap voltage is typically −10 VDC ± 0.5 VDC for standard steel targets.

Q3: What pre-shipment testing is performed on this unit?
Each 330910-03-09-05-02-05 system is tested for proximitor output voltage linearity, extension cable continuity and shield integrity, and probe tip condition before shipment. A test report is available upon request. The unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can this transducer system be used with Bently Nevada 3500 Series monitors?
The 330910 series proximity transducers are designed and calibrated for the 3300 XL monitor platform. While the electrical output characteristics (sensitivity, gap voltage range) are compatible with 3500 Series monitor inputs in principle, Bently Nevada specifies dedicated 330730 or 330780 series transducers for 3500 Series applications. Using a 330910 unit with a 3500 monitor is possible in some configurations but should be validated against the 3500 monitor’s transducer qualification list before deployment in a safety-critical protection application.
