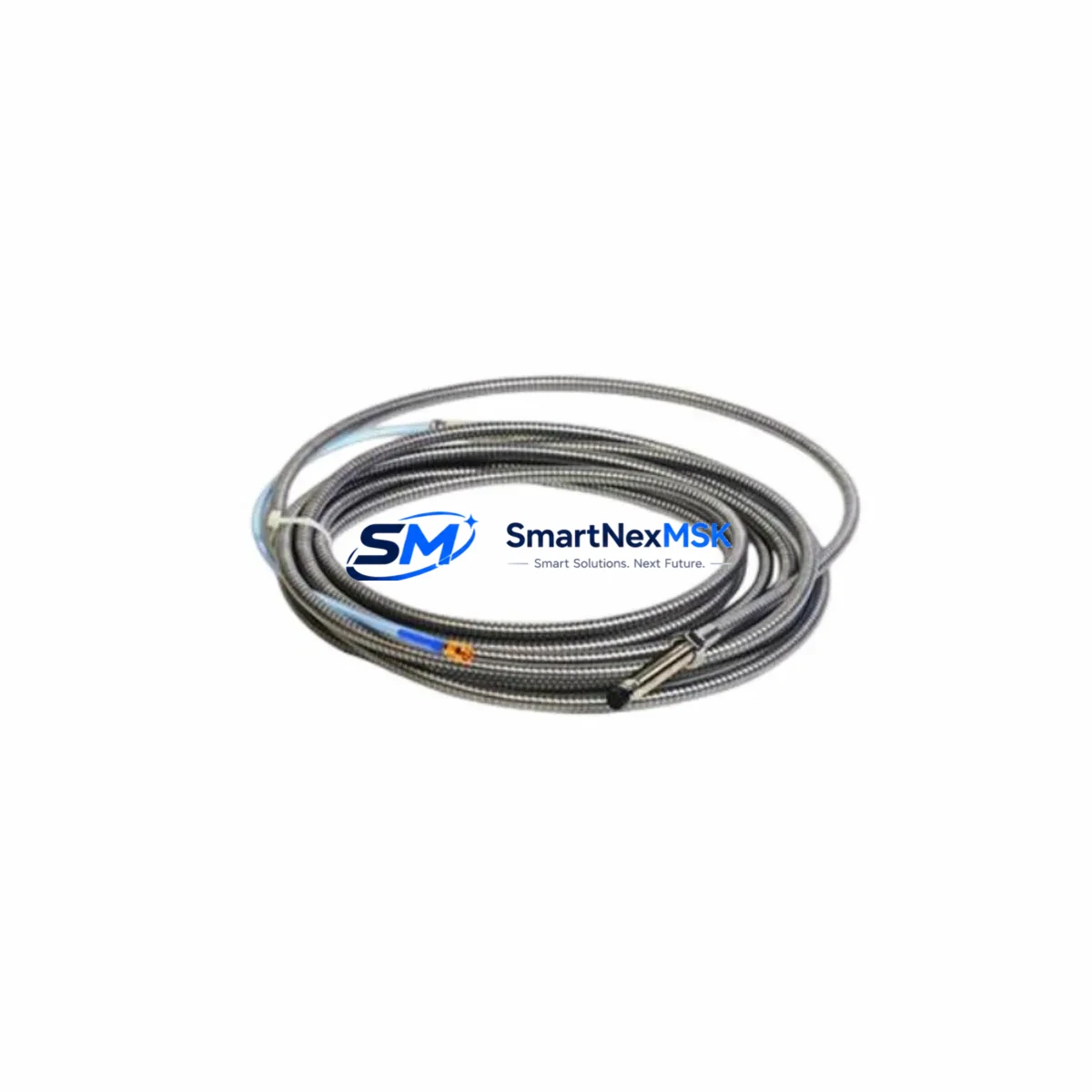

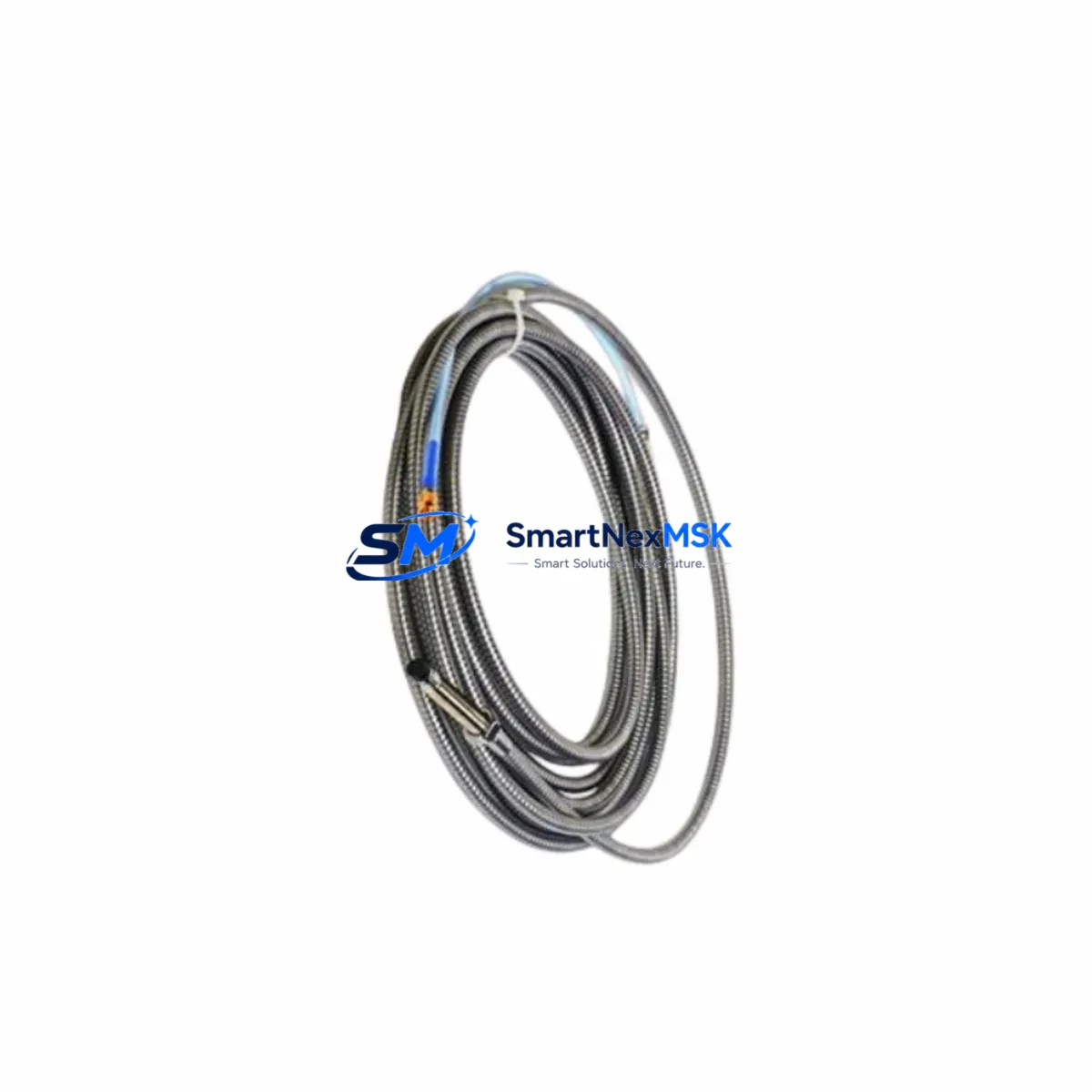

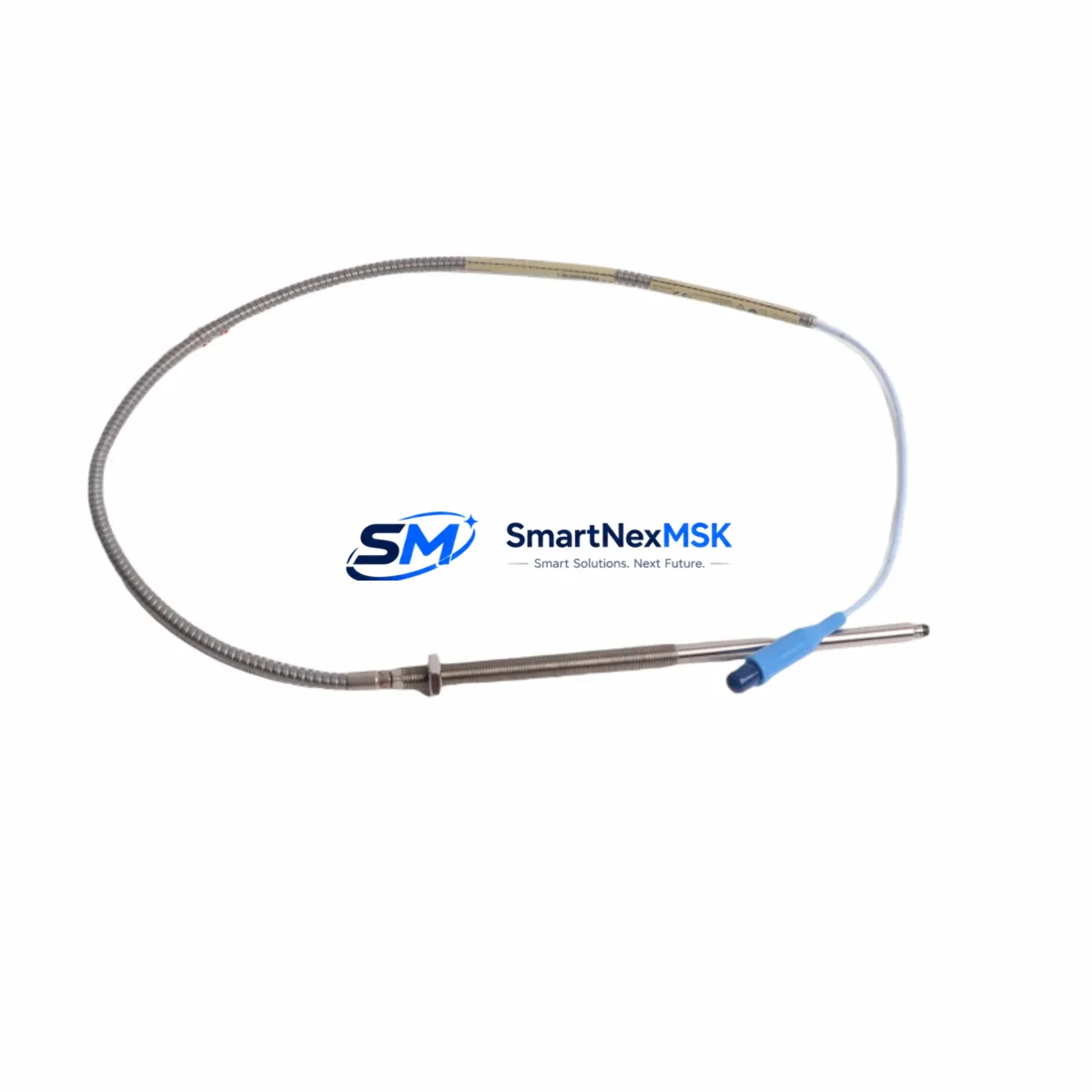

The Bently Nevada 330910-10-22-10-01-CN is an original 8mm eddy-current proximity probe designed for the 3300 XL Series vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a front-line component for shaft displacement and radial vibration measurement. When a probe fails or drifts out of calibration, the entire monitoring loop is compromised, triggering nuisance trips or, worse, masking genuine mechanical faults. Maintaining a verified spare of the 330910-10-22-10-01-CN in your parts inventory is a fundamental practice for any maintenance team operating continuous-process equipment.

This unit ships with the CN-style connector, making it a direct replacement for existing 3300 XL installations without rewiring. Each unit is tested prior to dispatch and backed by a 12-month warranty, giving procurement and reliability engineers confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330910-10-22-10-01-CN probe is flagged during a routine vibration survey or fails during a planned outage, the replacement workflow should extend beyond the probe itself. The 3300 XL monitoring loop is a system — and a single degraded component can introduce measurement error across the entire chain.

Start at the extension cable: the 330130-080-00-00 or equivalent 3300 XL extension cable should be inspected for jacket damage, connector corrosion, and continuity. A worn cable is frequently the root cause of intermittent probe signals that are misdiagnosed as probe failure. Next, verify the proximitor/driver — typically a 330180-X1-05 or 330130-040-00-00 — for correct bias voltage output (nominally −10 VDC at mid-gap). A driver that is out of specification will cause the replacement probe to read incorrectly even if the probe itself is healthy.

At the monitor rack level, confirm that the 3300/16 Dual Vibration Monitor or the 3500/42M Proximitor Monitor card is seated correctly and that its configuration matches the new probe’s sensitivity constant. If the plant runs a 3500 Series rack, also check the 3500/20 Rack Interface Module for communication faults and verify that the 3500/92 Communication Gateway is correctly forwarding data to the DCS or historian.

For installations where the probe monitors axial position or differential expansion on a steam turbine, cross-check the 330980 Velomitor seismic sensor on the same bearing housing — vibration and position data should be correlated during commissioning of the replacement. Additionally, inspect the terminal strip and field junction box for moisture ingress, loose terminations, and correct shielding grounding. Ungrounded or double-grounded shields are a common source of noise that can mask real vibration trends.

If the plant uses a Keyphasor module (e.g., 3500/25) for phase reference, verify its gap and output signal as part of the same maintenance window — a drifting Keyphasor will corrupt all phase-referenced vibration vectors across the rack. Finally, review the power supply module (3500/15 or equivalent) output rails; under-voltage conditions accelerate probe and driver degradation and are often overlooked during corrective maintenance.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the monitoring loop at the field junction box, not just at the rack, to avoid induced voltages from adjacent machinery.

Step 2 — Gap measurement before removal: Record the existing probe gap voltage (bias voltage) before disconnecting. This baseline confirms whether the old probe had drifted and provides a reference for setting the new probe gap.

Step 3 — Physical replacement: Remove the 330910-10-22-10-01-CN from its mounting boss using the correct M10 × 1 thread. Install the replacement probe and torque to the manufacturer’s specification. Do not over-torque — the probe tip is precision-machined and damage will affect linearity.

Step 4 — Gap setting: With the shaft stationary, adjust the probe gap to achieve the nominal bias voltage (−10 VDC ± 0.5 V for standard 3300 XL systems). Use a calibrated digital voltmeter at the driver output terminals.

Step 5 — Loop verification: Re-energize the loop and confirm that the monitor displays a valid, noise-free signal. Compare readings against adjacent probes on the same bearing. Alarm and trip setpoints should be verified against the current machinery protection philosophy document before returning the machine to service.

Step 6 — Documentation: Record the replacement in the CMMS, including the new probe serial number, gap voltage, and technician sign-off. Update the spare parts inventory to trigger a replenishment order for the next 330910-10-22-10-01-CN unit.

Spare Parts Support FAQ

Q1: Is the 330910-10-22-10-01-CN a direct drop-in replacement for older 3300 XL probes with the same cable length?
Yes. The 330910-10-22-10-01-CN is dimensionally and electrically compatible with other 8mm, 1000mm-cable 3300 XL probes sharing the same sensitivity constant (7.87 V/mm). Always confirm the driver model and monitor configuration match before installation to ensure the full loop remains within calibration.

Q2: What is the recommended spare inventory strategy for this probe?
For critical rotating machinery (turbines, compressors), reliability best practice is to hold a minimum of two units per monitored machine train — one for immediate replacement and one as a secondary buffer. For non-critical applications, one unit per four to six probes in service is a common benchmark. Probes stored in original packaging in a climate-controlled environment maintain specification for at least five years.

Q3: How is each unit tested before shipment?
Every 330910-10-22-10-01-CN unit is bench-tested for bias voltage output, sensitivity linearity across the full measurement range, and connector integrity prior to dispatch. A test report is available upon request. Units are shipped in anti-static, moisture-resistant packaging with individual identification.

Q4: What warranty and after-sales support is provided?
All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and out-of-specification performance. In the event of a warranty claim, we provide rapid replacement dispatch to minimize plant downtime. Long-term supply agreements are available for customers requiring guaranteed stock allocation across multiple maintenance cycles.
