Bently Nevada 330930-060-00-05 Spare for 3300 XL Automation: Spare Replacement & Industrial Downtime Risk Control

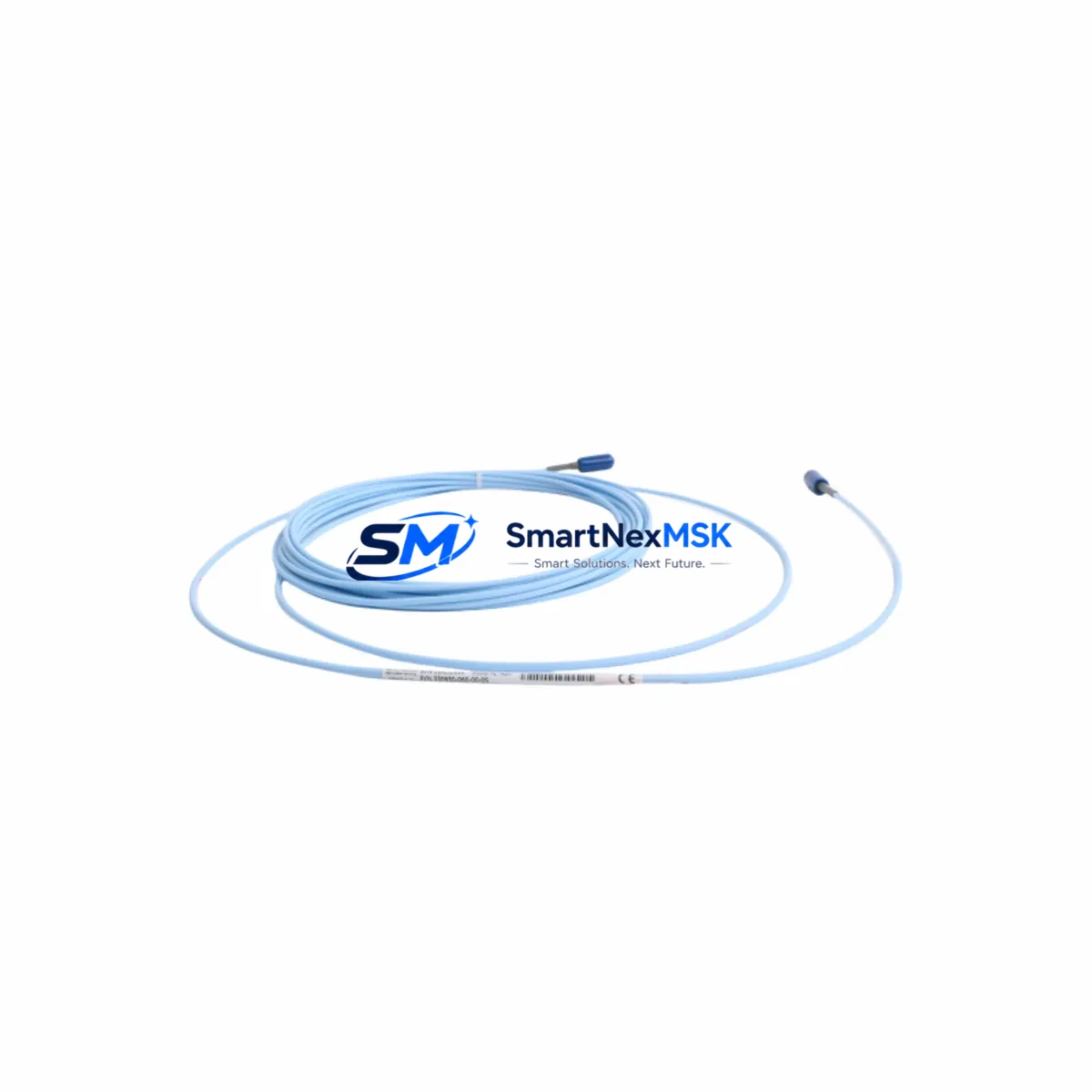

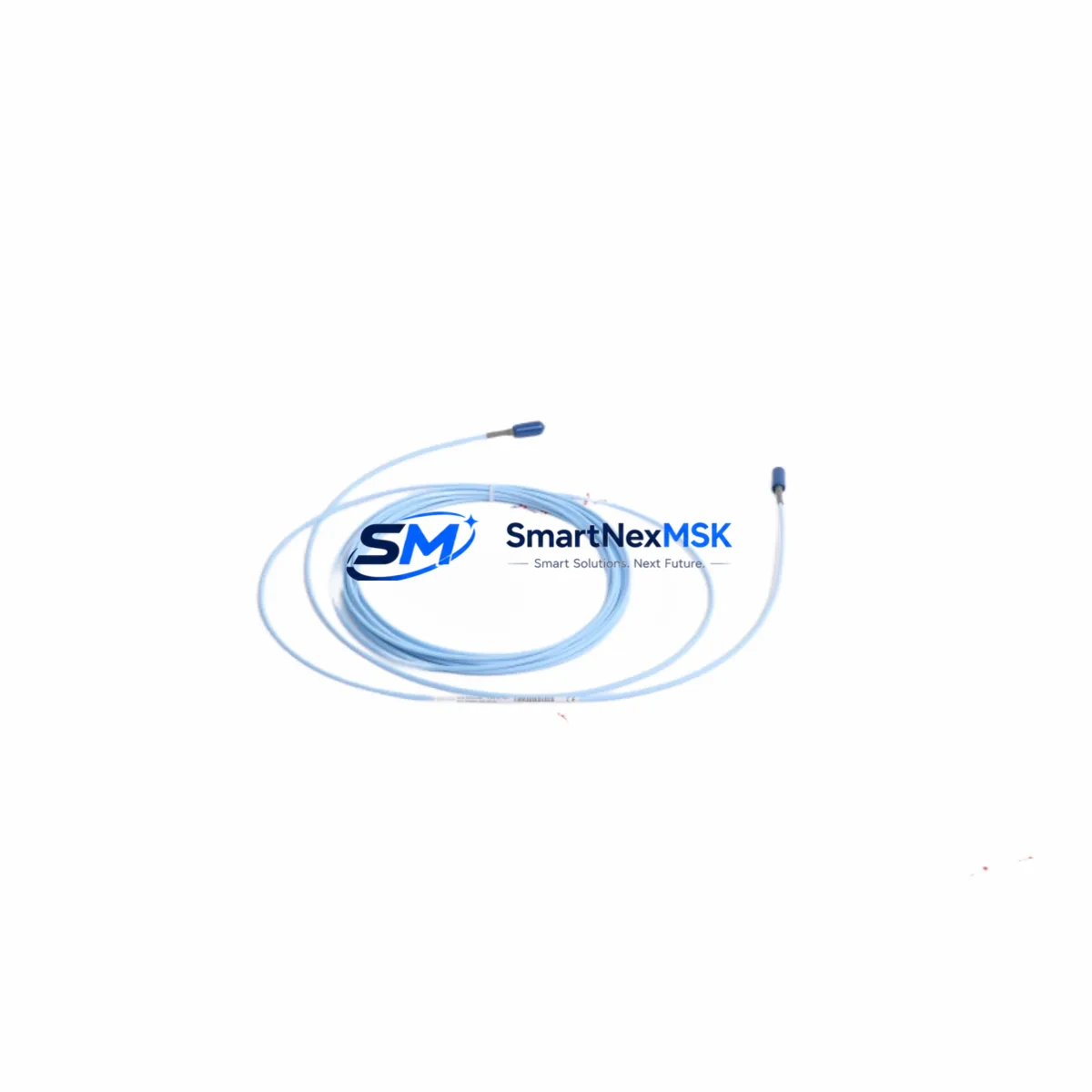

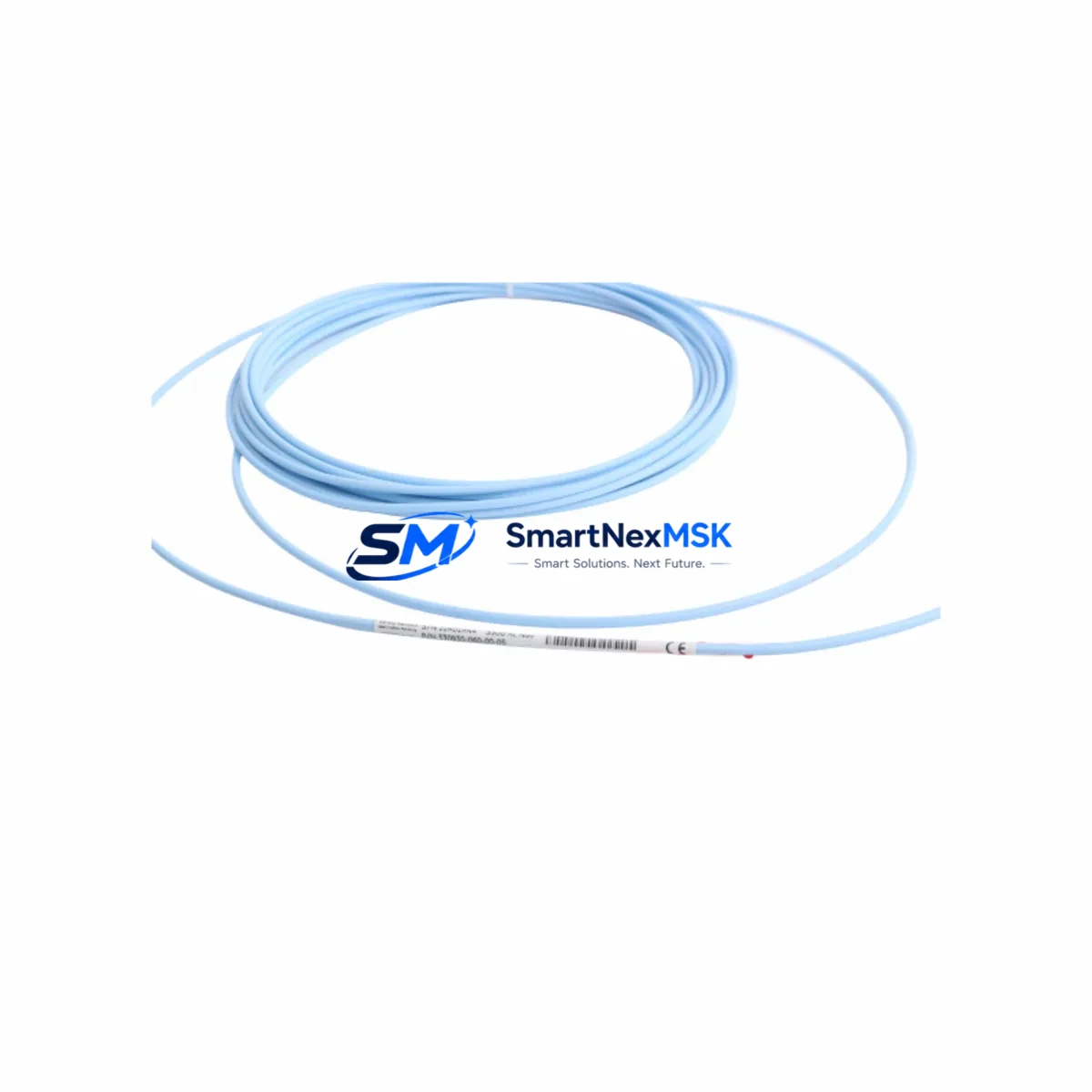

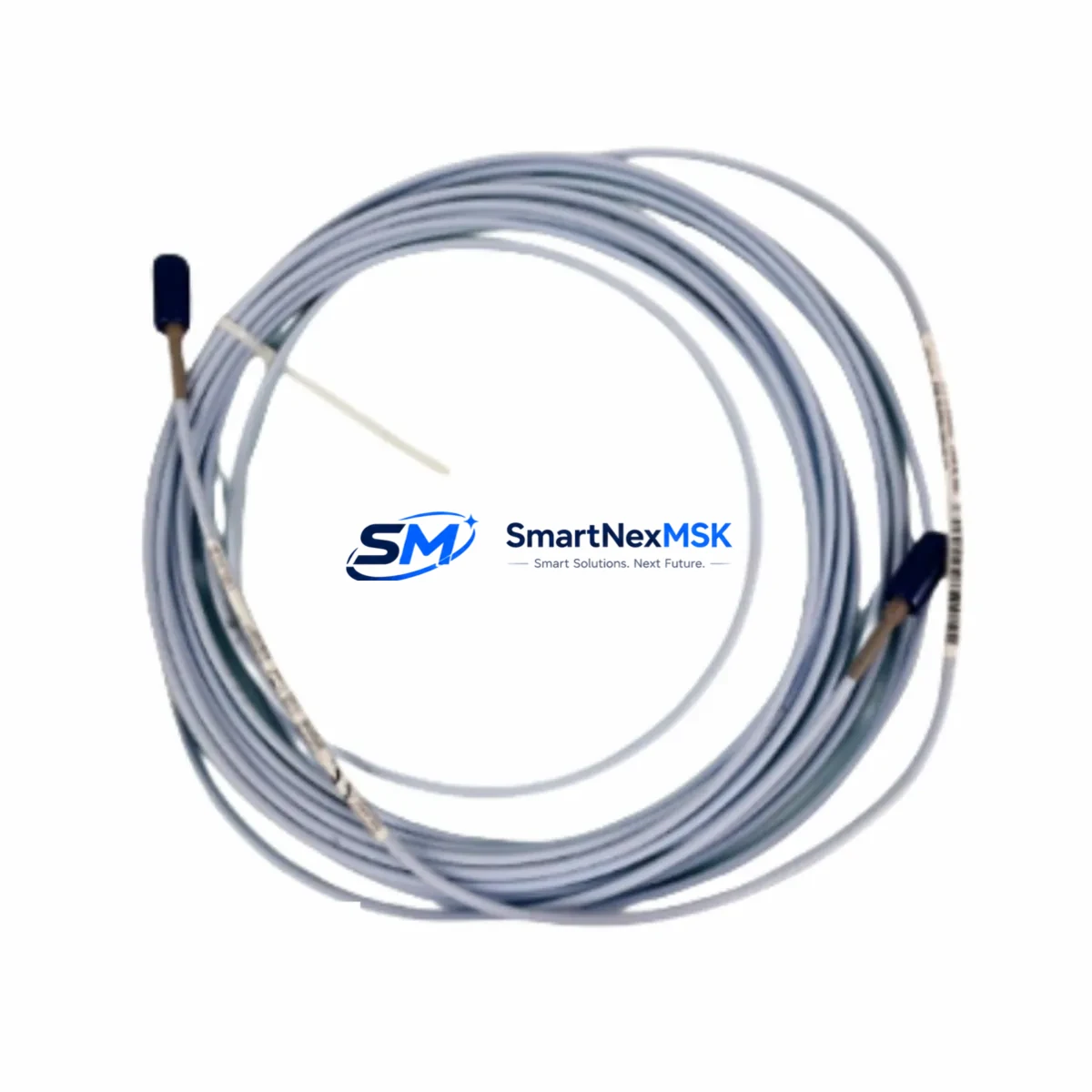

The Bently Nevada 330930-060-00-05 is an original eddy-current proximity probe engineered for the 3300 XL 8mm Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe is a critical field-replaceable unit. Its failure or degradation directly impacts the integrity of your machinery protection loop, making a verified, tested spare an essential line item in any serious maintenance inventory.
At SMARTNEXMSK, every 330930-060-00-05 unit is sourced from authorized supply channels, inspected prior to dispatch, and backed by a 12-month warranty. We support maintenance teams and procurement engineers who need fast, reliable access to original Bently Nevada components — without lead-time uncertainty or counterfeit risk.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330930-060-00-05 |
| Brand | Bently Nevada |
| Series | 3300 XL 8mm Transducer System |
| Product Type | Eddy-Current Proximity Probe |
| Probe Diameter | 8mm |
| Cable Length | 6.0 m (integral cable) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Gap Range | 0.25 – 2.54 mm (10 – 100 mil) |
| Temperature Range | -35°C to +177°C |
| Supply Voltage | -24 VDC (nominal, via driver) |
| Compatibility | 3300 XL Driver 330180, 330181; Monitor 3300/16, 3500/42 |
| Installation | Threaded tip, locknut mounting; radial or axial orientation |
| Application Environment | Turbines, compressors, pumps, gearboxes, rotating machinery |
| Maintenance Recommendation | Replace as matched set with driver and extension cable; verify gap at commissioning |
| Origin | USA |
| Warranty | 12 Months |
| Pre-shipment Testing | Functional output and sensitivity verified before dispatch |
Maintenance Planning for Continuous Operation
When a 330930-060-00-05 proximity probe is flagged for replacement — whether during a scheduled outage, a routine vibration audit, or an emergency shutdown — experienced maintenance engineers know that the probe itself is rarely the only component that warrants attention. The 3300 XL transducer system operates as a matched set: the probe, the 330130-080-00-05 extension cable, and the 330180-X1-05 proximitor/driver must all be verified together to ensure system accuracy and avoid nuisance trips.
During a control cabinet inspection or machinery protection panel review, it is standard practice to simultaneously check the 3300/16 Monitor or 3500/42 Proximitor I/O Module for channel health, alarm setpoint integrity, and relay output status. If the machine has been running in a degraded monitoring state, the 3500/22M Transient Data Interface or 3500/25 Enhanced Keyphasor Module may also require inspection, particularly for phase-referenced vibration analysis on critical rotating assets.
Power supply integrity is equally important. The 3500/15 Power Supply Module feeding the monitoring rack should be checked for output voltage stability and ripple, as marginal supply voltage is a common root cause of false probe gap readings. Terminal blocks, shielded cable terminations, and grounding continuity within the junction box should be verified to eliminate signal noise that can mimic probe degradation.
For sites running older 3300 Series infrastructure alongside newer 3500 Series racks, procurement engineers should consider stocking the 330930-060-00-05 alongside compatible 330105-02-12-10-02-00 extension cables and spare 330180 proximitor drivers to support both generations without cross-compatibility risk. Maintaining a minimum of two probe assemblies per critical machine train is a widely accepted best practice in API 670-compliant maintenance programs.
Where signal isolation is required between the Bently Nevada monitoring system and a DCS or safety instrumented system (SIS), galvanic isolators or signal conditioners rated for proximity probe outputs (typically 0–24V, 4–20mA conversion) should be included in the spare parts register. These components are often overlooked until a cross-system interference event causes an unplanned trip.
Site Replacement Workflow
Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the proximitor driver power supply before disconnecting the probe. Note the existing gap voltage reading from the monitor display or DCS historian for reference.
Step 2 — Probe Removal: Loosen the locknut and carefully back out the probe from the bracket. Inspect the probe tip for physical damage, contamination, or corrosion. Inspect the target surface (shaft) for scoring or runout anomalies that may have contributed to probe failure.
Step 3 — Extension Cable Inspection: Before installing the new 330930-060-00-05, inspect the mating extension cable connector for pin damage, moisture ingress, or shield continuity loss. A degraded extension cable will compromise the new probe’s performance immediately.
Step 4 — Installation and Gap Setting: Thread the new probe into the bracket. Set the air gap to the manufacturer-specified nominal value (typically 1.0–1.27 mm / 40–50 mil for 8mm probes) using a feeler gauge or by monitoring the DC gap voltage output on the proximitor. Tighten the locknut to the specified torque.
Step 5 — System Verification: Restore power and verify the gap voltage is within the linear range on the 3300 or 3500 monitor. Confirm alarm and danger setpoints are active. Check relay output continuity. Log the as-left gap voltage in the maintenance record.
Step 6 — Return to Service: Clear the bypass, restore monitoring, and confirm the channel is healthy in the DCS or machinery protection HMI before releasing the machine for operation.
This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail for reliability-centered maintenance (RCM) programs.
Spare Parts Support FAQ
Q1: Is the 330930-060-00-05 a direct replacement for older 330930 series probes?
Yes. The 330930-060-00-05 is backward-compatible with earlier 3300 XL 8mm transducer system installations. It is designed to work with the same 330180 and 330181 proximitor drivers and 330130 extension cables used in legacy deployments. Always verify the cable length suffix matches your installation to avoid gap calibration errors.
Q2: How do you verify authenticity and functionality before shipment?
Every unit supplied by SMARTNEXMSK undergoes pre-shipment inspection including visual examination, connector integrity check, and output sensitivity verification. Units are shipped with original packaging where available. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.
Q3: What is the recommended inventory strategy for this probe?
For critical rotating machinery (turbines, compressors, large pumps), API 670 and most plant reliability standards recommend holding a minimum of one complete spare transducer set — probe, extension cable, and proximitor driver — per machine train. For high-criticality assets with no installed spare, two sets are advisable. SMARTNEXMSK supports blanket order arrangements for multi-site procurement programs.
Q4: Can this probe be used in safety instrumented systems (SIS)?
The 330930-060-00-05 is a machinery protection component, not a SIL-rated safety sensor. However, it is commonly integrated into SIS architectures via certified signal isolators or voting logic solvers. Consult your SIS engineer and the Bently Nevada 3500 system documentation to confirm the integration architecture meets your site’s functional safety requirements.
