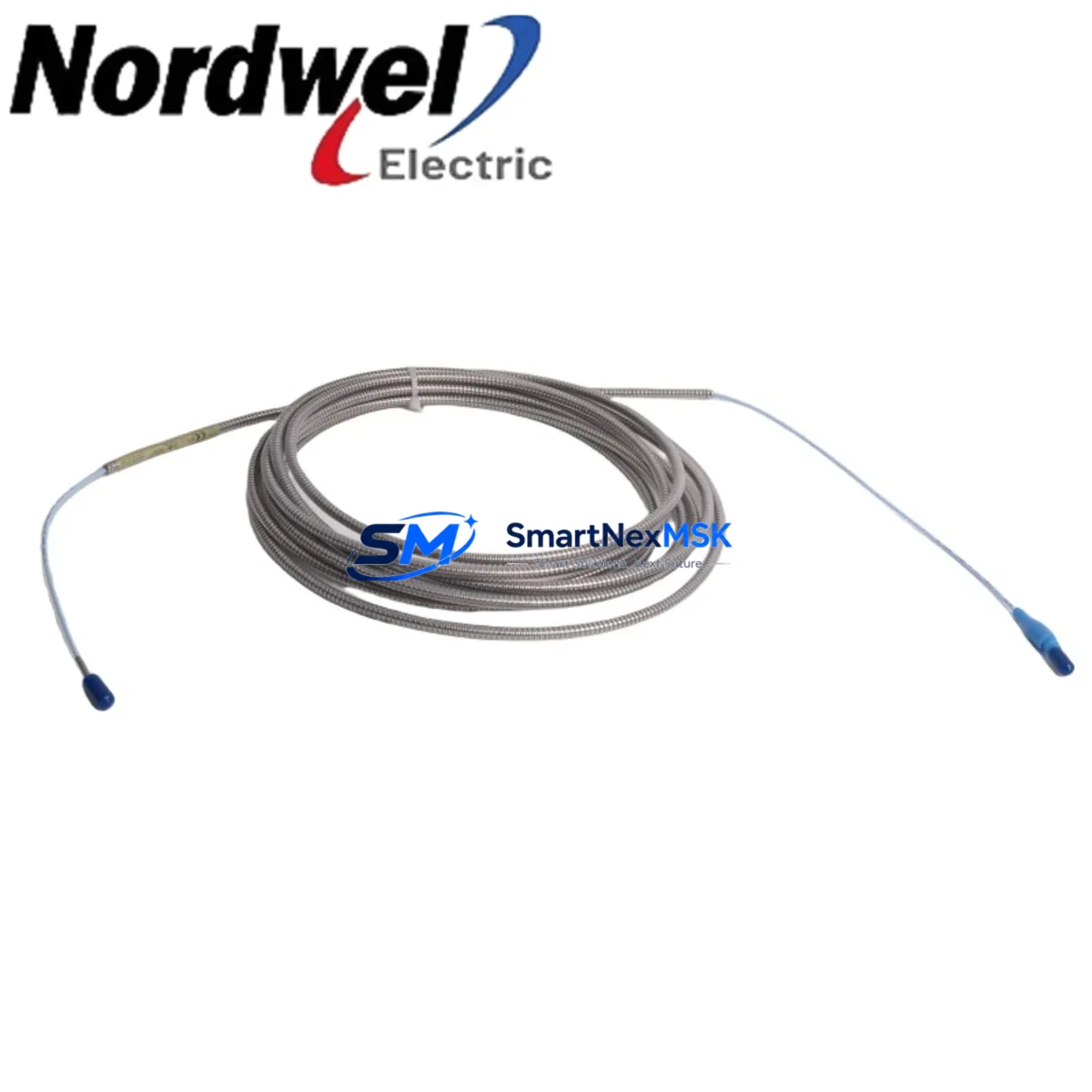

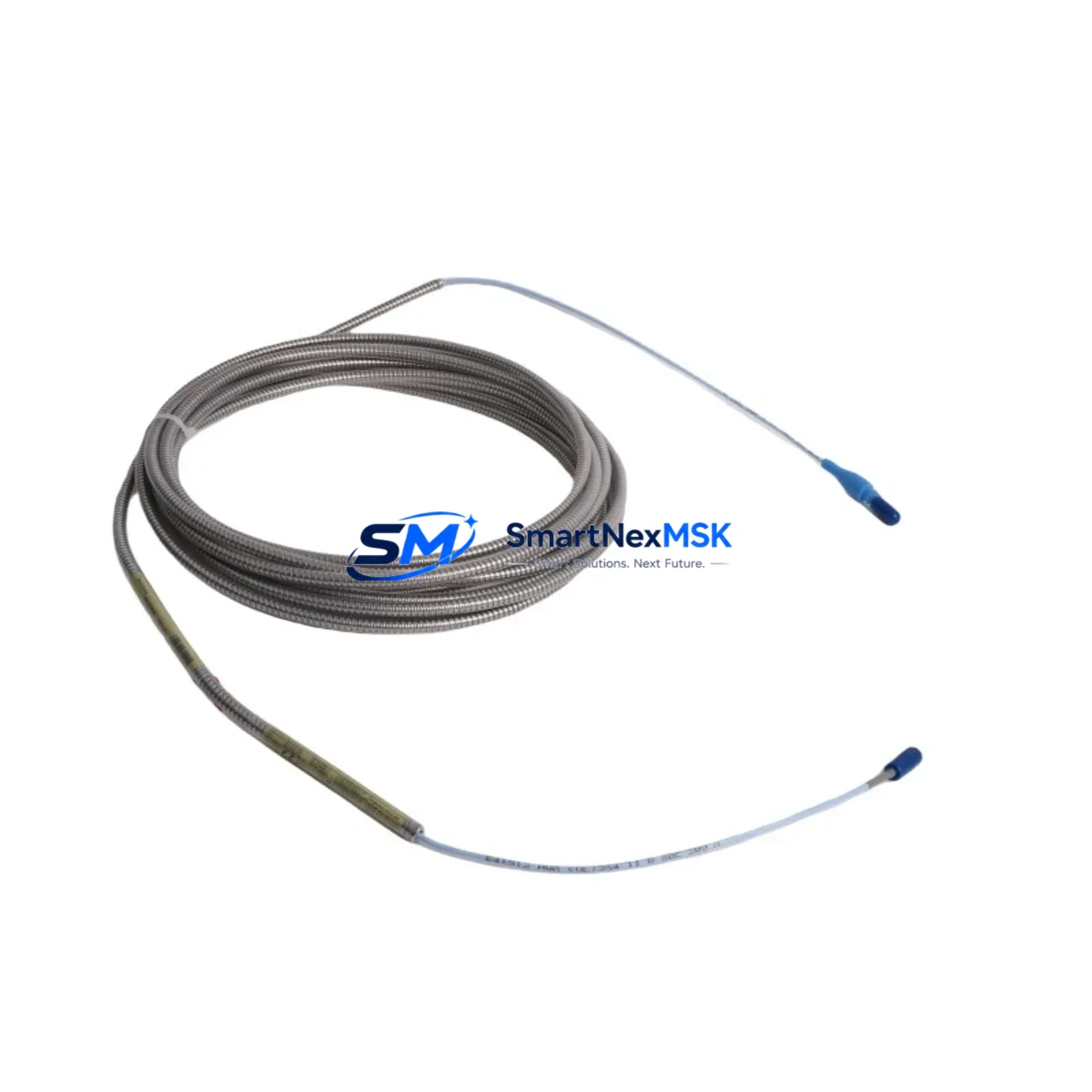

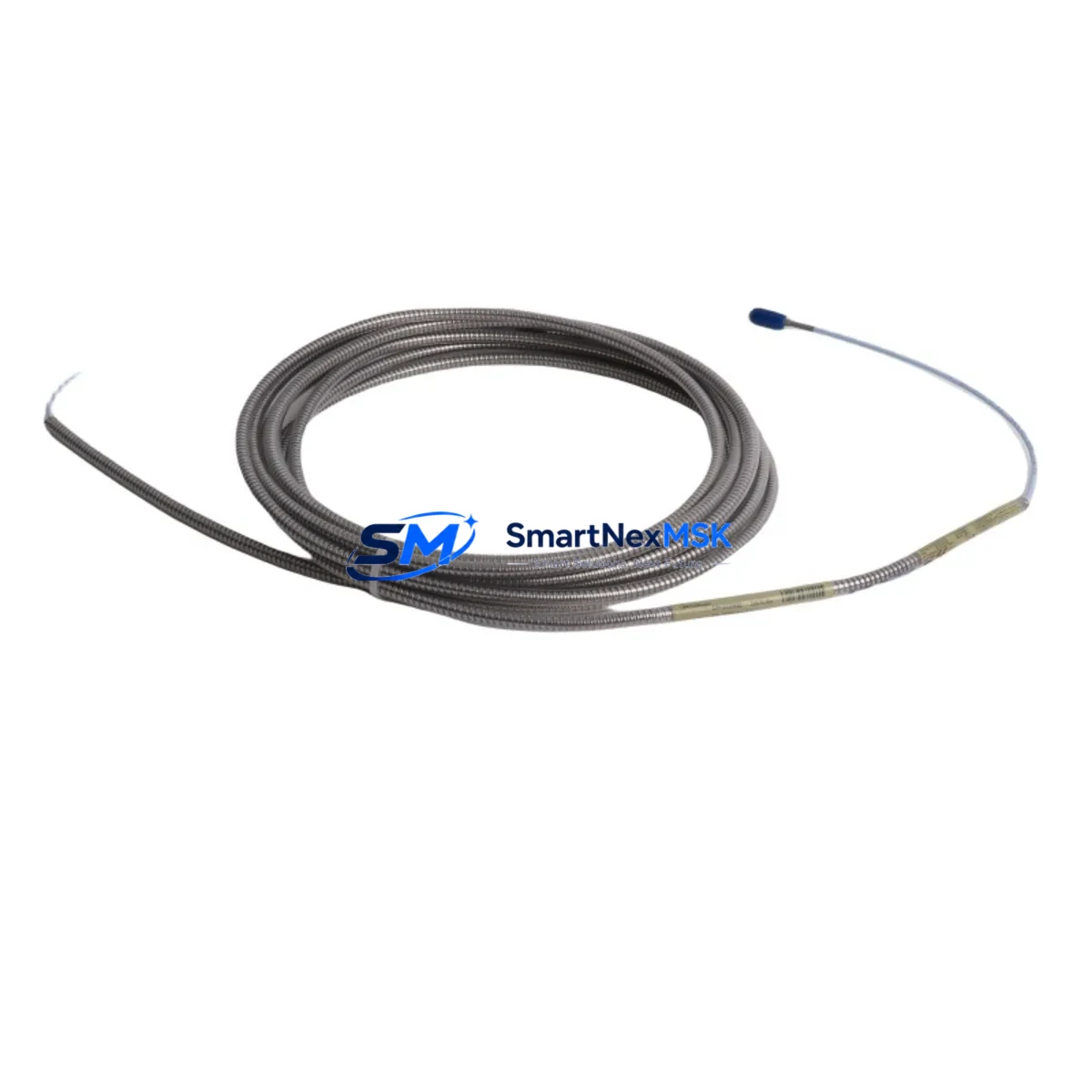

The Bently Nevada 330930-065-04-BR is an original armored coaxial extension cable engineered for the 3300 NSv proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery applications including steam turbines, gas compressors, centrifugal pumps, and large induction motors. When a proximity measurement loop fails or degrades, the extension cable is among the first components to inspect: mechanical abrasion, connector corrosion, shield continuity loss, and impedance mismatch are common root causes of false vibration alarms and unplanned shutdowns.

Sourced as an original spare, the 330930-065-04-BR maintains full electrical compatibility with the 3300 NSv signal conditioning chain. Stocking this cable as a maintenance-ready spare eliminates the most common single point of failure in proximity measurement loops and supports rapid restoration of vibration monitoring coverage during planned or emergency outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity measurement loop in a 3300 NSv system consists of several interdependent components, and a disciplined maintenance engineer will treat the 330930-065-04-BR replacement as an opportunity to inspect the entire signal chain. Begin with the 3300 NSv Proximitor Sensor (e.g., 330180-91-05) — verify output voltage at the monitor terminal and confirm the sensor gap is within the manufacturer’s calibrated range. Next, inspect the 3300 XL 8mm or 11mm proximity probe at the machine casing: check for tip damage, thread condition, and locknut torque.

At the junction box or terminal strip, examine the 3300 NSv field wiring terminal block and confirm shield grounding is intact at one end only to prevent ground loops. If the cabinet houses a 3500/42M Proximitor I/O Module or a 3500/22M Transient Data Interface, verify that channel configuration matches the replacement cable’s electrical characteristics. For systems using a 3500/20 Rack Interface Module, confirm firmware revision compatibility if the monitor rack has been partially upgraded.

In multi-channel vibration monitoring cabinets, it is good practice to simultaneously inspect adjacent 3300 NSv extension cables on neighboring measurement points — cable degradation from heat, vibration fatigue, or chemical exposure tends to affect multiple cables in the same conduit run at similar intervals. Where the signal path passes through a signal isolator or galvanic isolator module, verify isolation resistance and output linearity. Finally, check the barrier or Zener barrier if the installation is in a hazardous area (Zone 1 / Zone 2), as barrier degradation can mimic cable faults and lead to misdiagnosis.

For procurement engineers building a spare parts list, the 330930-065-04-BR pairs naturally with the 3300 NSv Proximitor Sensor, the matched proximity probe, and a set of BNC connector dust caps for storage. Maintaining at least one spare cable per critical machine train — turbines, compressors, and gearboxes — is a widely adopted strategy in ISO 55001-aligned maintenance programs.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the affected monitor channel at the 3500 Series rack. Do not de-energize the entire rack unless required; most 3500 racks support channel-level bypass to maintain monitoring on adjacent channels during maintenance.

Step 2 — Cable Removal: Disconnect the 330930-065-04-BR at both the Proximitor Sensor end and the monitor rack end. Inspect connectors for corrosion, bent pins, or damaged threads. Document the as-found gap voltage reading if the Proximitor was still powered.

Step 3 — Replacement Installation: Route the new 330930-065-04-BR through the existing conduit or cable tray. Avoid sharp bends below the minimum bend radius. Torque BNC connectors to specification and verify shield grounding continuity with a calibrated multimeter before reconnection.

Step 4 — Functional Verification: Re-energize the channel and confirm gap voltage is within the linear range (typically -10 VDC ± 2 V for standard 3300 NSv setups). Check the 3500 monitor for alarm status and confirm the channel is reading correctly before releasing the bypass.

Step 5 — Documentation: Record the replacement in the CMMS with the new cable’s serial number, installation date, and as-left gap voltage. Update the spare parts inventory to trigger reorder of the consumed 330930-065-04-BR.

This workflow minimizes downtime to under two hours for a trained technician and ensures the replacement is fully verified before the machine returns to service — maintaining compliance with API 670 and plant vibration monitoring standards.

Spare Parts Support FAQ

Q1: Is the 330930-065-04-BR compatible with both 3300 NSv and 3500 Series monitor racks?
Yes. The 330930-065-04-BR is designed for the 3300 NSv Proximitor Sensor and is electrically compatible with 3500 Series monitor inputs when used with the correct Proximitor. Always verify the probe-cable-Proximitor combination matches the monitor channel configuration to ensure calibrated output.

Q2: How is the spare tested before shipment?
Each 330930-065-04-BR unit undergoes continuity testing, shield integrity verification, and connector inspection prior to dispatch. Units are shipped in ESD-safe, moisture-resistant packaging with a test record. Express shipping options are available for emergency breakdown situations.

Q3: What is the recommended spare stock level for a plant with 20 proximity measurement points?
Industry practice for critical rotating machinery suggests maintaining a minimum of 10–15% spare coverage — approximately 2–3 extension cables for a 20-point installation. For plants with aging cable runs (10+ years) or harsh environments (high temperature, chemical exposure), increasing to 20% coverage is advisable to support unplanned replacements without lead-time risk.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers electrical performance (continuity, impedance, shield integrity) and mechanical integrity (armor, connectors, jacket) under normal industrial operating conditions. Warranty claims are supported with replacement dispatch within 5 business days upon confirmation of the defect. Contact sales@smartnexmsk.com for warranty service.
