Bently Nevada 330930-65-03-05 Retrofit-Ready Proximity Transducer for 3300 XL NSv Control Systems

Bently Nevada 330930-65-03-05 Retrofit-Ready Proximity Transducer for 3300 XL NSv Control Systems

The Bently Nevada 330930-65-03-05 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSv series condition monitoring platform. Designed as a direct retrofit solution for aging or discontinued vibration monitoring assemblies, this transducer delivers reliable radial shaft displacement measurement in rotating machinery applications including turbines, compressors, pumps, and motors. Whether you are replacing a failed unit on a legacy production line, upgrading a control cabinet to meet current reliability standards, or migrating from an older 3300 series architecture, the 330930-65-03-05 provides a verified drop-in replacement path with minimal engineering intervention.

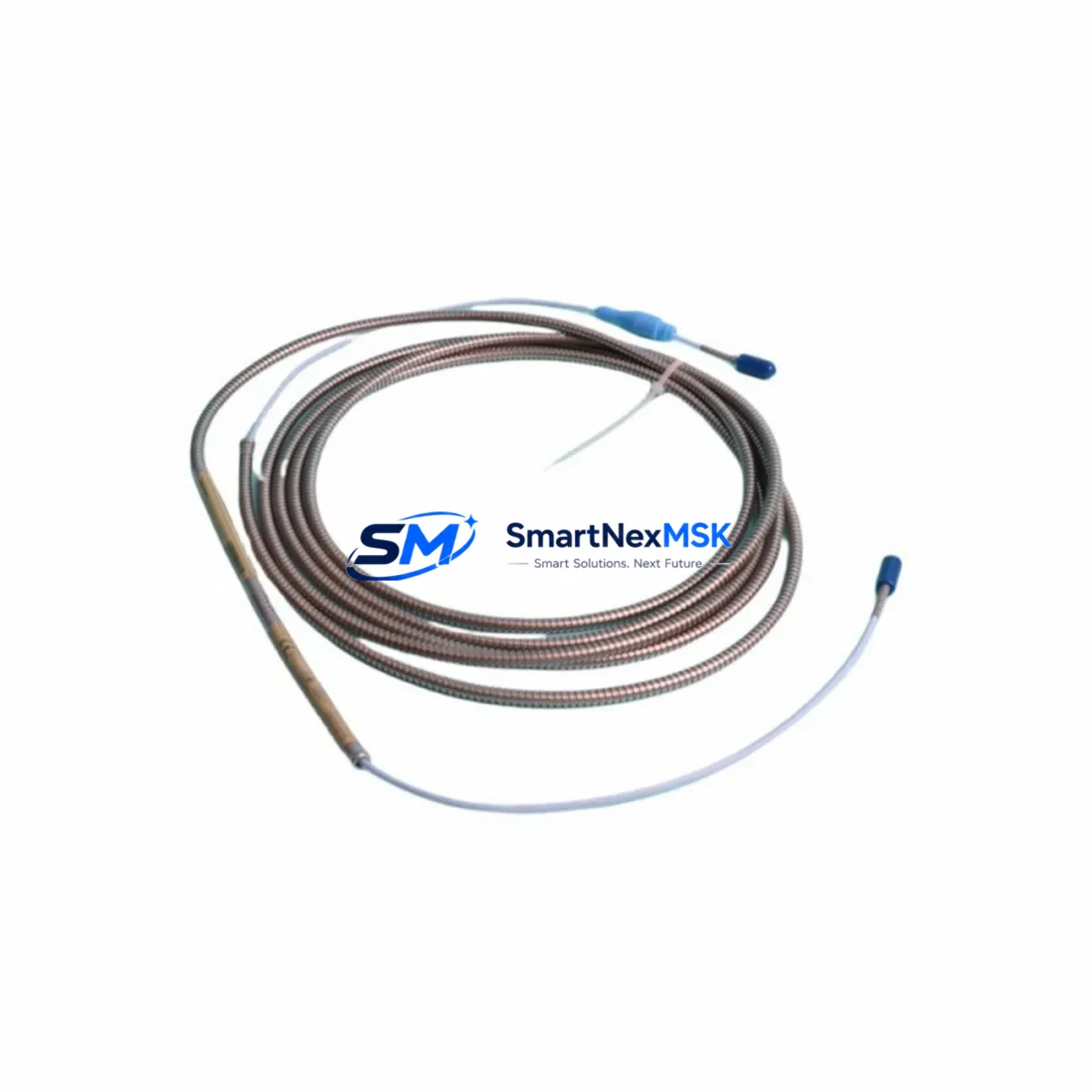

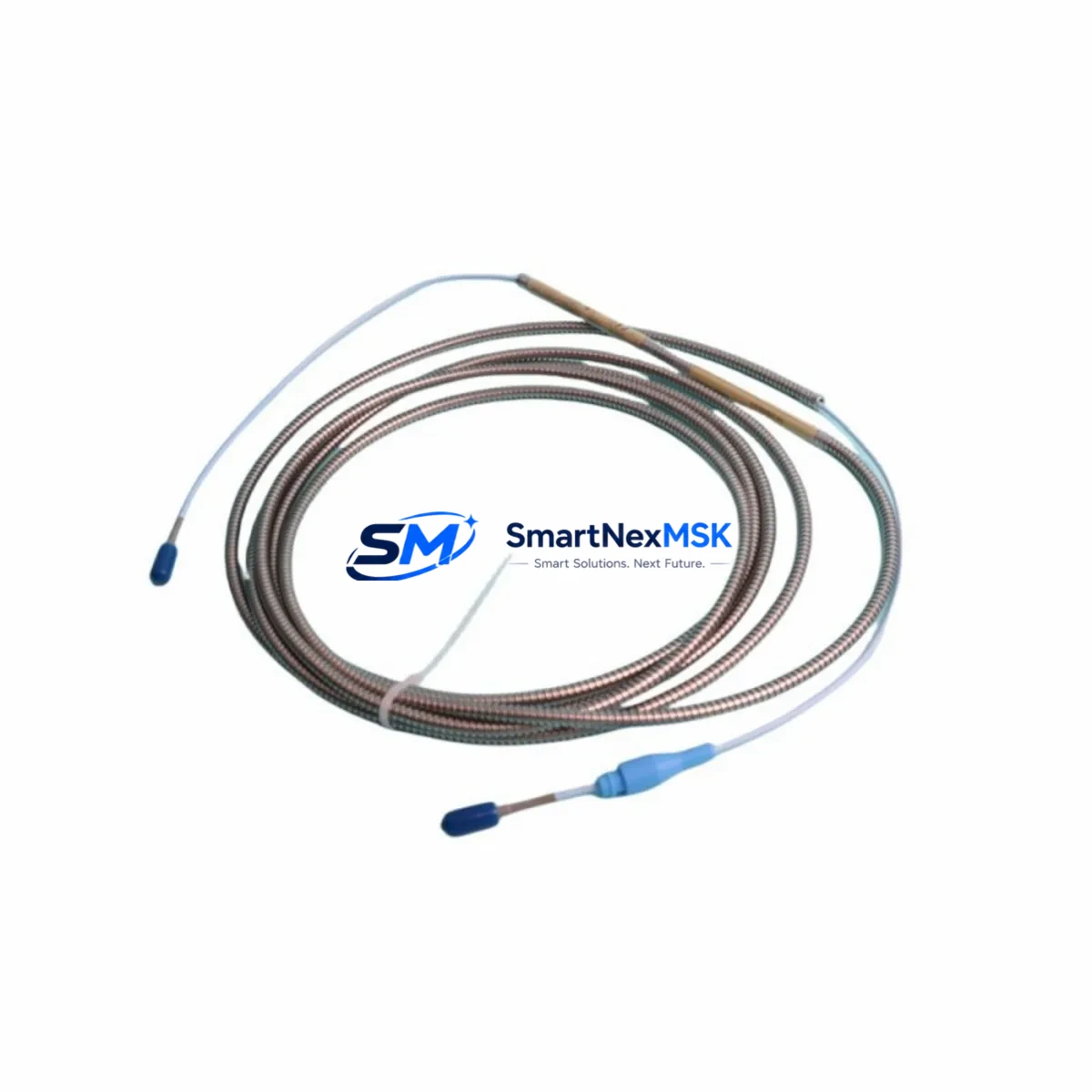

This transducer operates within the standard Bently Nevada eddy-current sensing chain, pairing directly with compatible extension cables such as the 330130 series and signal conditioners including the 3300 XL 8mm Proximitor Sensor. The 5-metre armoured cable assembly and M10 x 1 threaded tip housing conform to the original mechanical envelope, ensuring that existing bracket mounts, probe holders, and conduit runs require no modification during the swap-out procedure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330930-65-03-05 into an existing control cabinet begins well before the physical swap. Engineers should first audit the current rack configuration. In a typical 3500 series monitoring rack, the transducer signal feeds into a 3500/42M four-channel position monitor or a 3500/40M proximitor I/O module. Confirm that the monitor card firmware supports the 8 mm eddy-current sensing chain and that the channel configuration in the 3500 Rack Configuration Software (RCS) reflects the correct transducer type and scale factor.

For installations still running on the older 3300/16 monitor or 3300 RAM module, the 330930-65-03-05 remains electrically compatible, but engineers should verify that the Proximitor power supply rail — typically –24 VDC — is within tolerance before connecting the new transducer. A degraded power supply module in the rack can produce erratic gap voltage readings that mimic a faulty probe, leading to unnecessary repeat replacements. Replacing the power supply module alongside the transducer is a common best practice during planned outages.

Terminal block wiring should be documented before disconnection. The standard three-conductor shielded cable carries the bias supply, signal output, and shield/drain. When routing the 330130 extension cable from the machine casing to the rack, ensure that the cable shield is grounded at one end only — typically at the Proximitor — to avoid ground loops that introduce noise into the vibration signal. If the existing conduit run uses a different cable diameter, a 330180 series armour adapter may be required to maintain IP rating continuity.

For facilities migrating from a standalone 3300 XL NSv platform to a fully networked condition monitoring architecture, the 330930-65-03-05 can serve as the field sensing element while the rack-level communication is handled by a 3500/92 communication gateway module, enabling Modbus TCP or OPC-UA data export to a plant historian or DCS. This migration path preserves the existing transducer investment while adding digital connectivity without replacing field wiring.

HMI screens tied to the legacy 3300 system should be reviewed for tag mapping. If the plant uses a Rockwell FactoryTalk View or Siemens WinCC HMI, the analogue input tags referencing the old transducer channel must be verified against the new monitor card address. In multi-rack installations, the 3500 rack node address and slot assignment must match the HMI tag database to prevent false alarm conditions during the first powered run after replacement.

I/O expansion considerations are also relevant when the retrofit is part of a broader control cabinet upgrade. Adding a 3500/20 rack interface module or a 3500/22M transient data interface allows the facility to capture high-resolution waveform data alongside the steady-state proximity output, supporting predictive maintenance programmes without requiring a full platform replacement.

Downtime Control During System Migration

Minimising production downtime during a transducer replacement requires a structured pre-outage preparation protocol. Before the planned maintenance window, technicians should pre-configure the replacement 330930-65-03-05 on a bench test rig using a 3300 XL 8mm Proximitor Sensor and a calibrated target disc to verify the gap voltage curve and sensitivity coefficient. This pre-verification step eliminates the most common cause of extended outages — discovering a configuration mismatch only after the machine is shut down.

During the outage, the original program logic in the 3500 rack should be exported and saved before any configuration changes are made. The 3500 RCS software allows a full rack configuration backup to a local file, which serves as the restore point if the new transducer installation reveals unexpected channel behaviour. Alert and danger setpoints should be noted and re-entered manually if the rack configuration is reloaded from a backup that predates the current setpoint revision.

Once the 330930-65-03-05 is physically installed and the gap is set to the target voltage, the OK relay status on the monitor front panel provides the first confirmation of a valid sensing chain. A steady OK indication — with gap voltage within the linear range — allows the machine to be restarted under observation. The first 30 minutes of operation should be monitored for any alert threshold crossings that may indicate a gap setting drift caused by thermal expansion of the machine casing.

For critical rotating equipment where even a brief unplanned trip is unacceptable, a hot-standby bypass procedure using the monitor’s bypass switch allows the channel to be placed in bypass mode during the physical swap, maintaining the rack in a non-tripping state while the transducer is changed. This approach is documented in the Bently Nevada 3500 Series System Rack Installation and Operation Manual and should be reviewed with the site safety team before implementation.

All units supplied by SMARTNEXMSK are subject to outgoing functional testing prior to dispatch, including gap voltage linearity verification and connector integrity checks, ensuring that the unit arrives ready for immediate installation without additional bench testing at the customer site.

Retrofit Support FAQ

Q1: Is the 330930-65-03-05 a direct replacement for the 330930-65-00-05 or 330930-65-01-05?
A: Yes. The suffix digits in the 330930-65-XX-05 series denote cable jacket and connector variants. The core sensing element, tip diameter, thread size, sensitivity, and electrical interface are identical across the series. The 330930-65-03-05 can replace earlier suffix variants without any modification to the Proximitor, extension cable, or monitor card configuration. Confirm the connector type at the Proximitor end before ordering if your installation uses a non-standard field connector.

Q2: What commissioning steps are required after installation?
A: After physical installation, set the probe gap to achieve a bias voltage of –10.0 VDC ± 0.5 VDC at the mid-range target position. Verify the OK relay on the 3300 or 3500 monitor is energised. Check the signal output at the monitor front panel or via the 3500 RCS software to confirm the channel is reading within the expected vibration baseline for the machine at rest. Record the as-found gap voltage in the maintenance log before returning the machine to service.

Q3: Can this transducer be used with a 3500/42M monitor card in a mixed-rack configuration alongside 3300 XL NSv modules?
A: Yes. The 330930-65-03-05 is compatible with both the 3300 XL NSv Proximitor and the 3500/42M monitor card. In a mixed-rack environment, ensure that each channel is individually configured in the 3500 RCS software with the correct transducer type (8 mm eddy-current) and that the rack node address does not conflict with existing 3300 modules on the same communication bus.

Q4: What does the 12-month warranty cover, and what is the return process?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions, including gap voltage out-of-specification at delivery, connector failure, and cable insulation defects. It does not cover damage caused by incorrect installation, over-range mechanical impact, or chemical exposure. To initiate a warranty return, contact SMARTNEXMSK with the order number and a description of the fault. Units are inspected upon receipt and replacements are dispatched within 5 business days of fault confirmation.
