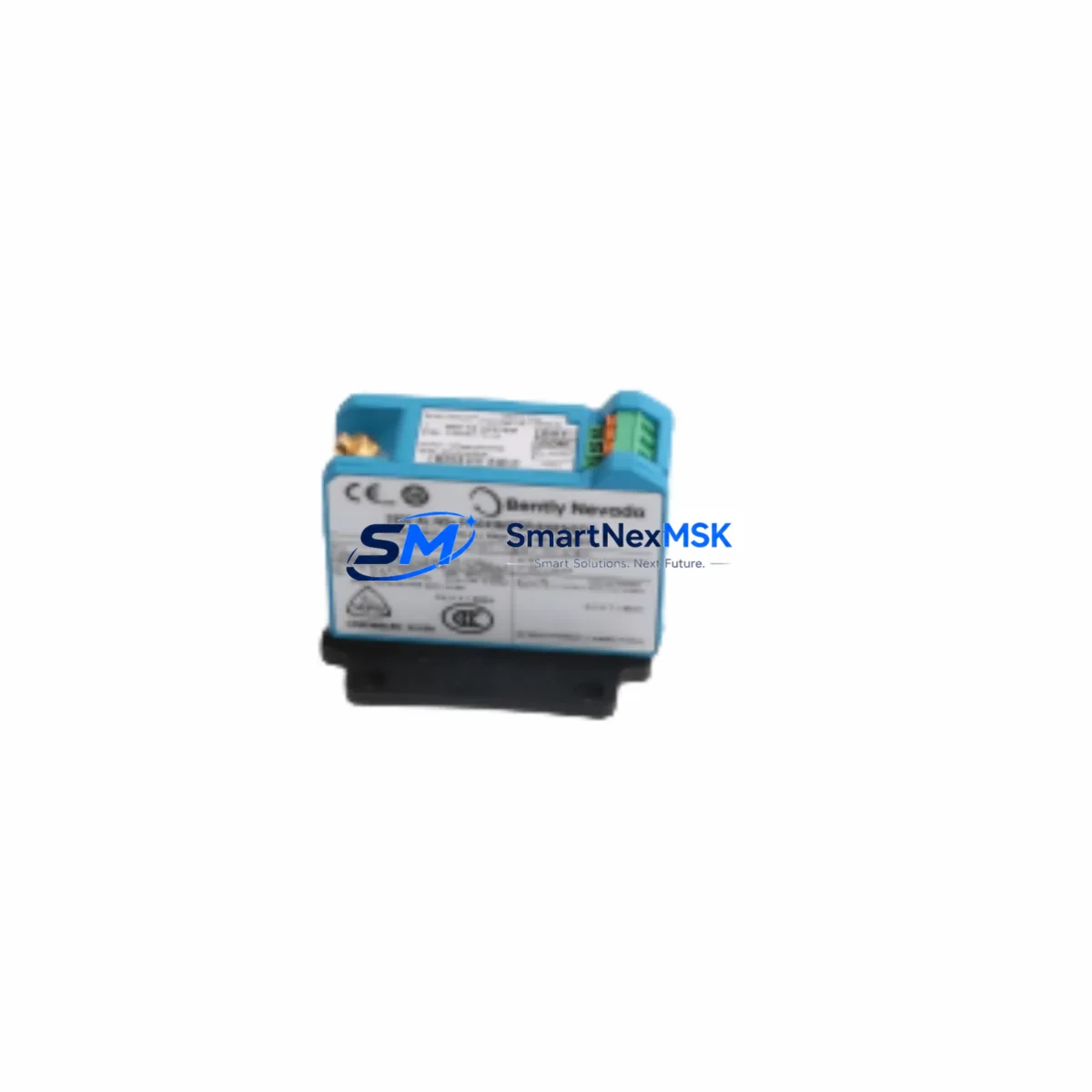

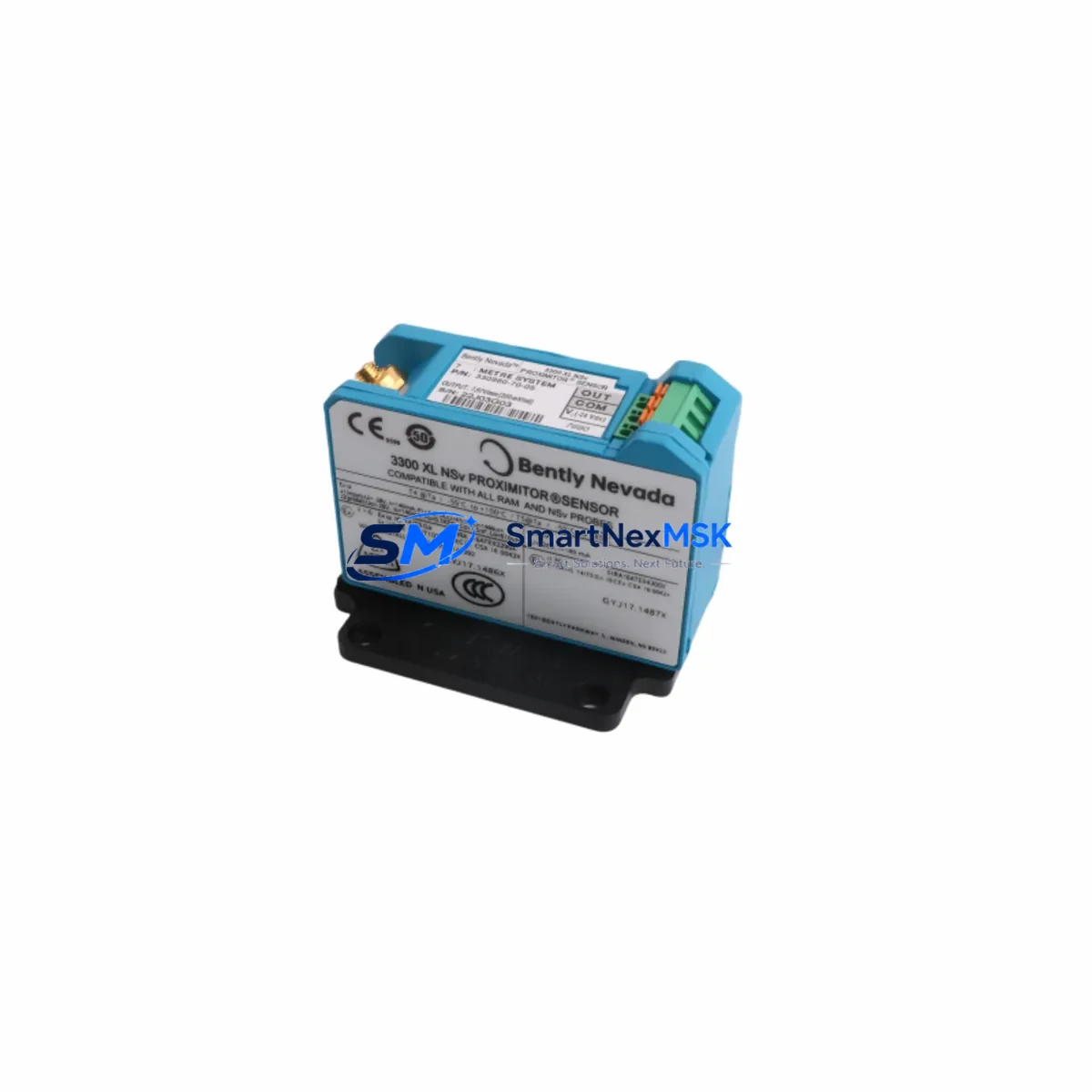

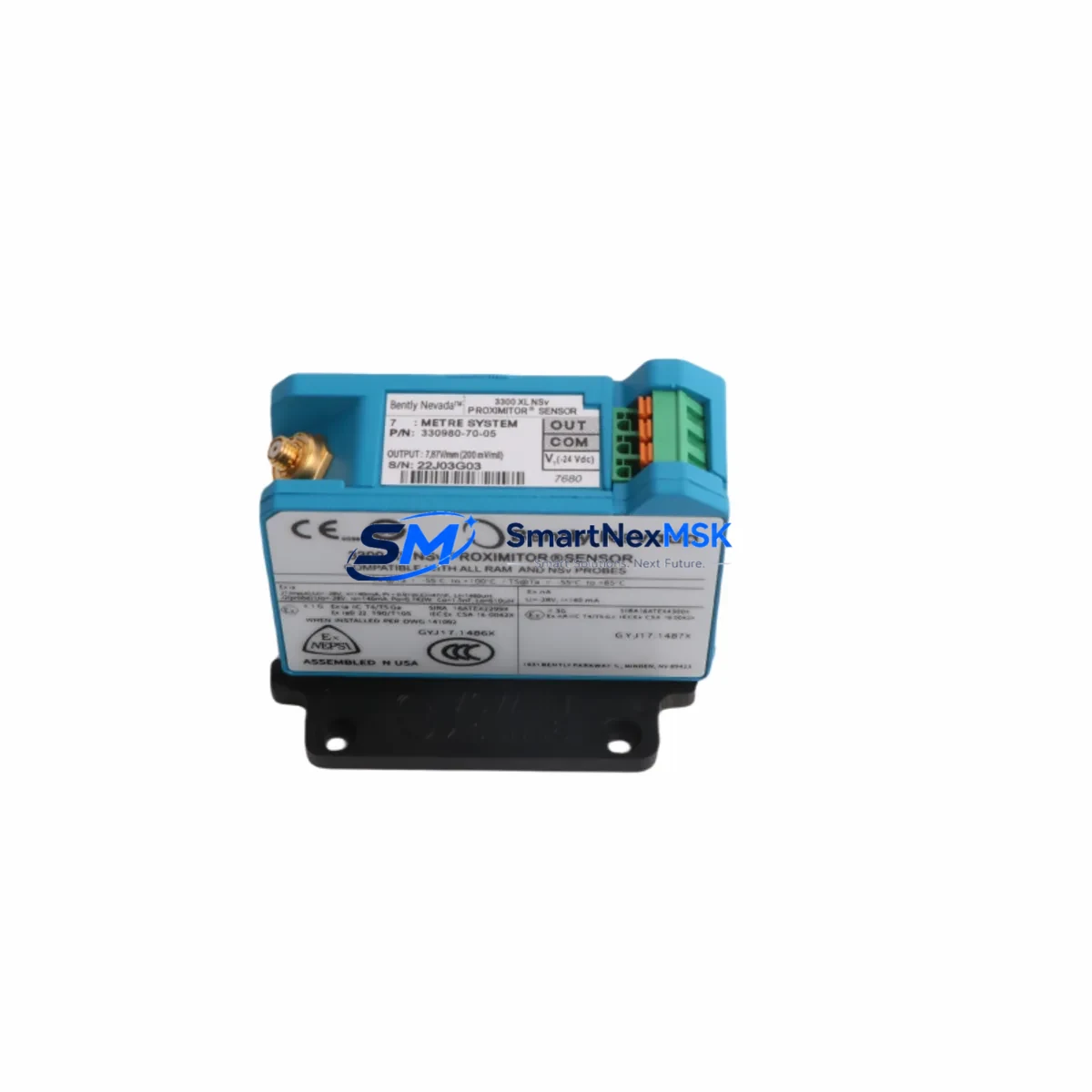

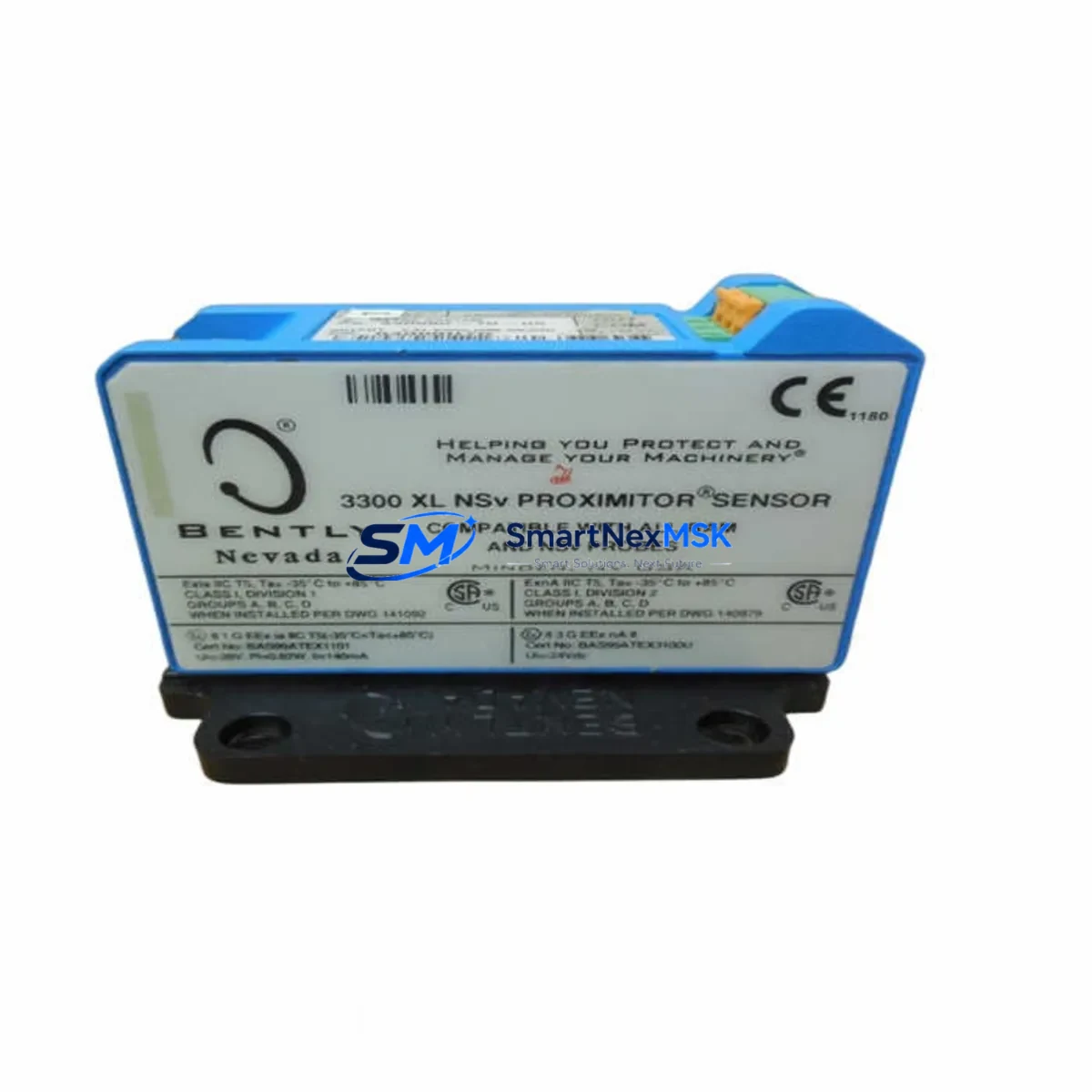

The Bently Nevada 330980-70-05 is an original eddy-current proximity transducer engineered for continuous operation within the 3300 XL Series vibration monitoring system. For maintenance engineers managing rotating machinery — turbines, compressors, pumps, and gearboxes — this transducer is a critical front-line component. Its failure or degradation directly triggers unplanned shutdowns, making a verified, maintenance-ready spare an essential element of any serious predictive maintenance (PdM) or planned outage strategy.

This unit ships tested and verified against OEM specifications, with a 12-month warranty covering electrical performance and mechanical integrity. Each unit undergoes pre-shipment functional checks including output voltage linearity, gap sensitivity calibration, and cable continuity verification — ensuring it arrives ready for immediate installation without additional bench testing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330980-70-05 in the field, a disciplined maintenance engineer will not stop at the transducer alone. The 3300 XL system is an integrated measurement chain, and any component degradation upstream or downstream can mask or replicate transducer faults. During the same maintenance window, the following components should be inspected or replaced as part of a complete corrective action:

The 3300 XL Proximitor Sensor (e.g., 330180-X1-05) conditions the raw eddy-current signal into a usable DC voltage output. If the transducer has been running in a high-temperature or high-vibration zone, the Proximitor should be checked for output drift and power supply rail stability. Similarly, the extension cable assembly (330130-080-00-00 or equivalent) connecting the probe to the Proximitor is a frequent failure point — inspect for jacket cracking, connector corrosion, and impedance mismatch.

At the rack level, the 3300/16 or 3300/20 monitor module receiving the transducer signal should be verified for correct gap voltage reading (typically -10 VDC at mid-range) and alarm setpoint integrity. If the monitor has not been recalibrated within the last two years, this replacement event is an ideal opportunity. The 3300/05 power supply module feeding the Proximitor rail should also be load-tested — a sagging -24 VDC supply is a common root cause of false vibration alarms that are incorrectly attributed to transducer failure.

For plants running parallel redundant monitoring, the 3500 Series rack system (if used as a backup or upgrade path) uses compatible transducer technology, and cross-referencing spare inventory between 3300 XL and 3500 platforms can reduce total spare parts cost. Additionally, terminal blocks and field wiring junction boxes in the transducer cable run should be inspected for loose terminations, moisture ingress, and ground loops — all of which introduce noise into the proximity signal chain.

If the machine being monitored also uses velocity sensors (e.g., 330500 Series seismic transducers) or temperature monitoring modules on the same rack, a holistic inspection during the outage window prevents repeat call-outs. Finally, confirm that the Bently Nevada System 1 software configuration reflects the correct transducer scale factor and gap voltage for the replacement unit before returning the machine to service.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the Proximitor supply rail at the rack before disconnecting the transducer cable. Confirm zero voltage at the probe connector with a calibrated multimeter.

Step 2 — Gap Measurement & Documentation: Record the existing probe gap (in mils) using the Proximitor output voltage before removal. This baseline is critical for setting the replacement unit to the same operating point. Typical target gap for radial vibration applications is 50 mil (–10 VDC output).

Step 3 — Removal & Inspection: Remove the 330980-70-05 from the probe holder. Inspect the probe tip for mechanical damage, shaft contact marks, or contamination. Inspect the probe holder threads and armored cable for wear. Replace the holder if thread engagement is compromised.

Step 4 — Installation of Replacement Unit: Install the new 330980-70-05. Set gap to the documented baseline using the Proximitor output voltage as a reference. Torque the locknut to the manufacturer’s specification. Reconnect the extension cable and verify connector seating.

Step 5 — System Verification: Re-energize the Proximitor rail. Confirm output voltage is within ±0.5 VDC of the pre-removal baseline. Check the monitor module for correct gap reading and clear any latched alarms. Log the replacement in the plant CMMS with the new unit’s serial number and installation date.

Step 6 — Return to Service: Confirm with the control room that vibration readings are stable and within normal operating band before releasing the machine to production. Archive the replaced unit for failure analysis if signal drift was the trigger.

Spare Parts Support FAQ

Q1: Is the 330980-70-05 a direct drop-in replacement for older 3300 Series transducers?
The 330980-70-05 is designed for the 3300 XL system and is electrically compatible with standard 3300 XL Proximitor units. For older non-XL 3300 Series racks, verify the Proximitor model number before installation, as sensitivity and gap voltage specifications may differ. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 330980-70-05 shipped from our inventory undergoes output voltage linearity verification, cable continuity and insulation resistance testing, and connector integrity inspection. Units that do not meet OEM electrical specifications are quarantined and not offered for sale. A test report is available upon request.

Q3: How should this spare be stored to maintain its service life?
Store in the original packaging or an ESD-safe, moisture-controlled environment at 15–35°C with relative humidity below 70%. Avoid storing near strong magnetic fields or corrosive atmospheres. Inspect the probe tip and cable connector annually if held in long-term inventory. Shelf life under proper storage conditions exceeds 5 years.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, electrical performance deviations from OEM specifications, and mechanical integrity of the probe body and cable assembly under normal operating conditions. Warranty claims require the unit to be returned for inspection. Physical damage from improper installation, shaft contact, or chemical exposure is excluded. Replacement or refund is processed within 10 business days of confirmed claim.
