Bently Nevada 3500/05-01-01-00-00-00 Retrofit-Ready System Chassis for 3500 Series

Bently Nevada 3500/05-01-01-00-00-00 retrofit-ready 16-slot chassis. Drop-in replacement for 3500 Series. Compatibility verified, in-stock, 12-month warranty.

SKU3500/05-01-01-00-00-00
BrandBently Nevada
Series3500 Series
Bently Nevada 3500/05-01-01-00-00-00 System Chassis
Model context is attached to every quote action. Use WhatsApp for urgent downtime, or Email for purchasing records.
Model checkSKU and compatibility review Quality evidencePhotos and label notes when available Export supportPacking, courier, and delivery notes
Product Information

Model Details

SKU / Model 3500/05-01-01-00-00-00
Brand Bently Nevada
Product Type System Chassis
Series 3500 Series
Catalog Category Business & Industrial > Automation, Control & Flow Devices > Programmable Logic Controllers
Country of Origin US
Tags 3500 Series, Bently Nevada, Machinery Protection, PLC Retrofit, System Chassis
Catalog Paths

Continue from this exact model

Use the live catalog paths below to compare the same brand, product type, or series before sending your RFQ.

RFQ Intent Desk

Choose the right sourcing path for this model

Each action carries the product model and intent into the inquiry record so the sales follow-up starts with useful context.

Exact Model Quote

Use this path when the SKU, brand, quantity, and destination are already confirmed.

Start
Replacement Check

Use this path for old, obsolete, or uncertain models that need compatibility review.

Start
Quality Confirmation

Ask for label photos, packing notes, documentation, or pre-shipment checks.

Start
Urgent Dispatch

Route downtime or maintenance requests with target dispatch timing and courier country.

Start
Description

Bently Nevada 3500/05-01-01-00-00-00 Retrofit-Ready System Chassis for 3500 Series Overview

Bently Nevada 3500/05-01-01-00-00-00 Retrofit-Ready System Chassis for 3500 Series Control Systems

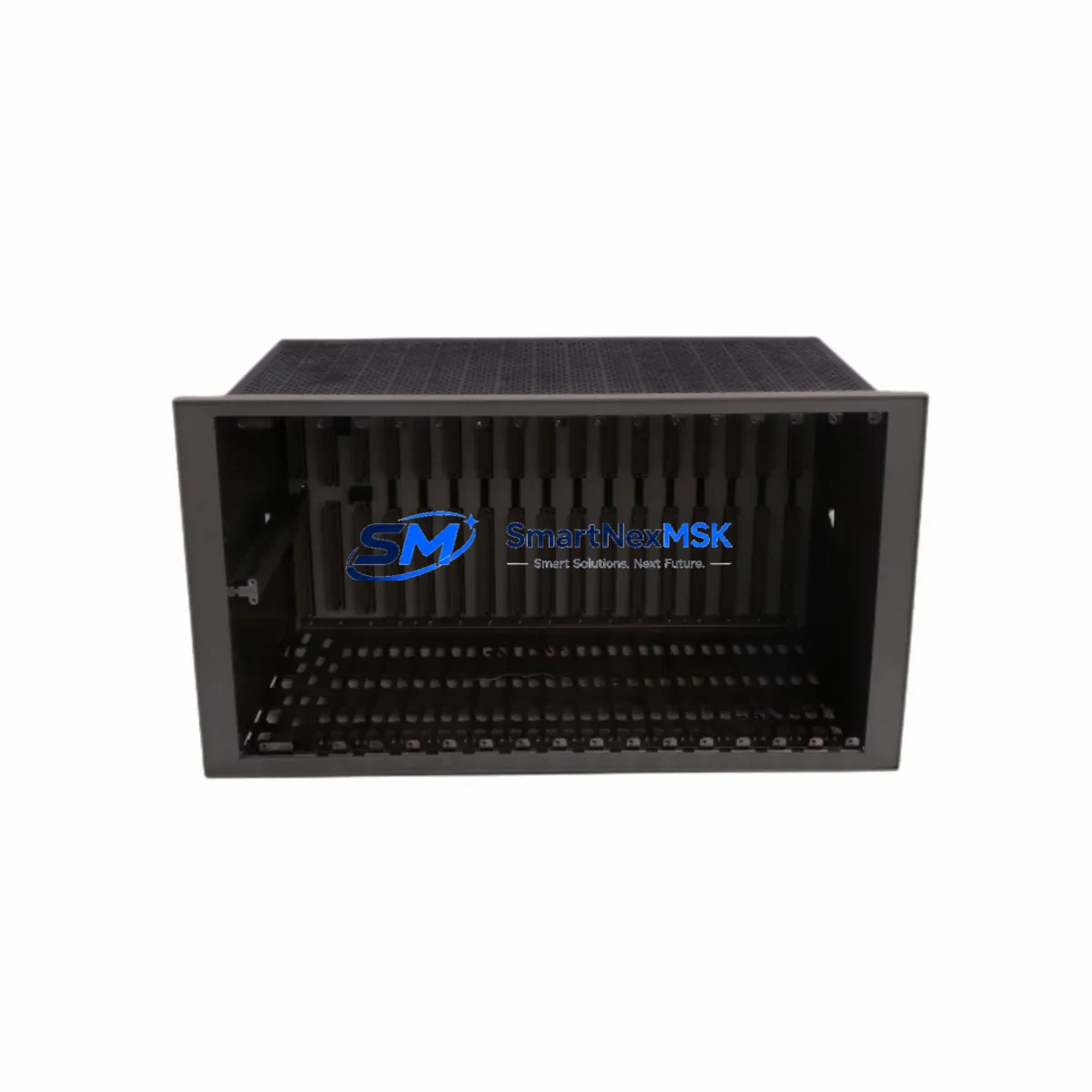

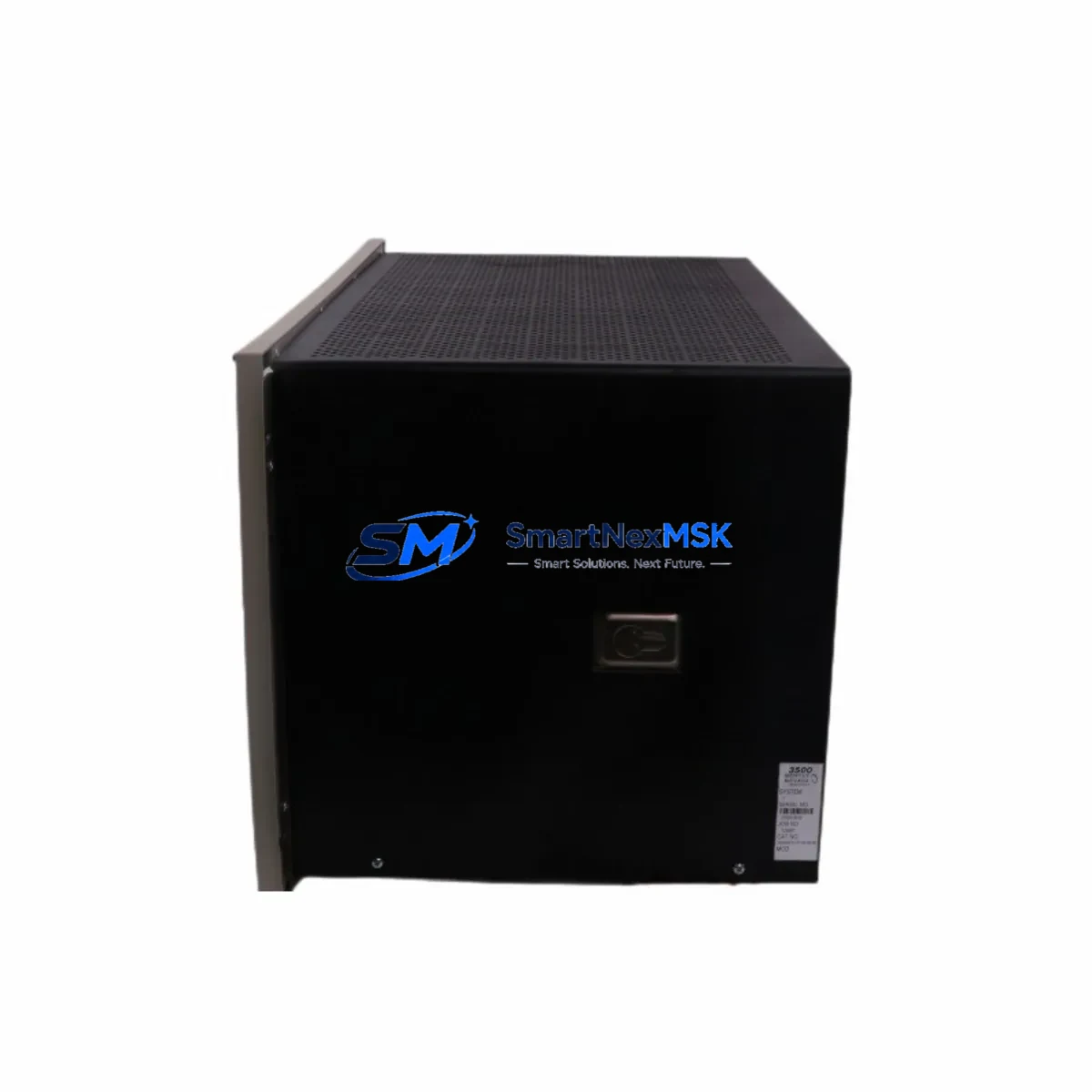

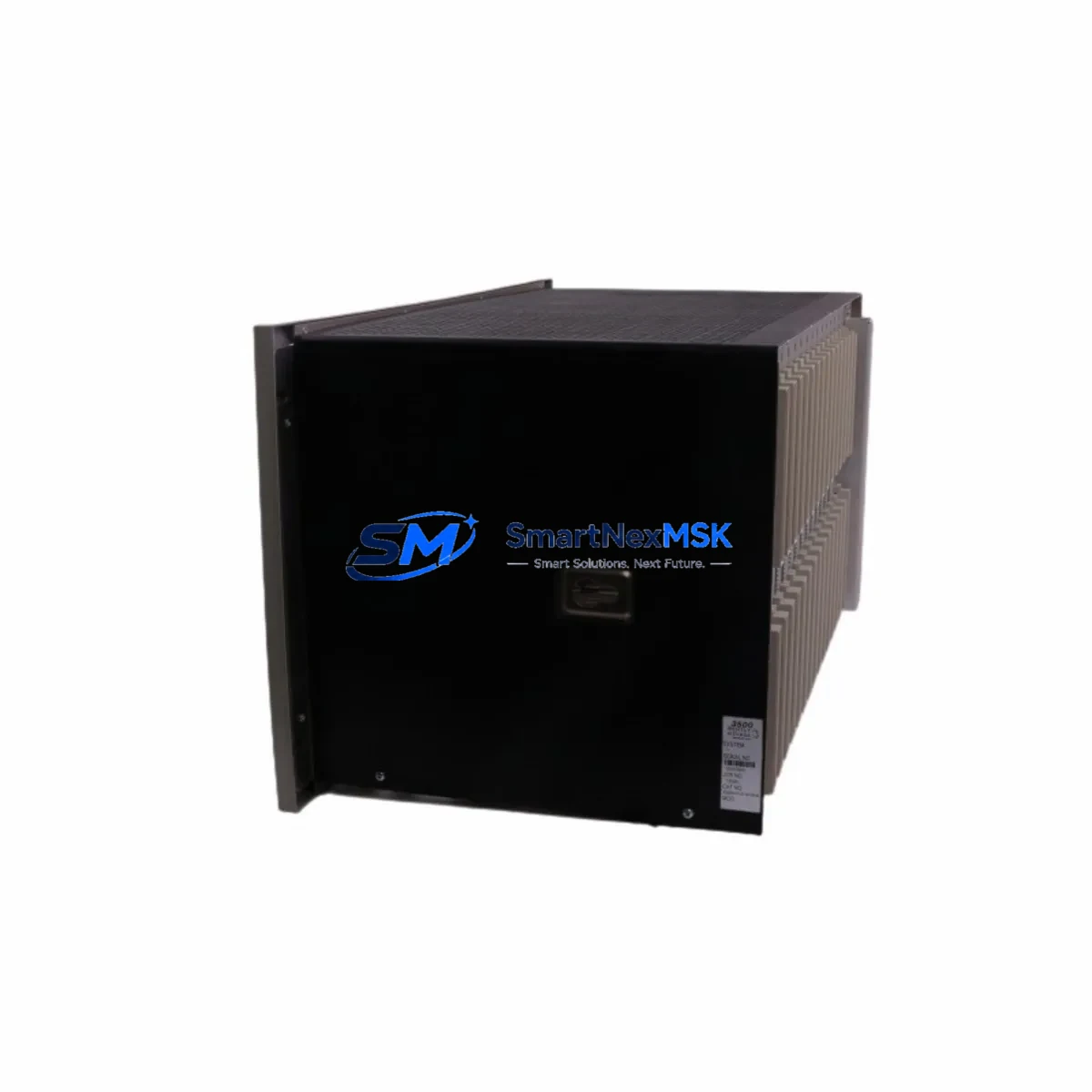

The Bently Nevada 3500/05-01-01-00-00-00 is a 16-slot system chassis designed as the structural and power backbone of the Bently Nevada 3500 Series Machinery Protection System. As legacy 3500 Series installations approach end-of-service milestones, this chassis serves as the primary retrofit anchor — enabling plant engineers to rebuild, expand, or fully replace aging protection racks without redesigning the surrounding control architecture. Whether you are recovering from a failed chassis, upgrading a brownfield turbine protection panel, or consolidating multiple legacy racks into a single modernized enclosure, the 3500/05-01-01-00-00-00 provides the physical and electrical foundation for a smooth, low-risk migration.

This chassis accommodates the full range of 3500 Series I/O and communication modules, including vibration monitors, temperature monitors, relay output modules, and communication gateway cards. Its backplane architecture supports both standard and enhanced power configurations, making it compatible with the 3500/15 Power Supply Module and the 3500/15-05-00-00 enhanced variant. When planning a retrofit, engineers must verify the existing power budget against the total module draw — particularly when adding new I/O channels or replacing older single-channel cards with modern dual-channel equivalents such as the 3500/40M or 3500/42M proximity monitor modules.

Upgrade Compatibility Table

Parameter Details
SKU / Part Number 3500/05-01-01-00-00-00
Brand / Manufacturer Bently Nevada (Baker Hughes)
Series Compatibility Bently Nevada 3500 Series Machinery Protection System
Chassis Slot Count 16 slots
Backplane Interface 3500 Series proprietary backplane bus
Power Supply Compatibility 3500/15, 3500/15-05-00-00 Power Supply Modules
Communication Module Support 3500/92 Ethernet, 3500/93 Modbus, 3500/94 Profibus gateway cards
I/O Module Compatibility 3500/40M, 3500/42M, 3500/44M, 3500/45, 3500/50M, 3500/60, 3500/61, 3500/70M
Installation Requirement 19-inch rack mount; DIN rail adapter available for panel retrofit
Replacement Recommendation Direct drop-in replacement for same-SKU chassis; verify slot assignments and module addresses before power-up
Commissioning Focus Module address DIP switches, I/O terminal block re-termination, Keyphasor signal routing, communication link re-establishment
Warranty 12-Month Warranty — covers manufacturing defects and functional failures under normal operating conditions

Retrofit Planning for Existing Automation Systems

A successful 3500/05-01-01-00-00-00 chassis retrofit begins well before the maintenance window opens. The first step is a full slot-map audit of the existing rack: document every installed module by slot position, part number, and configured channel address. This is critical because the 3500 Series uses slot-based addressing — the 3500/20 Rack Interface Module (RIM), which manages communication between the chassis and the host DCS or historian, must be re-seated in its original slot to preserve the existing Modbus or OPC-DA tag map without requiring a full re-configuration of the upstream control system.

Terminal block wiring is the most time-sensitive task during the physical swap. Each I/O module in the 3500 Series uses dedicated terminal blocks that plug into the rear of the chassis. If the existing terminal blocks are in good condition, they can be unplugged from the old chassis and transferred directly to the new 3500/05-01-01-00-00-00 without re-terminating field wiring — a significant time saving that can reduce chassis swap time from several hours to under 60 minutes. However, if the terminal blocks show signs of corrosion, heat stress, or damaged locking tabs, replacement with new 3500-series compatible terminal assemblies is strongly recommended before re-energizing the system.

Power sequencing is another critical consideration. The 3500/15 Power Supply Module should be the last component connected and the first to be de-energized during the swap. Before powering up the new chassis, verify that the AC input voltage matches the power supply’s configured range (typically 85–264 VAC auto-ranging) and that the chassis ground lug is bonded to the panel earth bus. Floating ground conditions have been known to cause spurious alarms on vibration channels, particularly on proximity probe inputs handled by the 3500/40M or 3500/42M modules.

For sites migrating from an older 3300 Series or 1900 Series protection system to the 3500 platform, the chassis retrofit is typically accompanied by a full I/O module replacement. In these cases, the Keyphasor signal — used for phase reference in rotor dynamics analysis — must be re-routed to the 3500/17 Keyphasor Module, which occupies a dedicated slot in the new chassis. Communication protocol migration from legacy RS-232 or RS-485 links to Ethernet-based Modbus TCP is handled by the 3500/92 Communication Gateway, which can be pre-configured and bench-tested before the field installation window begins. This approach allows the engineering team to validate the tag map, alarm setpoints, and historian connectivity in a controlled environment, dramatically reducing the risk of configuration errors during the live cutover.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500 Series chassis replacement requires a structured pre-outage preparation protocol. Begin by exporting the full rack configuration using System 1 software or the Rack Configuration Utility — this creates a backup of all module parameters, alarm setpoints, transducer scale factors, and communication settings that can be restored to the new chassis in minutes rather than hours. Store this configuration file on an isolated engineering laptop and verify it opens correctly before the maintenance window begins.

During the physical swap, maintain field wiring continuity by leaving all terminal blocks plugged into their respective I/O modules until the new chassis is physically mounted and grounded. Transfer modules one slot at a time, starting from the highest slot number and working toward slot 1, to avoid disturbing the 3500/20 RIM and 3500/15 power supply until the final steps. This sequential approach preserves the slot-address mapping and reduces the risk of accidentally re-seating a module in the wrong position.

After power-up, use the front-panel LED indicators on each module to confirm healthy status before re-enabling machine protection trips. The 3500 Series provides a dedicated “Inhibit” function that allows engineers to suppress trip outputs during commissioning without disabling alarm monitoring — use this feature to protect the machine while verifying that all channel readings, OK relay states, and communication links are functioning correctly. Once all channels are confirmed healthy and the upstream DCS or historian is receiving valid data, remove the inhibit and return the system to normal protective operation. A complete chassis swap, including configuration restore and channel verification, can typically be completed within a 4–6 hour planned outage window when pre-outage preparation has been thorough.

Retrofit Support FAQ

Q: Is the 3500/05-01-01-00-00-00 a direct replacement for my existing 3500 Series chassis?
A: Yes. The 3500/05-01-01-00-00-00 is a direct form-fit-function replacement for same-SKU chassis units. All 3500 Series I/O modules, power supplies, and terminal blocks are compatible without modification. Verify the slot count (16 slots) matches your existing rack before ordering.

Q: Can I transfer my existing terminal blocks and field wiring directly to the new chassis?
A: In most cases, yes. The 3500 Series uses plug-in terminal blocks that detach from the rear of the chassis without disturbing field wiring. Inspect each terminal block for physical damage before transfer. If any blocks show signs of wear, replace them with new compatible assemblies to ensure reliable contact.

Q: How do I verify communication compatibility after the chassis swap?
A: After restoring the rack configuration and powering up, confirm that the 3500/20 Rack Interface Module or 3500/92 Communication Gateway is showing a healthy link LED. Use your DCS engineering station or Modbus polling tool to verify that all configured tags are returning valid values. If using OPC-DA or OPC-UA, confirm the server connection is re-established and that historical data logging has resumed without gaps.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing to verify backplane integrity, slot connectivity, and power distribution before dispatch. Warranty claims are processed directly through SMARTNEXMSK — contact sales@smartnexmsk.com with your order number and a description of the fault.
