Bently Nevada 3500/20 125744-02 Spare for 3500 Automation

Bently Nevada 3500/20 125744-02 Maintenance-Ready Spare for 3500 Automation

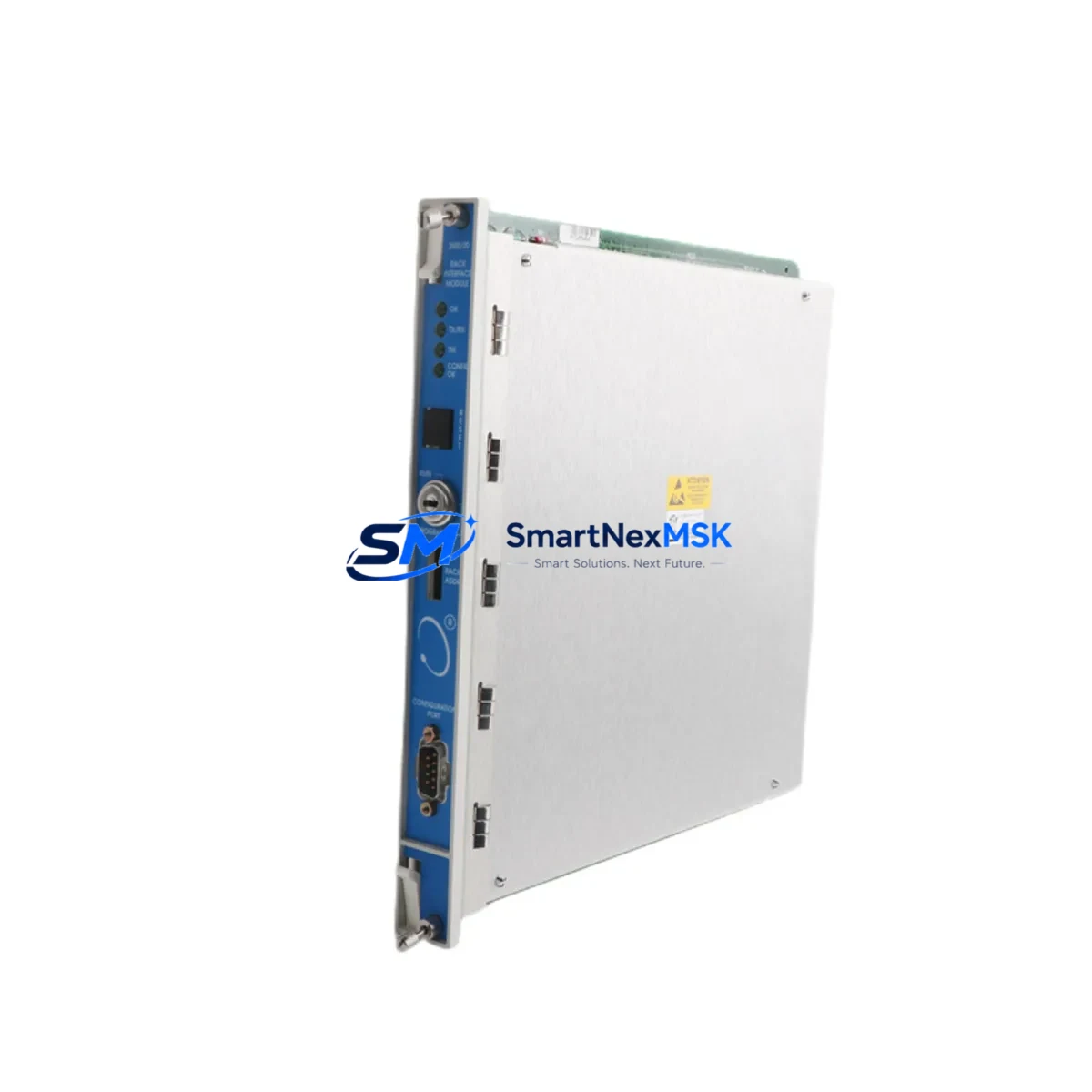

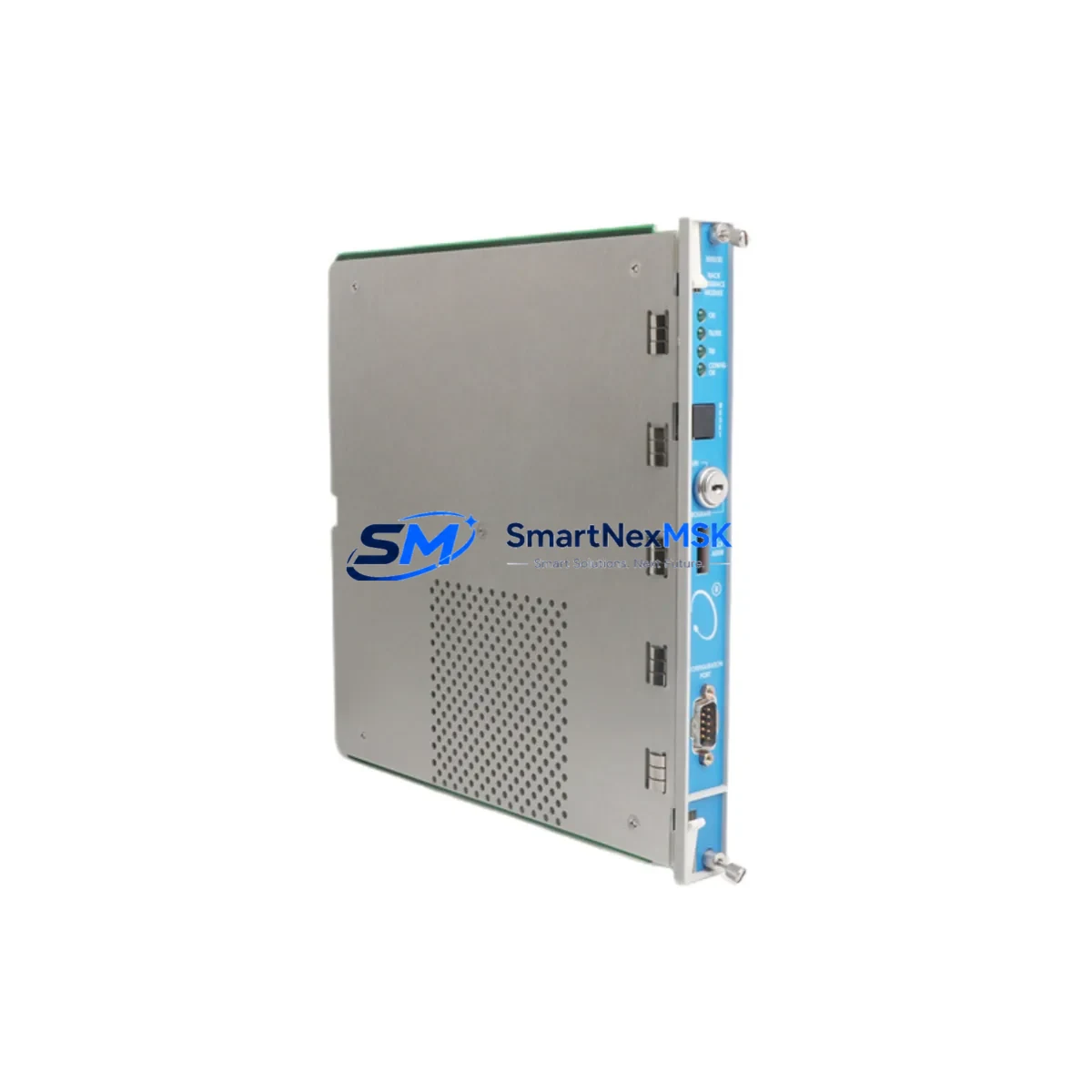

The Bently Nevada 3500/20 125744-02 is a Keyphasor & Proximity I/O Module engineered for continuous operation within the 3500 Series machinery protection system. As a critical interface between rotating machinery and the 3500 rack-based monitoring platform, this module processes Keyphasor signals that provide phase reference and rotational speed data essential for vibration analysis, balancing diagnostics, and trip logic. When this module fails or degrades, the entire protection chain for turbines, compressors, pumps, and motors is compromised — making rapid spare parts availability a non-negotiable element of any maintenance strategy.

Sourced as an original spare, the 3500/20 125744-02 is fully compatible with the Bently Nevada 3500 Series rack architecture. Each unit undergoes pre-shipment functional verification to confirm signal integrity, connector condition, and firmware compatibility before dispatch. With a 12-month warranty and documented traceability, this module supports both emergency breakdown recovery and planned preventive maintenance programs in refineries, power generation facilities, petrochemical plants, and heavy industrial environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3500/20 125744-02 Keyphasor I/O Module is flagged for replacement during a scheduled outage or emergency shutdown, maintenance engineers should treat the event as an opportunity to audit the full signal chain and adjacent rack components. The Keyphasor module does not operate in isolation — its health directly affects the accuracy of every vibration channel that relies on phase reference data.

Begin by inspecting the 3500/15 Power Supply Module (e.g., 127610-01 or 127610-02) that feeds the rack. A marginal power supply can cause intermittent Keyphasor signal dropouts that mimic module failure. Verify DC output voltage and ripple before condemning the I/O module itself.

Next, check the 3500/22M Transient Data Interface if installed, as it shares the backplane and can introduce communication faults that affect Keyphasor data logging. Inspect the 3500/32 4-Channel Relay Module for any trip relay contacts that may have been activated by a false Keyphasor alarm — relay contacts should be tested for continuity and proper reset.

The proximity probe cabling feeding the 3500/20 should also be inspected. Damaged or improperly terminated 3300 XL 8mm proximity probes and their associated 3300 XL extension cables are a common root cause of Keyphasor signal degradation. Verify gap voltage at the probe driver output (typically –10 VDC ±1 V at the set gap) before installing the replacement module.

For systems using the 3500/53 Overspeed Detection Module, confirm that the Keyphasor reference signal is correctly routed and that overspeed trip setpoints are re-validated after module swap. Similarly, if the rack includes a 3500/92 Communication Gateway Module for Modbus or OPC connectivity to a DCS or SCADA, verify that the Keyphasor channel mapping is intact post-replacement.

Maintenance planners should also stock the 3500/20 terminal block assembly and associated field wiring connectors as consumable spares. Connector wear and terminal oxidation are frequently overlooked failure modes that can cause signal noise even with a new module installed. A complete spare kit — module, terminal block, and probe cable — minimizes repeat callouts and reduces mean time to repair (MTTR).

For sites running legacy 3500 racks alongside newer System 1 Evolution condition monitoring software, ensure that the replacement module’s firmware revision is compatible with the installed System 1 version. Firmware mismatches can cause data dropouts or alarm suppression that are difficult to diagnose without version documentation.

Site Replacement Workflow

Step 1 — Isolation & Documentation: Before removal, document the current Keyphasor gap voltage, signal amplitude, and any active alarms in the 3500 rack display or System 1 interface. Photograph the existing wiring and terminal block orientation.

Step 2 — Safe Removal: The 3500/20 is hot-swap capable in most rack configurations, but confirm with site safety procedures. Loosen the module ejector handles, disconnect the field wiring terminal block, and slide the module out of the rack slot.

Step 3 — Inspection & Cleaning: Inspect the rack slot backplane connector for bent pins or contamination. Clean with appropriate contact cleaner if required. Inspect the field wiring terminal block for corrosion or loose terminations.

Step 4 — Module Installation: Insert the 3500/20 125744-02 replacement module into the rack slot, engage the ejector handles, and reconnect the field wiring terminal block. Verify that the module’s LED indicators show normal status (typically green RUN LED).

Step 5 — Commissioning & Verification: Re-measure Keyphasor gap voltage at the probe. Confirm that the 3500 rack display shows valid speed and phase reference data. Verify that no spurious alarms are generated. Re-validate overspeed trip setpoints if the 3500/53 is installed. Update the maintenance log with the replacement date, module serial number, and post-installation readings.

This workflow supports a target MTTR of under 2 hours for a planned replacement and under 4 hours for an emergency breakdown scenario, minimizing production loss and protecting rotating equipment from unmonitored operation.

Spare Parts Support FAQ

Q1: Is the 3500/20 125744-02 compatible with all 3500 Series rack configurations?
The 3500/20 125744-02 is designed for the standard Bently Nevada 3500 Series 19-inch rack. It is compatible with both full-size and half-rack configurations. Always verify the rack slot assignment and firmware revision against your system documentation before installation. If your rack uses a non-standard backplane revision, contact our technical team for compatibility confirmation prior to ordering.

Q2: What pre-shipment testing is performed on this module?
Each 3500/20 125744-02 unit undergoes functional verification including power-on self-test, Keyphasor signal input simulation, and connector integrity inspection before dispatch. Units are shipped with individual test records available upon request. This ensures that the module is operationally verified and reduces the risk of installing a defective spare during a critical maintenance window.

Q3: How should I manage spare inventory for the 3500/20 in a long-term maintenance program?
For facilities operating multiple 3500 Series racks, we recommend maintaining a minimum of one 3500/20 spare per four installed modules, or one per rack for critical machinery trains. Given that Bently Nevada 3500 Series components are mature-lifecycle products, securing long-term supply agreements or buffer stock is advisable. Our team can support blanket order arrangements and consignment stocking for high-volume maintenance programs.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance identified during installation. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported with replacement or repair at no additional cost. All warranty units are traceable to shipment documentation for audit compliance.
