Bently Nevada 3500/25 125792-01 Spare 3500 Automation

Bently Nevada 3500/25 125792-01 Maintenance-Ready Spare for 3500 Automation

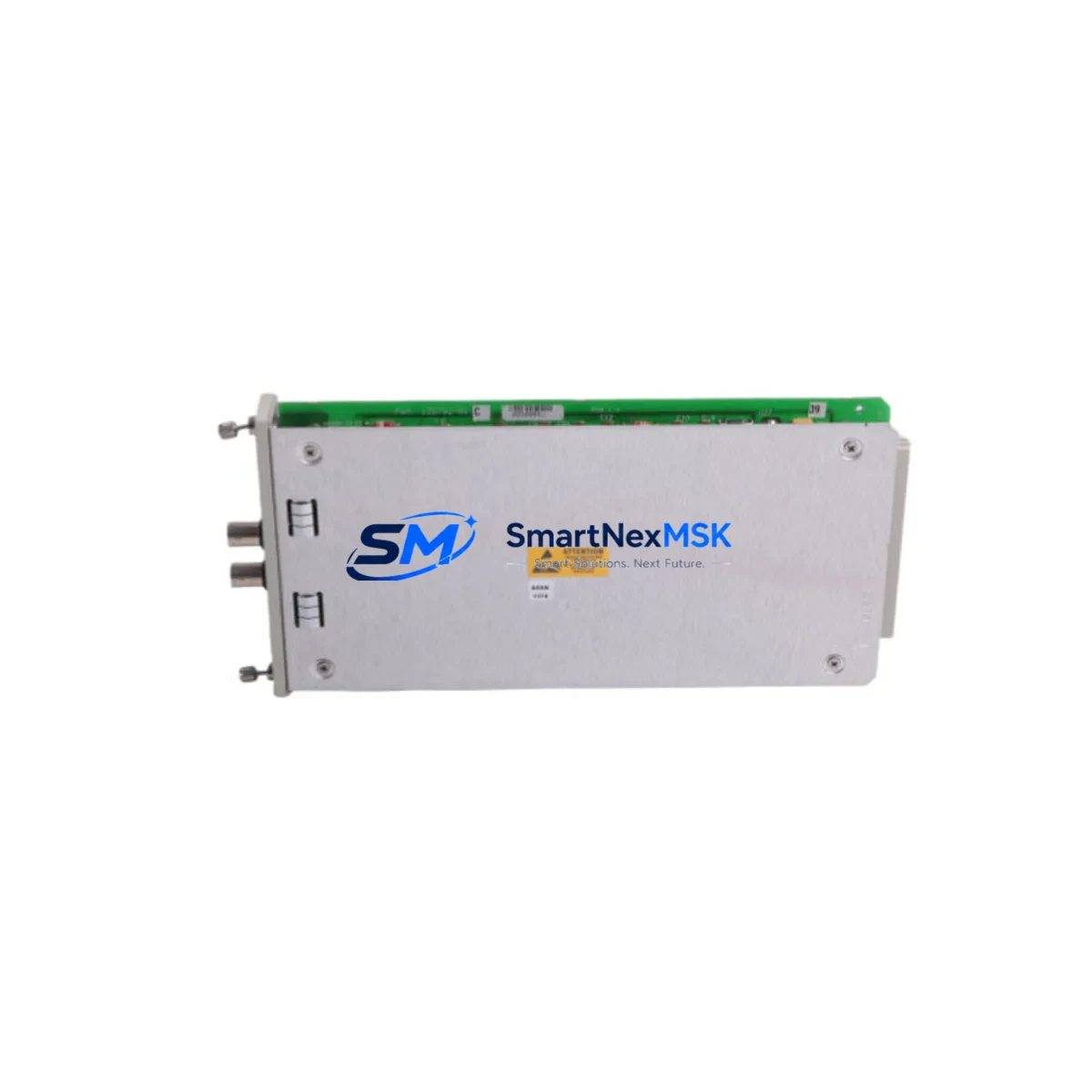

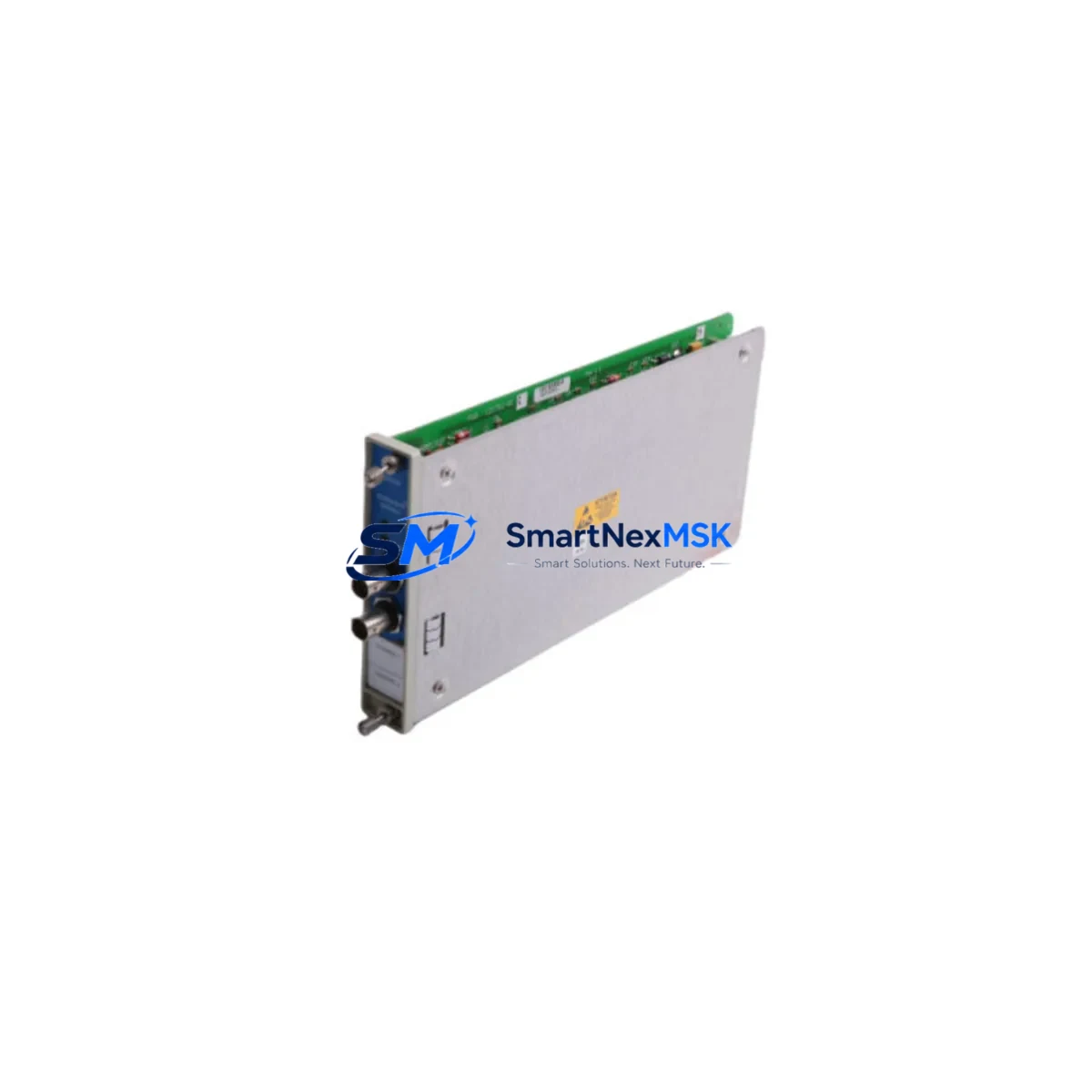

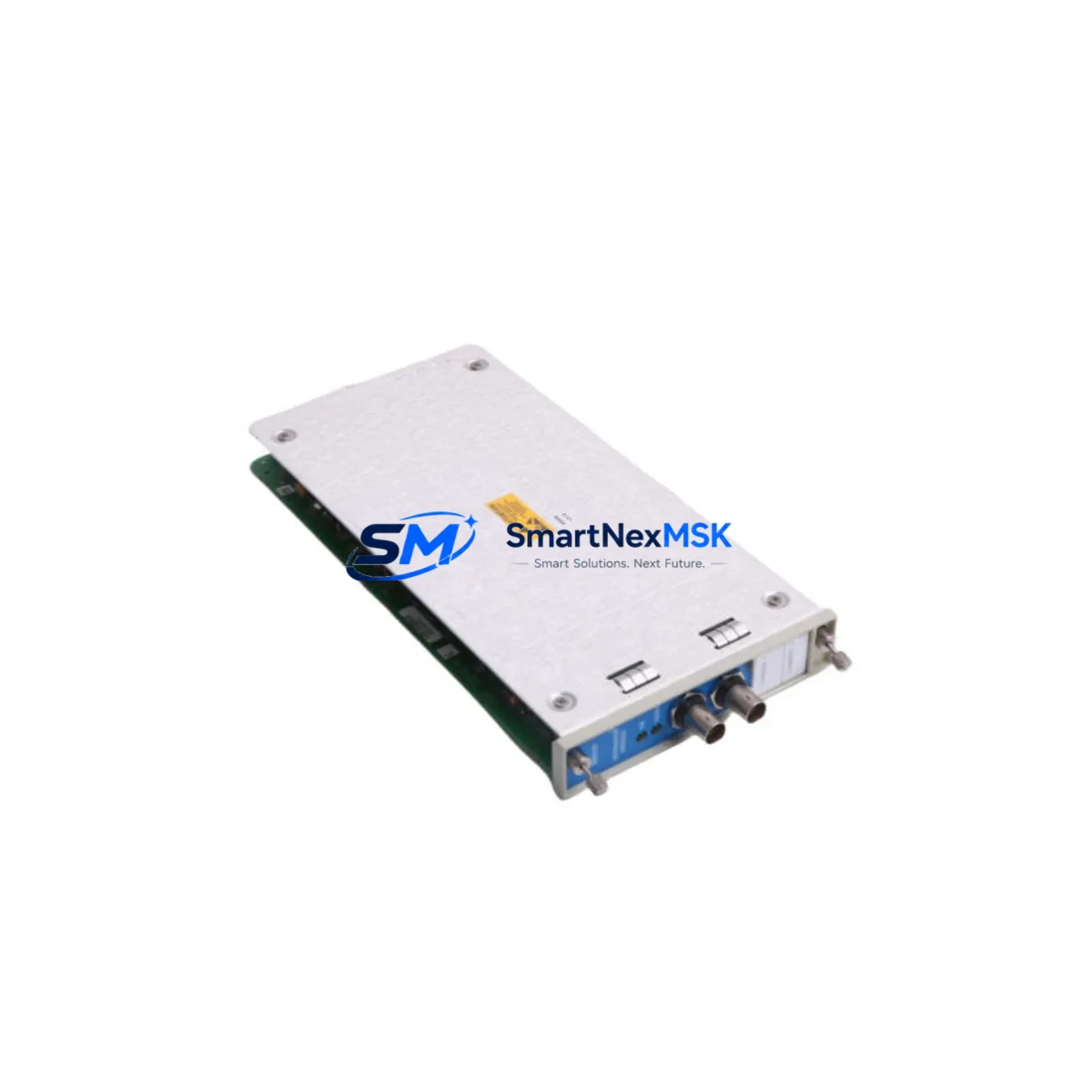

The Bently Nevada 3500/25 (Part No. 125792-01) is an original Keyphasor Module designed for the 3500 Series Machinery Protection System (MPS). As a precision timing reference component, it provides the phase reference signal that the 3500 rack relies on for accurate vibration vector analysis, transient data capture, and synchronous averaging across all connected monitor channels. For maintenance engineers managing rotating machinery — turbines, compressors, pumps, and gearboxes — the 3500/25 is a critical spare that directly determines the accuracy of every speed-referenced measurement in the protection system.

Sourced as an original Bently Nevada component, this unit ships fully tested and verified against factory electrical specifications. Each module undergoes pre-shipment functional checks covering signal output integrity, power draw, and communication handshake with the 3500 rack backplane. A 12-month warranty is included, covering defects in materials and workmanship under normal industrial operating conditions.

For procurement engineers, stocking a verified 3500/25 spare eliminates the risk of extended lead times during unplanned outages. The 3500 Series is widely deployed across oil and gas, power generation, petrochemical, and heavy manufacturing facilities, and replacement modules for legacy racks are increasingly difficult to source on short notice. Maintaining at least one certified spare in your control room inventory is a recognized best practice for any site running continuous rotating machinery protection.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 3500/25 Keyphasor Module, a disciplined maintenance engineer will treat the replacement as an opportunity to audit the surrounding system. The Keyphasor signal feeds directly into every speed-referenced channel in the rack, so any degradation in the module’s output affects the entire protection system’s vector accuracy.

Begin by verifying the 3500/05 Rack backplane power rails and slot connectors for corrosion or mechanical wear before seating the new module. Inspect the 3500/15 Power Supply Module output voltages — an under-voltage condition on the backplane is a common root cause of Keyphasor signal instability that is often misdiagnosed as a module fault. Check the 3500/20 Rack Interface Module (RIM) for firmware version compatibility if the rack has been partially upgraded.

On the field wiring side, inspect the proximity probe cables and connectors feeding the Keyphasor inputs. The 3300 XL 8mm Proximity Transducer System (probe, extension cable, and Proximitor sensor) is the most common Keyphasor signal source in 3500 installations; verify that the Proximitor output voltage is within the –10 VDC to –18 VDC gap voltage range specified for the 3500/25 input. A worn or misaligned probe will produce a noisy Keyphasor signal that no module replacement can correct.

For sites using magnetic pickups as the Keyphasor source, confirm that the 330180 Magnetic Speed Pickup air gap and signal amplitude are within specification. Also review the 3500/32 4-Channel Relay Module and 3500/33 16-Channel Relay Module relay output states — a Keyphasor fault condition may have triggered relay outputs that need to be manually reset after the module swap.

If the rack includes a 3500/92 Communication Gateway Module for Modbus or OPC connectivity to the plant DCS or SCADA, verify that the Keyphasor channel mapping in the gateway configuration still matches the new module’s slot assignment. Slot reassignment after a module replacement is a common source of post-maintenance communication errors. Finally, check the 3500/42M Proximitor/Seismic Monitor channels that reference the Keyphasor for vector phase — recalibrate or re-reference as required after the module is confirmed operational.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record all current alarm and danger setpoints, channel configurations, and Keyphasor assignments from the rack’s System 1 or Rack Configuration Software before removing the module. This protects against configuration loss during the swap.

Step 2 — Safe isolation: Coordinate with the control room to place the affected Keyphasor channels in bypass mode (if the system supports it) to prevent spurious trips during the physical replacement. Do not power down the entire rack unless site safety procedures require it — the 3500 rack is designed for hot-swap module replacement in most configurations.

Step 3 — Module extraction and inspection: Remove the 3500/25 using the standard module ejector handles. Inspect the backplane connector pins for damage or contamination. Clean with appropriate contact cleaner if required before inserting the replacement unit.

Step 4 — Insertion and verification: Seat the replacement 3500/25 firmly until the front panel latch engages. Observe the module’s LED status indicators — a solid green OK LED confirms successful backplane communication and power-up. A flashing or red LED indicates a configuration mismatch or hardware fault requiring further investigation.

Step 5 — Functional test: With the machinery running (or using a signal simulator), verify that the Keyphasor waveform is visible and clean on the System 1 software or rack front-panel display. Confirm that all speed-referenced channels are displaying valid vector data before removing the bypass and returning the system to normal protection mode.

Step 6 — Documentation update: Log the replacement in the site maintenance management system (CMMS), record the new module’s serial number, and update the spare parts inventory to reflect the consumed unit.

Spare Parts Support FAQ

Q: Is this a genuine Bently Nevada 3500/25 module or a third-party compatible?
A: This is an original Bently Nevada 3500/25 (125792-01) module. We do not supply third-party clones or reverse-engineered alternatives. All units are sourced from authorized channels and verified against Bently Nevada factory specifications before shipment.

Q: What pre-shipment testing is performed on the 3500/25?
A: Each unit undergoes functional verification including backplane power-up, LED status confirmation, Keyphasor input signal response, and output signal integrity checks. A test report is available upon request for quality-critical procurement processes.

Q: How do I confirm compatibility with my existing 3500 rack before ordering?
A: The 3500/25 (125792-01) is compatible with all standard 3500/05 rack configurations. Provide your rack serial number and current firmware version when placing your order and our technical team will confirm compatibility, including any known firmware dependencies for your specific installation.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and component failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental range. Warranty claims are processed with a replacement-first policy to minimize your downtime.
